Waveshare DS5 Dongle - DualSense Controller Dongle
Print Profile(2)
Description

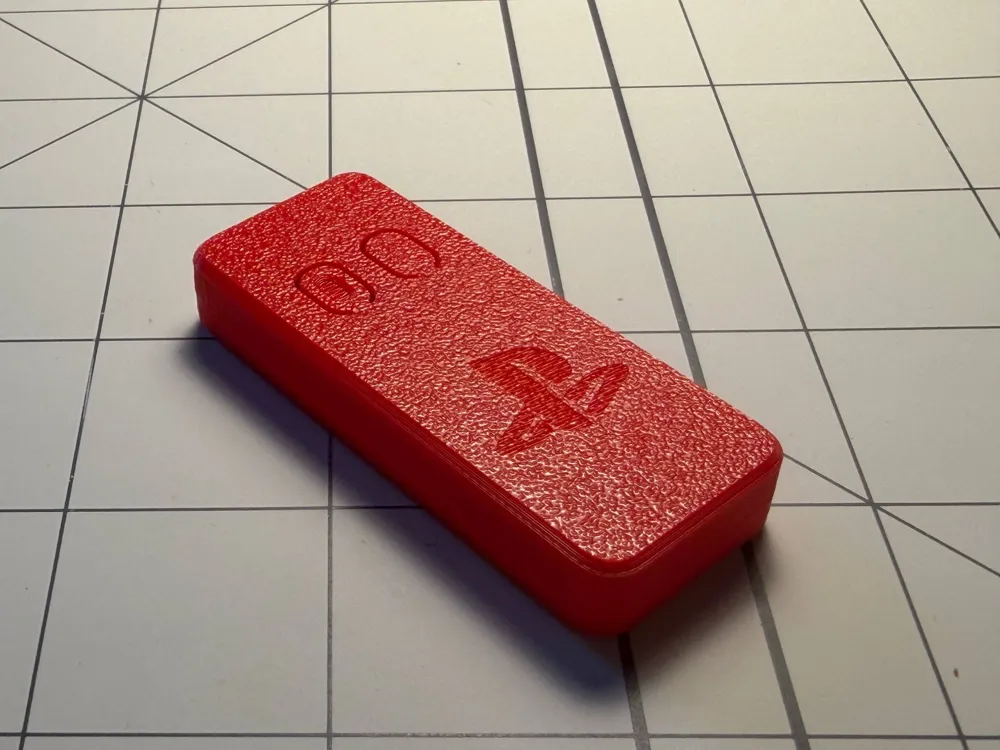

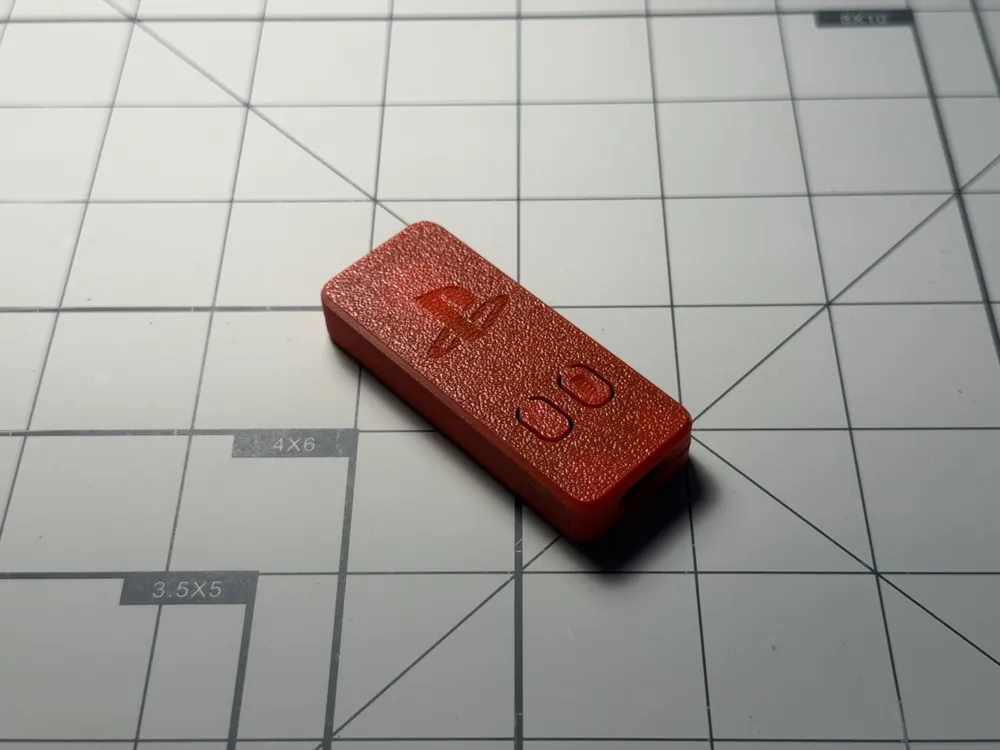

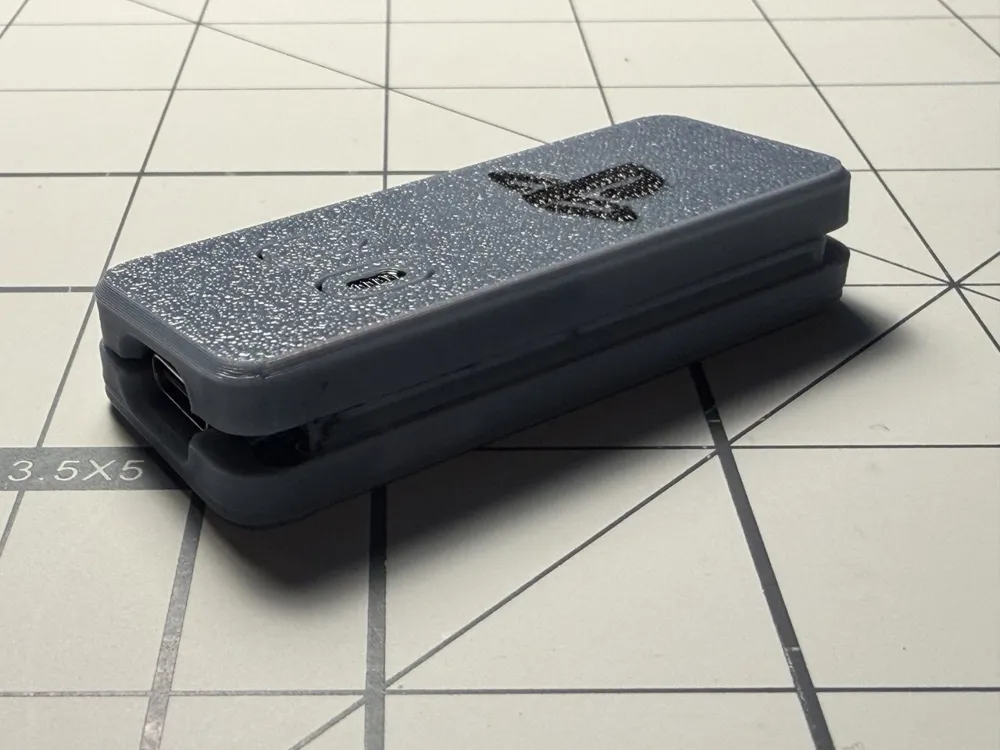

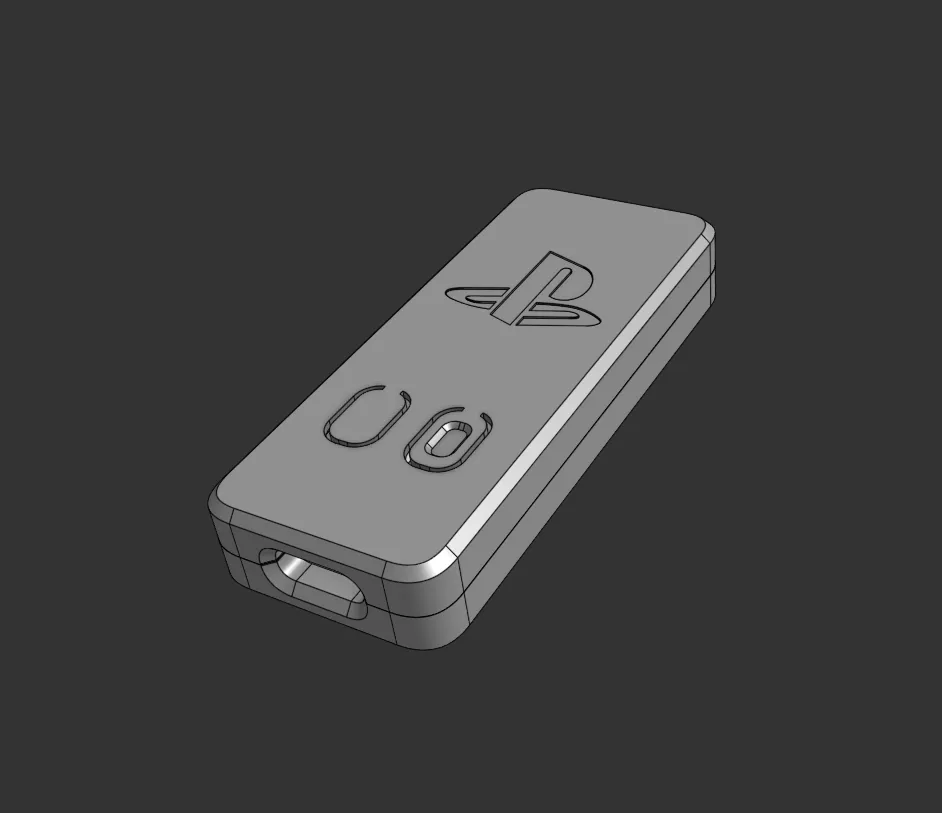

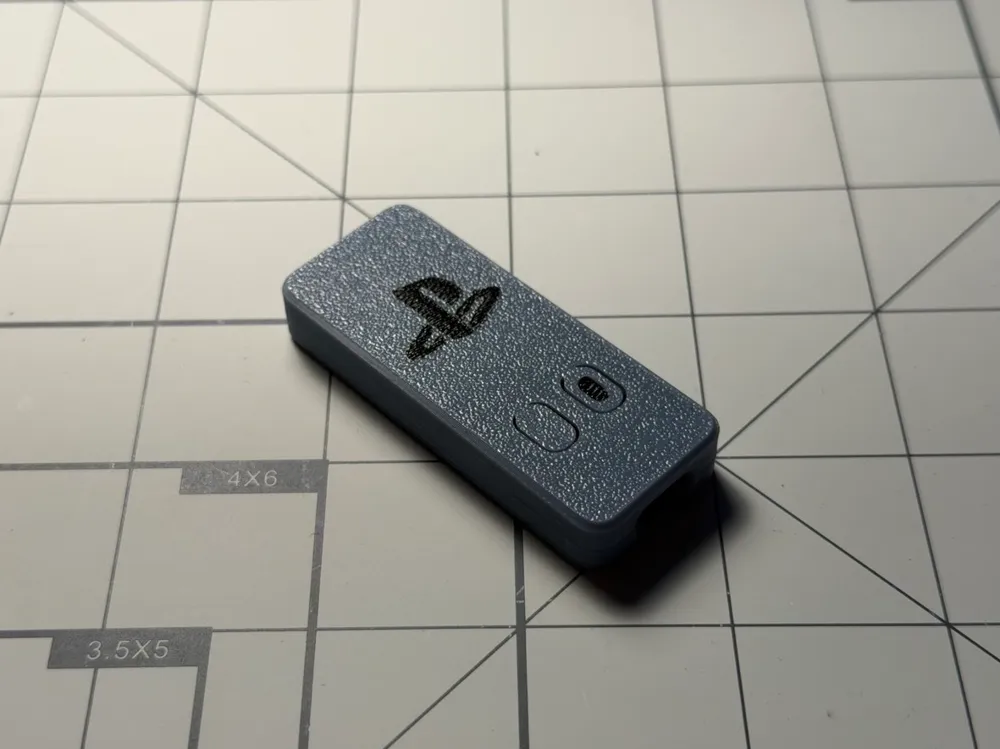

I wanted a case for my DualSense dongle, so I modeled it up with inspiration from the other models already made. Both BOOT and RESET buttons are available to press, with the BOOT button marked differently by a small indent.

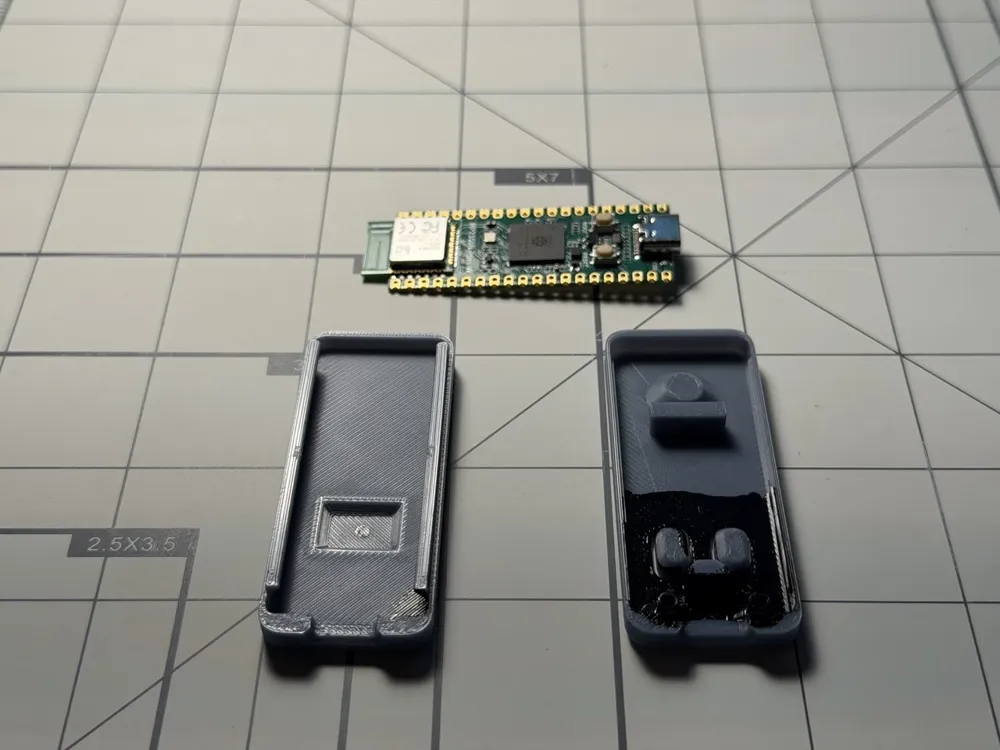

This is meant for the Waveshare RP2350B-Plus-W board, not the standard Raspberry Pi Pico 2/2W.
No supports are needed when printing. Use a 0.4mm nozzle, and any layer height is probably fine. No glue or hardware is needed to assemble, it is snap-fit!

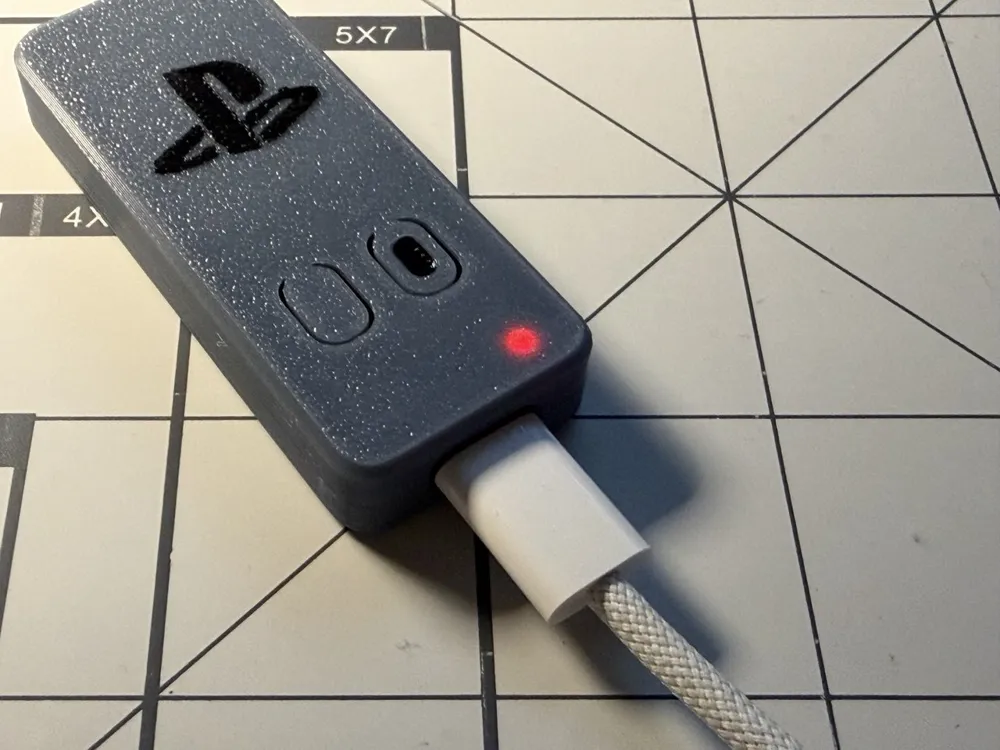

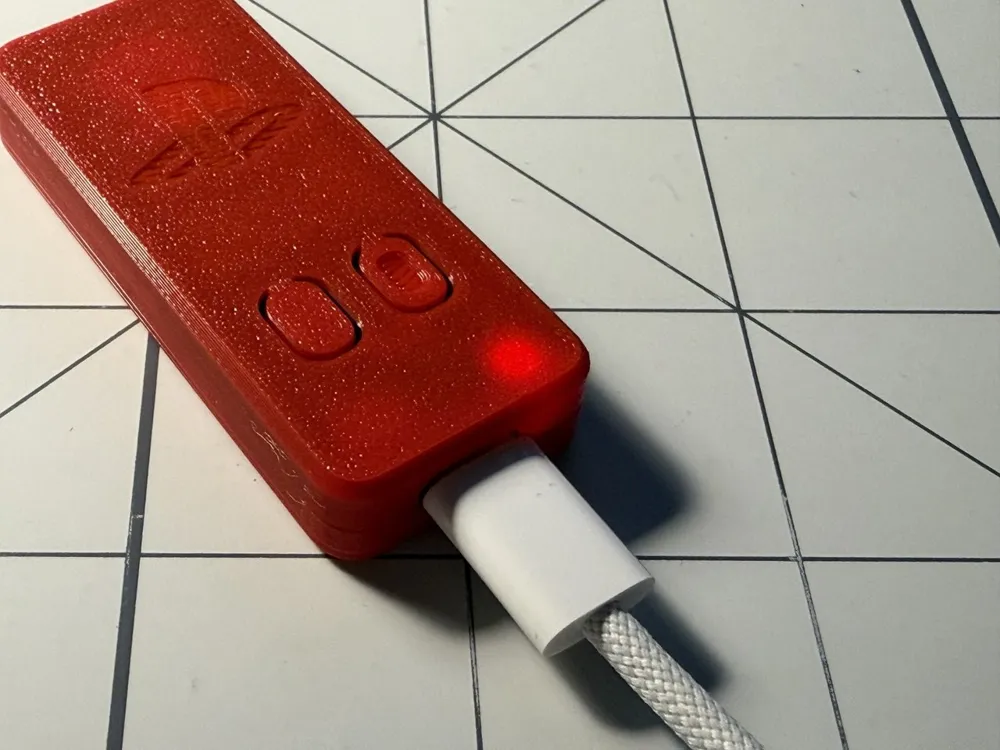

The LED light bleed can be mitigated from propagating throughout the case by painting the inside of the case with any kind of opaque paint. I used a black Sharpie paint marker and it works great.
If you have any concerns, comments, or questions, please let me know.
Make a DualSense DS5 Dongle here: https://github.com/awalol/DS5Dongle
Thanks to these other models for inspiration. Download or print them too!
https://www.printables.com/model/1722146-pico-2-case-for-dualsense-dongle
https://www.printables.com/model/1751938-remix-raspberry-pico-case-ps-logo-dualsense-dongle
https://www.printables.com/model/1770000-waveshare-rp2350b-plus-w-ds5-dongle-case
