VW Passat B7 Rear Armrest Dual USB PD Charge Mount
Print Profile(1)
Description

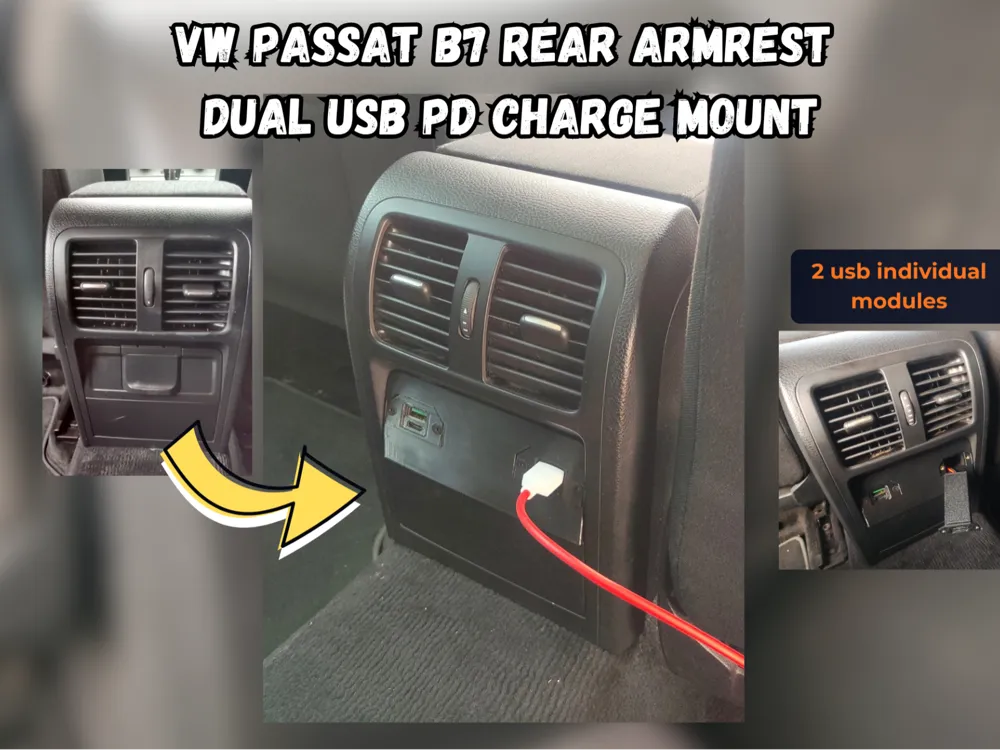

VW Passat B7 Rear Center Armrest Dual USB Charger Upgrade (OEM+)

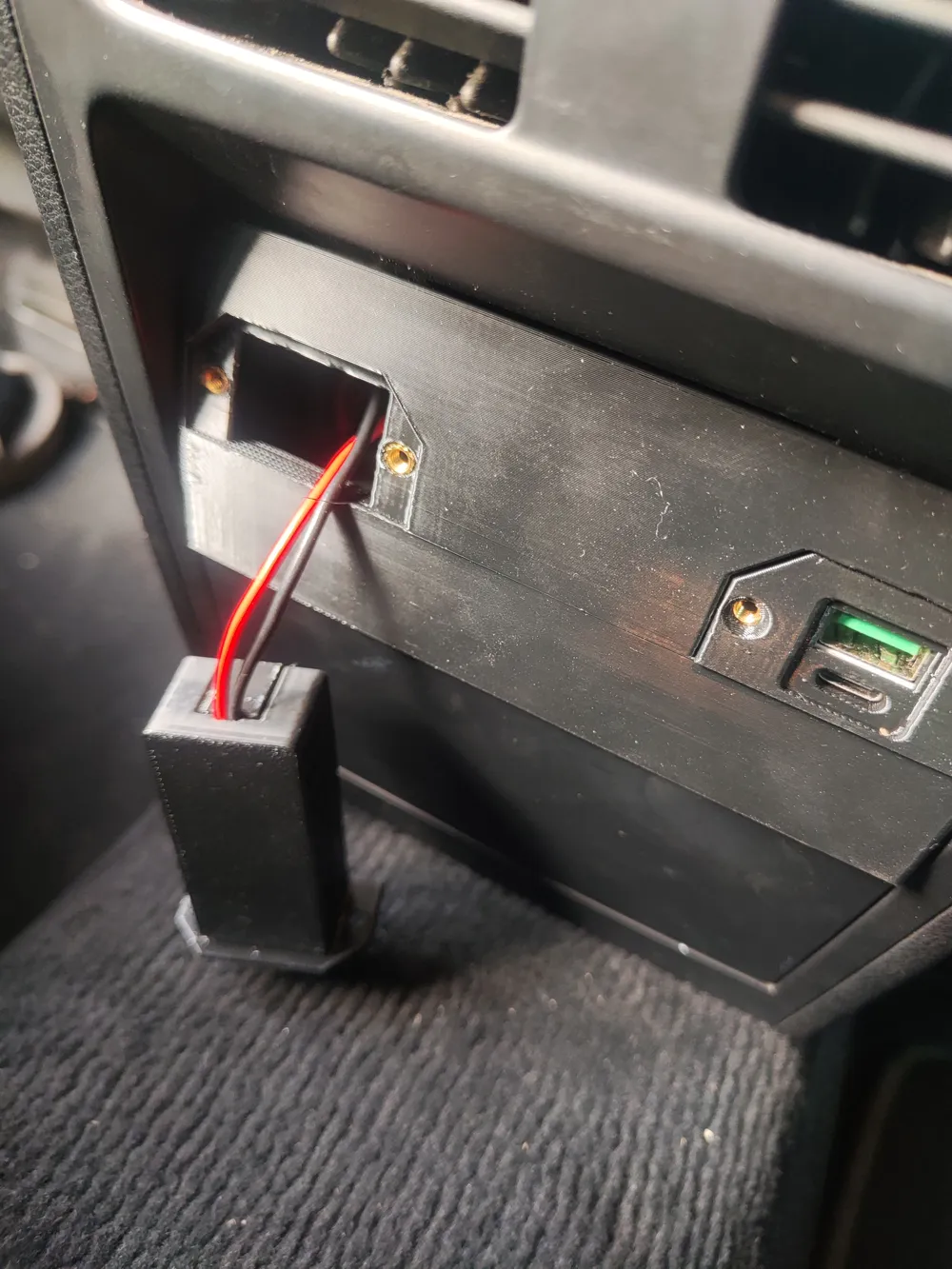

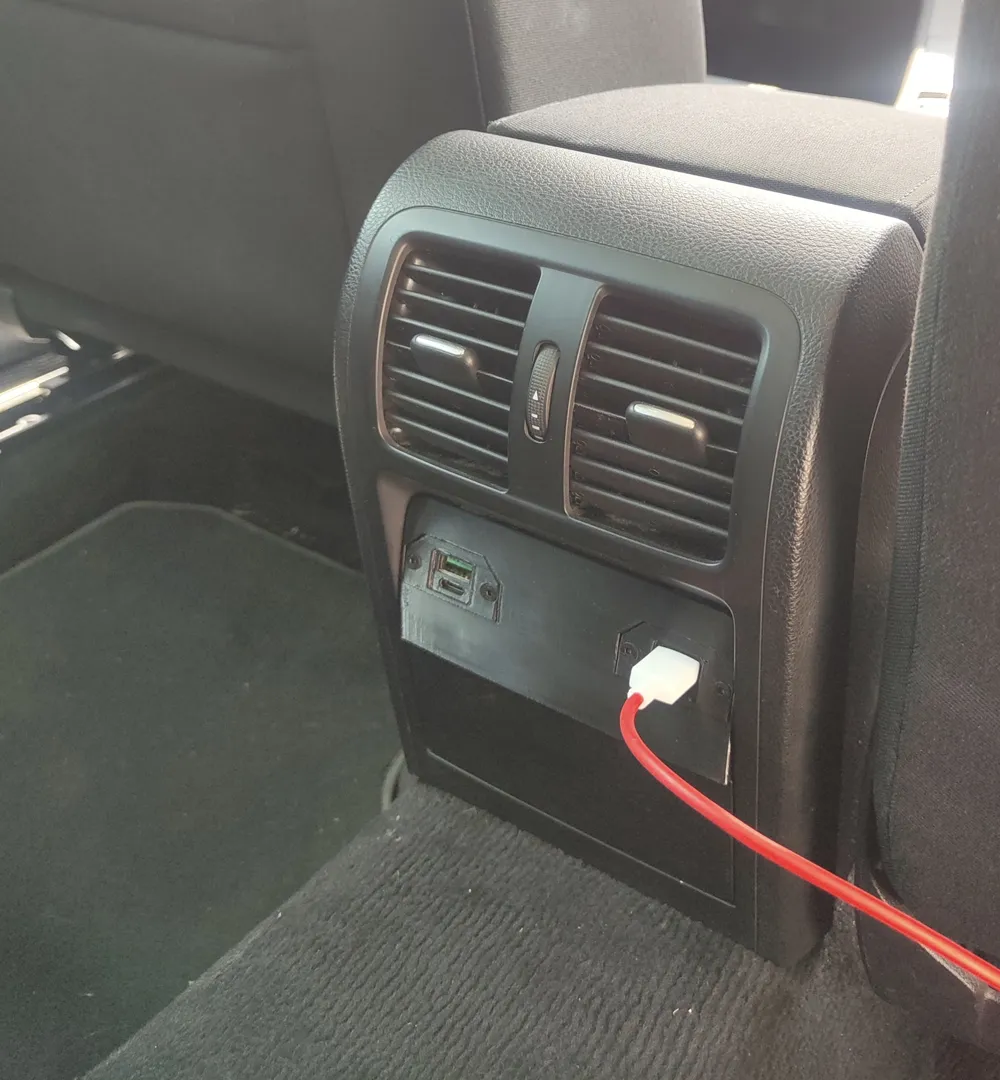

Replace the factory rear cigarette lighter socket in your Volkswagen Passat B7 with a clean, dual USB fast-charging station for rear passengers.

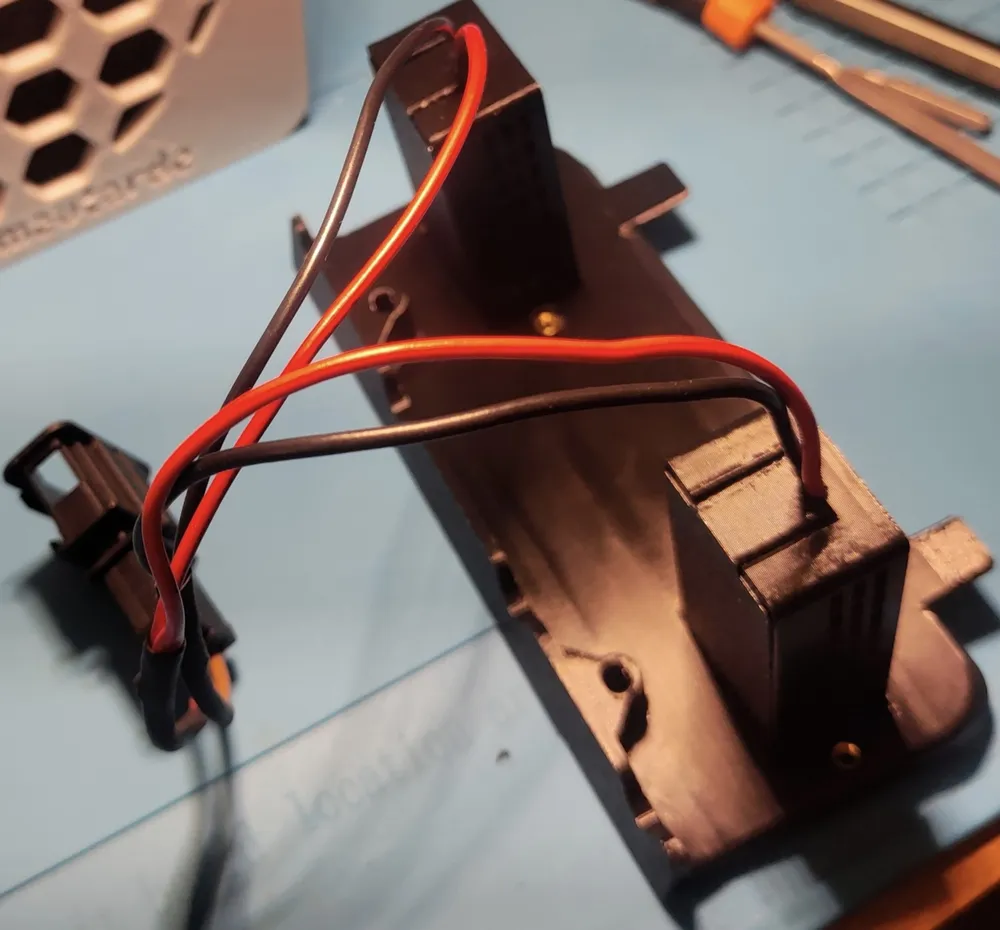

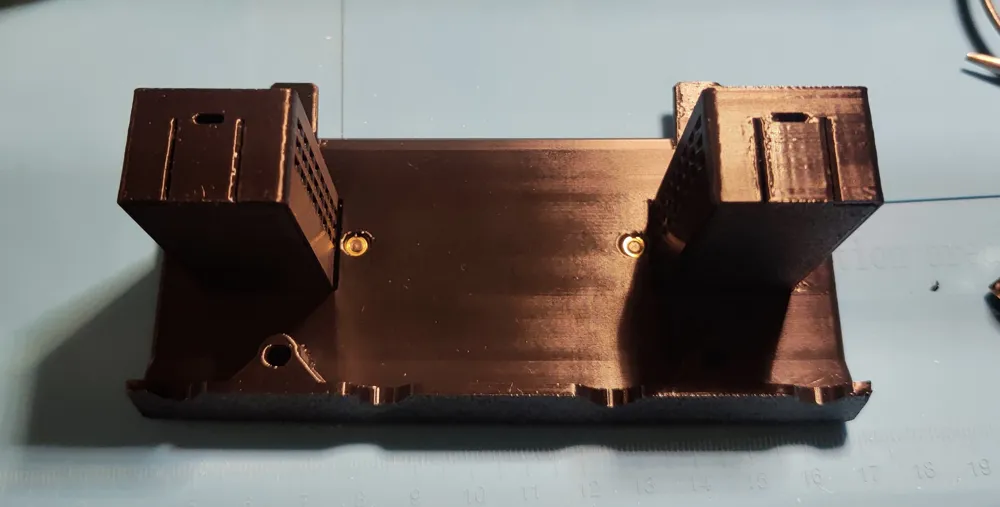

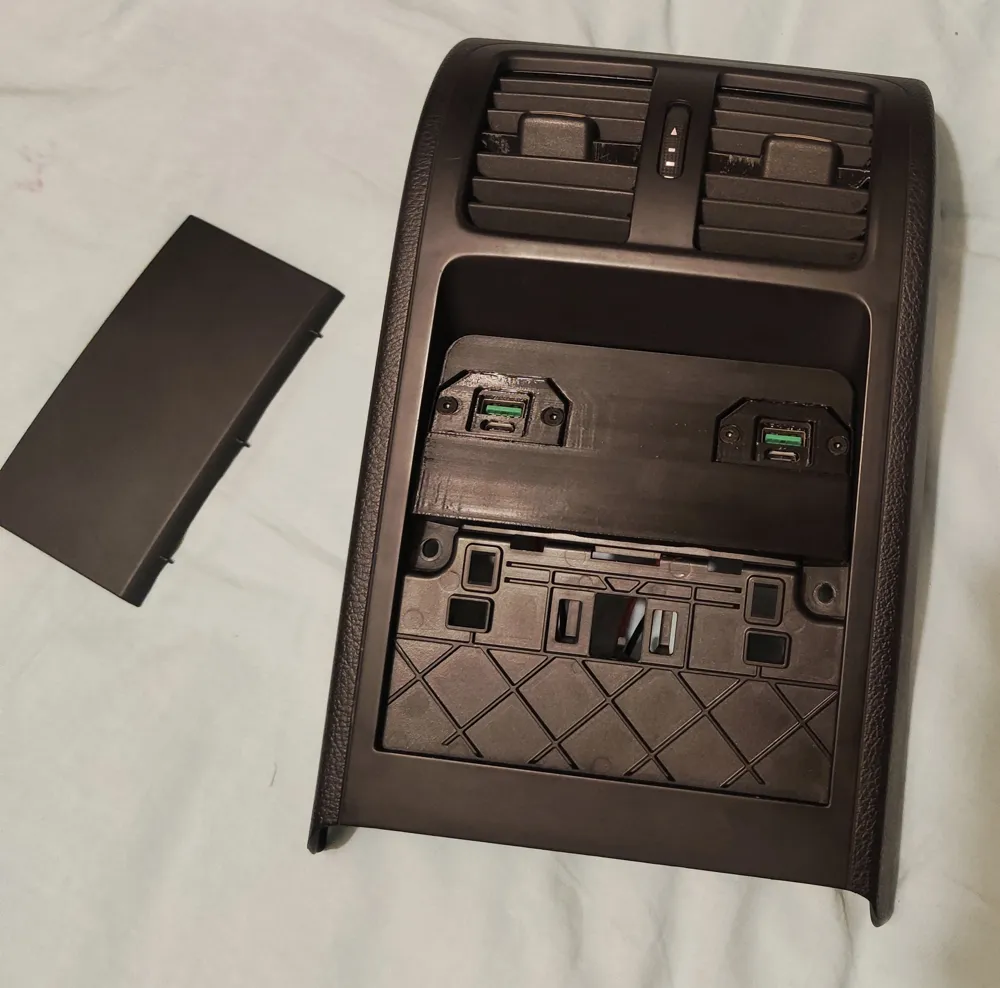

This custom faceplate is designed to perfectly mount up to two SW3516/SW3518 USB modules enclosed in their dedicated cases.
🛠️ Hardware Required:
- Enclosures: 2x SW3518/SW3516 Enclosures (Required model, see link below).
- USB Chargers : 2x SW3518/SW3516 PCB Board (🔗Get Them AliExpress-Link)
- Inserts: 4x M3 L3 OD4.5 Heat-set inserts for securing the module cases to the plate (🔗Get Them AliExpress-Link)
- Screws: 4x Matching M3x4 CSK screws (🔗Get Them AliExpress-Link)
🖨️ Recommended Print Settings (Tested for Car Interiors):
- Material: PETG minimum (Highly recommended and tested! Avoid PLA entirely as it will warp and melt during hot summer days inside the vehicle). ABS/ASA can also be used if your printer supports it.
- Wall Loops: 2 perimeters (Tested and perfectly sufficient for daily use).
- Supports: No
🔗 Required Model for Assembly: To complete this print, you must download and print 2x the dedicated module cases available here: https://makerworld.com/en/models/3010868
