Description

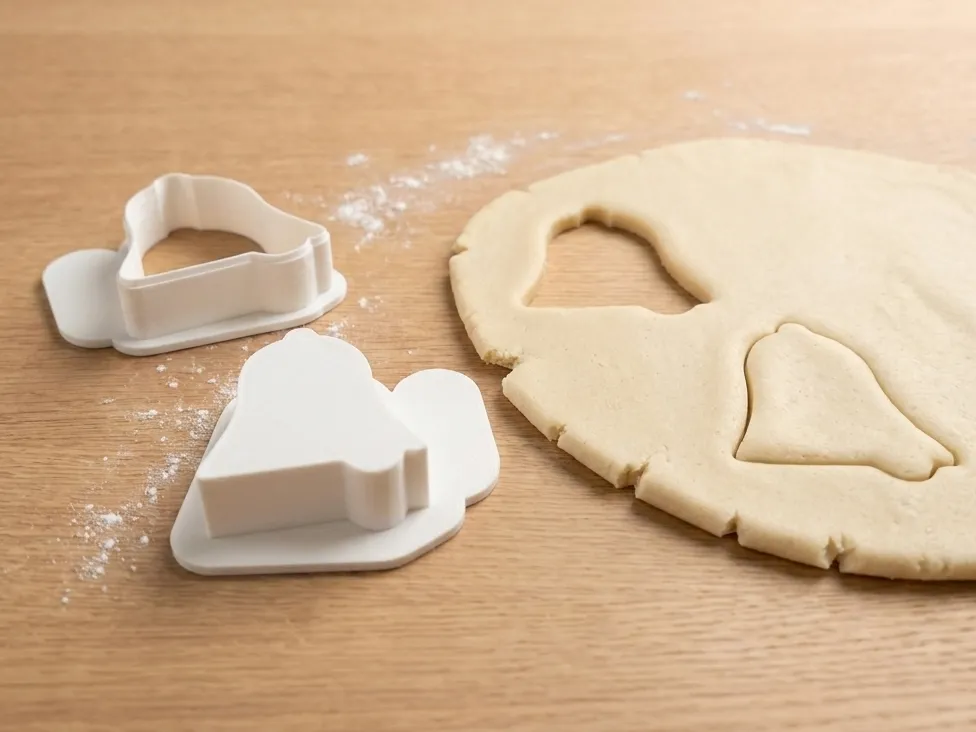

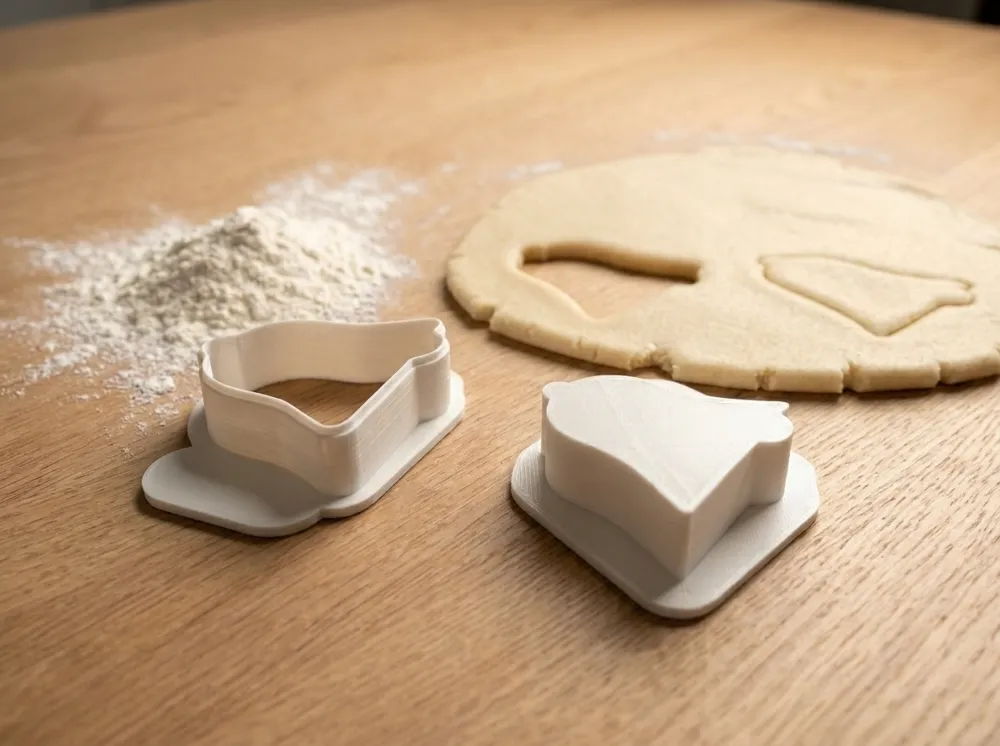

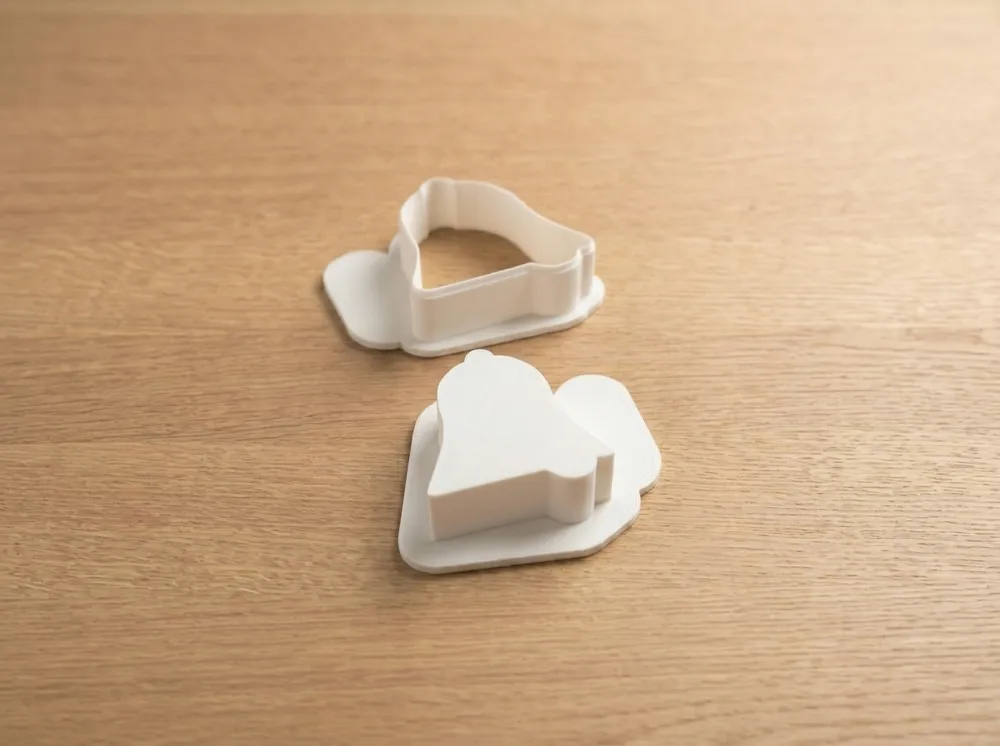

This parametric bell cookie cutter allows you to easily generate custom cutter and matching pusher designs directly in the MakerWorld Customizer. The design features a classic bell silhouette with smooth curved sides and a gently flared base, making it ideal for Christmas baking, holiday treats, wedding favors, church events, festive celebrations, and decorative cookies.

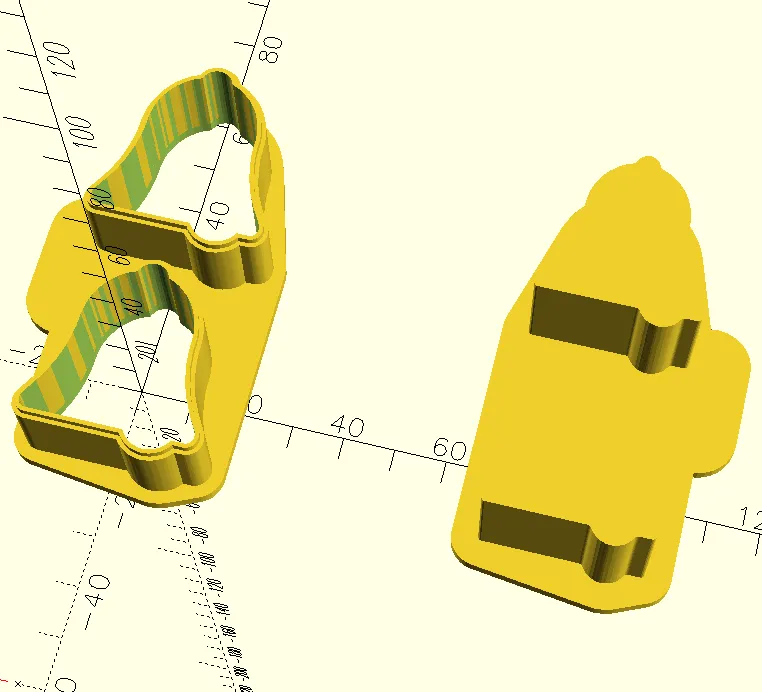

You can adjust the bell width and height, overall scale, number of rows and columns, cutter depth, spacing between shapes, and optional pull tab placement. The default settings are preconfigured for reliable generation, clean geometry, strong walls, and balanced proportions, so most users can simply adjust size and layout as needed.
The customizer includes a built-in 300 × 300 mm build plate limit to prevent oversized models from being generated. If your chosen settings exceed this size, simply reduce the scale, spacing, or number of bell shapes until it fits within the limit.
Disclaimer: Large and multiplied generation of this object can take a long time to generate in the customizer.
Customizable Parameters
Bell Width & Height – Set the overall size of each bell
Bell Scale – Uniformly resize the bell while keeping proportions
Columns & Rows – Choose how many bells wide and deep
Shape Spacing – Adjust the gap between each bell
Cutter Depth – Adjust the wall height
Wall Thickness, Brim Width & Base Thickness – Control strength and base stability
Tab Mode & Tab Size – Enable pull tabs and adjust their size
Tab Position & Rotation – Choose tab placement and orientation for cutter and pusher
Tab Nudge – Fine-tune tab alignment
Tab Overlap Factor – Adjust how much the tab overlaps the base
Taper Height, Tip Thickness & Taper Layers – Control the cutting edge profile and optimize geometry
Tab Protrusion Ratio & Tab Tip Ratio – Shape the pull tab profile
Shape Offset X & Y – Fine-tune the bell placement
Pusher Clearance – Fit adjustment between cutter and pusher
Pusher Extra Length – Adjust how far the pusher extends above the cutter
Pusher Brim Width – Control pusher base stability
Part to Show – Preview cutter, pusher, or both in the customizer

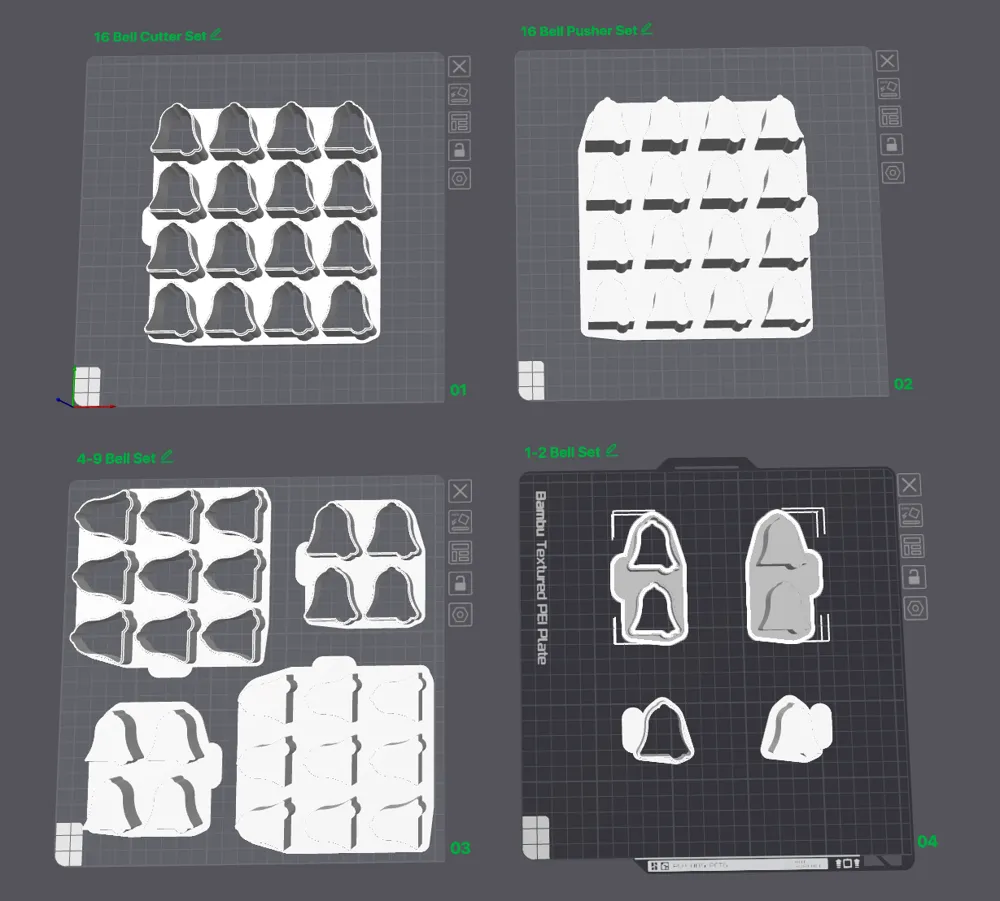

Example STL files and ready-to-print 3MF project files are included for quick printing without customization. This design is perfect for Christmas cookies, holiday baking, wedding favors, seasonal treats, festive gifts, and creative decorating projects.
