A simple and clean solution for Ethernet connections in drywall ceilings. If it helps your project, a Boost is greatly appreciated!
This model was designed to create clean and professional Ethernet outlets in suspended drywall ceilings.

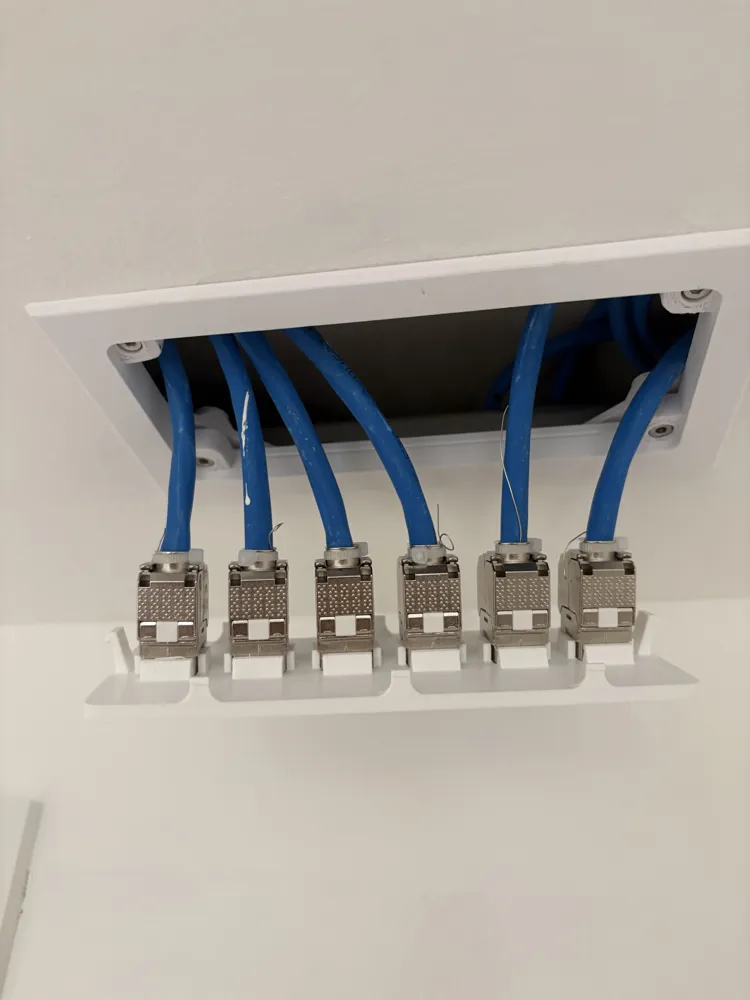

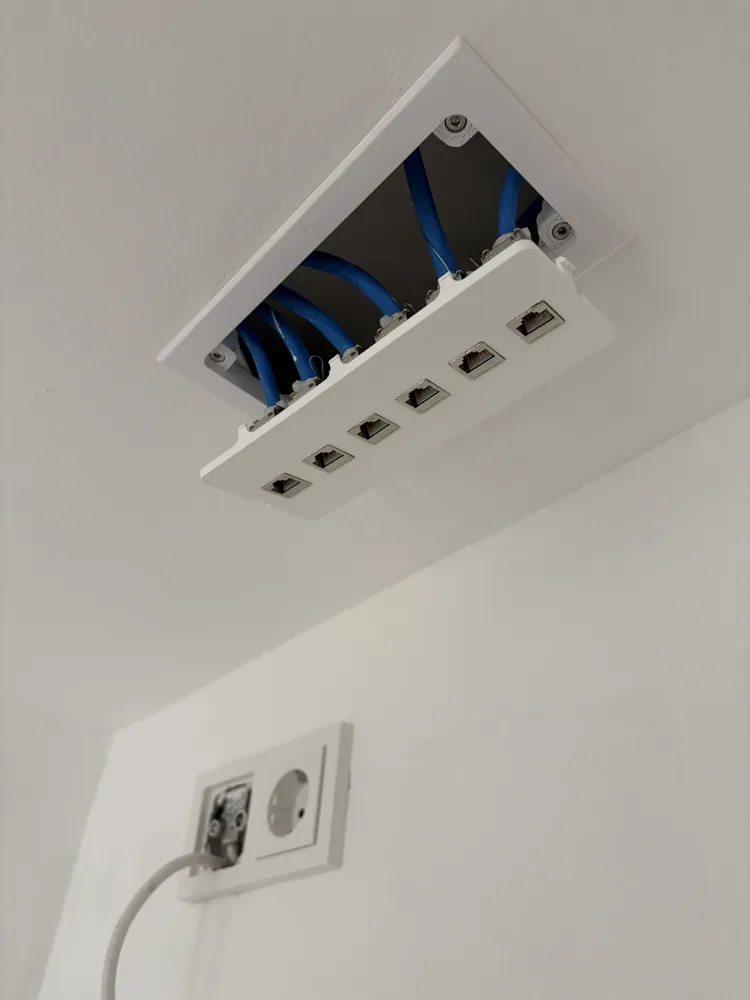

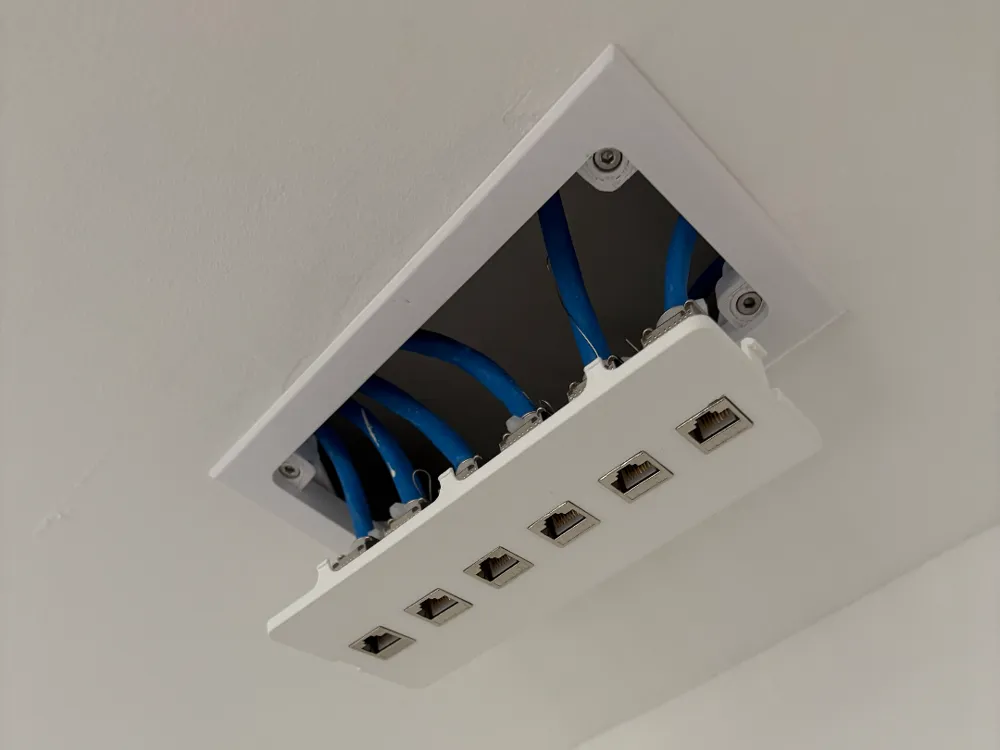

Instead of pulling loose network cables through the ceiling, this system allows permanent installation of RJ45 Keystone Jacks inside a removable snap-in insert. Standard patch cables can then be connected directly to the ceiling outlet.
The design consists of two separate components:

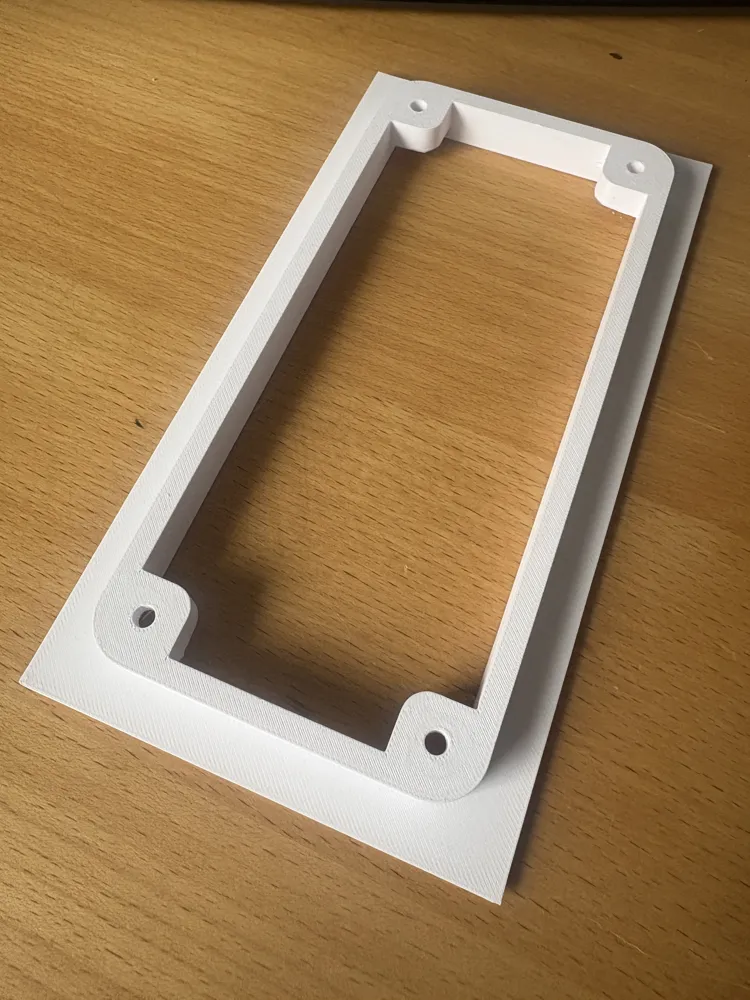

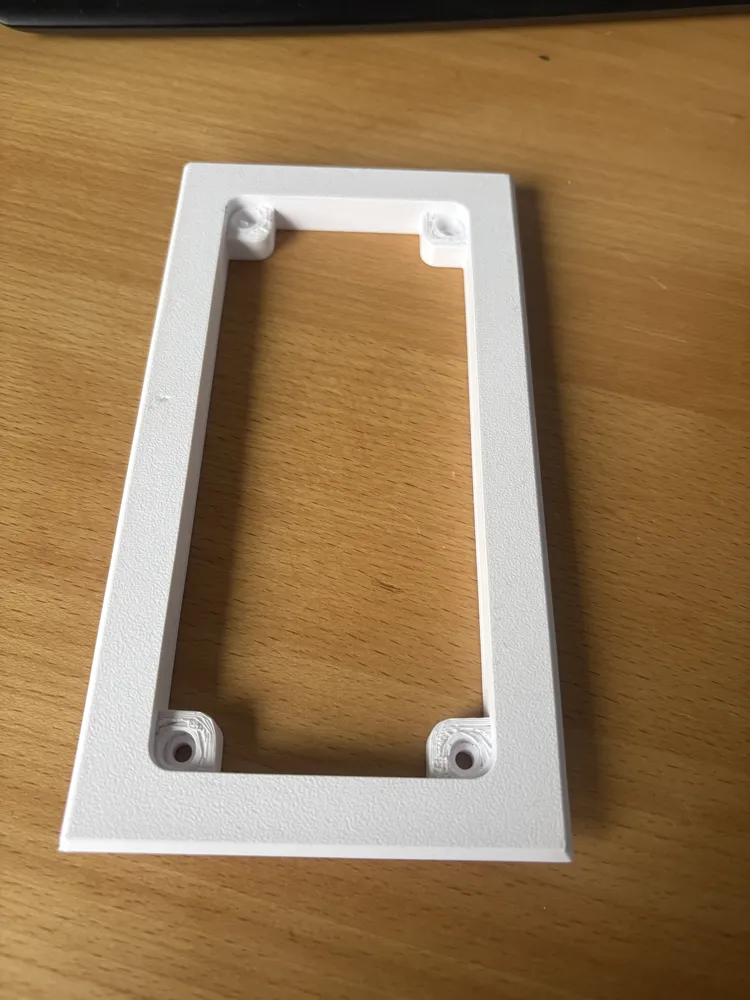

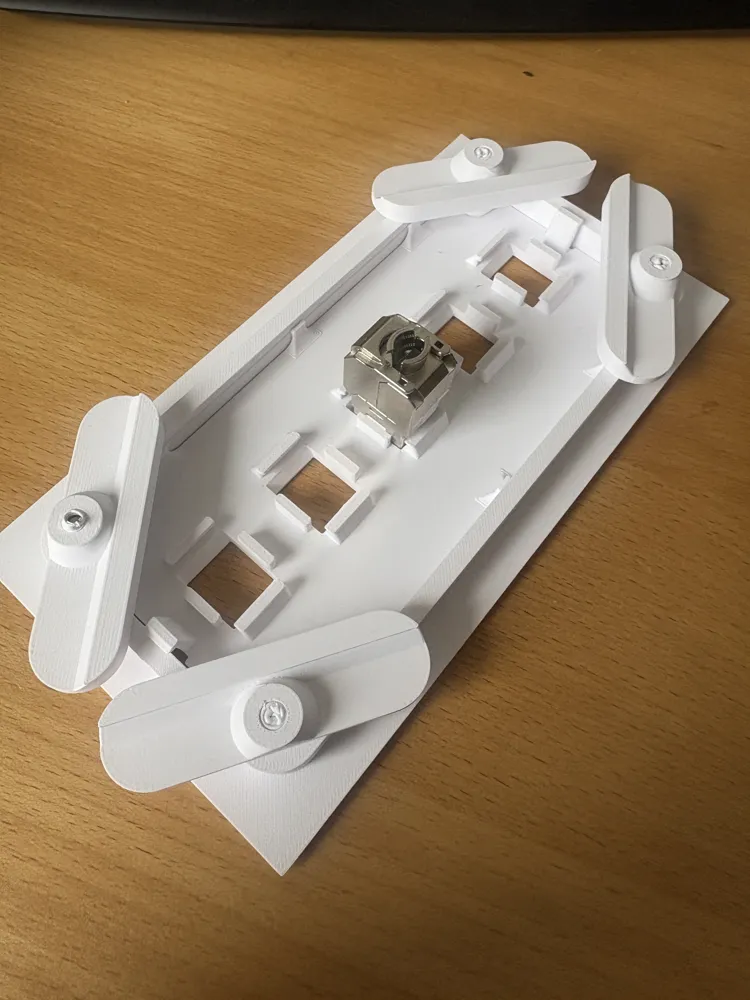

1. Mounting Frame

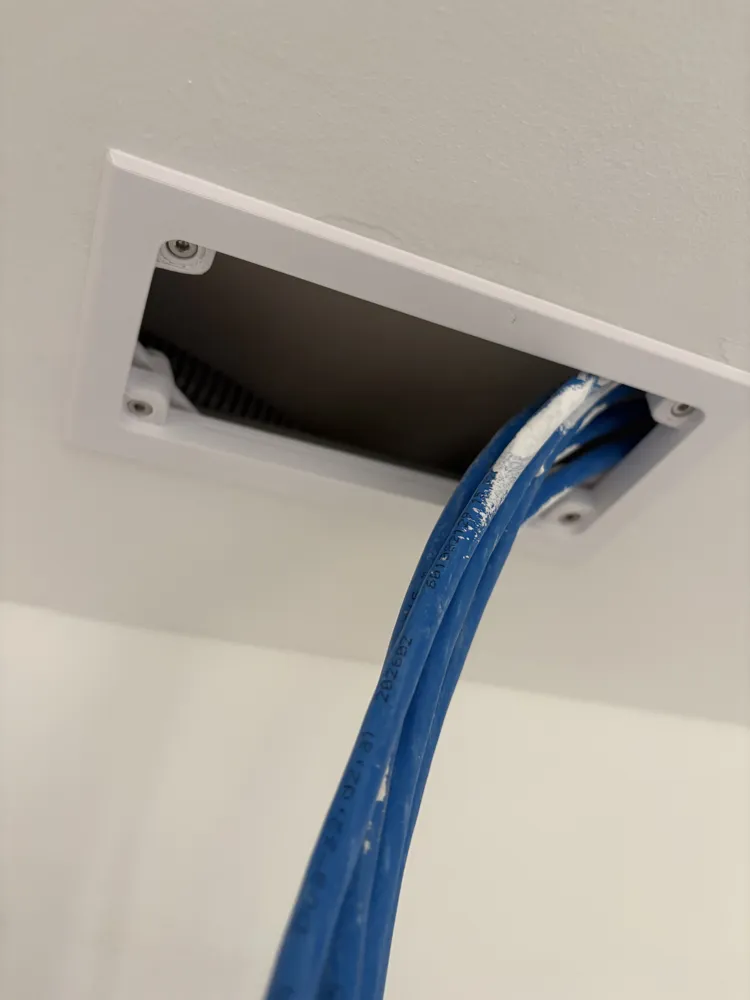

The mounting frame is inserted into a rectangular drywall cutout and secured using integrated clamping brackets.

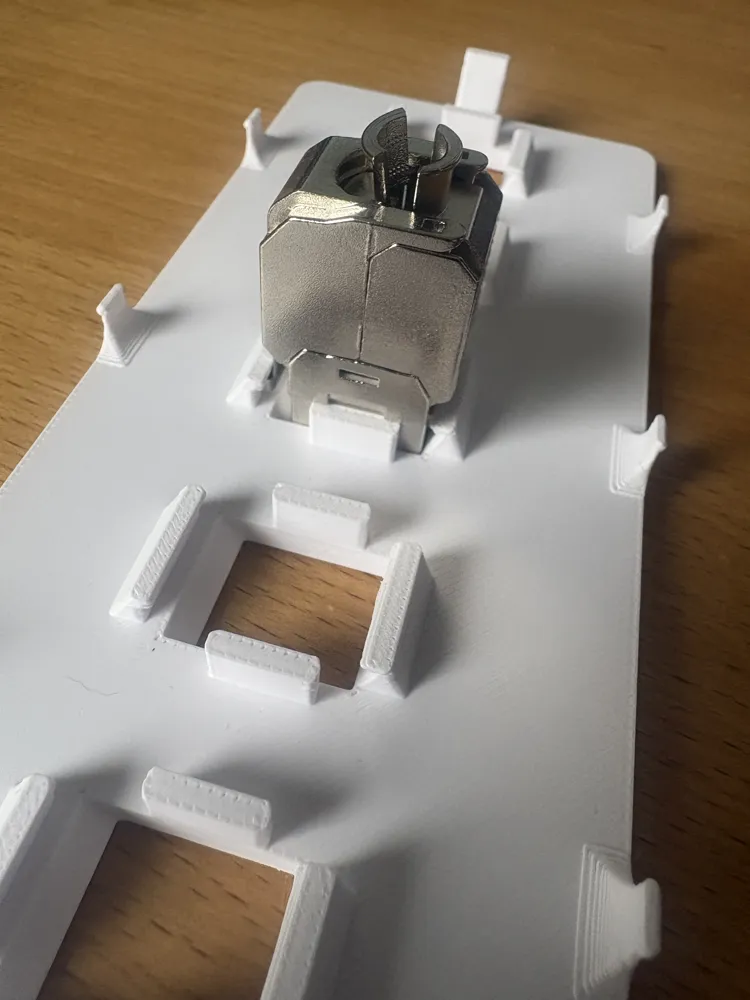

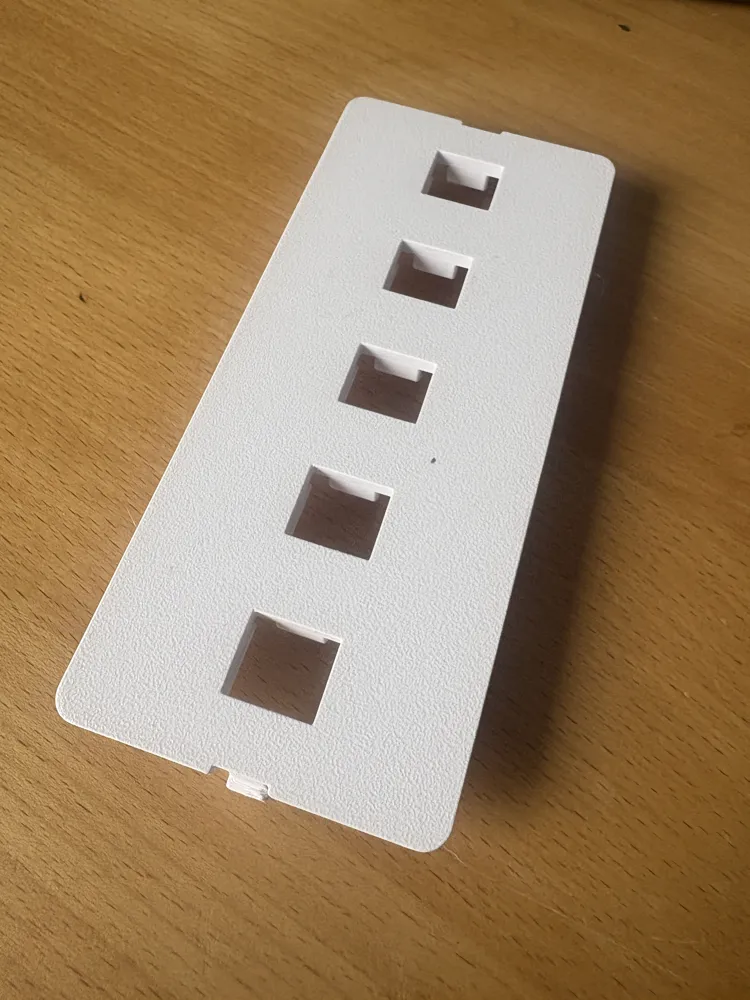

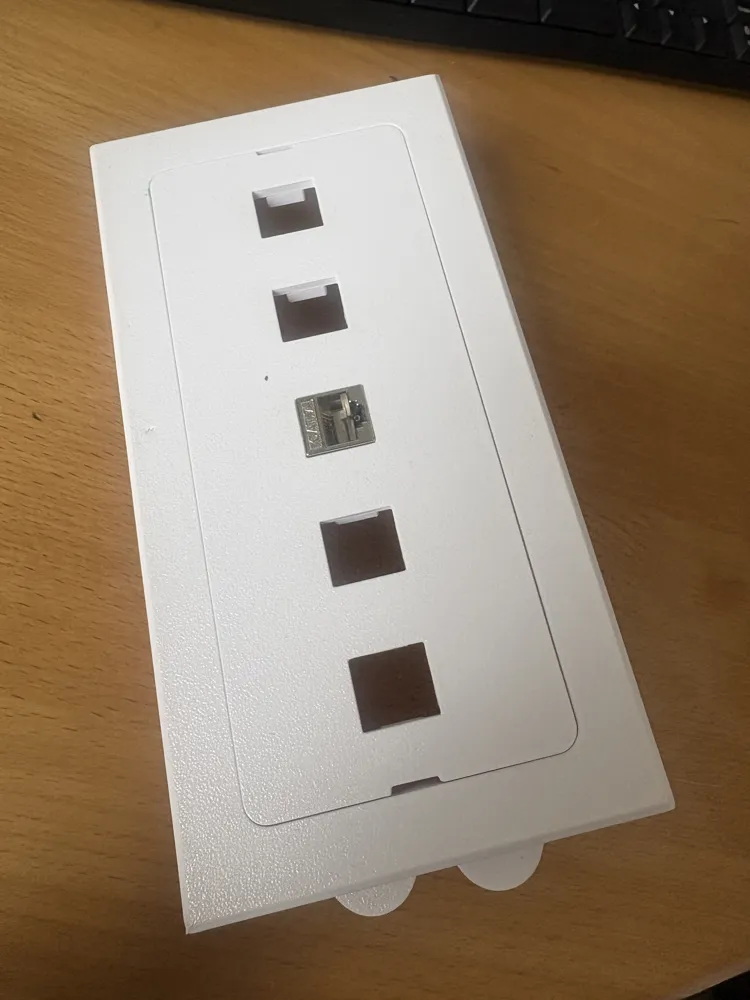

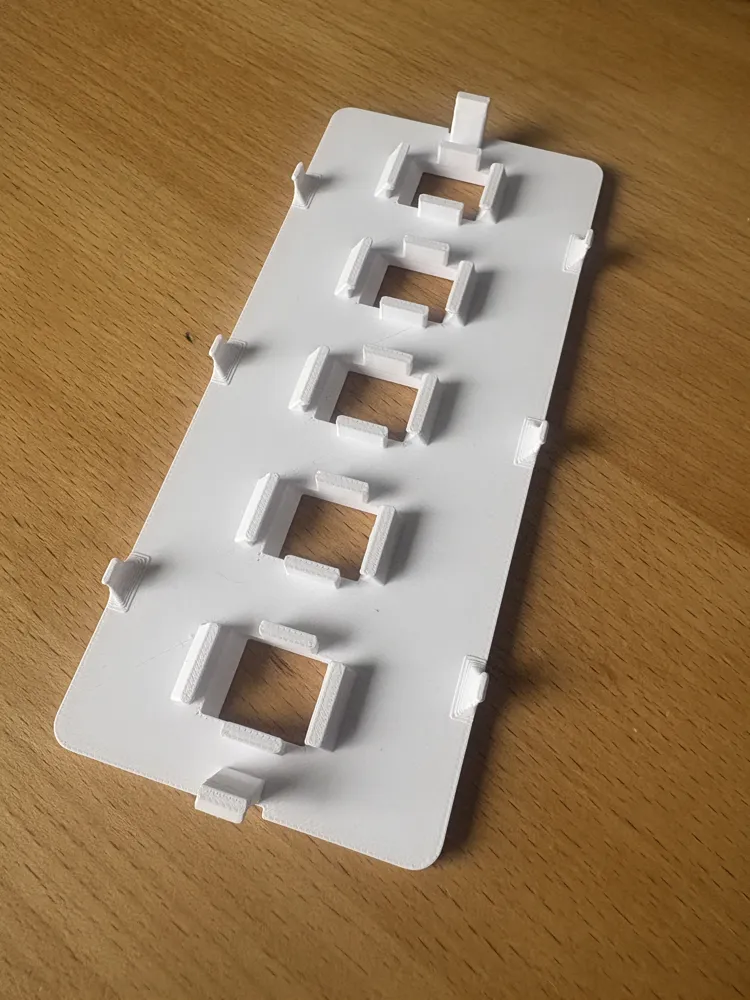

2. Snap-In Keystone Insert

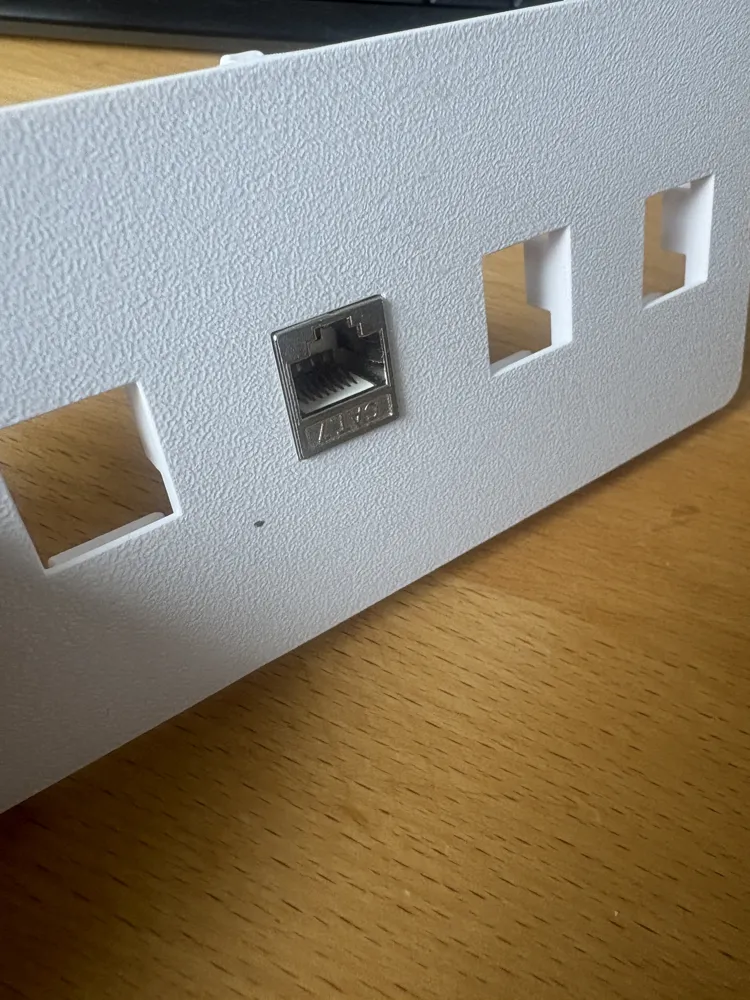

The insert holds up to 6 standard RJ45 Keystone Jacks and snaps securely into the mounting frame. It can be removed at any time for maintenance or upgrades.
Features
Clean and professional ceiling installation
Supports up to 5 Keystone RJ45 jacks
Removable snap-in insert
Hidden cable routing through drywall ceilings
No visible loose network cables
Suitable for CAT5e, CAT6, CAT6A and CAT7 Keystone modules
Tool-free insert removal and replacement
Designed for 3D printing without supports
Drywall Requirements

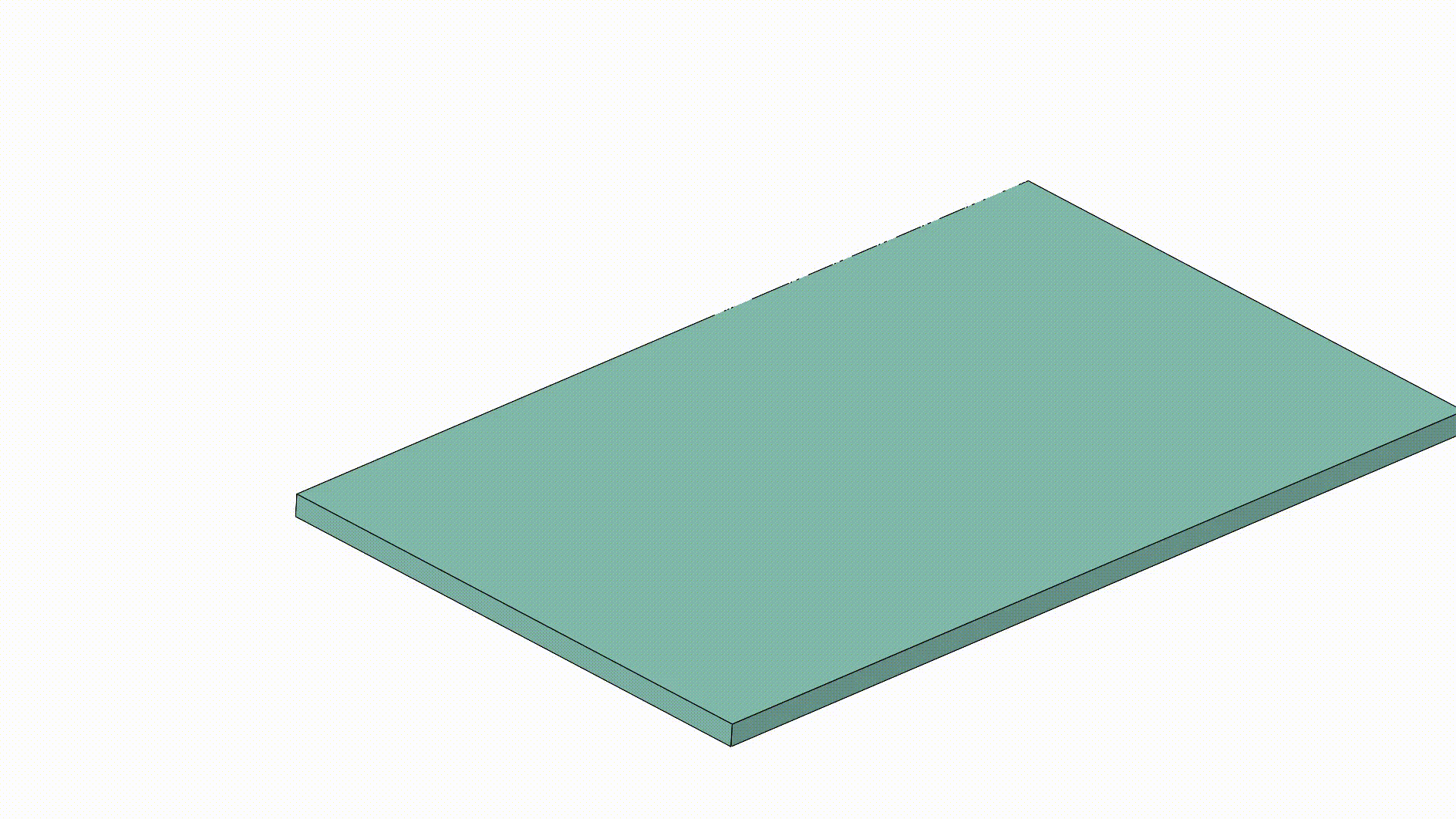

Suitable for drywall / plasterboard ceilings with a thickness of:
≥ 10 mm
Recommended cutout size:
85 mm × 175 mm
Supported cutout range:
- Minimum: 82 mm × 172 mm
- Maximum: 95 mm × 178 mm
Required Hardware
Threaded Inserts
- 4x M4 heat-set threaded inserts
Screws
- 4x M4 × 16 mm cylinder head screws (for 12,5mm plate min. length 16mm)

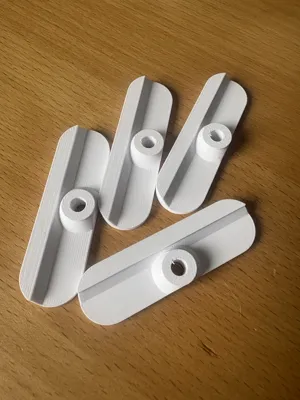

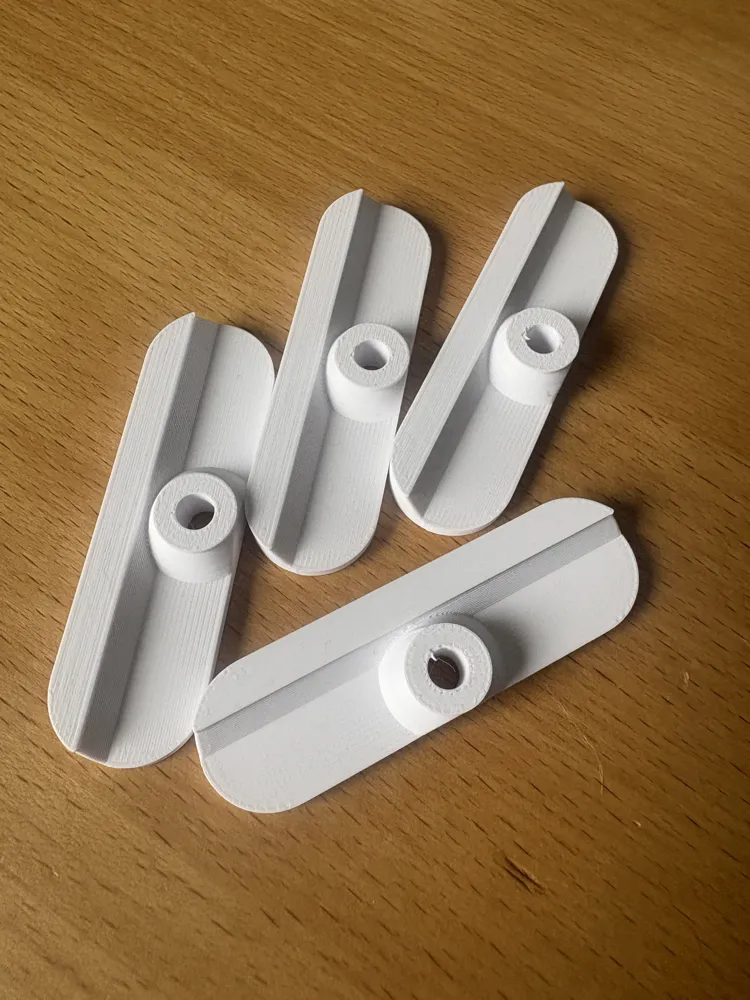

The screws actuate the clamping mechanism that secures the frame to the drywall panel.
Assembly
