Bracket for BIQU Panda bamboo feeder buffered automatic feeder, suitable for 2020 profile Voron
Print Profile(1)
Description
Suitable for BIQU's Panda bamboo feeder, for installation on 2020 profiles

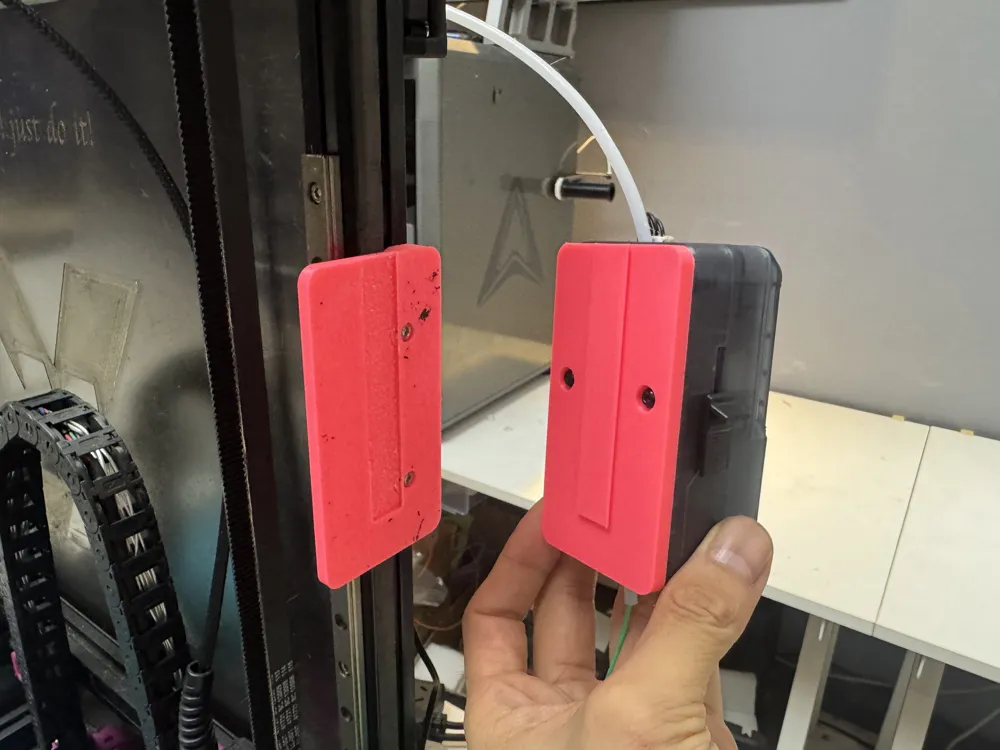

This bracket consists of two parts, A and B. A and B are fixed using a push-pull slide slot, allowing for easy one-click separation

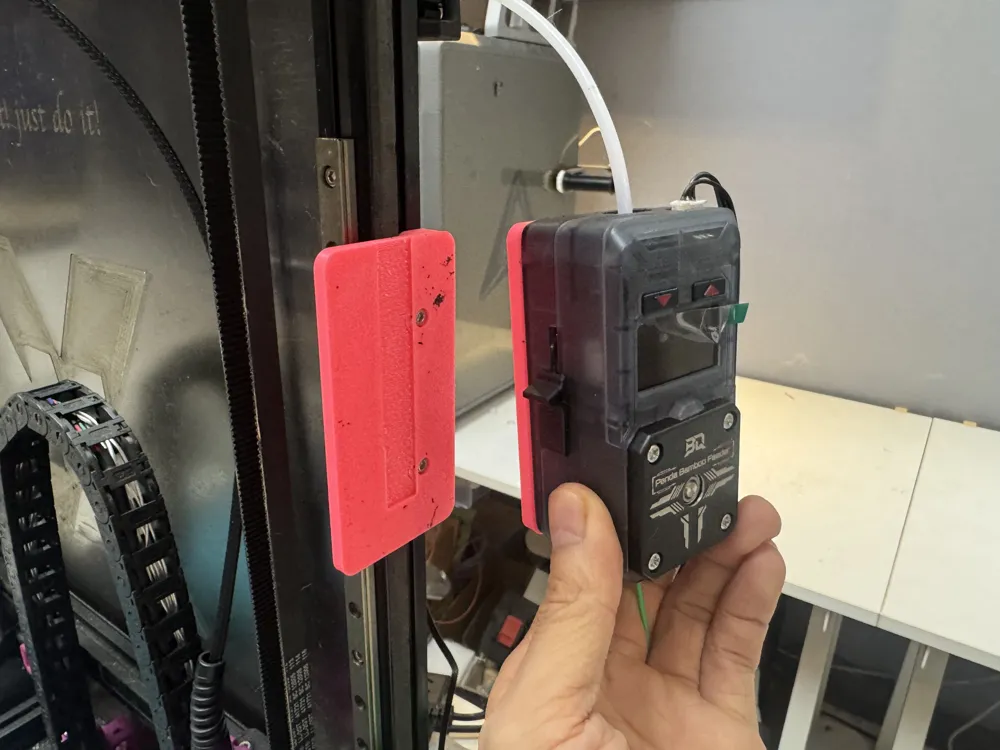

Bracket A is installed on the back of the Panda bamboo feeder and secured with its own screws.

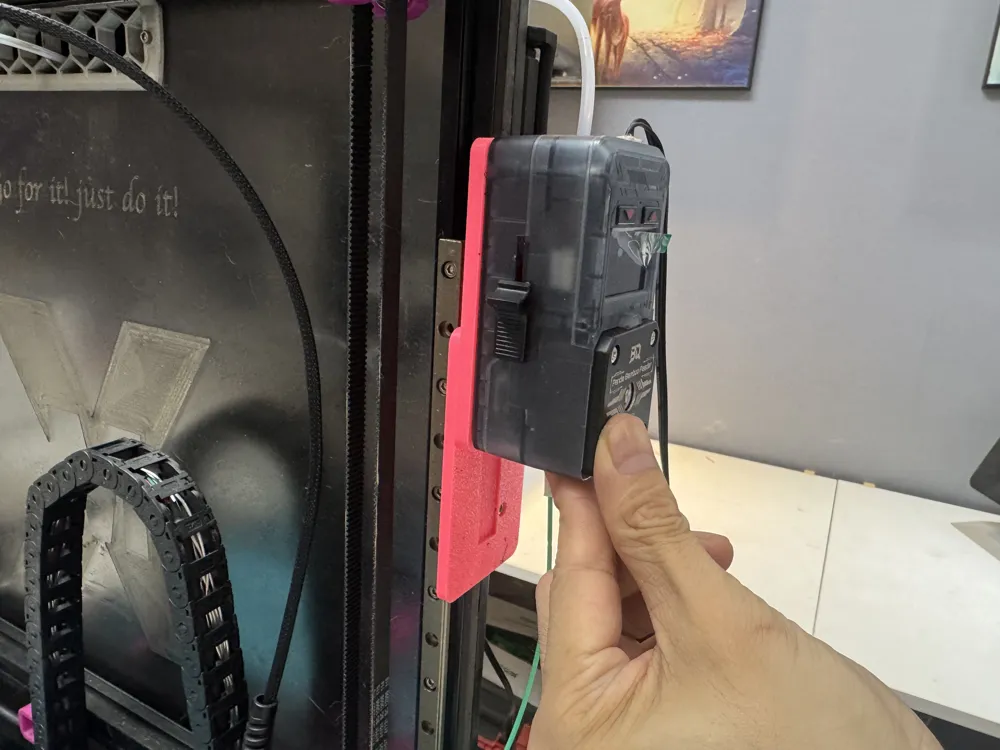

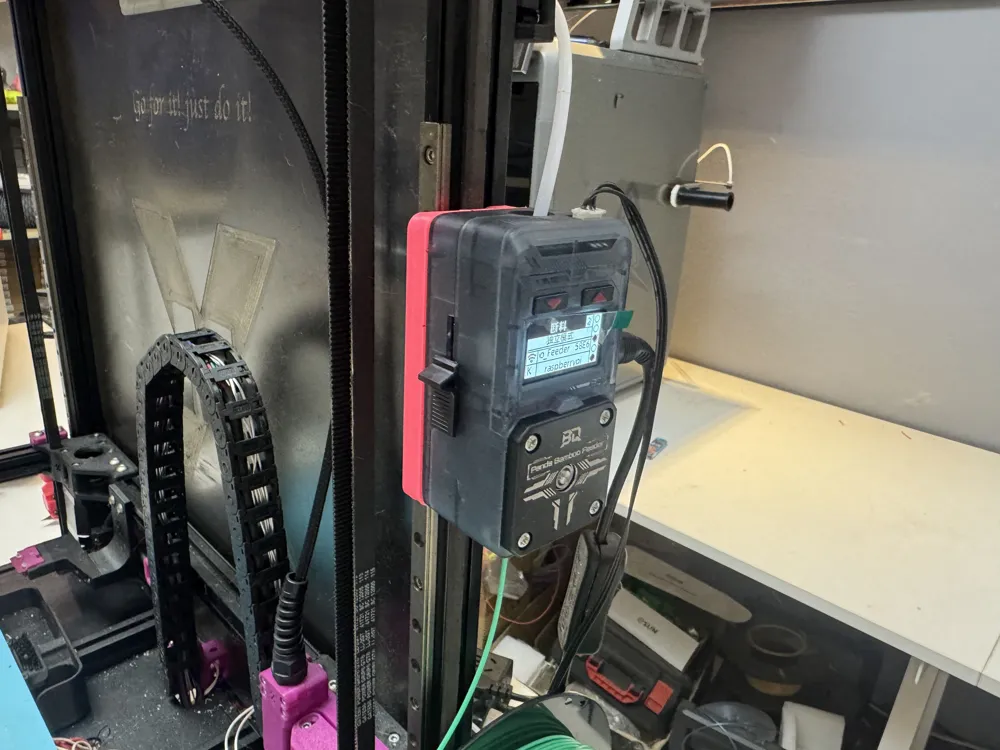

Bracket B can be installed on 2020, 3030, or even 4040 or 5050 profiles, and has been adapted for Voron 2.4 and Trident, making it compatible with enclosure panels.
If you secure it to a 2020 profile, use M3*10 screws and M3 boat nuts. If you secure it to a 3030, 4040, or 5050 profile, you might need longer screws.

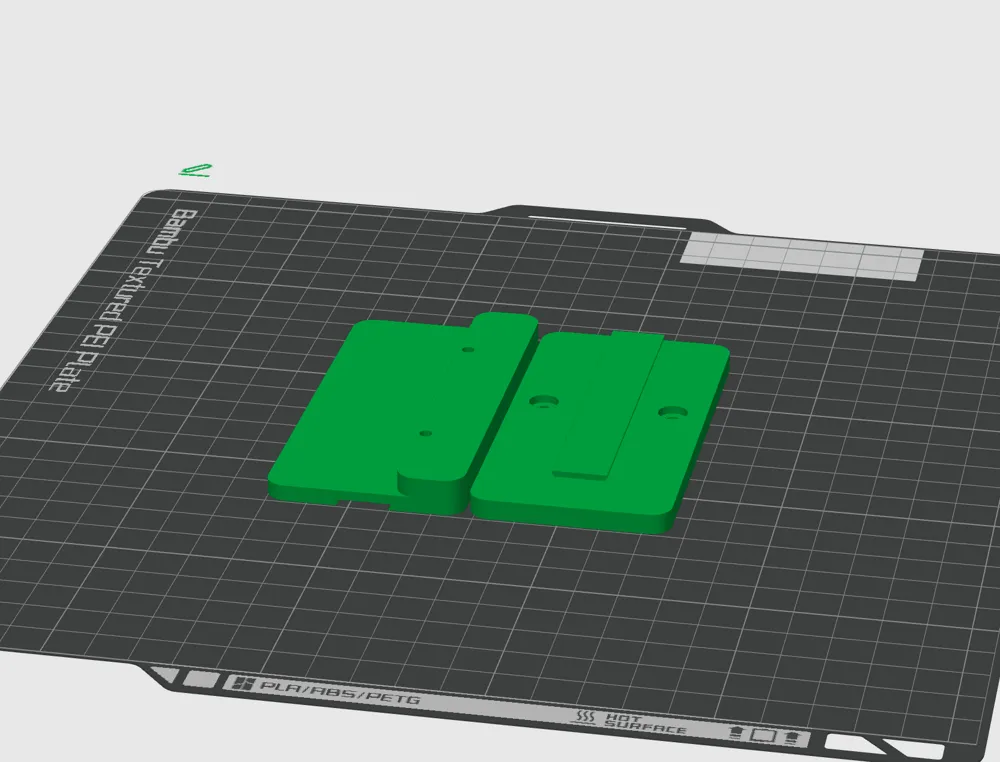

There are no special requirements for the material. Assembly clearance has been provided for the A/B slide slots. If you encounter problems after printing, please leave a comment below describing your issues and needs, and I will optimize it.
