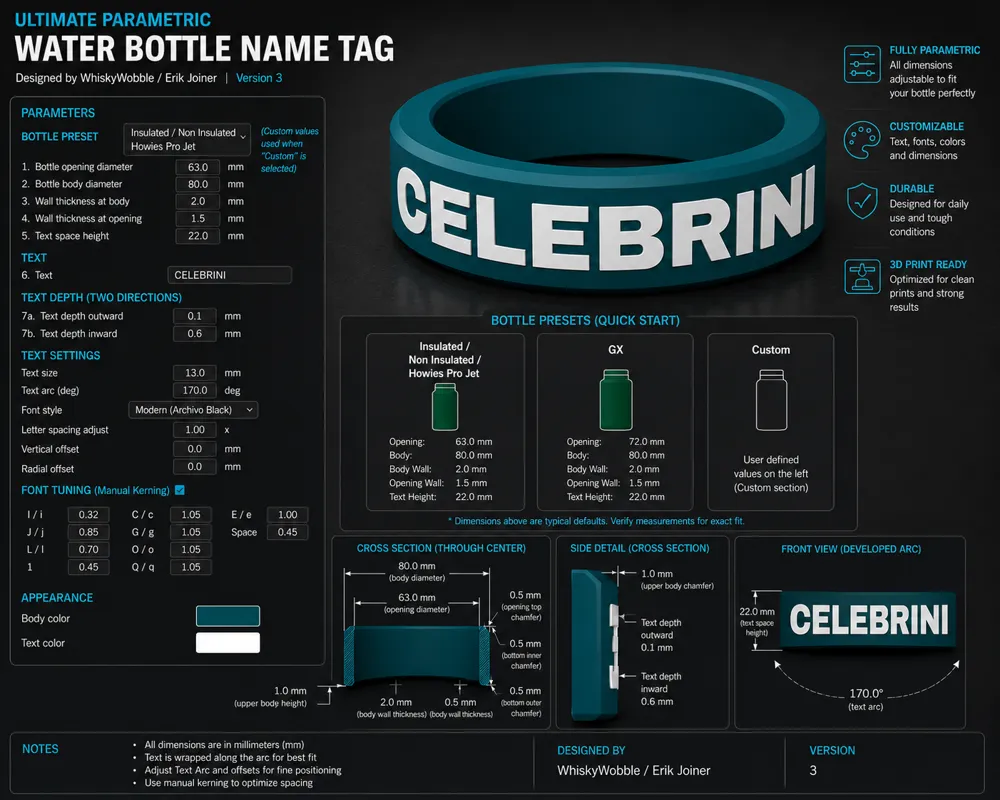

Ultimate Parametric Sports Bottle Name Tag Generator
Stop losing your water bottle at the rink, gym, practice, or tournament!
This fully parametric generator creates a custom name collar that installs beneath your bottle cap. Simply remove the cap, slide the collar over the bottle neck, and reinstall the cap to lock it securely in place.
Designed for athletes, coaches, teams, and families, this generator lets you personalize nearly every aspect of the tag while keeping printing simple and fast.
Features
✔ Fully customizable text
✔ Four built-in font styles
- Modern
- Playful
- Stencil
- Athletic
✔ Custom Google Font support
✔ Adjustable text size
✔ Adjustable text arc
✔ Two-direction text depth
- Raised lettering
- Recessed lettering
- For best results use 0.5mm into the body and 0.1mm out
✔ Manual Font Tuning for perfect spacing
✔ Multiple bottle presets
- Gatorade Insulated / Non-Insulated / Howies Pro Jet
- Gatorade GX
- Custom (adjust to your liking)
✔ Custom bottle dimensions
✔ Adjustable wall thickness
✔ Adjustable text height
✔ Adjustable chamfers
✔ Body and text color selection
✔ Optimized for multi-color printing
✔ Prints without supports
Installation
- Unscrew your bottle cap.
- Slide the collar over the bottle neck.
- Reinstall the cap.
- Enjoy a permanently attached personalized bottle tag.
Printing Recommendations
- 0.20 mm layer height
- Print flat side down (name upside down)
- No supports required
- PLA, PETG, or ABS
- Recommended 3 walls
- 100% infill
For multicolor printing, pause or use an AMS/MMU at the start of the raised text.
Current Bottle Presets

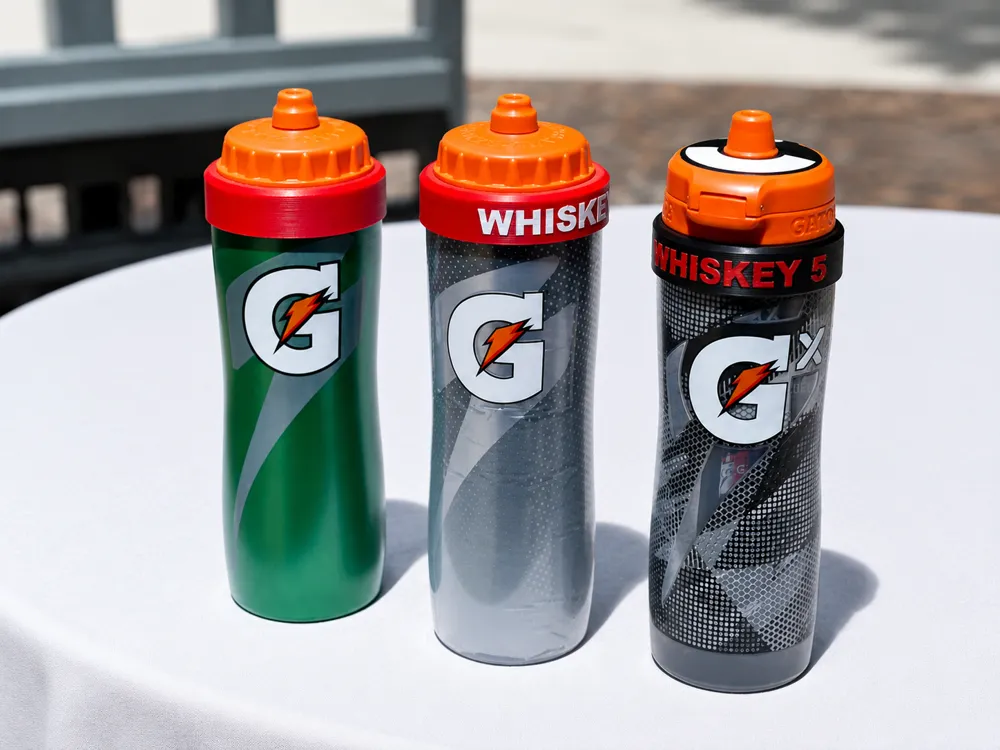

- Insulated / Non-Insulated / Howies Pro Jet
- GX
- Custom
More bottle presets will be added over time.
License
You shall not share, sub-license, sell, rent, host, transfer, or distribute in any way the digital or 3D printed versions of this object, nor any other derivative work of this object in its digital or physical format (including - but not limited to - remixes of this object, and hosting on other digital platforms). The objects may not be used without permission in any way whatsoever in which you charge money, or collect fees.
