Tonex One Controller Enclosure / Box (Open-Source)
Description

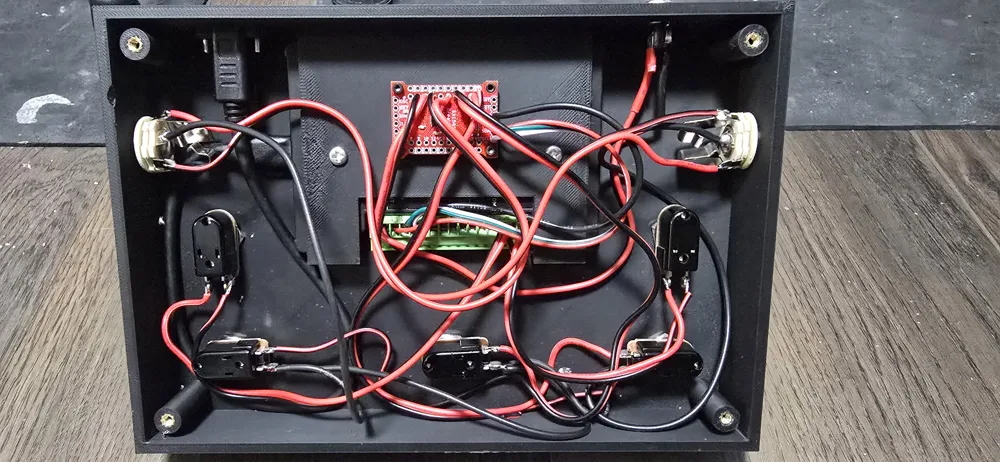

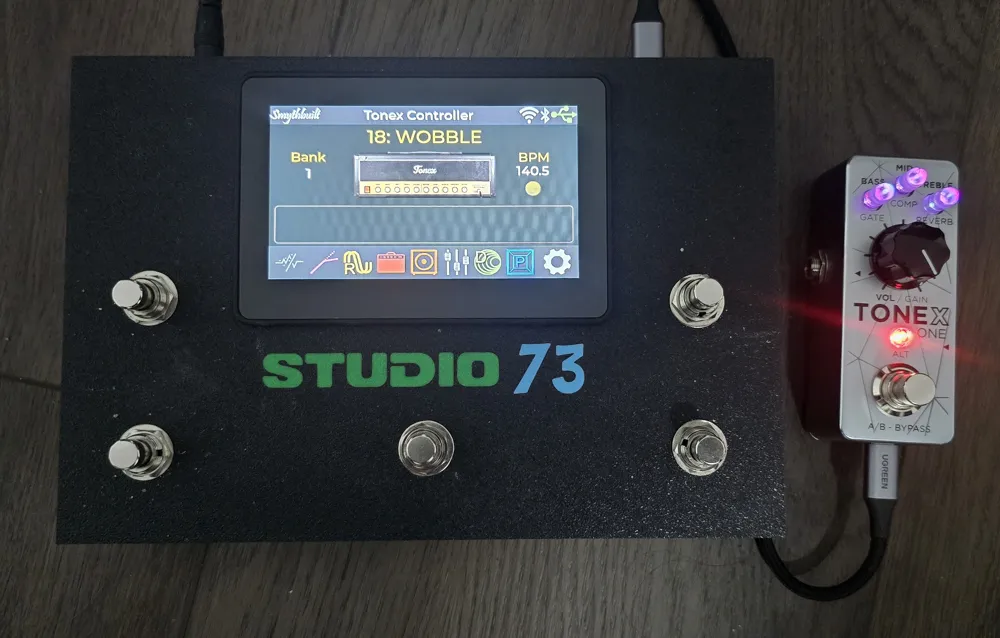

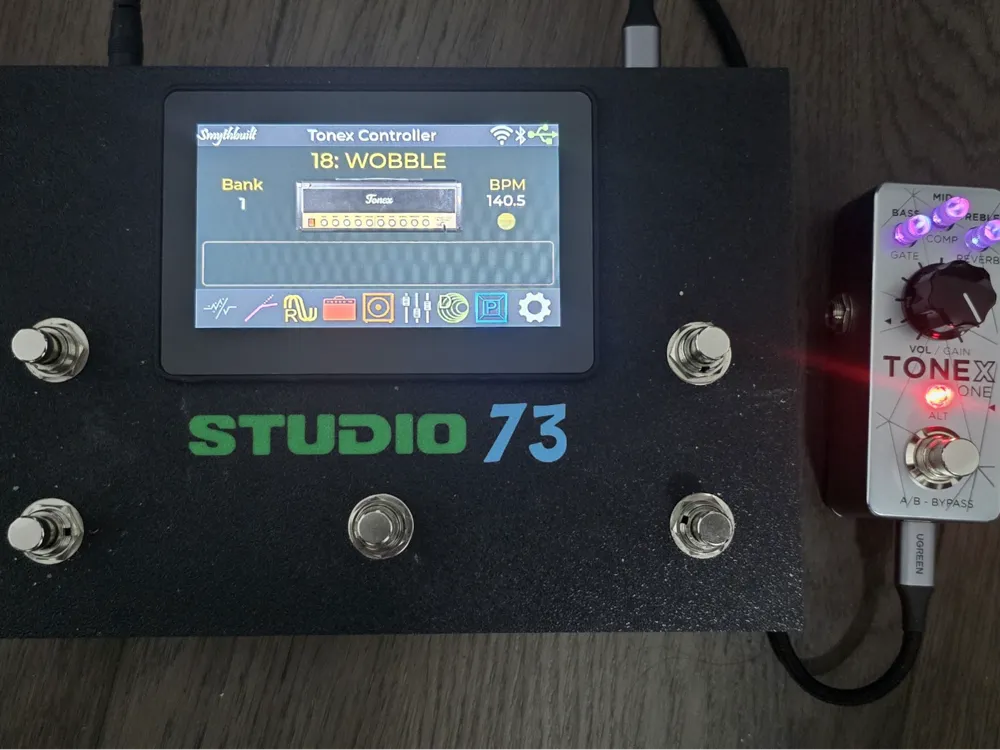

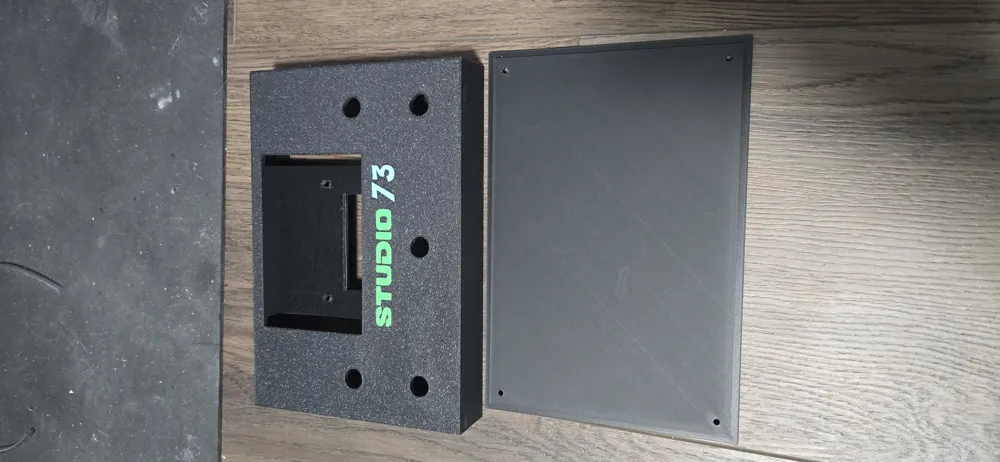

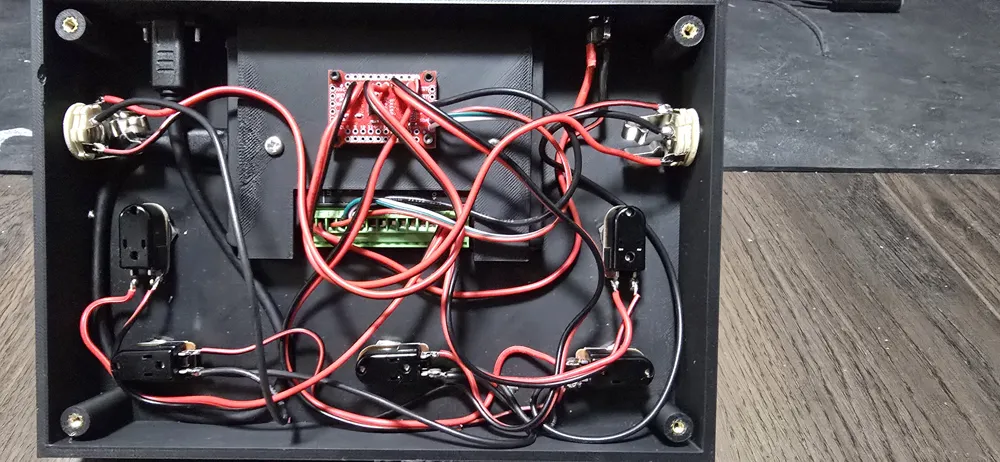

This is a custom-designed enclosure for the open-source Tonex One Controller project. It provides the perfect setup to house and protect your components as you build this project.
Please consider supporting this fantastic open-source initiative! For full assembly instructions, wiring diagrams, and code, check out the official GitHub repository: 👉 Builty/TonexOneController

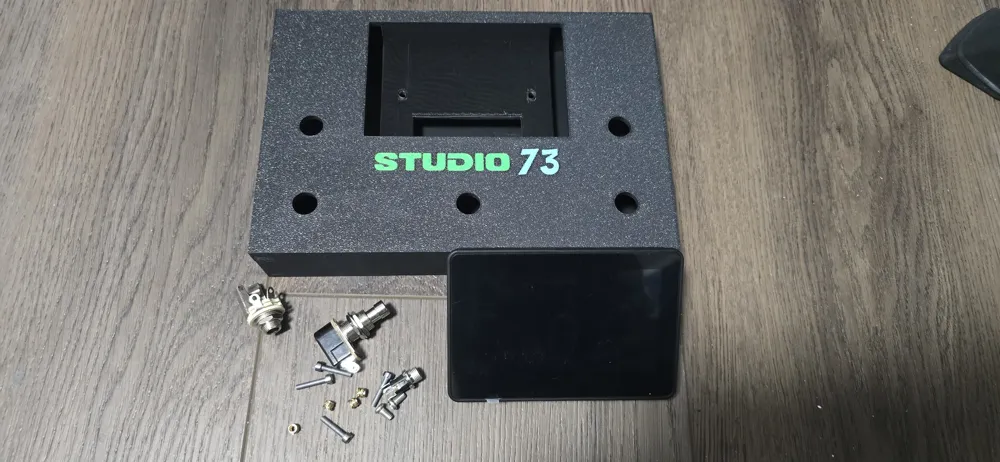

Required Hardware (BOM):
To complete this build, you will need the following parts:
- 1x Waveshare 4.3" (B) Display
- 1x SparkFun SX1509 I/O Expander
- 4x M3x5x4mm Round Threaded Brass Heat-Set Insert Nuts
- 4x M3x16mm SHCS (Socket Head Cap Screw) Machine Screws
License
This user content is licensed under a
Creative Commons Attribution-Noncommercial
