Two-part, two-color QR Code Display,

**A stand-up QR code — for cafes, workshops, trade fair stands, or desks.**

👉 https://3d-machine.netlify.app

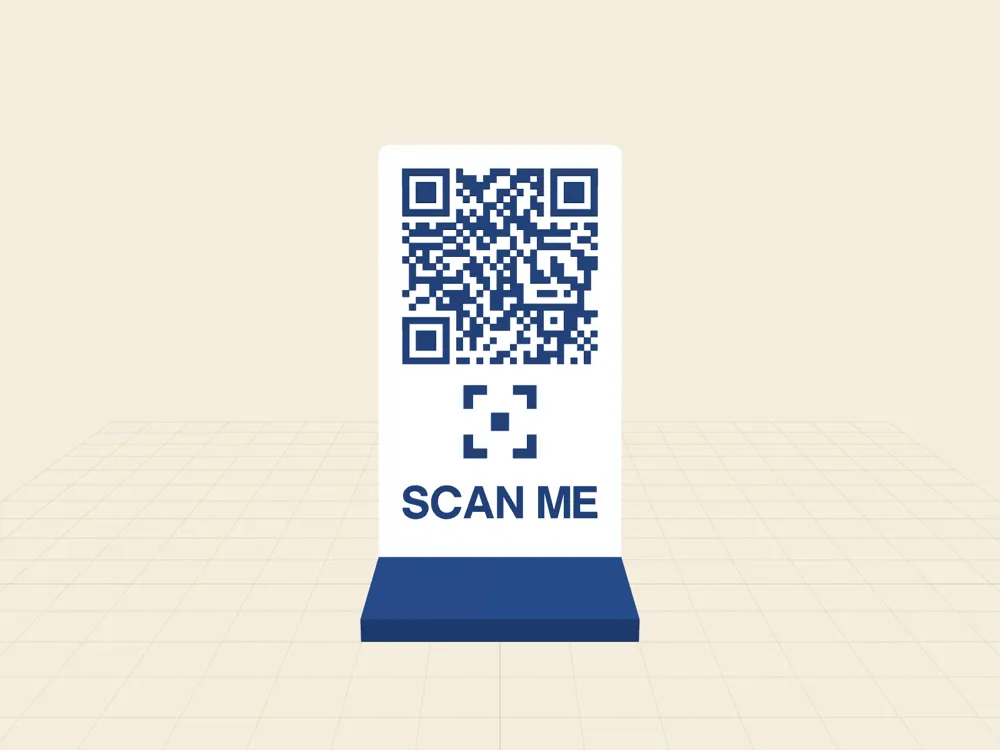

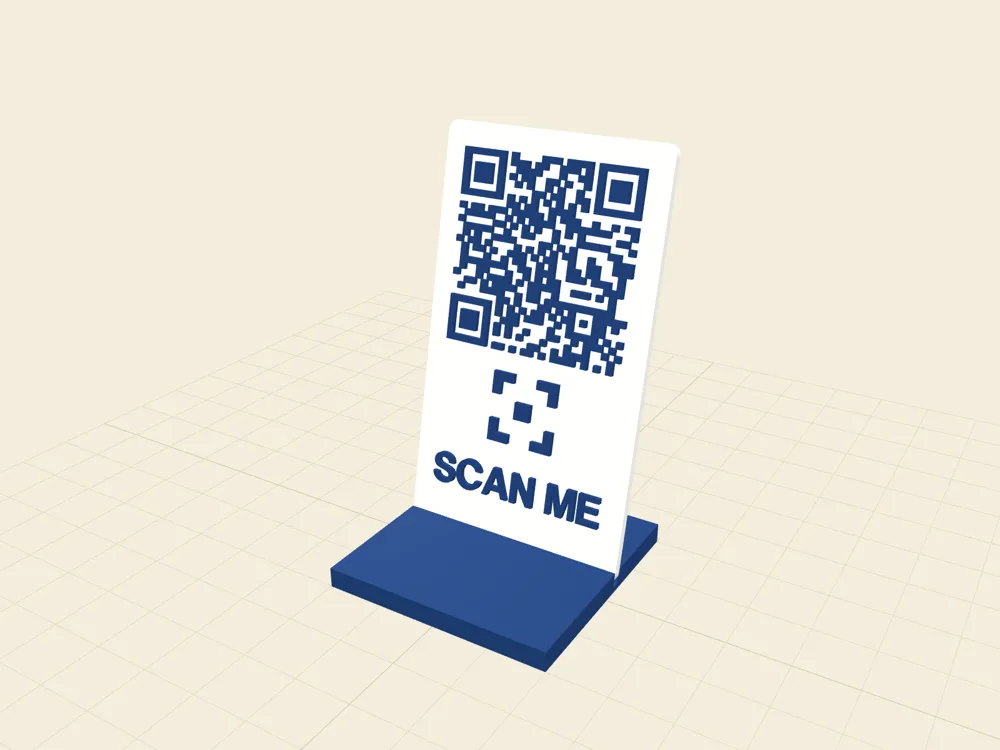

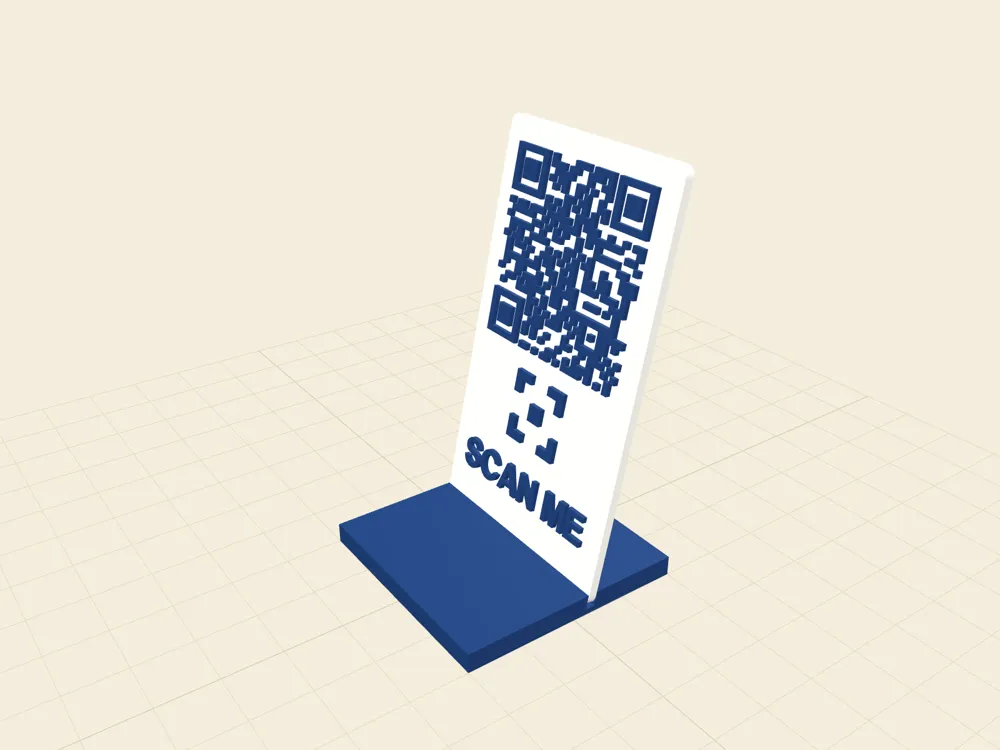

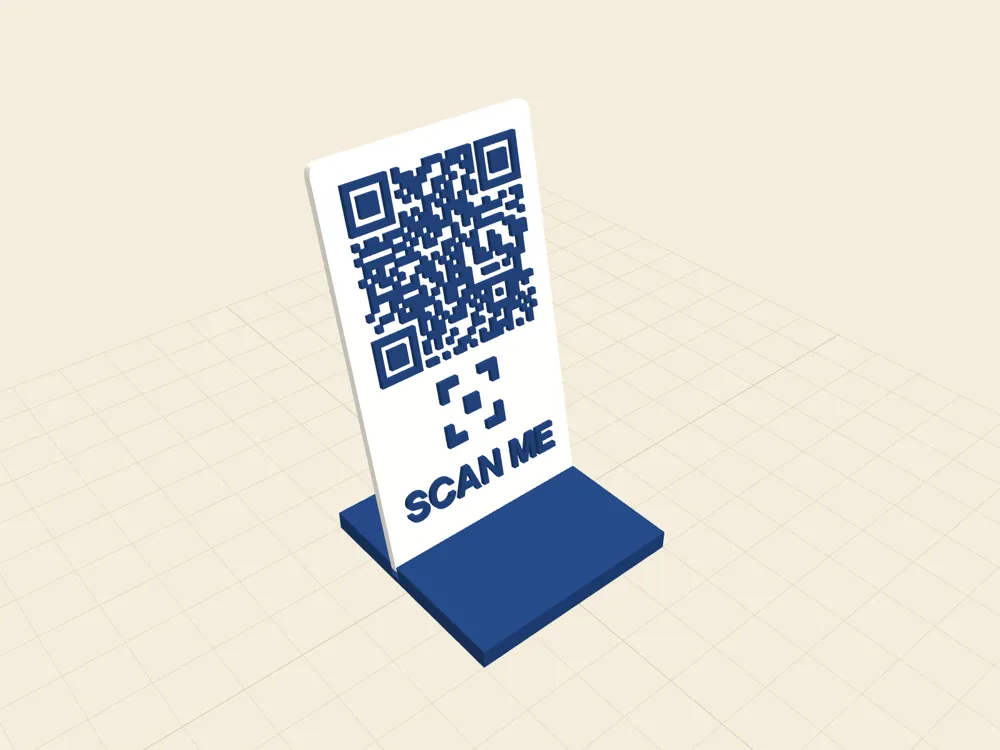

The stand consists of two parts that fit together without glue: a plate with a raised QR code and a flat base with an angled slot. This allows the plate to tilt back by 12° — precisely the angle at which a phone can comfortably scan the code without you having to lean over.

### What makes it special

- **Two parts, no support.** Both parts lie flat on the bed. No support material, no post-processing.
- **Two colors without AMS.** The QR code stands 1.7 mm above the plate. A simple filament change at 3.0 mm height is sufficient — the included 3MF already has the extruders assigned (plate = 1, code = 2).
- **Robust module size.** The code modules here are 2.2 mm wide, well above the 0.8 mm limit where a 0.4 mm nozzle starts to have problems. The code was read back from the printed 3D model and is cleanly decodable both frontally and from a 30° angle.
- **Plug-in connection with tolerance.** The slot is 3.6 mm wide for a 3 mm plate thickness — 0.6 mm play, so nothing needs to be filed afterwards.

### Generate your own QR code

The code shown here leads to the generator used to create this model. With it, you can create the same plate with **your** content in a few seconds — Wi-Fi access, payment link, phone number, WhatsApp, Google review, or any link. Output directly as STL and as a prepared two-color 3MF:

👉 https://3d-machine.netlify.app

Free, no registration, runs completely in the browser.
