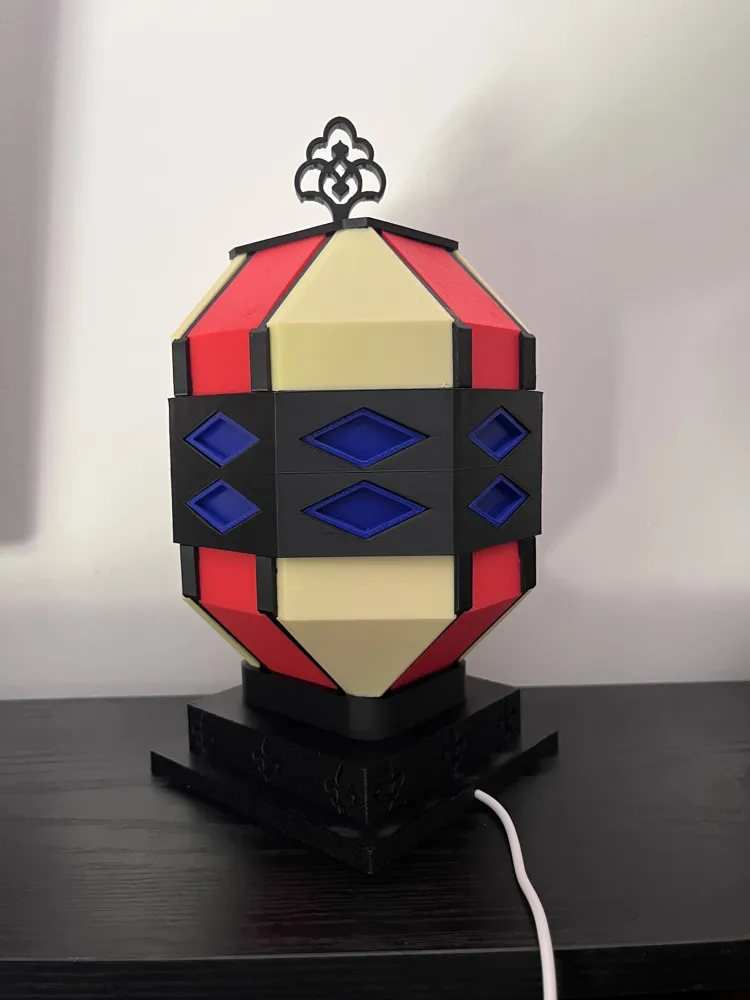

             📦 Decorative Mosaic Lamp for LED Lamp Kit-001

Transform your 3D print into a true decorative lamp with this mosaic creation designed for the LED Lamp Kit-001 available on MakerWorld.

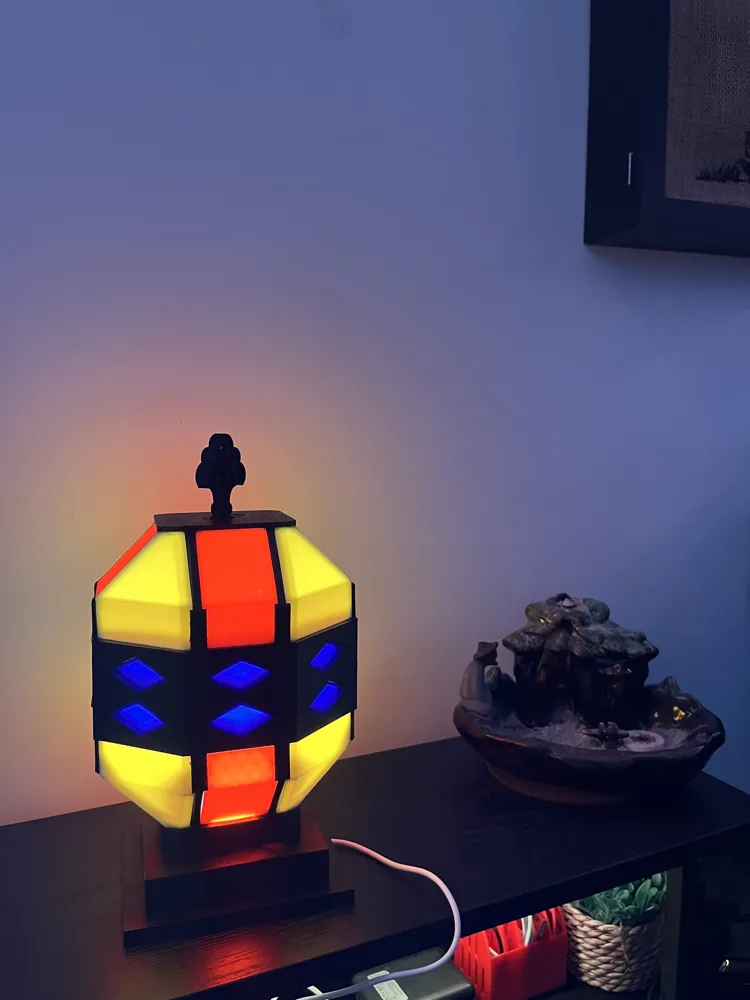

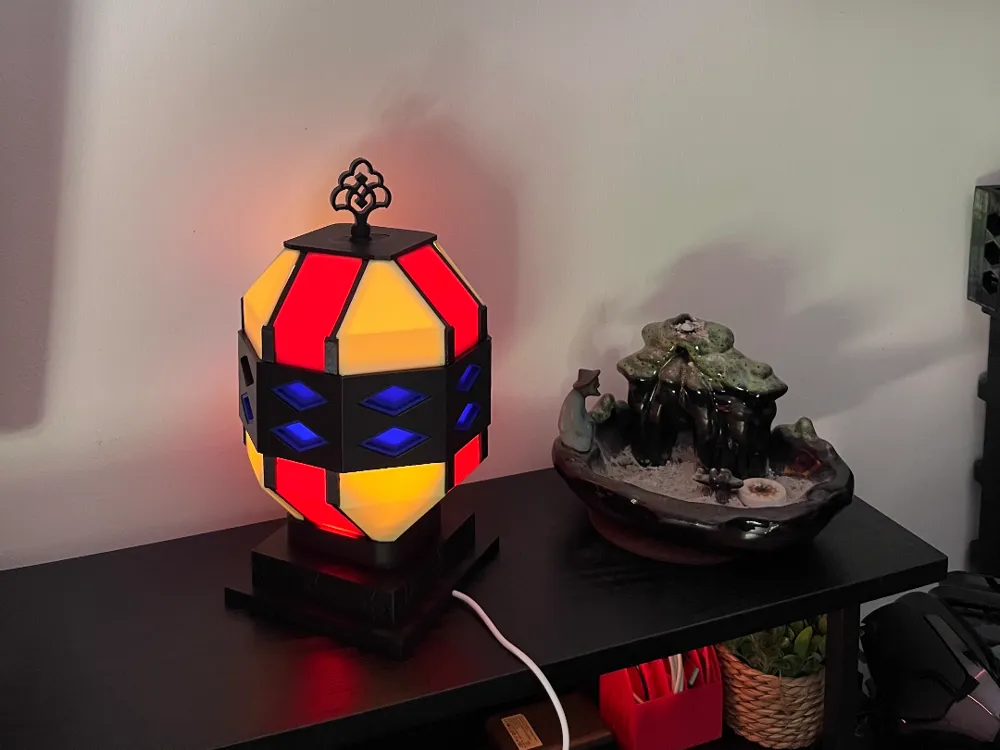

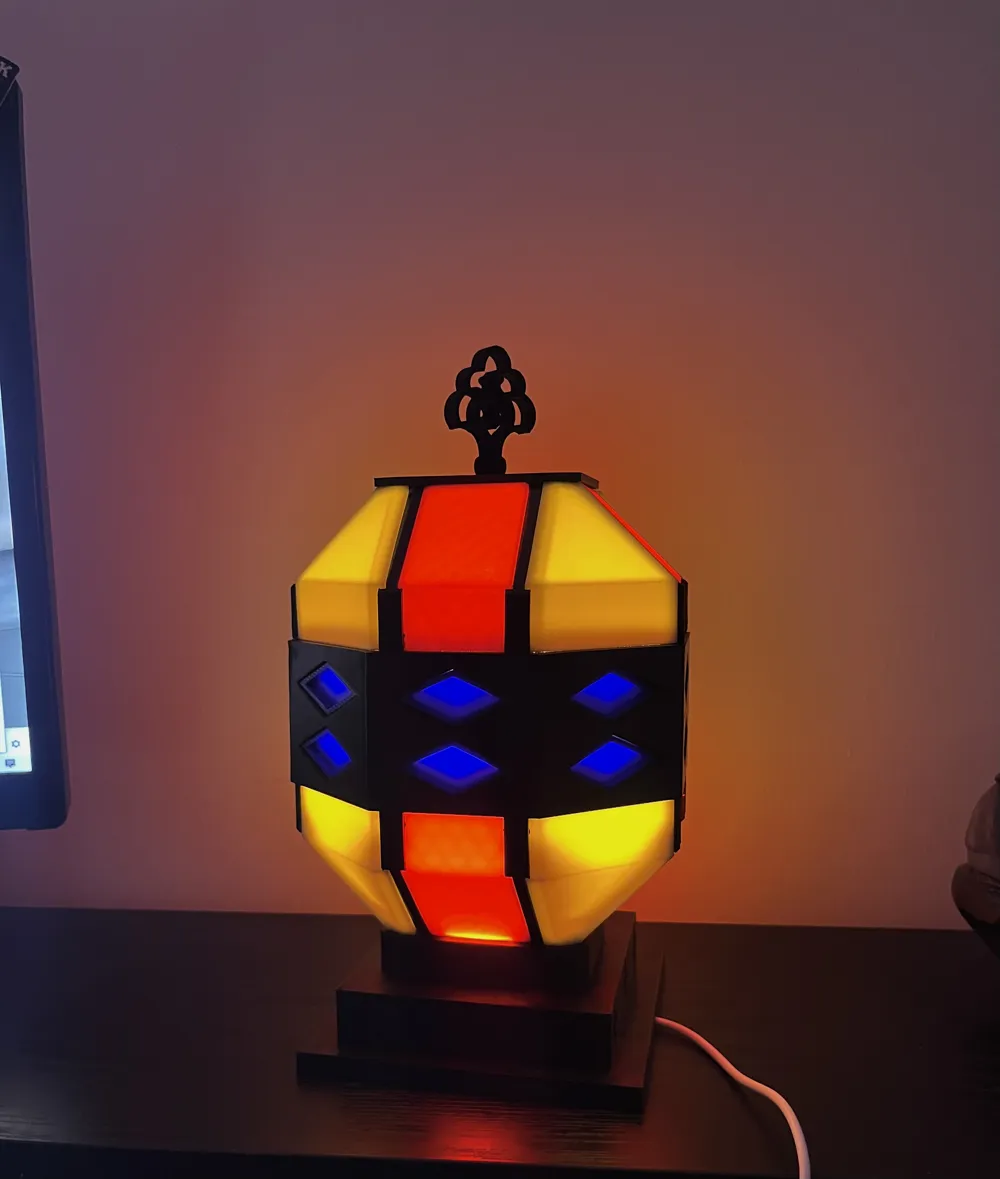

Thanks to its numerous assembled elements, this lamp offers a unique and customizable light output. The different mosaic pieces play with light to create a warm and elegant atmosphere in your home.

This model is designed as a complete 3D printing project: a full structure to assemble, accompanied by an assembly guide to help you build your lamp step by step.

✨ Features

• Mosaic design composed of many decorative elements.
• Compatible with the LED Lamp Kit-001.
• Structure designed in multiple parts to facilitate printing and assembly.
• Integrated clip system to facilitate installation and keep the mosaics in place.
• Customizable lighting effect according to chosen colors.
• Ideal project to create a unique lamp adapted to your style.
• Assembly guide provided to facilitate mounting.

⚠️ Mosaic assembly tip:

The clips have been added to facilitate assembly and ensure good retention of the mosaics.

Depending on your 3D Printer, your settings, or the material used, some clips may be slightly tight. If necessary, you can use a small tool to help with interlocking or lightly sand the clips to adjust the assembly.

🖨️ Print settings

• Recommended material: PLA Infill: 15% Maximum , 5% Minimum
•  Optimized in the profile to limit filament consumption while maintaining good print quality.
• Supports: Automatically generated with the print profile.
• AMS: Not required

🔧 Assembly

Assembly is carried out step by step:

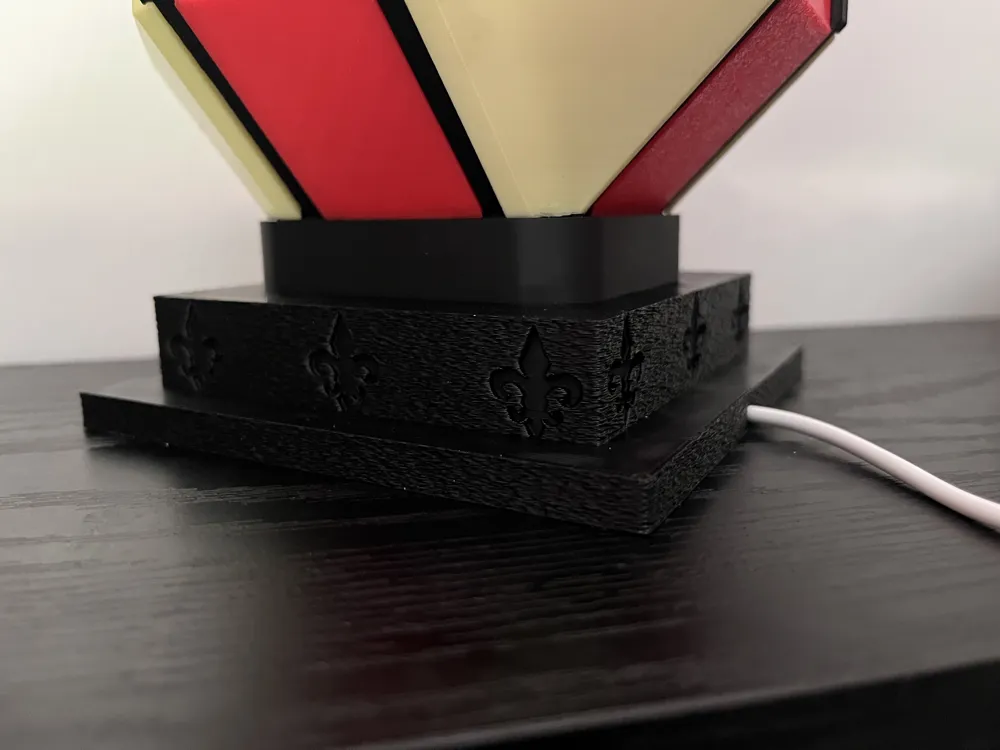

1️⃣ Install the base.
2️⃣ Place the LED Lamp Kit-001 lamp kit into the base.
3️⃣ Add the retaining ring to secure the lamp.
4️⃣ Clip the 8 lower posts onto the main body of the lamp.
5️⃣ Install the lower section mosaics.
6️⃣ Place the structure on the previously prepared base.
7️⃣ Install the 8 upper posts.
8️⃣ Slide the upper mosaics into their slots.
9️⃣ Install the top cover.
🔟 Add the mosaic diamonds to the base designed for this purpose.
1️⃣1️⃣ Finalize the lamp with the top decor to add the final aesthetic touch.

💡 Tip for the posts:

After printing, any supports present on the posts can be easily removed by sliding a deburring tool into the designated areas to clean the clip slots and facilitate assembly.

📖 An assembly guide is provided to facilitate the complete assembly of the lamp.

📂 Profile content

The pack includes 53 pieces:

• 1 base
• 1 retaining ring
• 8 lower posts
• 8 upper posts
• 1 main lamp body
• 4 left corner mosaics
• 4 right corner mosaics
• 16 mosaic diamonds
• 8 side mosaics
• 1 top cover
• 1 top decor

💬 Your feedback is welcome

Each creation becomes unique depending on the chosen colors. Different color combinations can completely transform the atmosphere and final look of your lamp.

Don't hesitate to share your creations with the community: your photos will inspire other creators and help discover the many possibilities this model offers. ✨

As a beginner in 3D modeling, I am interested in your advice.
