Ergonomic "Real Book" Case for Onyx Boox Go 6 (With & Without Magnets)

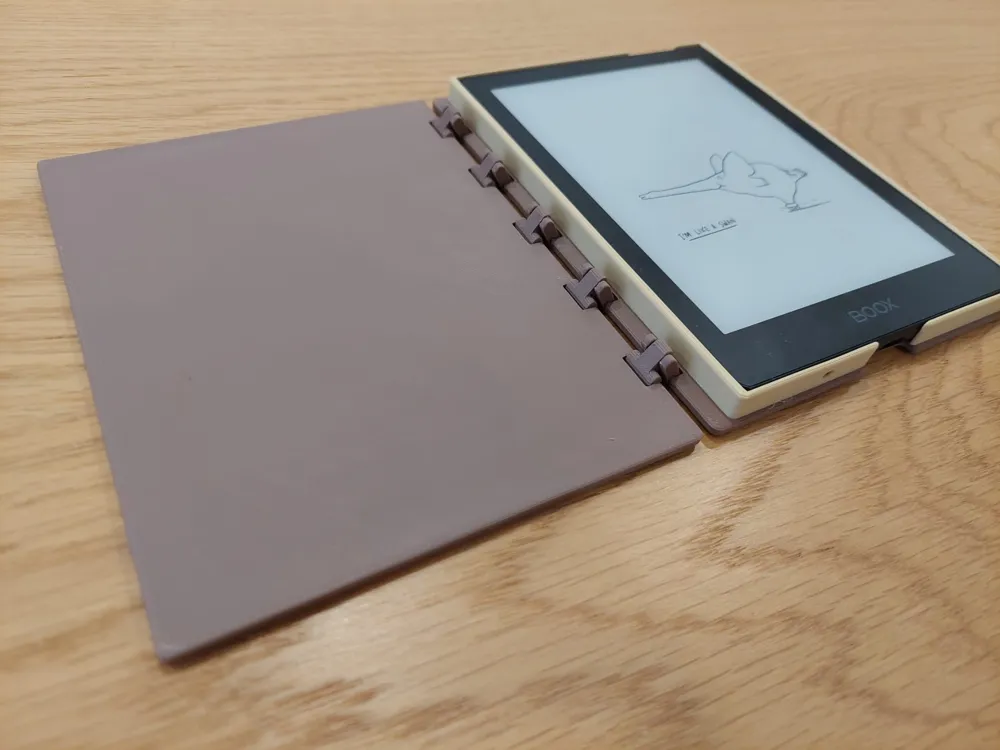

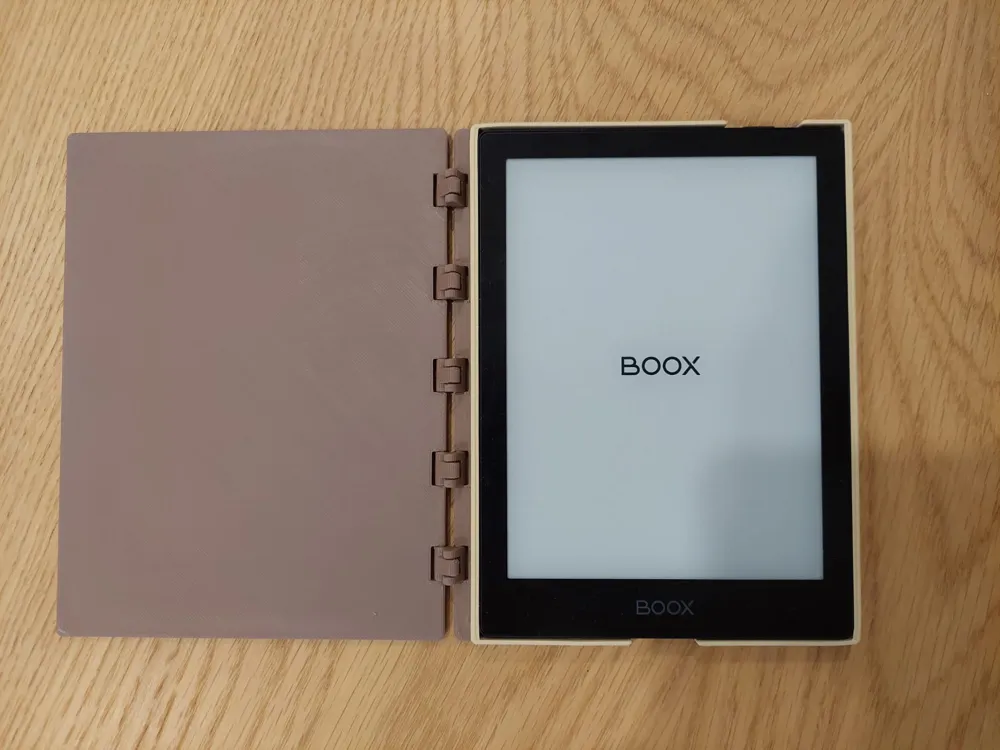

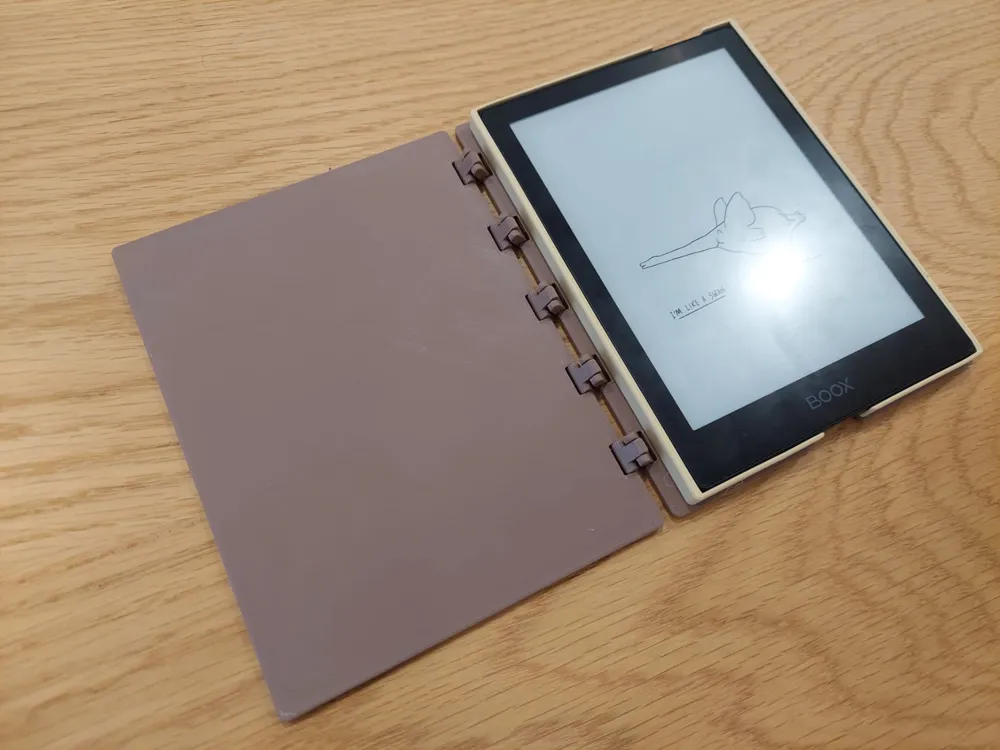

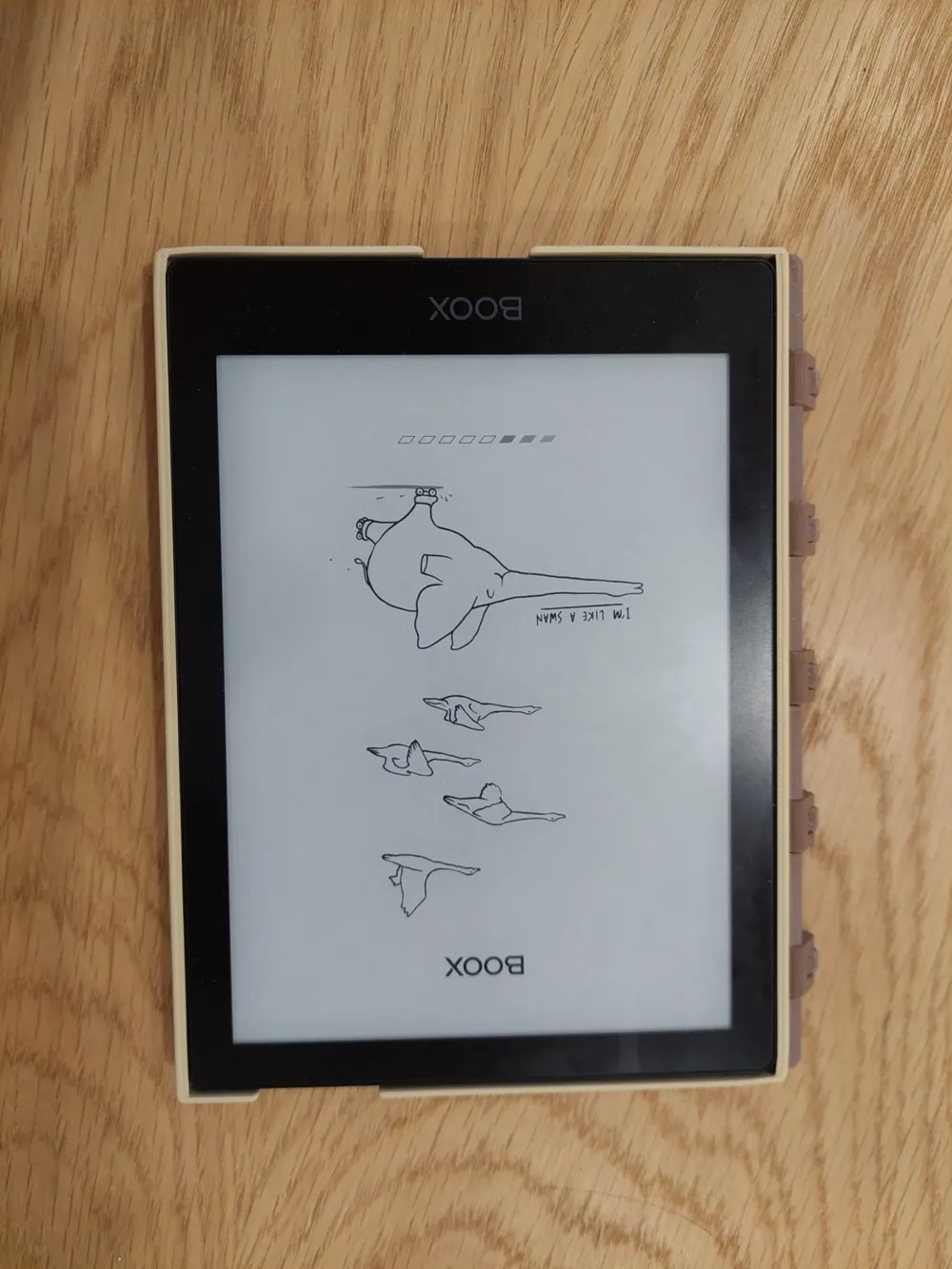

An ergonomic, functional protective case for the Onyx Boox Go 6 e-ink reader. Designed to mimic the feel of a real classic book when closed, this cover offers premium protection while significantly improving reading comfort.
🌟 Key Features

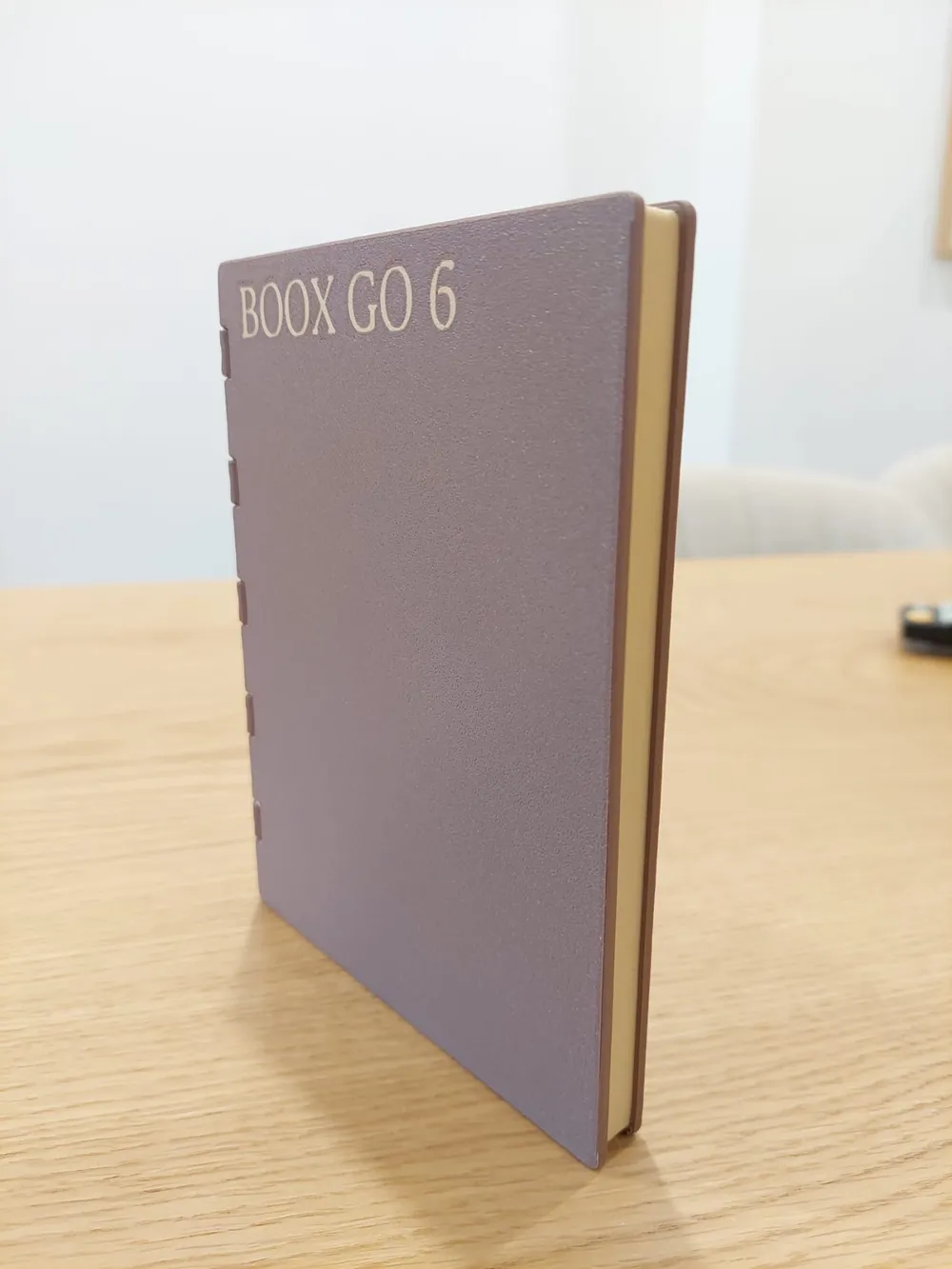

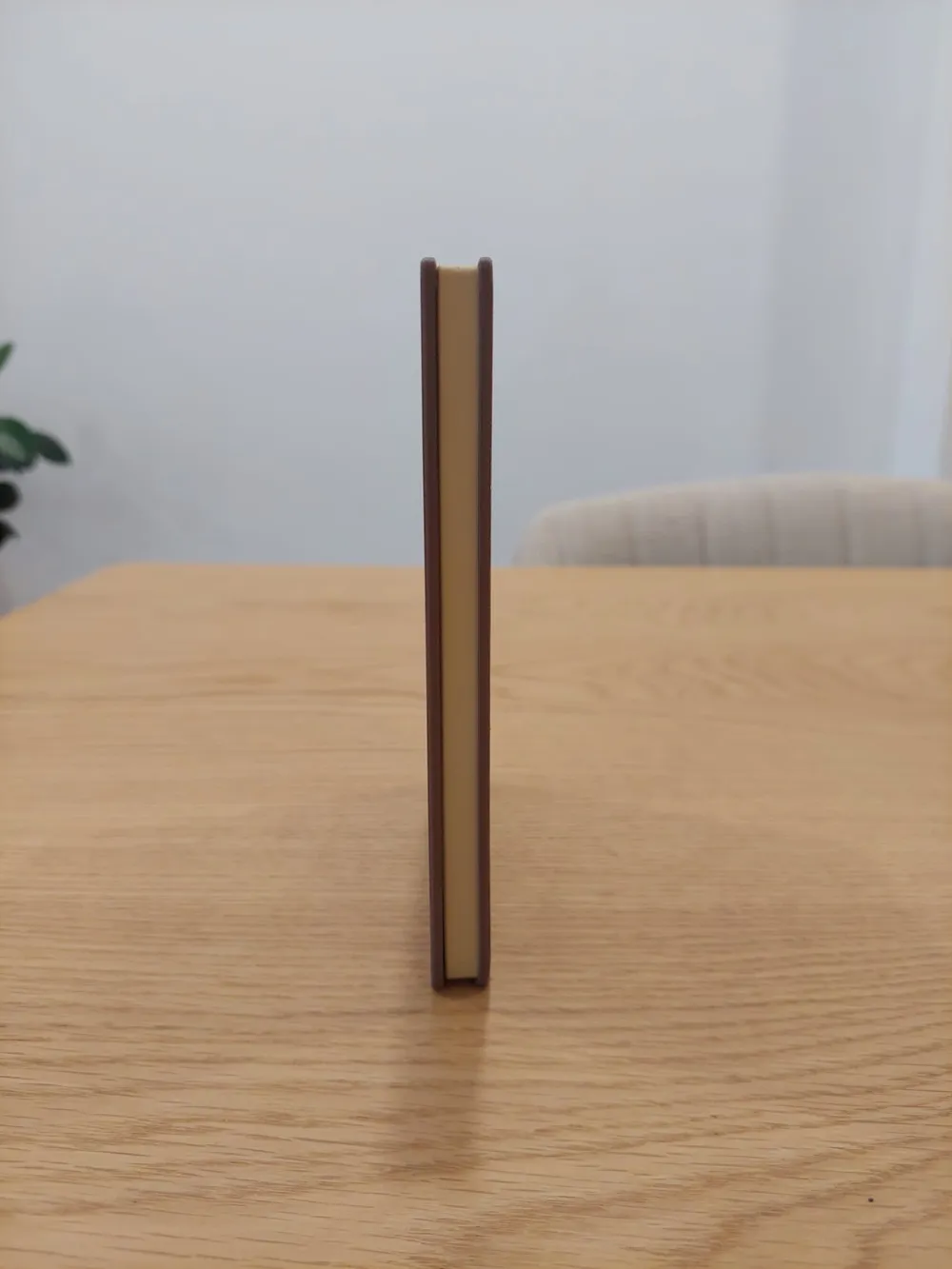

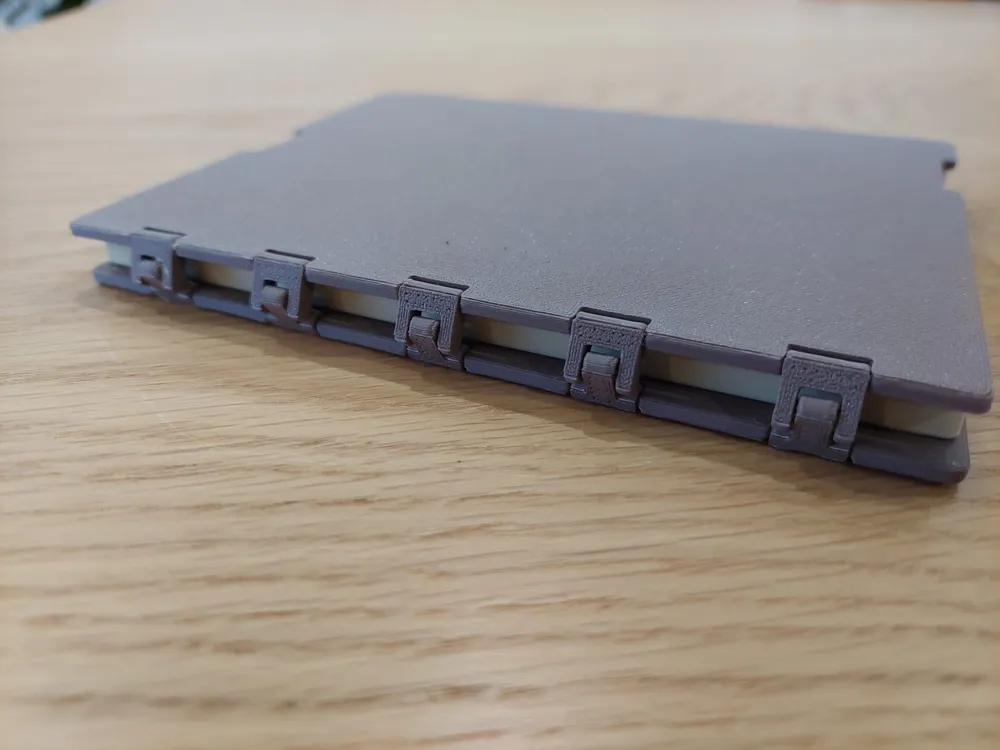

- Real Book Aesthetics: When closed, the case disguises your e-reader as a premium hardback book.

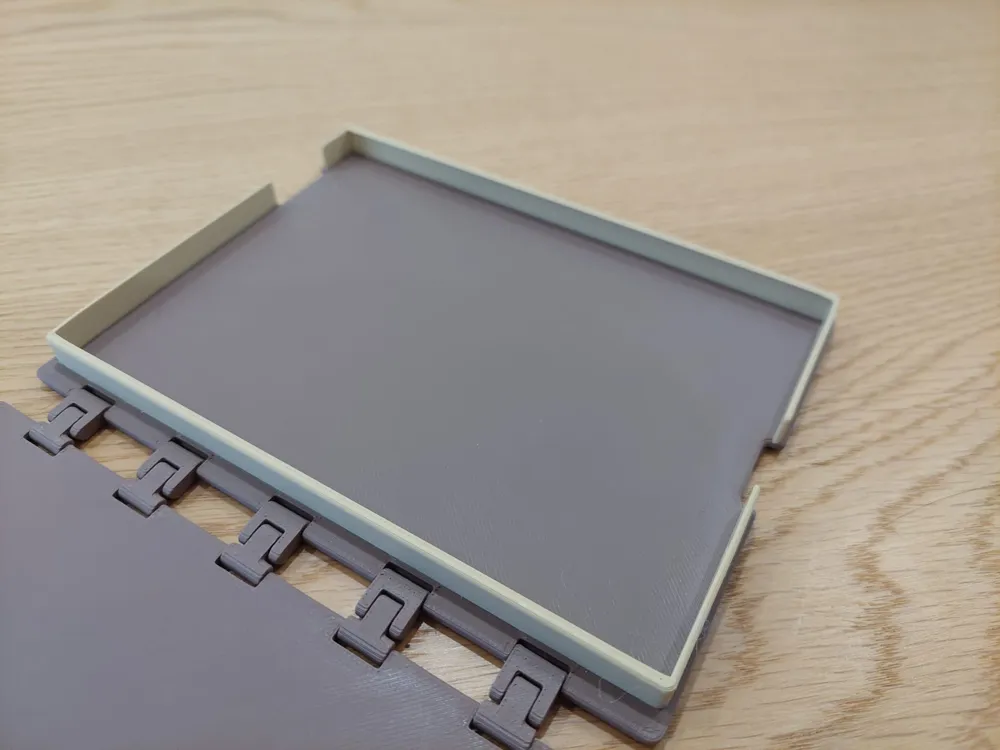

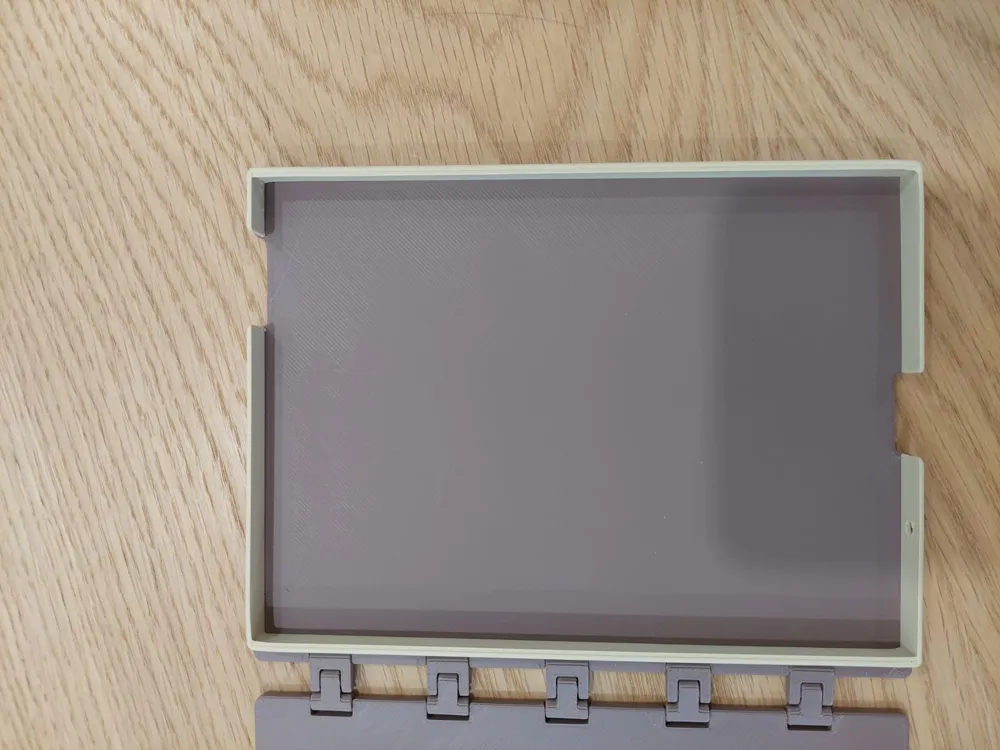

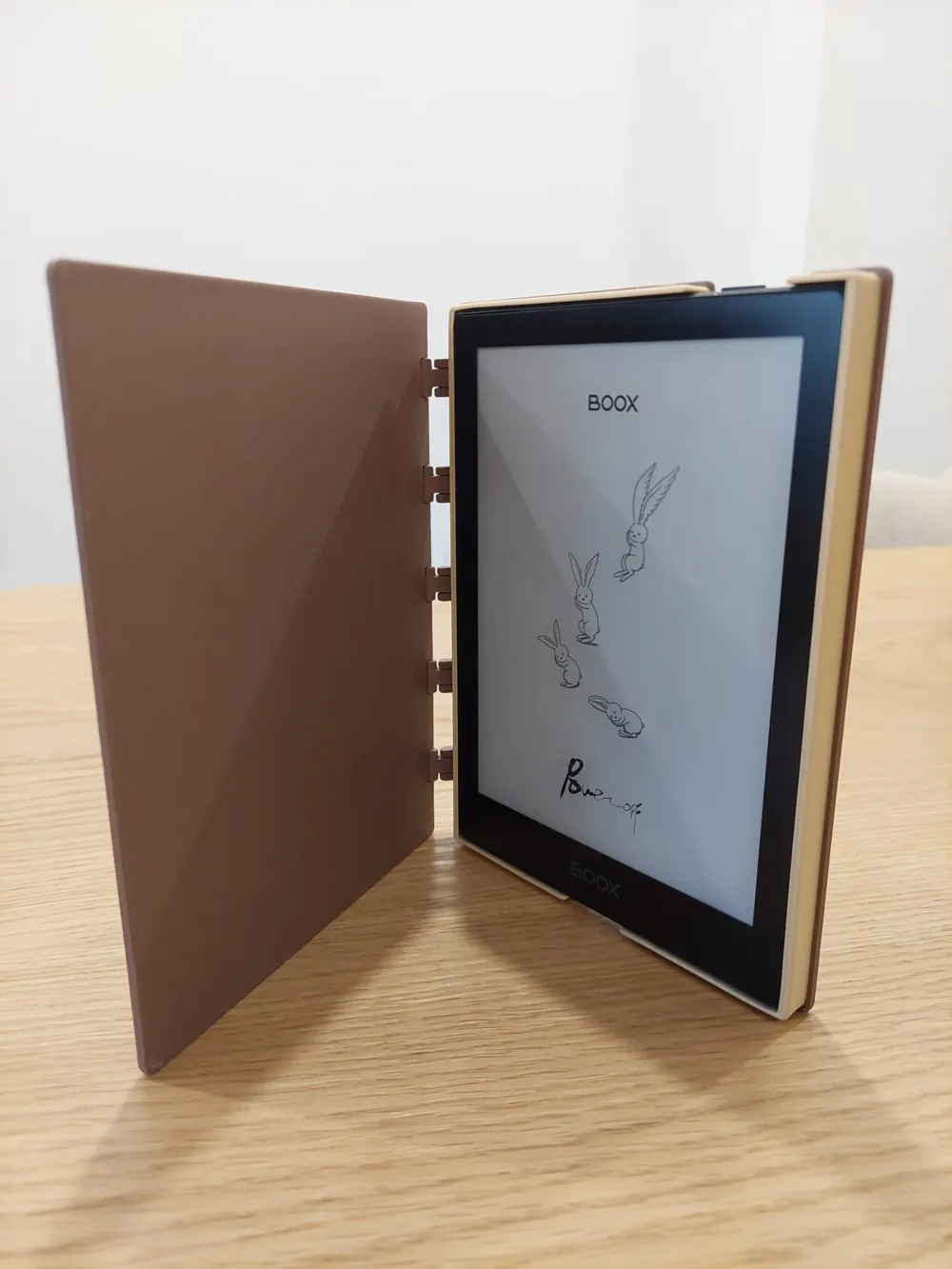

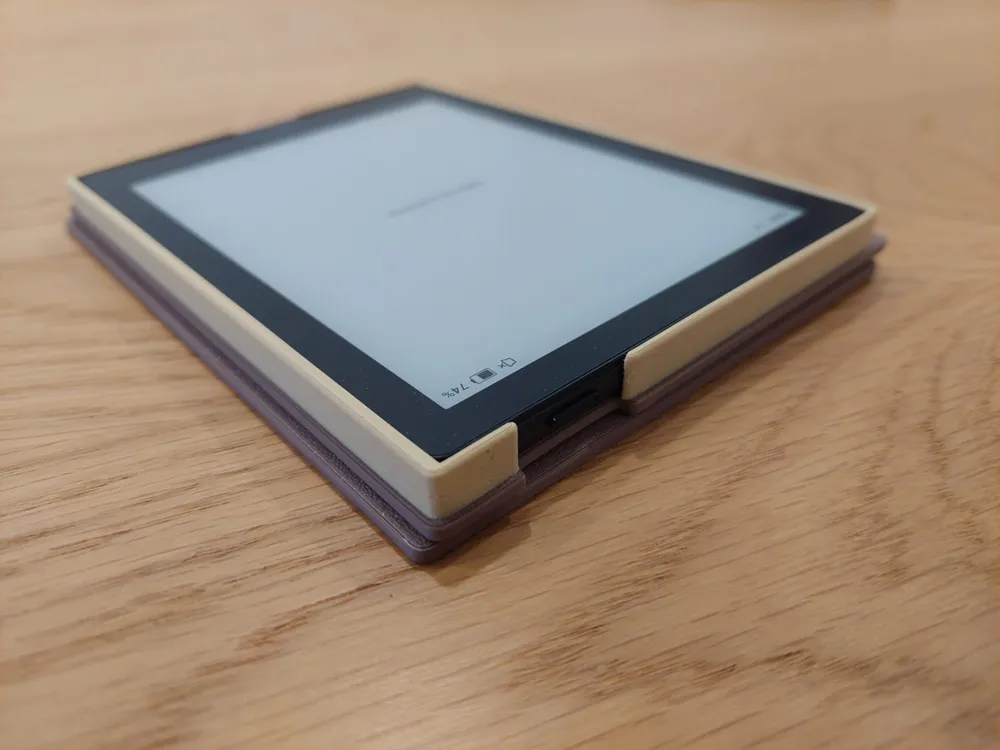

- Ergonomic Folding: The front cover folds completely flat behind the device, allowing for easy, comfortable one-handed holding.
- Dual Versions: Choose between the fully functional magnetic version or a simpler, hardware-free classic version.
📐 Two Versions Available1. Magnetic Version (Full Features)

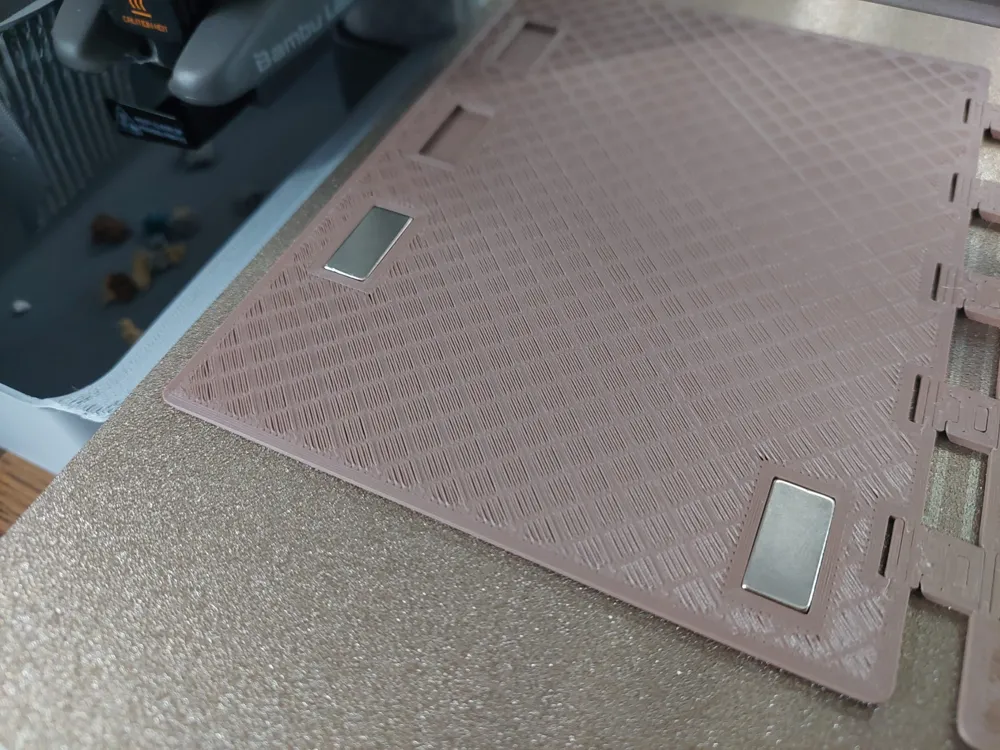

- Required Magnets: The model is designed for neodymium magnets measuring 20 mm x 10 mm x 1.6 mm.
- Auto Sleep/Wake: Features an integrated magnet slot that automatically puts the device to sleep when closed and wakes it up when opened.
- Secure Hold: Magnets align with the e-reader's internal layout to keep the cover securely closed in your bag and perfectly locked in place while flipped back for reading.
- ⚠️ IMPORTANT NOTE ON POLARITY: Before inserting the magnets, double-check the magnetic polarity against your Boox Go 6. Use a marker to label the correct side of the magnets beforehand to ensure they attract rather than repel the device!
2. Standard Version
- A clean, classic cover design with no magnet slots required. Perfect for a quick, straightforward print.
🖨️ Recommended Print Settings
The model has been optimized for clean printing without complex post-processing.
- Layer Height: 0.2 mm
- Wall Loops / Perimeters: 4 walls (Crucial for durability, hinge flexibility, and hiding internal magnet slots).
- Supports: None (No supports required).
- Infill: 15-20% (Gyroid recommended).

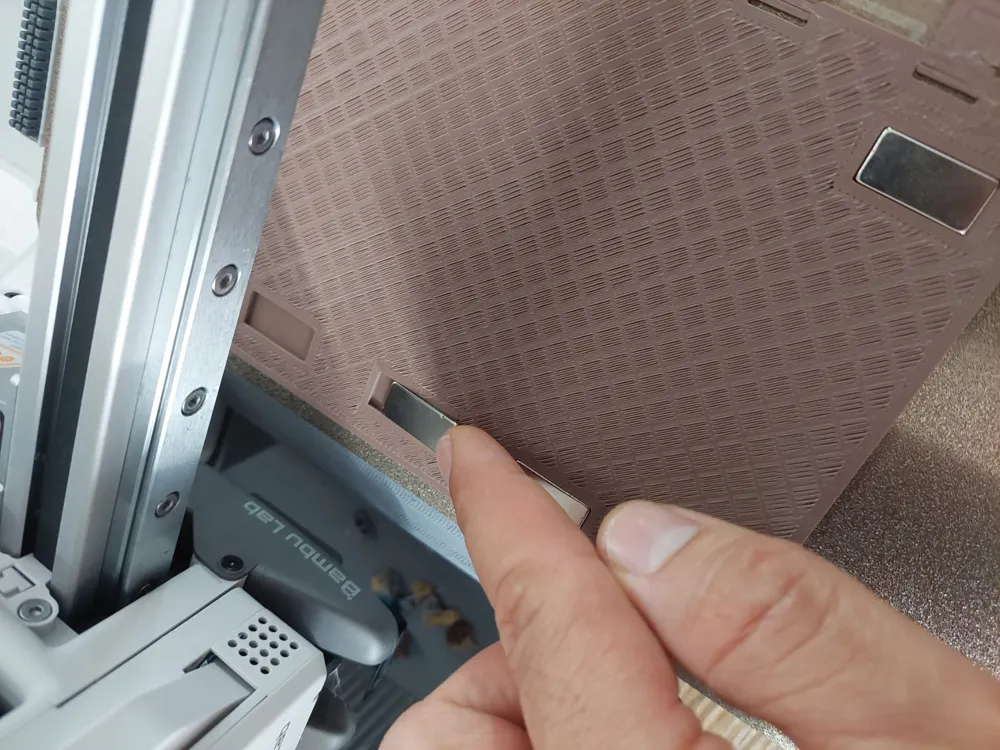

- Print Pause (Magnetic Version): The print profile already includes a pre-configured pause command at the exact layer. Just insert the magnets when the printer stops!
If this design upgrades your reading experience, please leave a like, download the profile, and share a photo of your printed case in the comments! Happy printing!
