Description

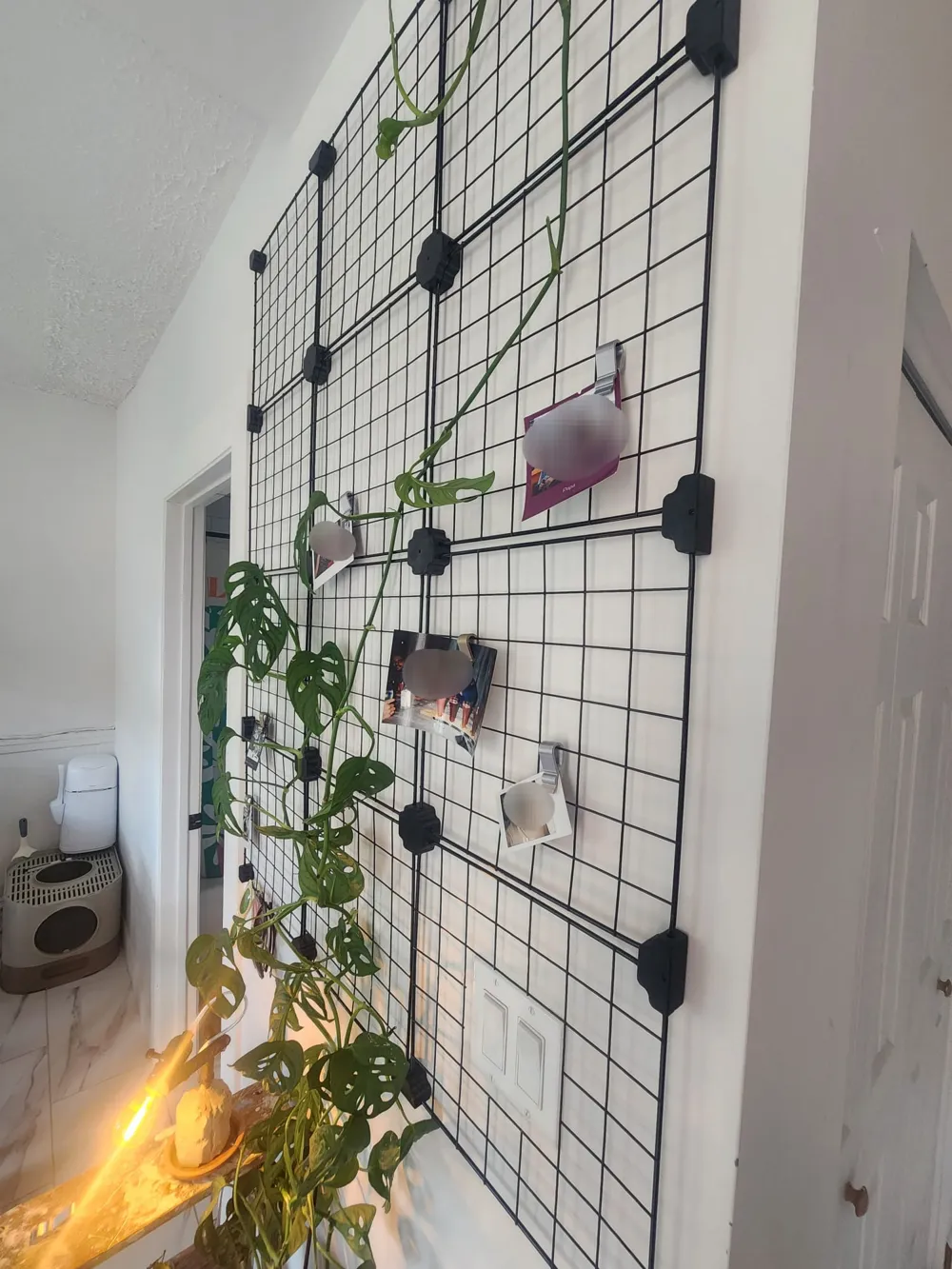

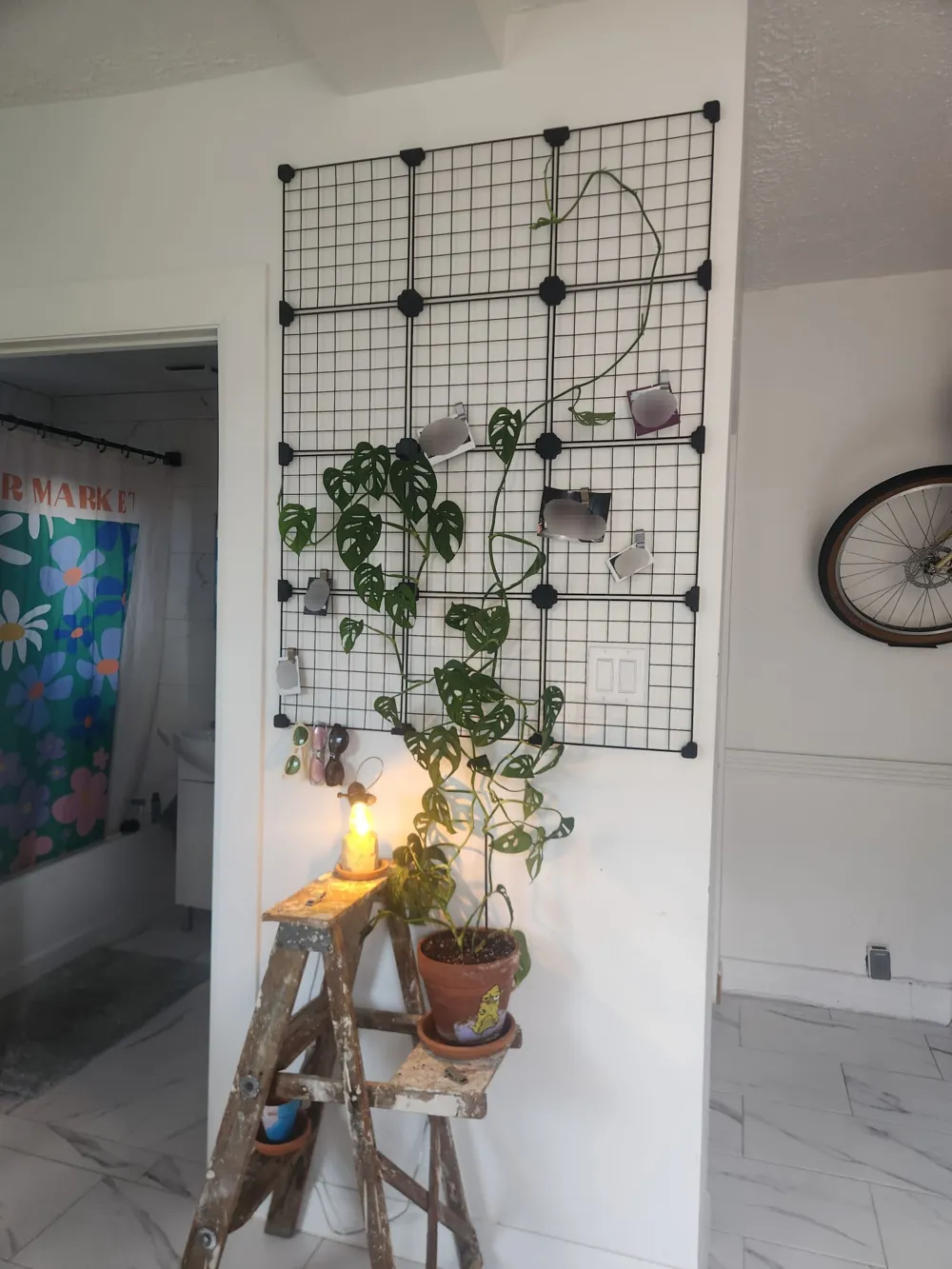

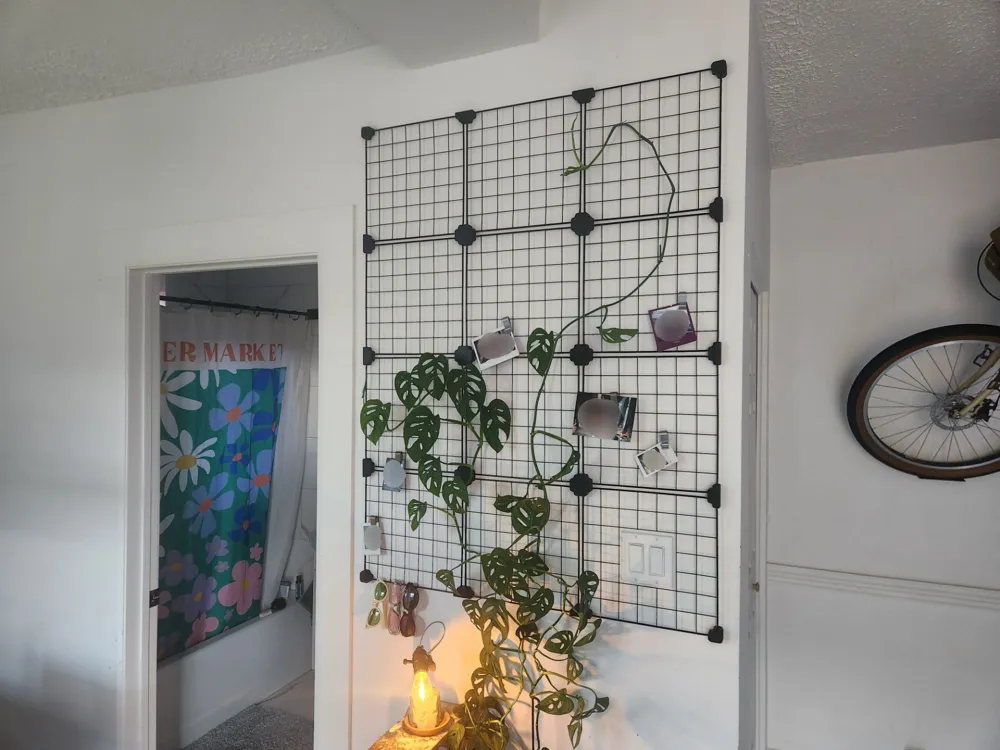

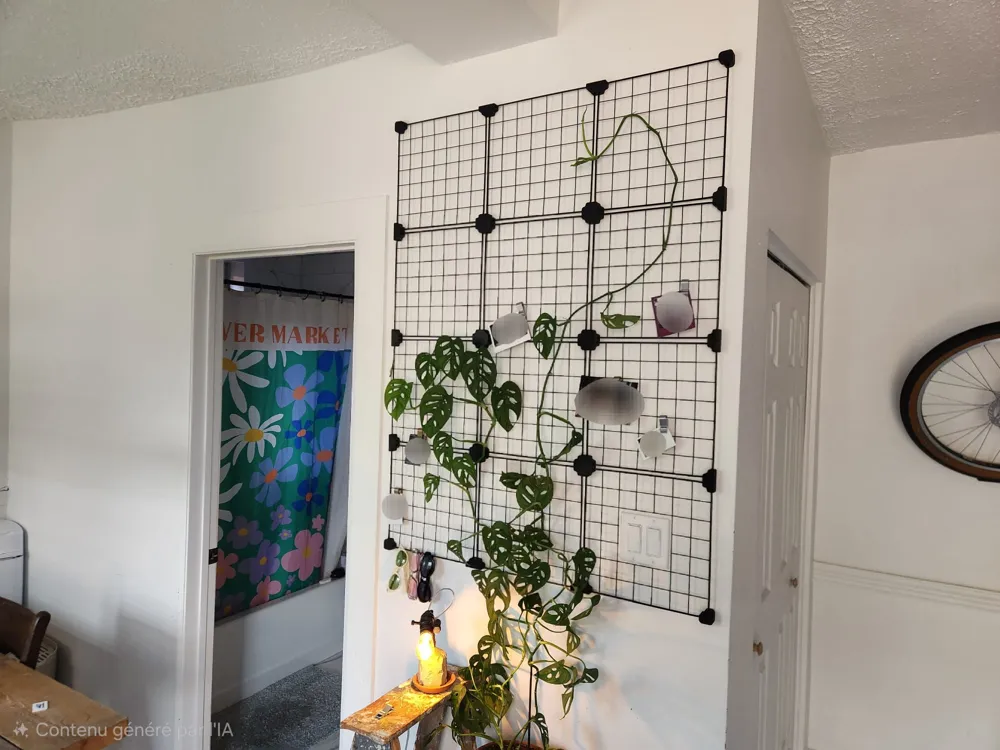

A set of three connectors to turn wire cube storage grids (sold in packs of 24) into a fixed wall panel — perfect for a photo board, a climbing plant support, or a modular display wall.

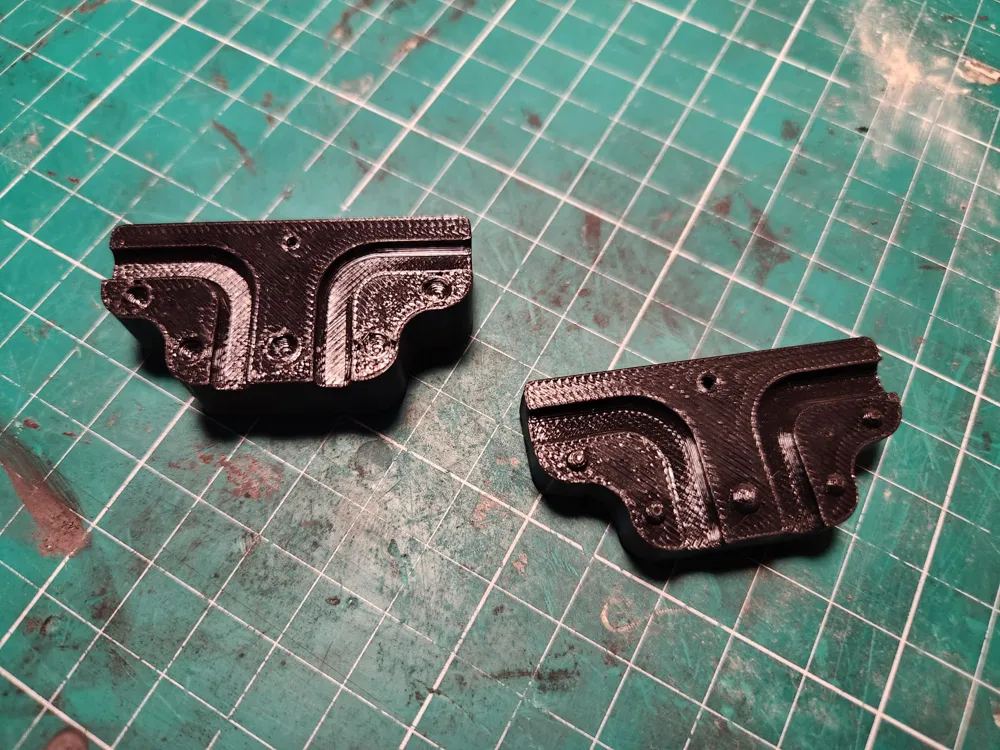

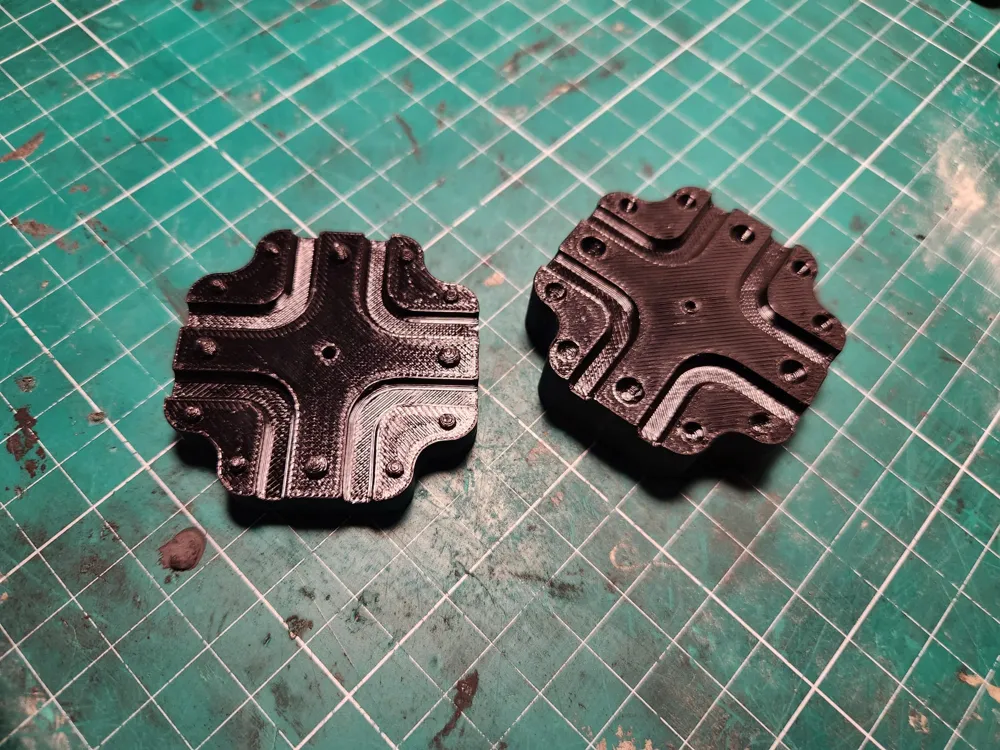

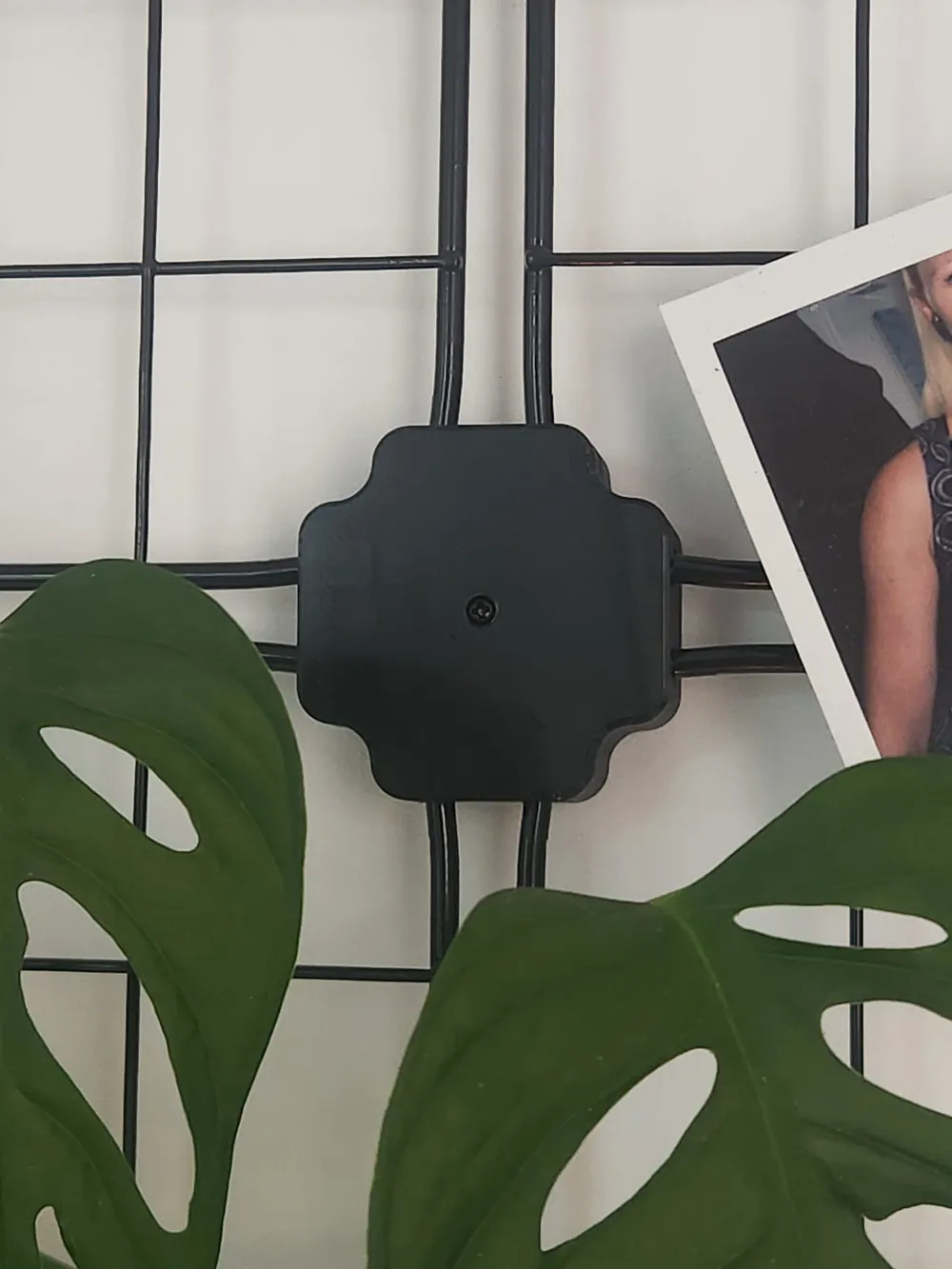

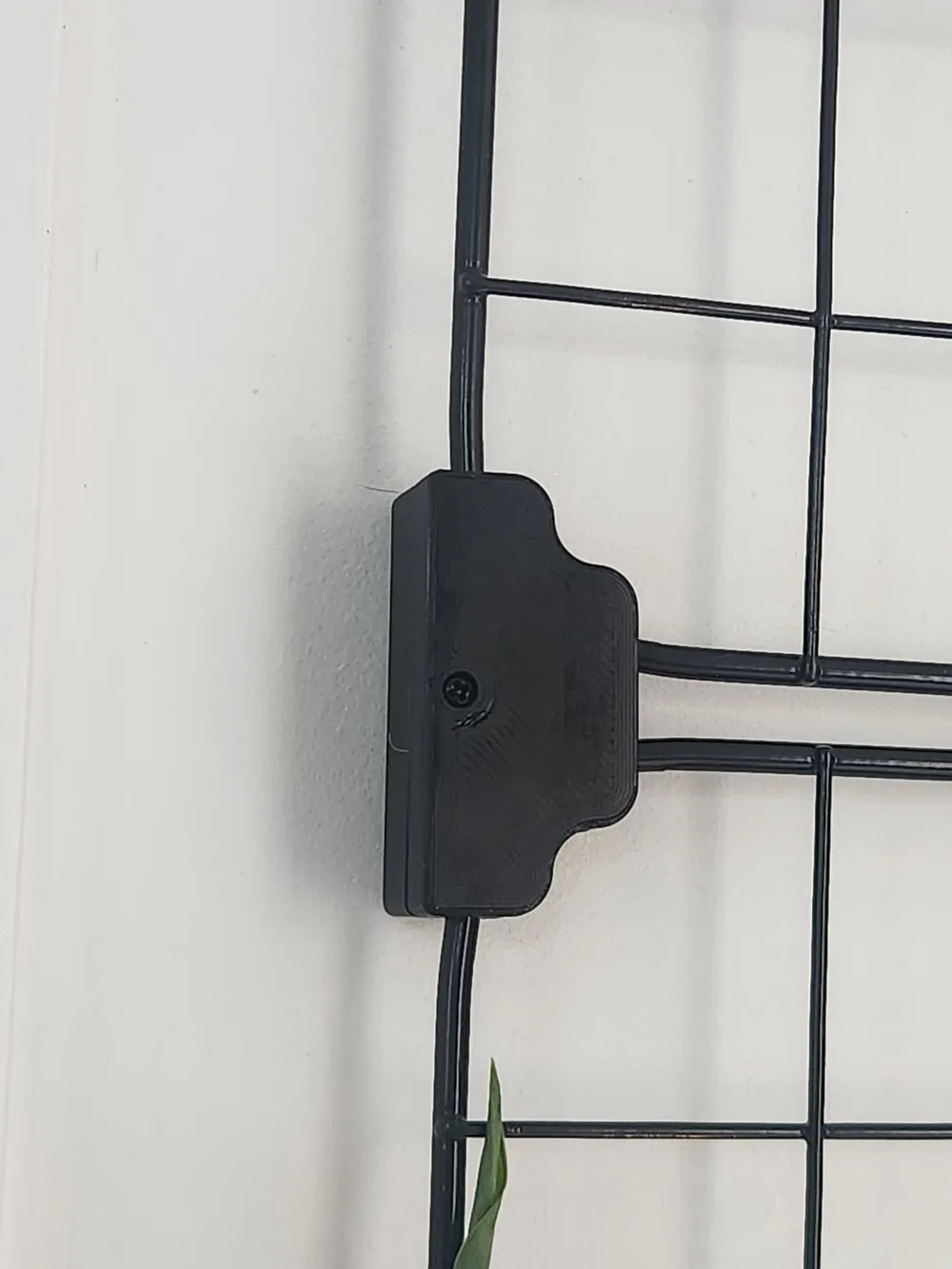

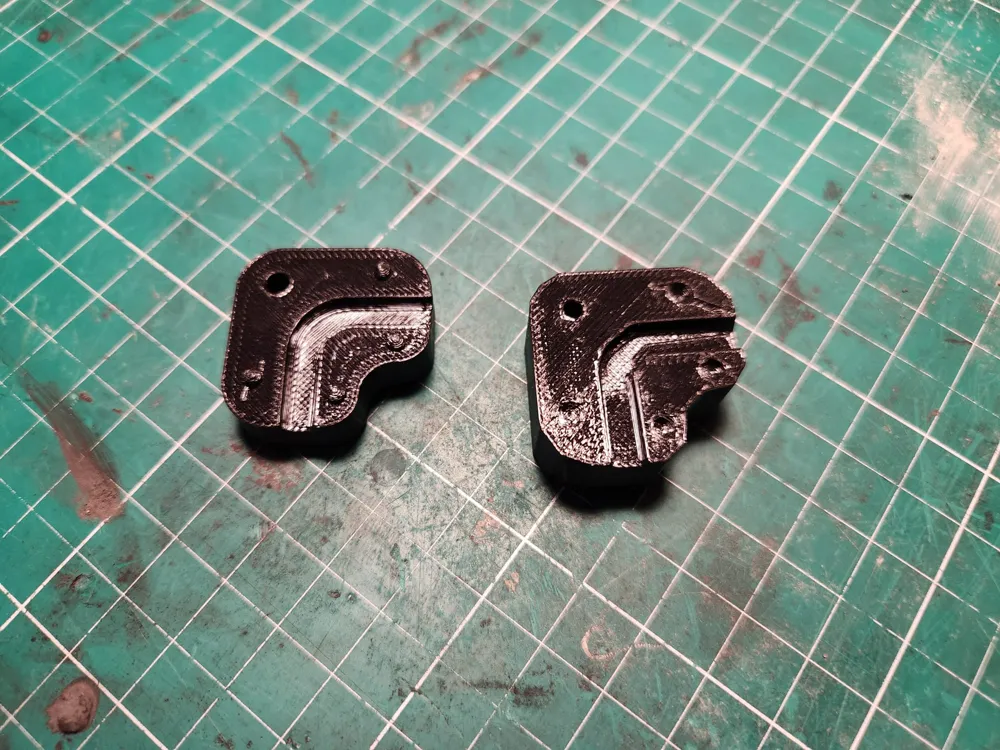

Three parts cover every assembly point: a cross connector for internal junctions (4 grids), a T connector for edges, and an L corner connector for the panel's 4 corners.

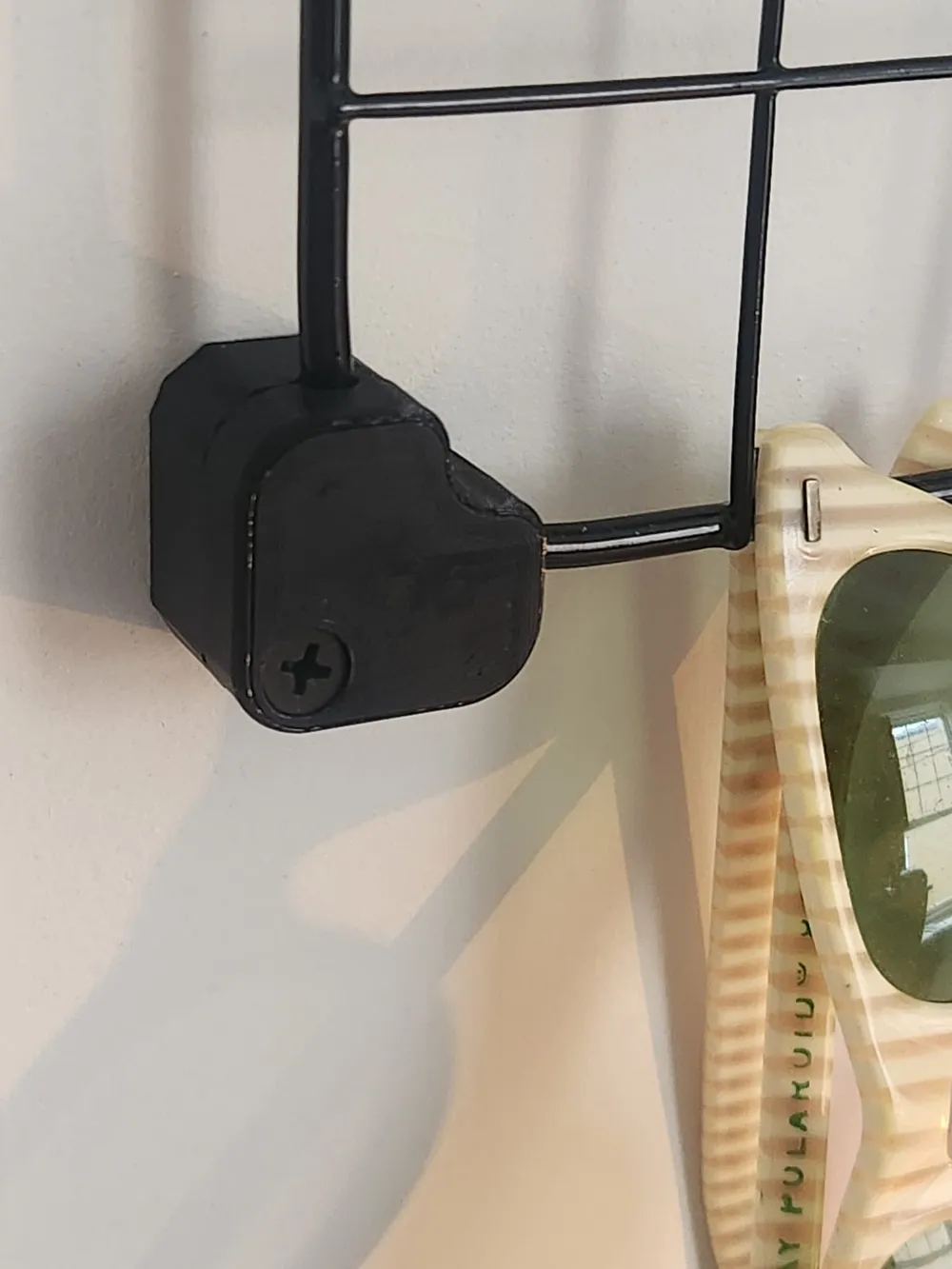

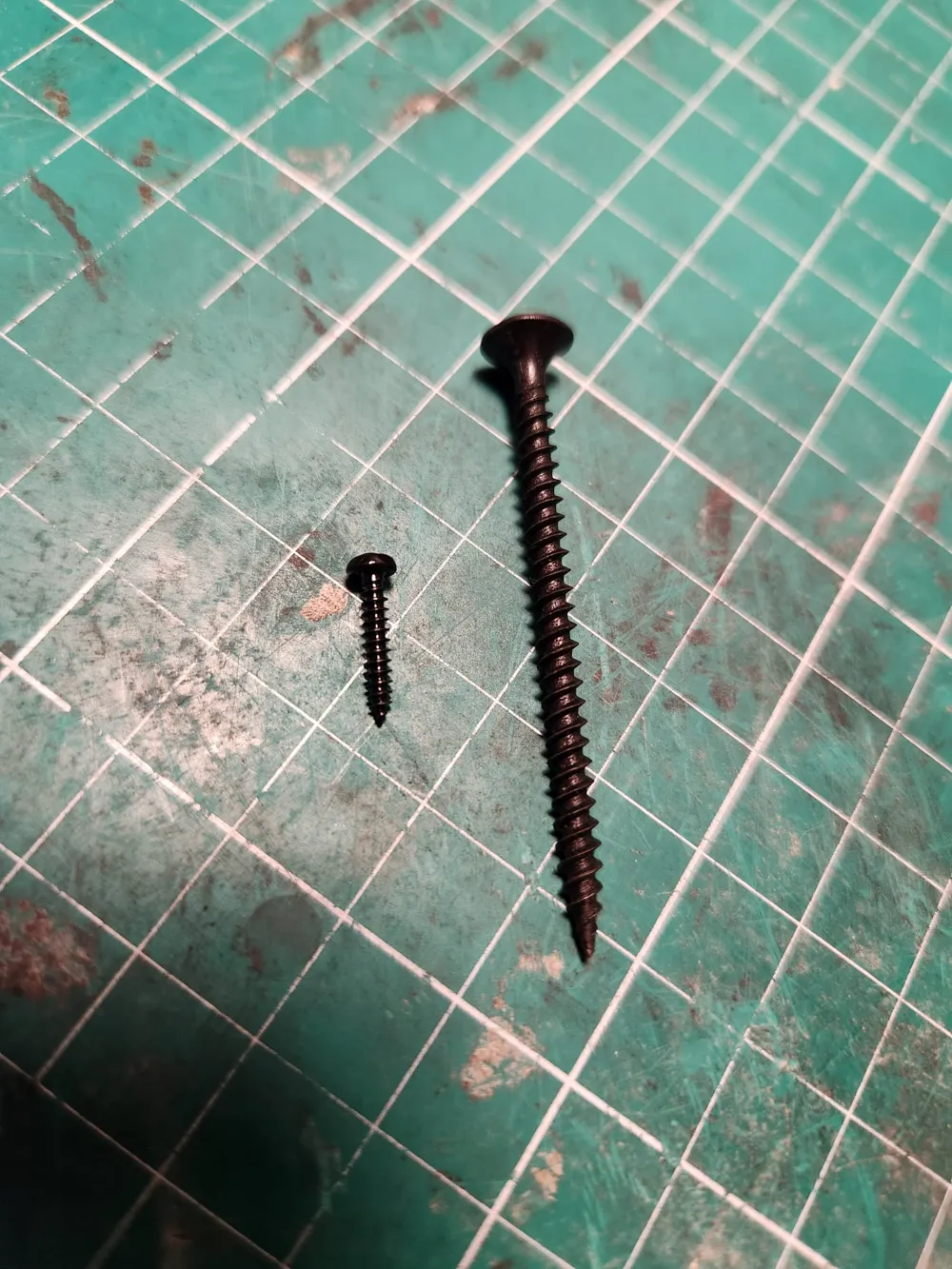

Mounting: the 4 corners are screwed directly into the wall (#6 x 2" screws), which carries the full weight of the panel. All other connectors attach to the grids with #2 x 1/2" screws, then get double-sided taped to the wall — no extra holes needed.

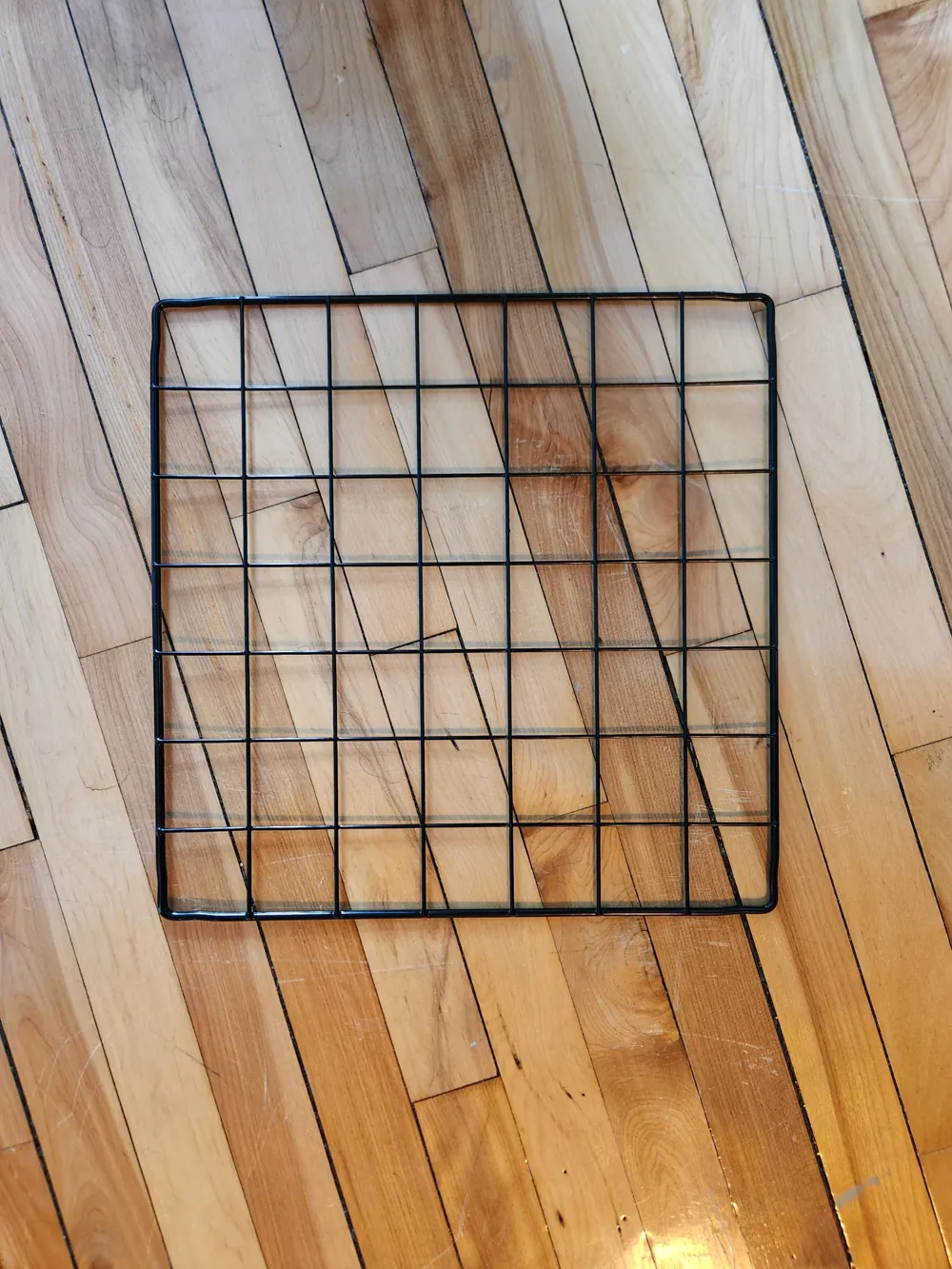

Compatible grids: [link to metal grids]
Mounting screws: [link to #2 x 1/2" screws]
Printing: PETG, 0.4mm nozzle, 0.2mm layer height. No real structural load except at the corners.
