Sliding-bolt lock (vertical)
IP Report
Print Profile(2)
0.2mm layer, 3 walls, 15% infill
Designer
34 min
1 plate
0.2mm layer, 3 walls, 15% infill
Designer
36 min
1 plate
Open in Bambu Studio
Boost
1
1
0
0
1
1
Released
Bill of Materials
Bambu Filaments
Select all
Description

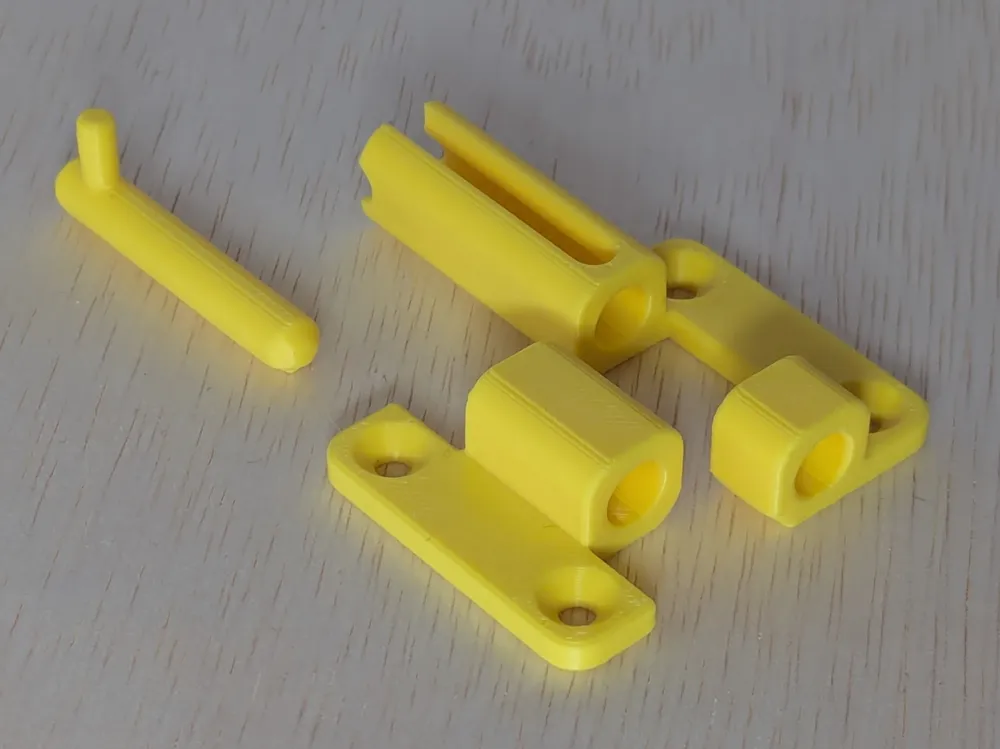

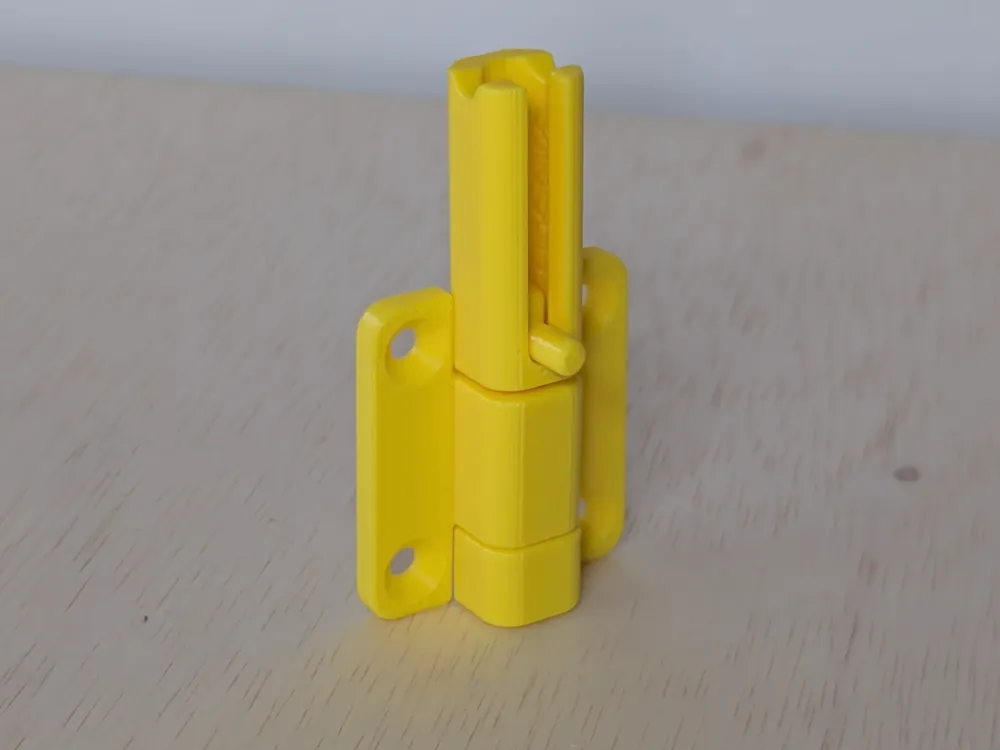

This is easy and fast printable vertical deadbolt I designed to replace a less user friendly mechanism.
- Fast 30 minute print without supports

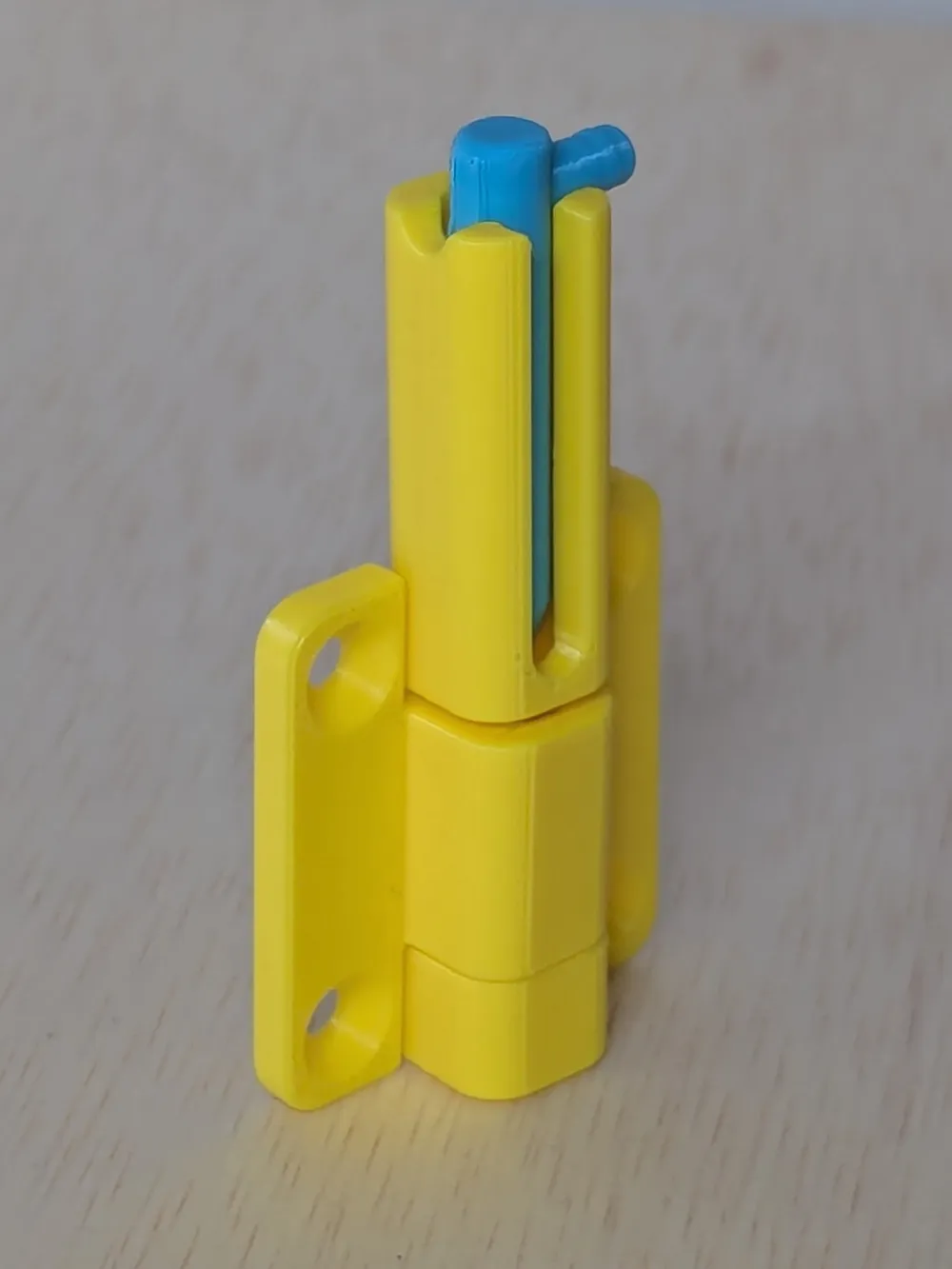

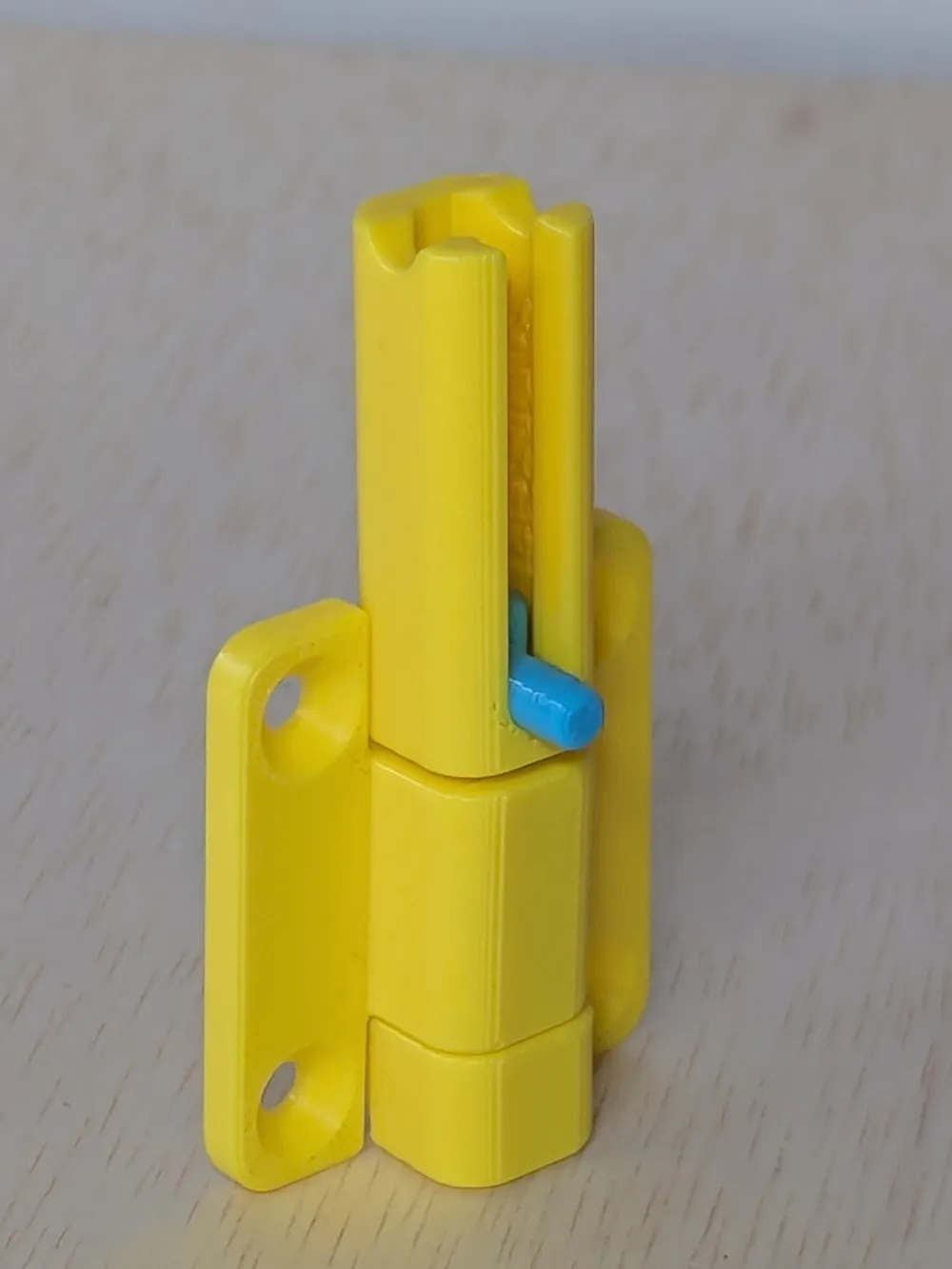

- Bolt can be fixed in top position to allow for opening/closing without lock

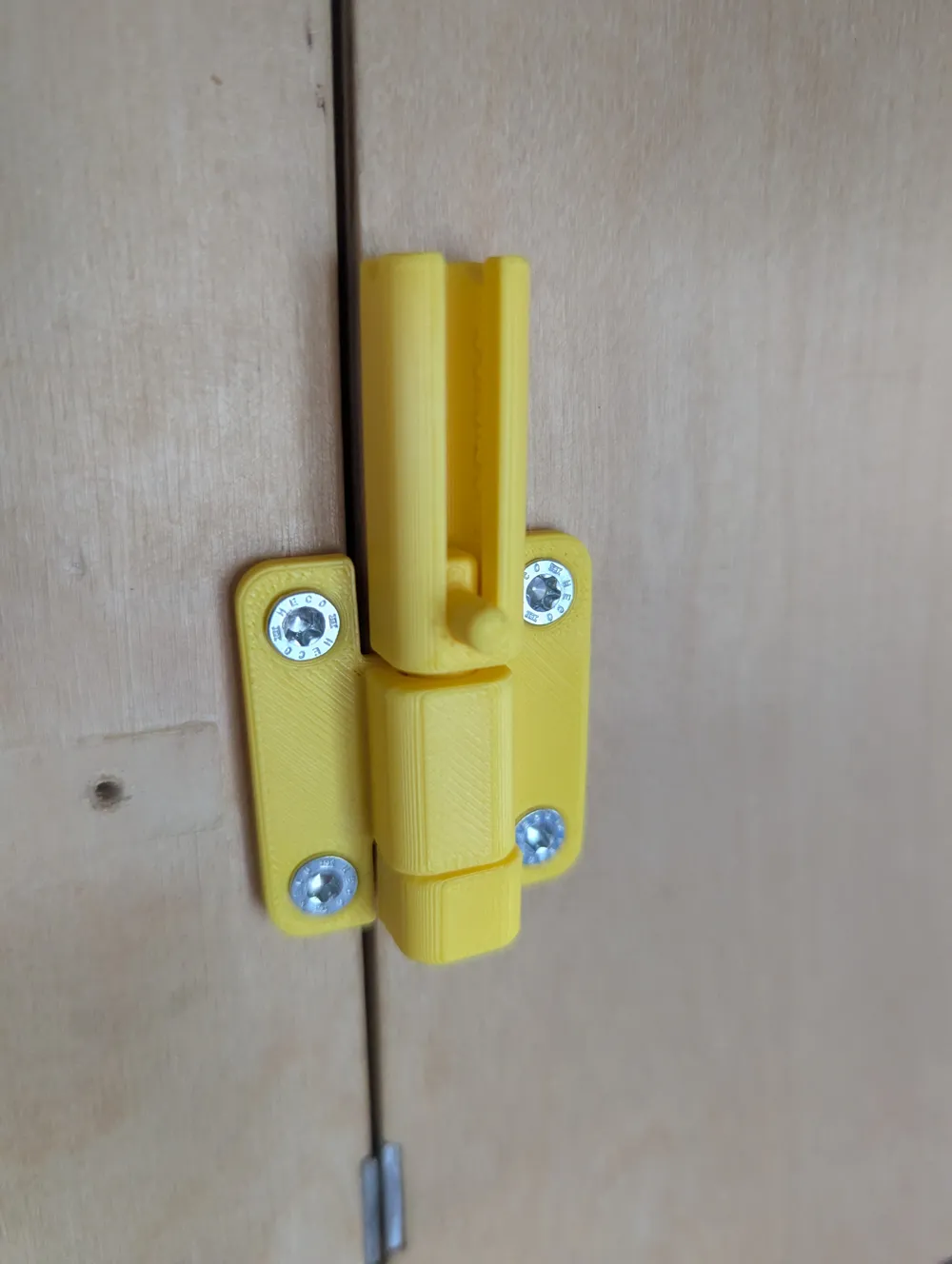

- Can be mounted with screws, countersunk holes on the flanges are 4mm diameter

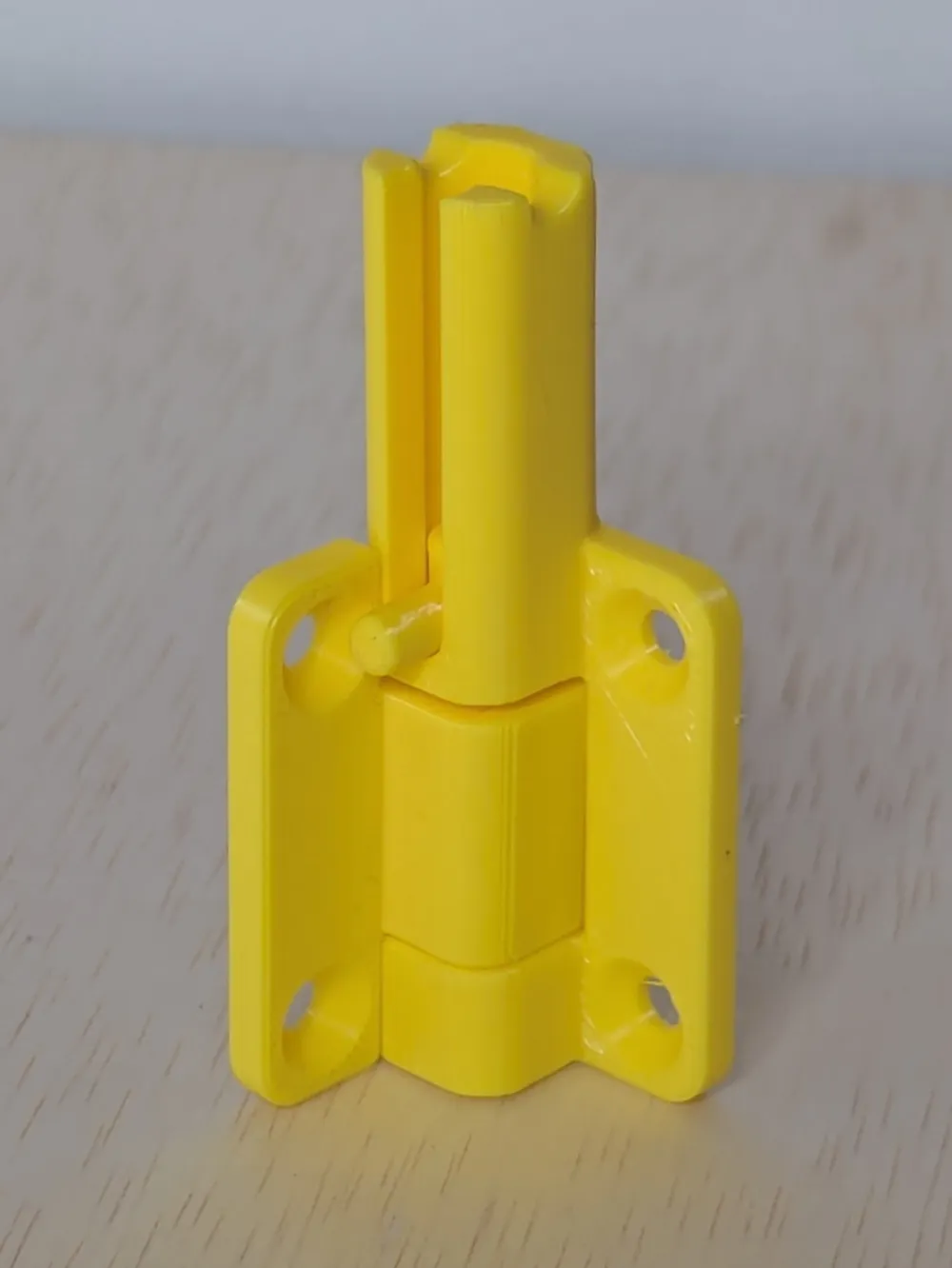

- Can be oriented inline or at 90 degree (for example to lock a sliding door)
I used PETG but you can use any material of your choice.
