Universal Parametric Articulated Mount

Universal Parametric Articulated Mount (OpenSCAD Customizer)

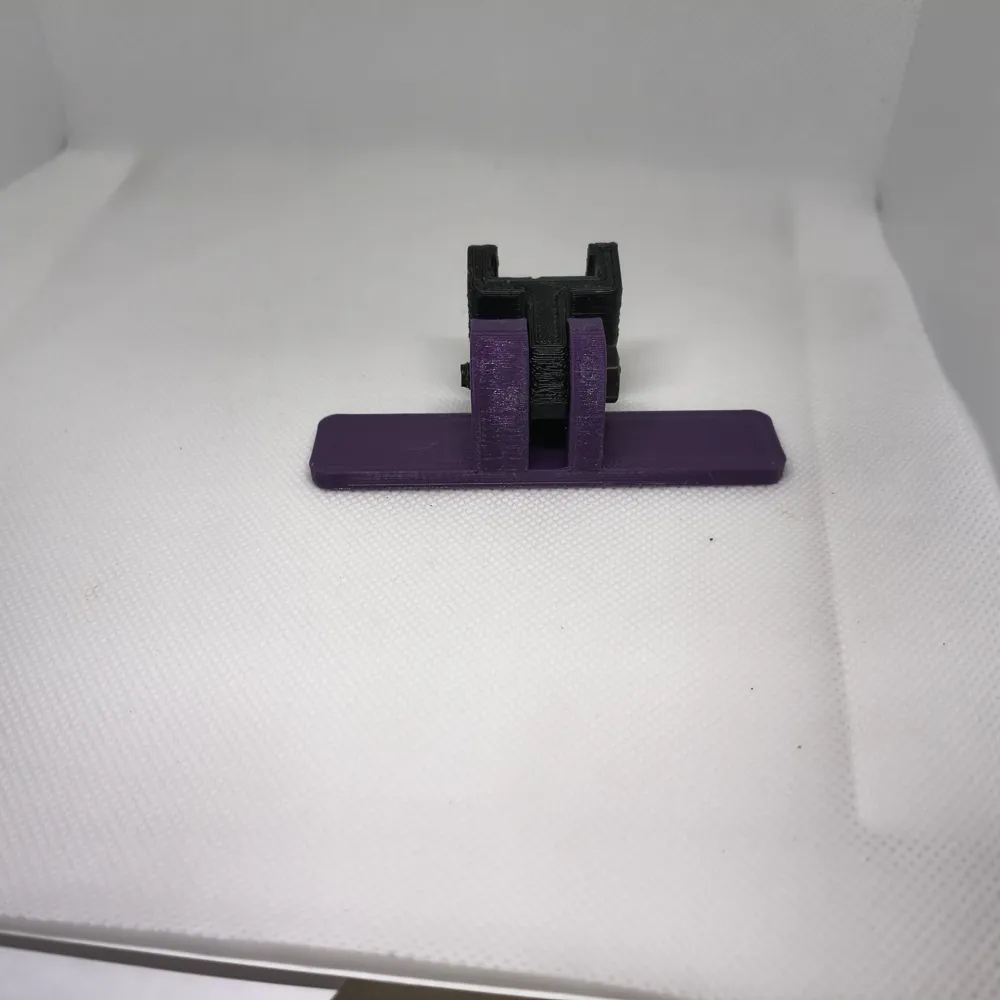

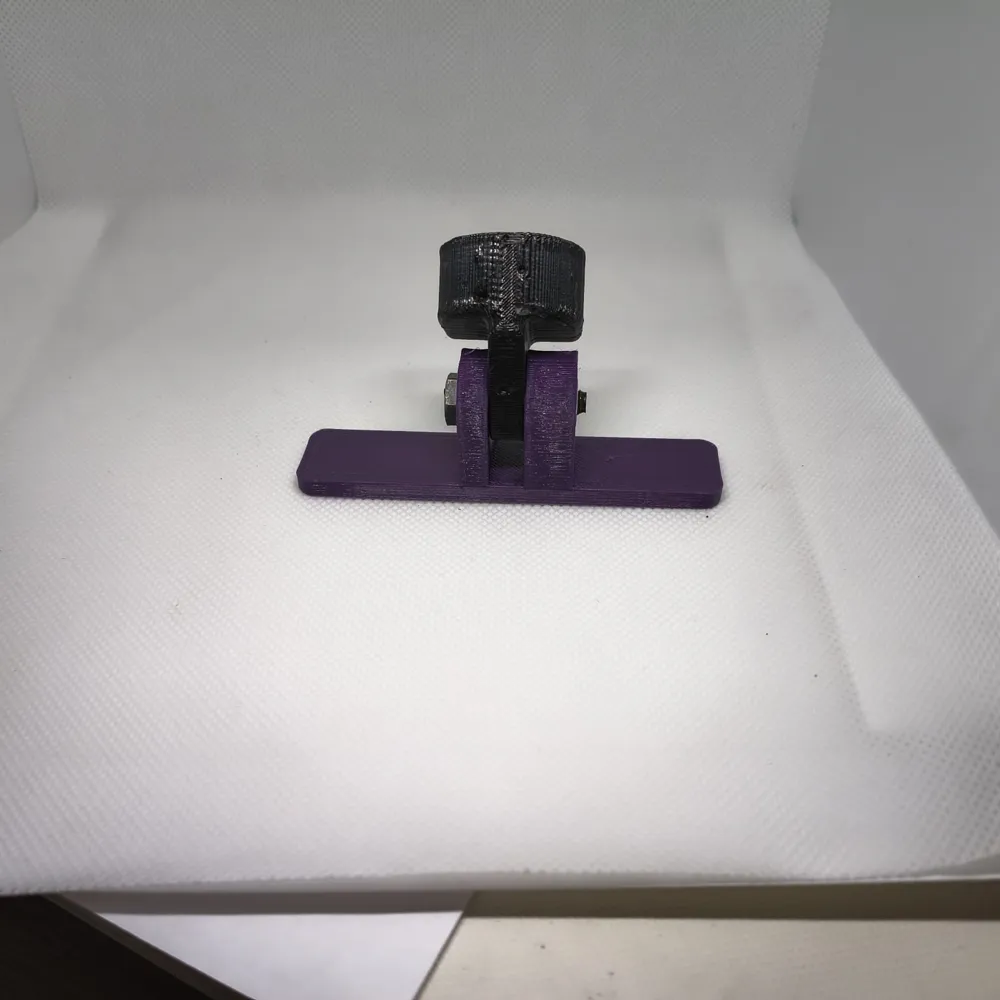

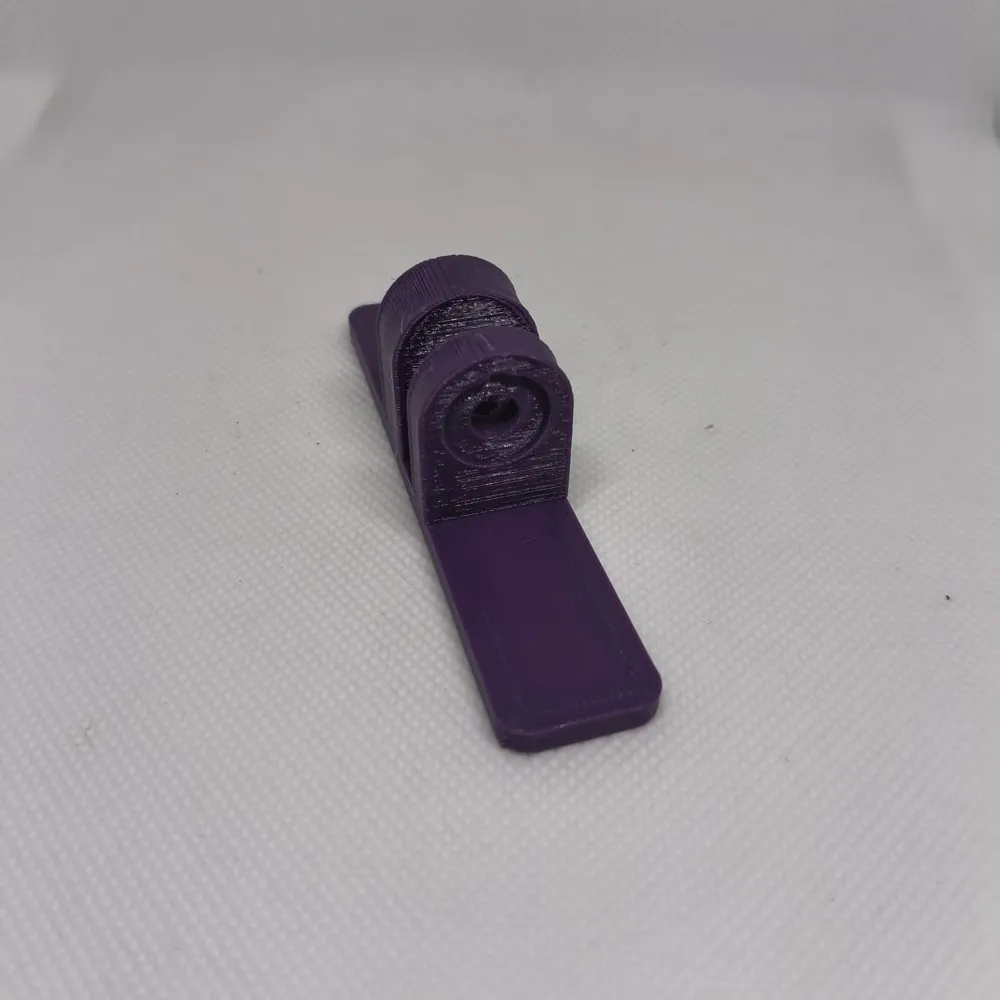

A highly adaptable, fully parametric dual-tab hinge bracket designed from scratch in OpenSCAD. Perfect for modular robotics, custom camera mounts (GoPro style), or any articulate mechanical joint.

Key Features:

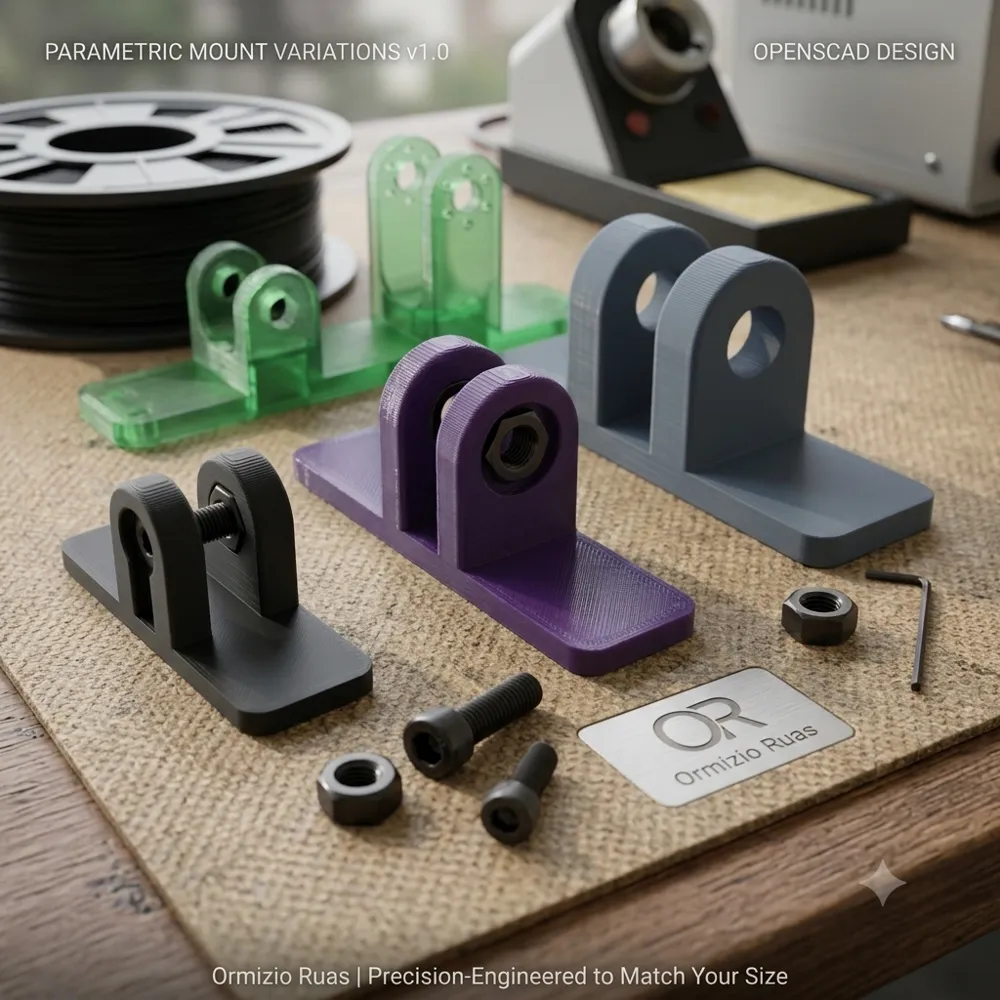

• Fully Parametric: Easily adjust base dimensions, tab thickness, and gap width using the MakerWorld Customizer online or OpenSCAD locally.

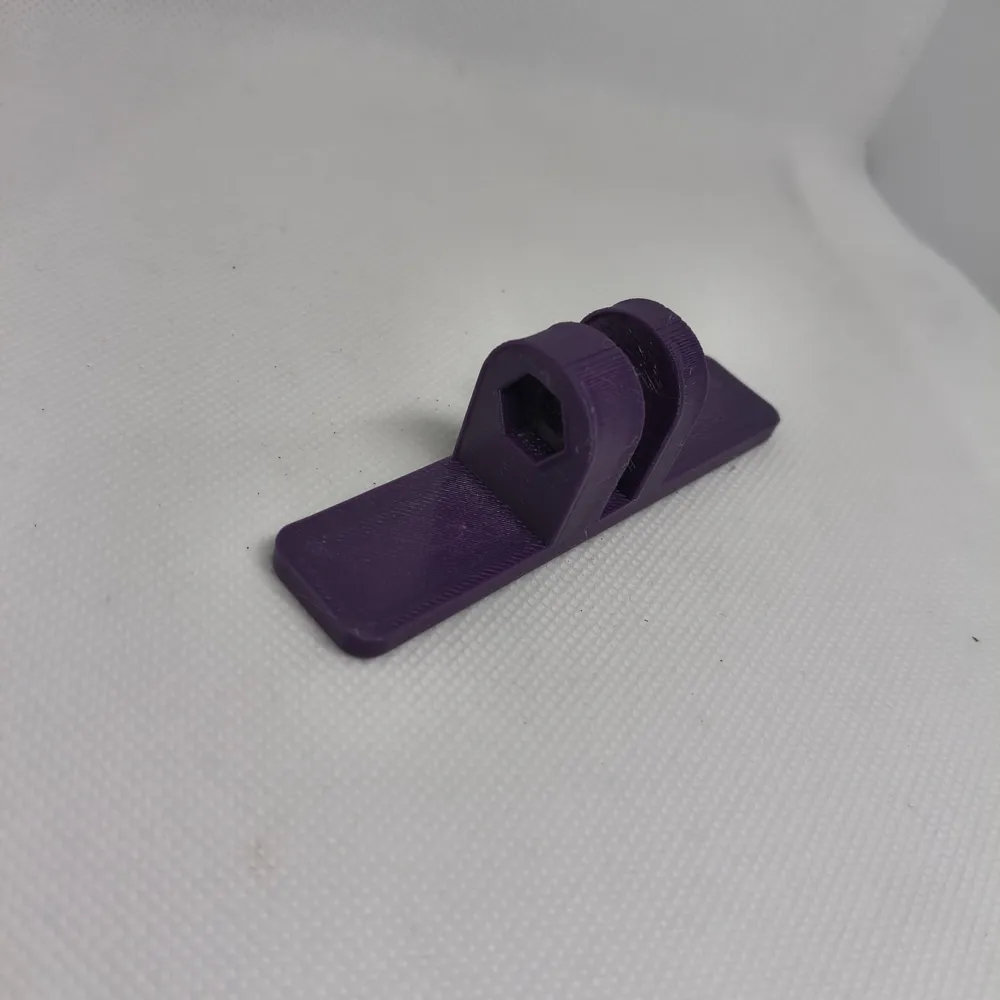

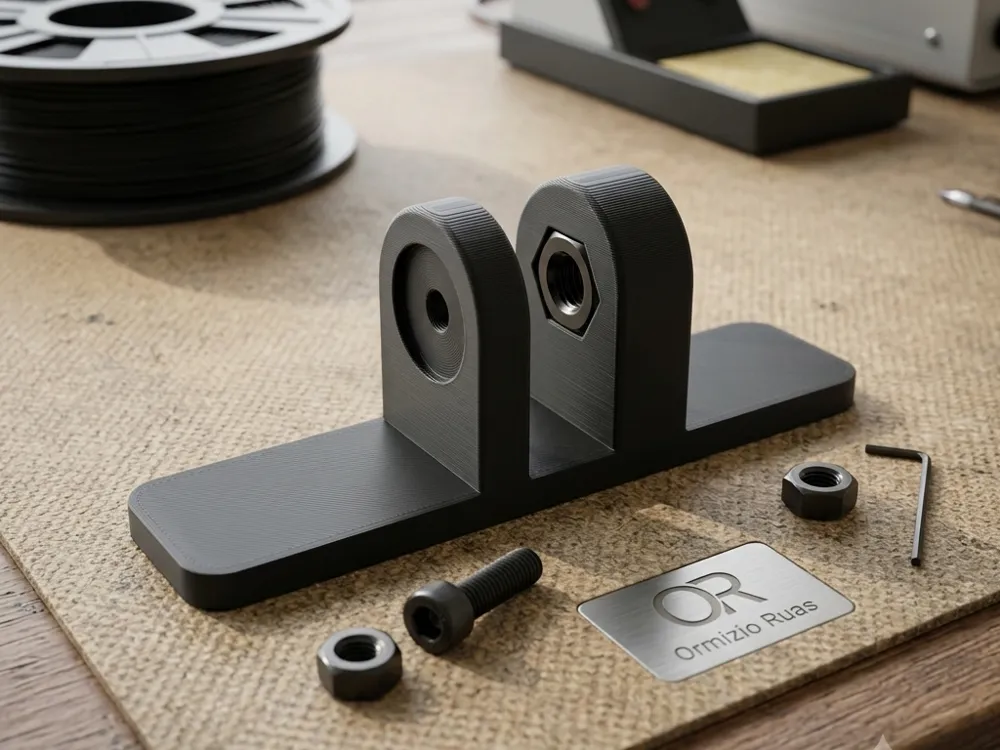

• Smart Hardware Pocket: Features a precise hexagonal pocket on one side to lock a standard metric hex nut in place, preventing it from spinning during assembly.
• Universal Screw Recess: The opposite side features a smooth, clean circular recess, allowing universal screw heads to sit completely flush.

🛠️ Recommended Print Settings / Configurações de Impressão

• Material Compatibility: Tested successfully with both PLA and PETG.
• Material Recommendation: * Use PLA for standard structural use.
  • We highly recommend PETG (or superior engineered filaments) for applications requiring higher temperature resistance or enhanced mechanical strength.
• Printer Used for Testing: Ender 3 V3 SE
• Wall Loops / Perimeter: 4 walls (Highly recommended for maximum mechanical strength around the articulation and hinge area)
• Infill: 20% (Gyroid or Grid)
• Print Order: Inner wall / Outer wall
• Speeds Used for Perfect Finish:
  • Outer Wall: 60 mm/s
  • Inner Wall: 90 mm/s
  • Bridge Speed: 30 mm/s (Reduced to 30% for a clean, sag-free overhang inside the bolt and nut countersinks)
• Supports: Not required if oriented flat on the base.

🙏 Acknowledgments & Invitation / Agradecimentos e Convite

Thank you so much for downloading and supporting my work! This model was meticulously developed and tested to ensure perfect tolerances for metric hardware.

📢 Invite to the Community: If you print this model, please consider uploading your own Print Profile (Perfil de Impressão) and a photo of your make! Sharing your sliced profiles for different printers (Bambu Lab, Creality, etc.) helps the entire community get the best possible results and saves filament for everyone.
