One-stop solution for the 5-way connector bursting issue
Print Profile(1)
Description

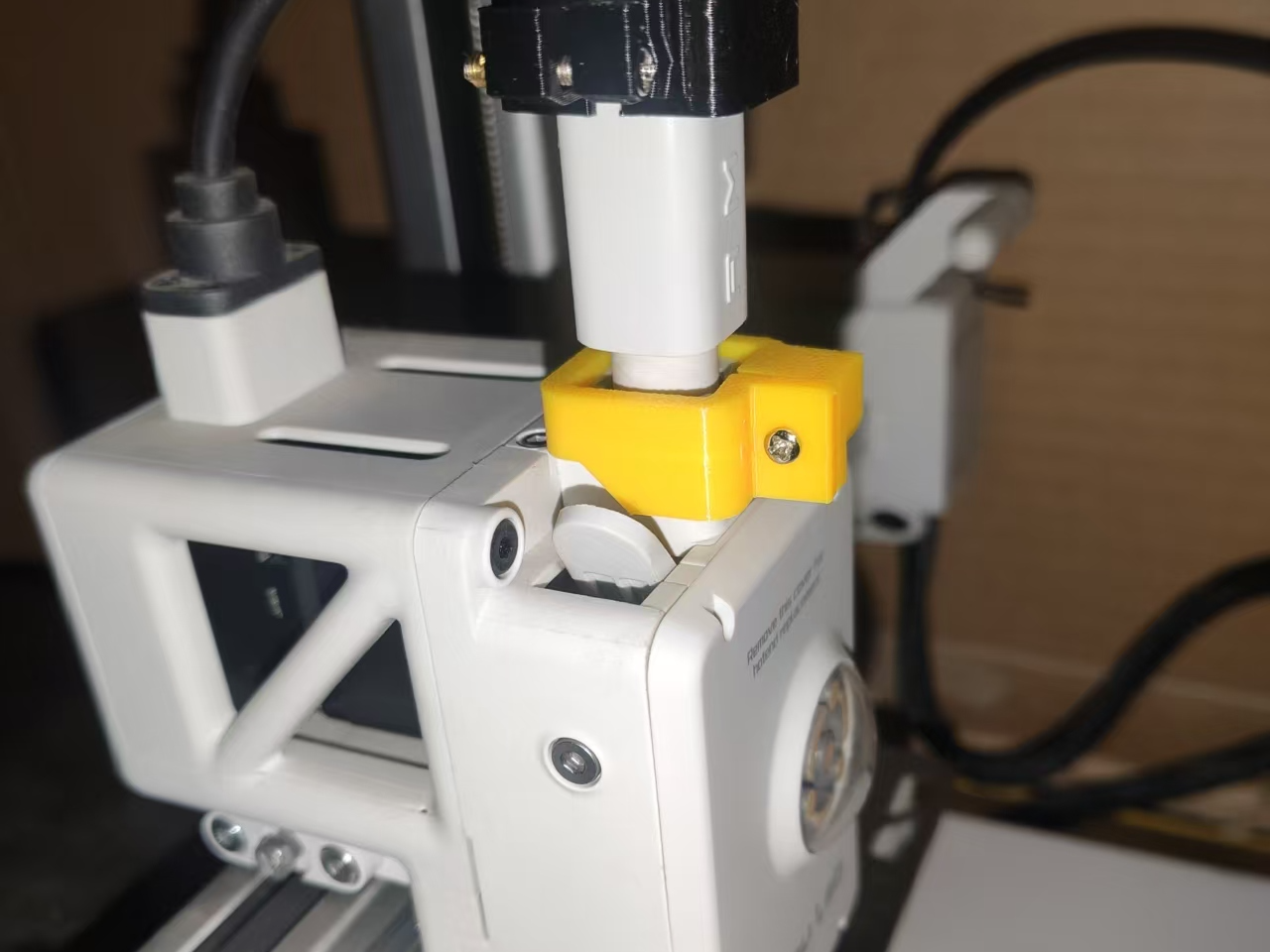

The upper anti-burst lock was modified based on 邵武林克手工坊's https://makerworld.com.cn/zh/models/1124581-a1-wu-tong-fang-bao-suo#profileId-1302809. The structure was reinforced, making it less prone to cracking when screwing, and washers were added for even force distribution.

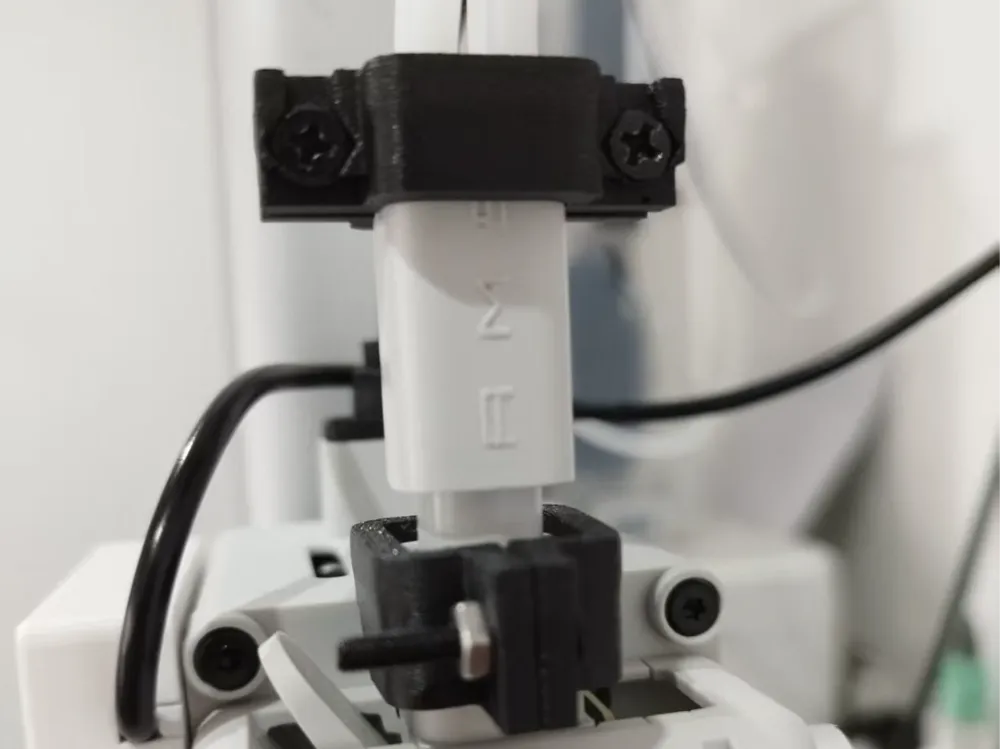

The lower 5-way anti-burst head clamp uses 我有大大的狡猾's https://makerworld.com.cn/zh/models/1174347-wu-tong-fang-bao-tou-bao-gu#profileId-1241983.

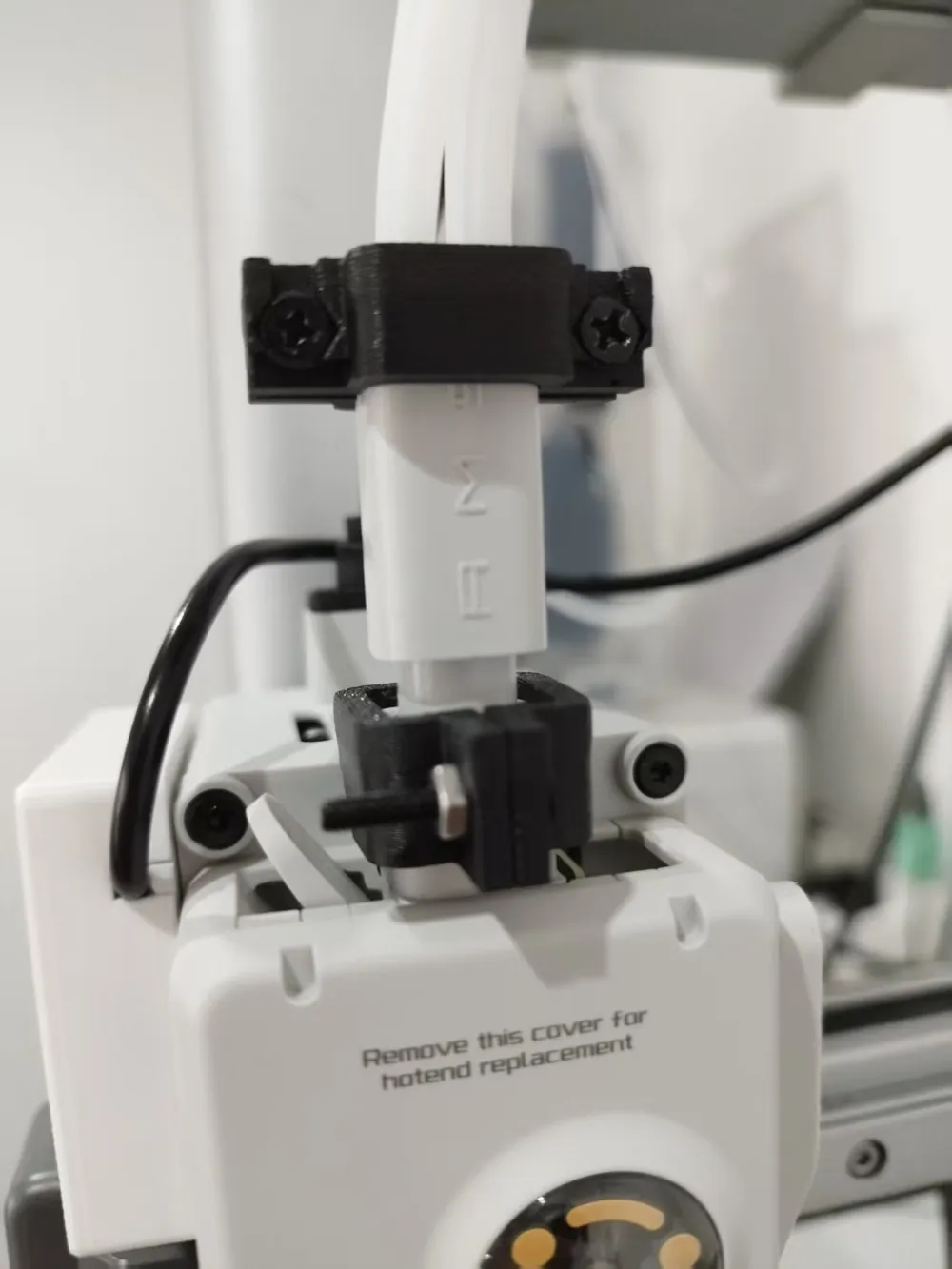

Installation requires 2 M3*14 or longer screws, 1 M3*10 or longer screw, and 3 M3 nuts. If conical countersunk screws are used for the upper anti-burst lock, washers must be placed under the screws to prevent cracking. It is best to print using a high-strength filament like PET-CF.
