Shower Caddy Stabilizer
Print Profile(1)
Description

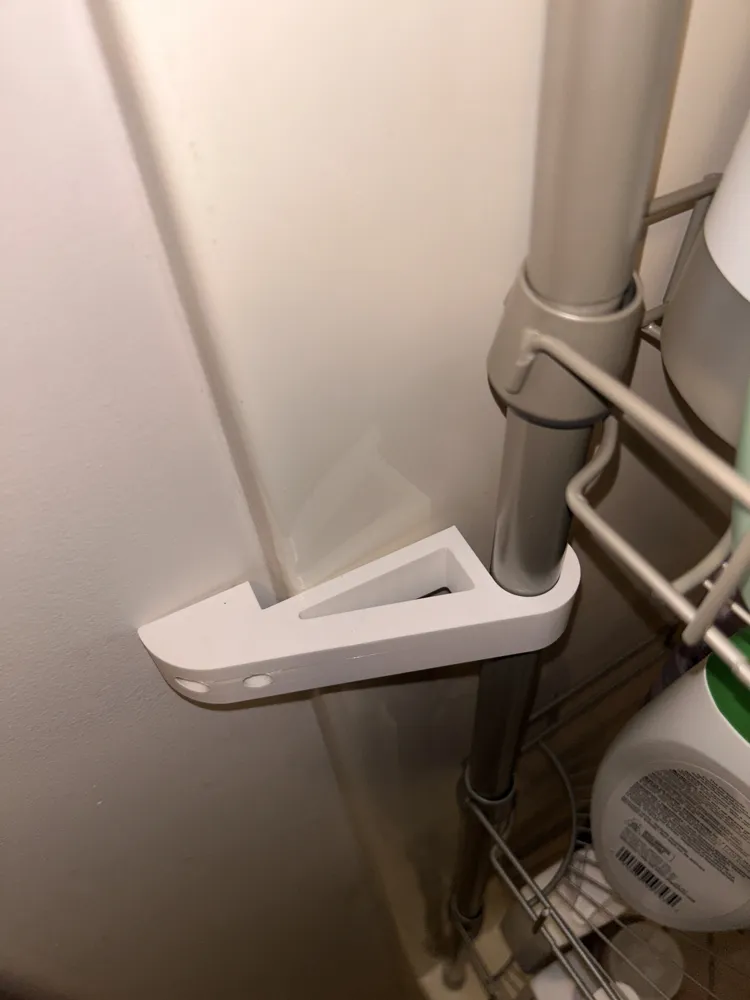

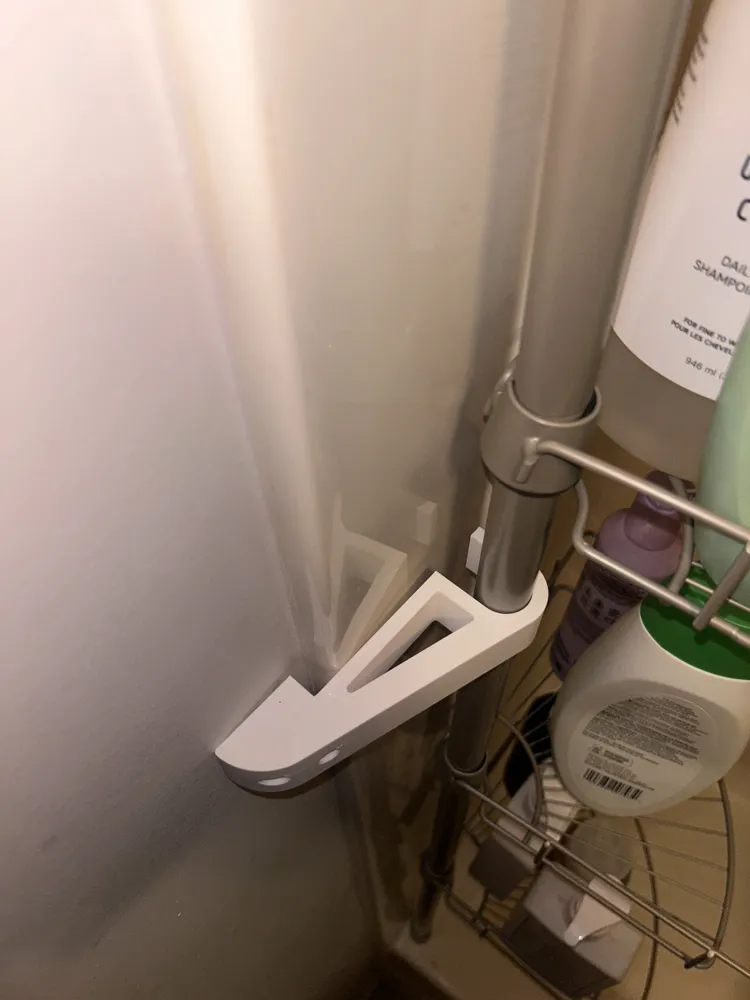

This bracket was designed to secure a vertical tension-pole shower caddy against the wall.

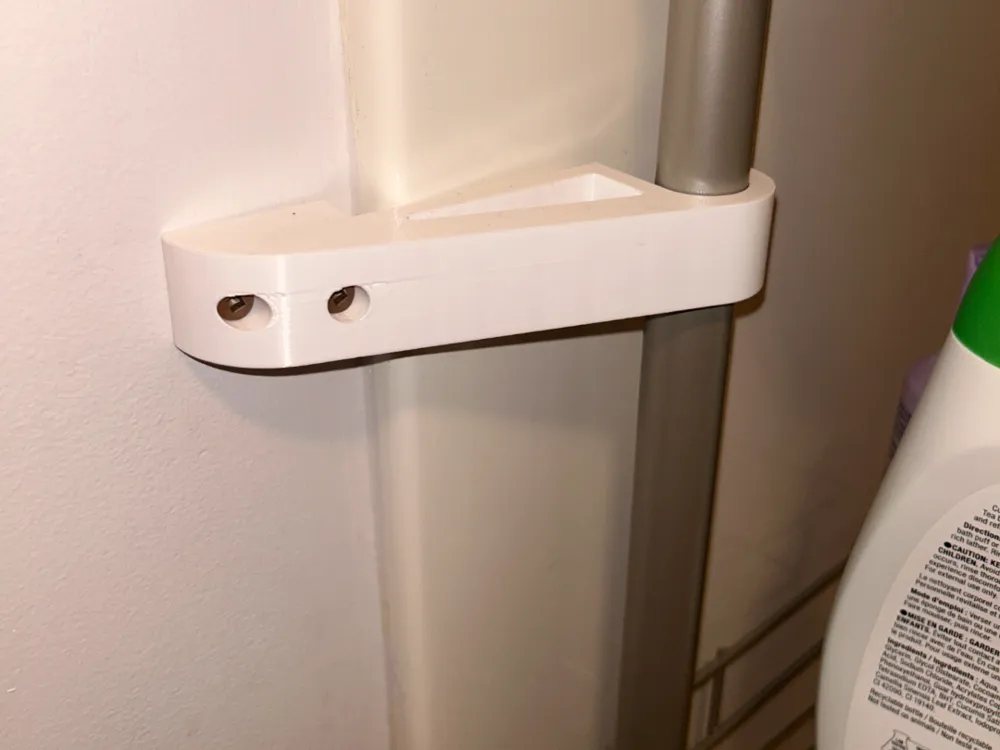

The pole slides into the rounded opening while the opposite end of the bracket is fastened to the wall using two screws. It significantly reduces side-to-side movement, rotation and the risk of the shower rack tipping over.
The triangular reinforcement provides good rigidity while keeping the part lightweight and easy to print.
Features
- Stabilizes a vertical shower caddy or bathroom storage rack
- Prevents unwanted rotation and lateral movement
- Two wall-mounting holes
- Reinforced triangular design
- Compact and discreet
- Easy to install
- Prints without supports
- Suitable for humid bathroom environments
Installation
- Position the bracket around the vertical pole.
- Push the shower rack into its final position.
- Mark the two mounting holes on the wall.
- Drill the required holes.
- Install appropriate wall anchors.
- Secure the bracket using two screws.
Use anchors and screws appropriate for your wall material.
This bracket is designed to stabilize the rack. It is not intended to support the full weight of the shower caddy.
