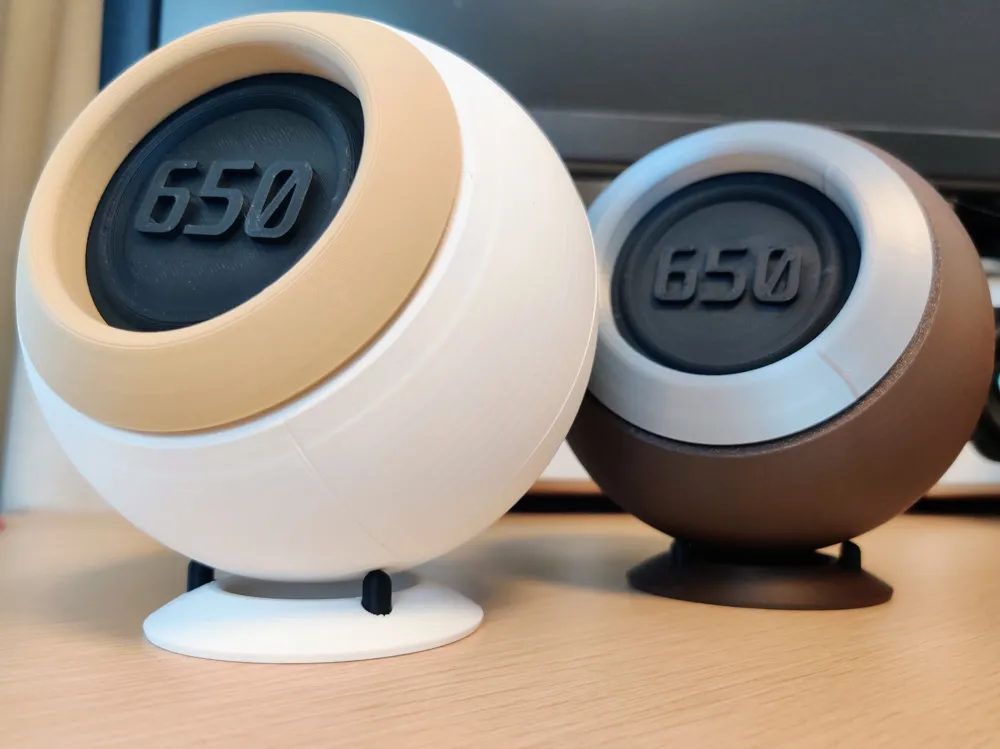

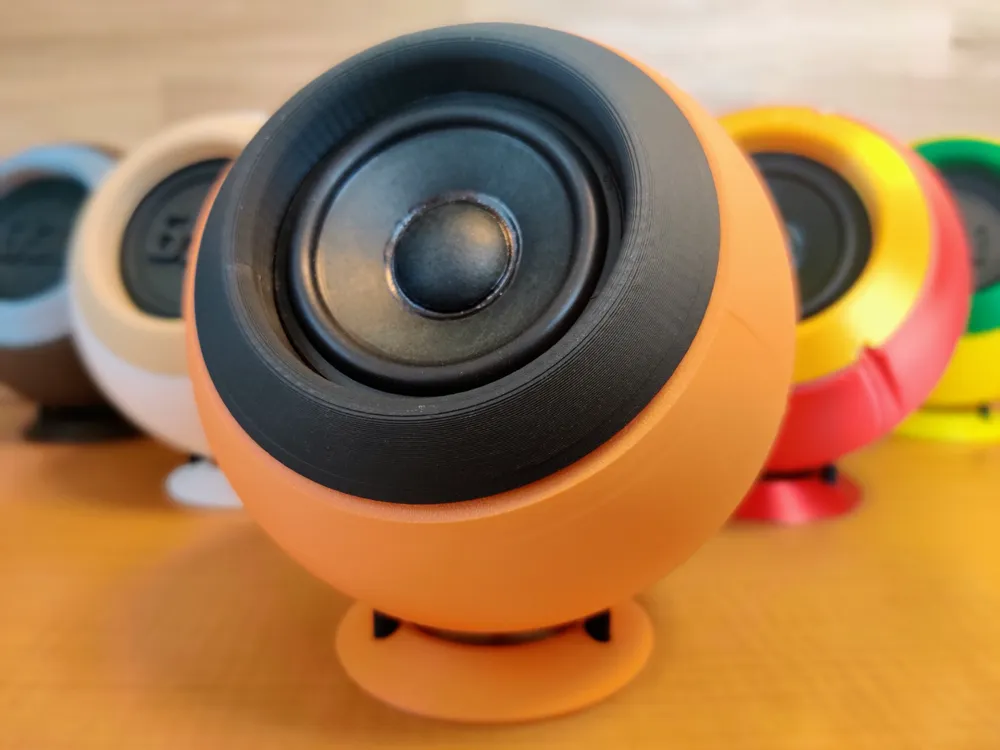

Spherical Speaker Enclosure for Fostex P650K

A fully 3D-printed spherical sealed enclosure for the Fostex P650K full-range driver. Designed for a clean, natural, vocal-focused sound on a desktop.

The seamless sphere hides all fasteners — a threaded equatorial joint and a clamping grille mean no screws are visible from the outside.

⚠️ Beta release. Fully functional, but a few things are still being refined (see Known Issues). Feedback welcome.

Features

• 128 mm sphere — compact and desktop-friendly (stand adds a little height)
• Spherical shape minimizes edge diffraction and internal standing waves
• Sealed design, ~0.6 L effective internal volume
• No visible screws — threaded equatorial joint + clamping grille
• Multi-part, multi-color friendly (body / grille / stand / feet)
• Tuned for clear midrange and vocals rather than deep bass

Parts

• 01_Front-Enclosure_Standard — Front (standard clearance) ×1
• 02_Rear-Enclosure — Rear enclosure ×1
• 03a_Grille_Embedded-Nut — Grille, embedded-nut version ×1 (choose one grille)
• 03b_Grille_Side-Insert — Grille, side-insert version ×1 (choose one grille)
• 04_Stand-Base — Stand base ×1
• 05_Feet — Feet: three feet joined by a ring, printed as one part ×1

Two grille options — print only one:

• 03a Embedded-Nut — the nut is embedded inside during printing. In the `.3mf`, this plate has a scripted print pause: the printer stops mid-print, you drop in the 4 nuts, then resume to finish. No supports, cleaner finish. (Recommended)
• 03b Side-Insert — push the nut in from the side after printing. Needs supports, but no pause required.

Sourced parts (not printed) — per unit

Exact parts depend on your wiring method — see the build guide.

• Fostex P650K driver ×1

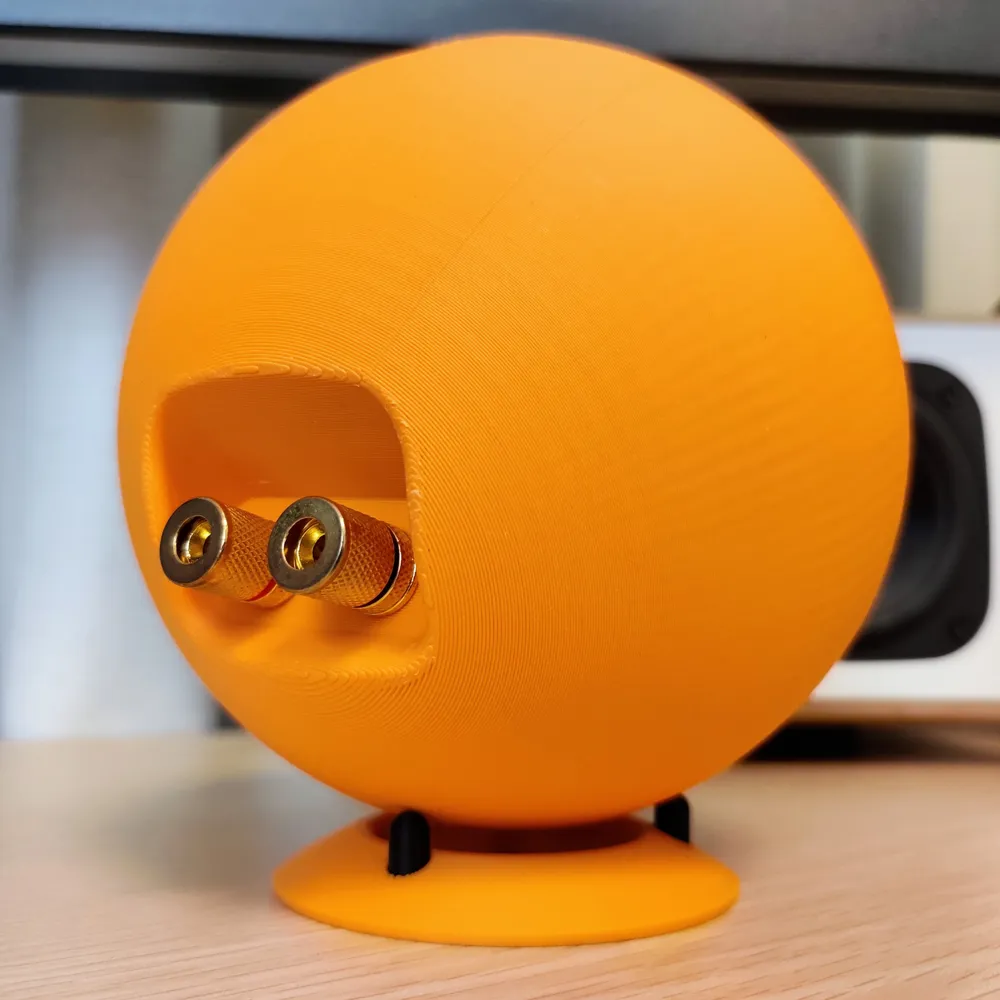

• Gold-plated brass speaker binding posts, M4 mounting shaft ×2 (one +, one −) — with #205 male faston tabs, so the wiring needs no soldering. The rear has Ø4.2 mm mounting holes for this type; larger posts need the holes enlarged
• M4 × 12 mm screws ×4 and M4 nuts ×4 (driver mounting)
• Internal wire: AWG20, 20 cm ×2
• Faston (spade) terminals, female — 4 per enclosure: #205 ×3 (driver +, and both binding posts), #110 ×1 (driver −)
• Damping: felt (speaker damping sheet) + a little polyester wool
• Double-sided tape to fix the damping material

Print settings

• Walls: 5 perimeters
• Infill: 20% (gyroid)
• Recommended filament: Bambu PLA (Basic / Matte / Silk all verified)
• Tested on: Bambu Lab P1S with the textured PEI plate

Supports — differs per part:

• 02_Rear-Enclosure — supports on, with the overhang threshold set to 28°
• 03b_Grille_Side-Insert — supports on (default threshold is fine)
• All other parts — no supports needed

Print pause (03a grille):

• The `.3mf` for the `03a` grille has a scripted pause. When the printer stops, insert the 4 M4 nuts into the pockets, then resume the print to seal them inside.

Assembly (short version)

1. Check the thread fit — stiff on the first turn, but it beds in after a few in/out cycles; a firm final push seats it
2. Mount the terminals to the rear (seal with a gasket or caulk)
3. Place damping — felt on the lower inner wall, a little wool in the center (keep it clear of the cone)
4. Mount the driver — crimp the faston terminals and connect the wiring (pre-twist it opposite to the closing direction), then clamp the driver between the grille and the front part
5. Join the enclosure — screw front and rear together at the equator; press firmly at the end to seat it
6. Assemble the stand — snap the one-piece feet ring into the stand base
7. Set it up — place the sphere on the stand

👉 Full illustrated build guide: https://note.com/euxnas/n/n23b6eff67965?hl=en

Known Issues (Beta)

• The inner thread surface prints a little rough (overhang without support). It's not visible and doesn't affect function.
• The threaded joint is sensitive to filament and print accuracy — even color and lot can matter. If the fit is too tight, run a flow calibration or test-print the thread section first.

About the driver / What's next

The Fostex P650K is an inexpensive 6.5 cm full-range driver — a great, low-cost way to try a small full-range build. This enclosure started as a prototype platform for it.

I'd love to make a version for the Fostex FE83NV2 (8 cm) down the road — no promises on timing, but that's the direction I'm hoping to go.
