Description

Universal airbrush holder. Modelled after the airbrush holder on Iwata compressor.

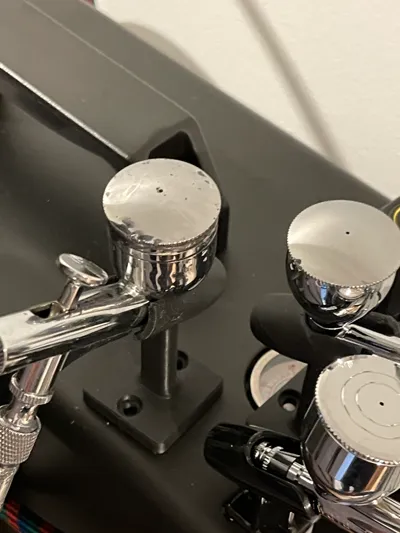

Print with support, see attached photo for example which used slim tree support.

There are 3 mounting options

screws - use the provided screw holes to mount the holder
magnet - use the “6x3 magnet” version, requires 6mmx3mm rare earth magnets, for example https://www.amazon.com/gp/product/B096LZNZTQ. magnets can be press fitted into the cavities, no glue required
VHB tape - suitable for smooth surface such as plastic. use the “no magnet” version. https://www.amazon.com/Double-Mounting-Strong-Adhesive-Office/dp/B0CCYD42N9/ base is slightly over an inch in depth, any VHB tape 1 inch wide or less should work

There are five versions provided

single
double
triple
quadruple
quintuple

Fit:

main airbrush diameter up to 12.8mm can be accommodated
bottom opening: up to 9mm in diameter
top opening: up to 12.6mm in diameter

Most of my airbrushes are various models of Iwata and they all appear to fit fine. If yours does not fit please leave a comment with measurements and I'll make an effort to accommodate.
