Description

What it is

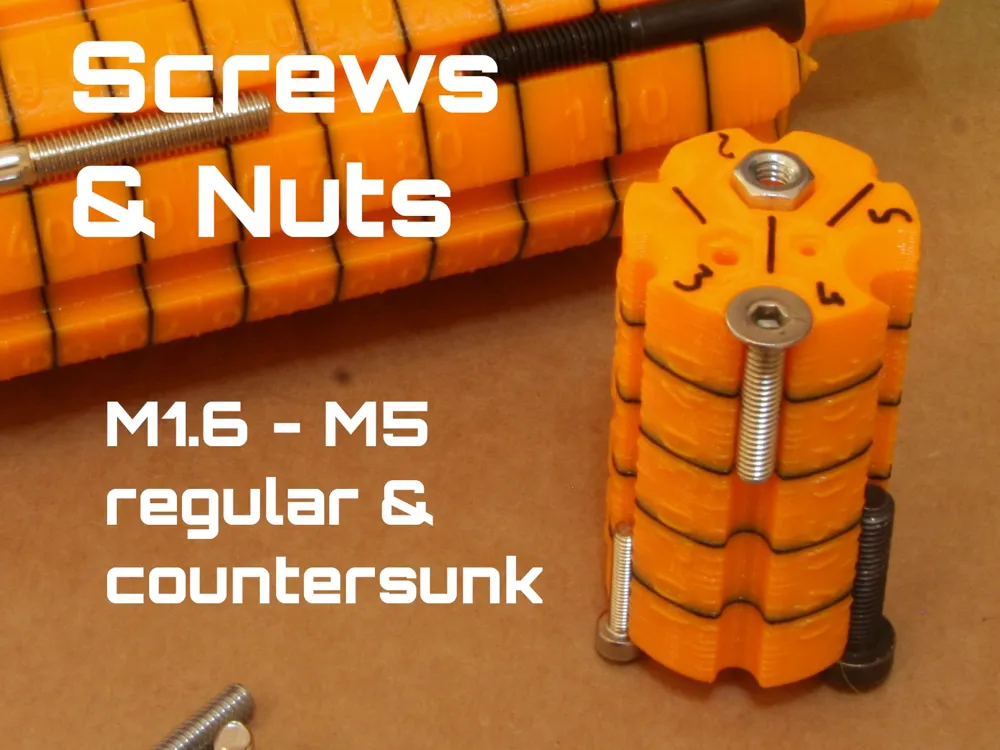

A compact tool to determine the size and length of screws & bolts. In contrast to other designs it offers a unique cylindrical design which packs additional features like measuring flathead screws and corresponding nut sizes on the same tool.

What to print

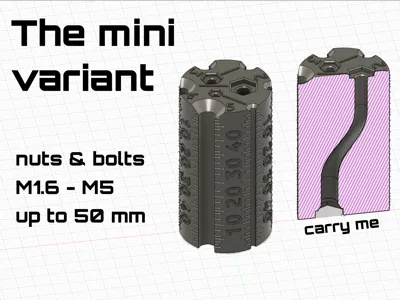

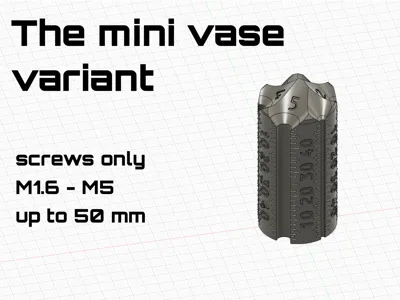

There are two variants awaiting you:

How to print

Recommended for printing is a 0.2 mm layer height and a 0.4 mm nozzle. Printing with a 0.6 mm nozzle and Arachne activated works well, as can be seen in the pictures above.

A multi color version is just a matter of filament changes between layers, differently colored .3mf files are provided.

Material at one's discretion, I used PETG in two different colors.

What next

There may be improvements and modifications based on feedback given here.

Maybe, take a look at my other designs ;-)
