Infill Display v2
Print Profile(4)
Description
Update 10/23: Added compact versions. See description below for details.

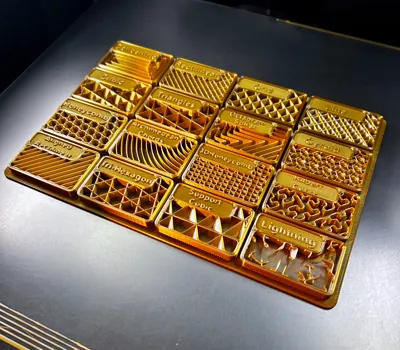

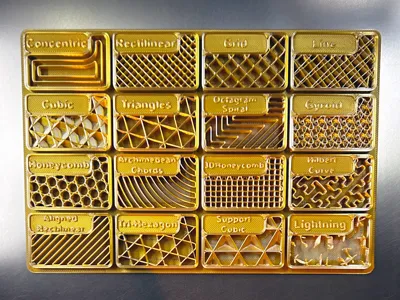

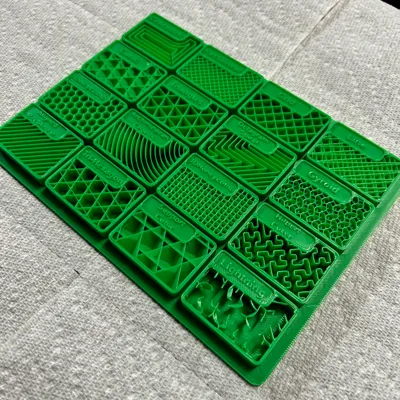

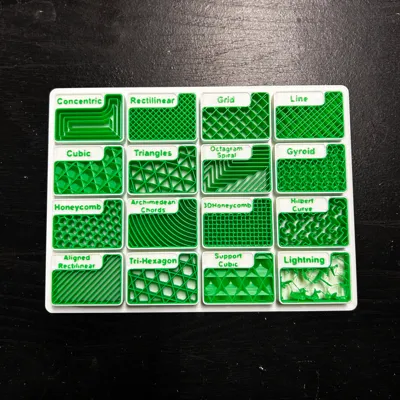

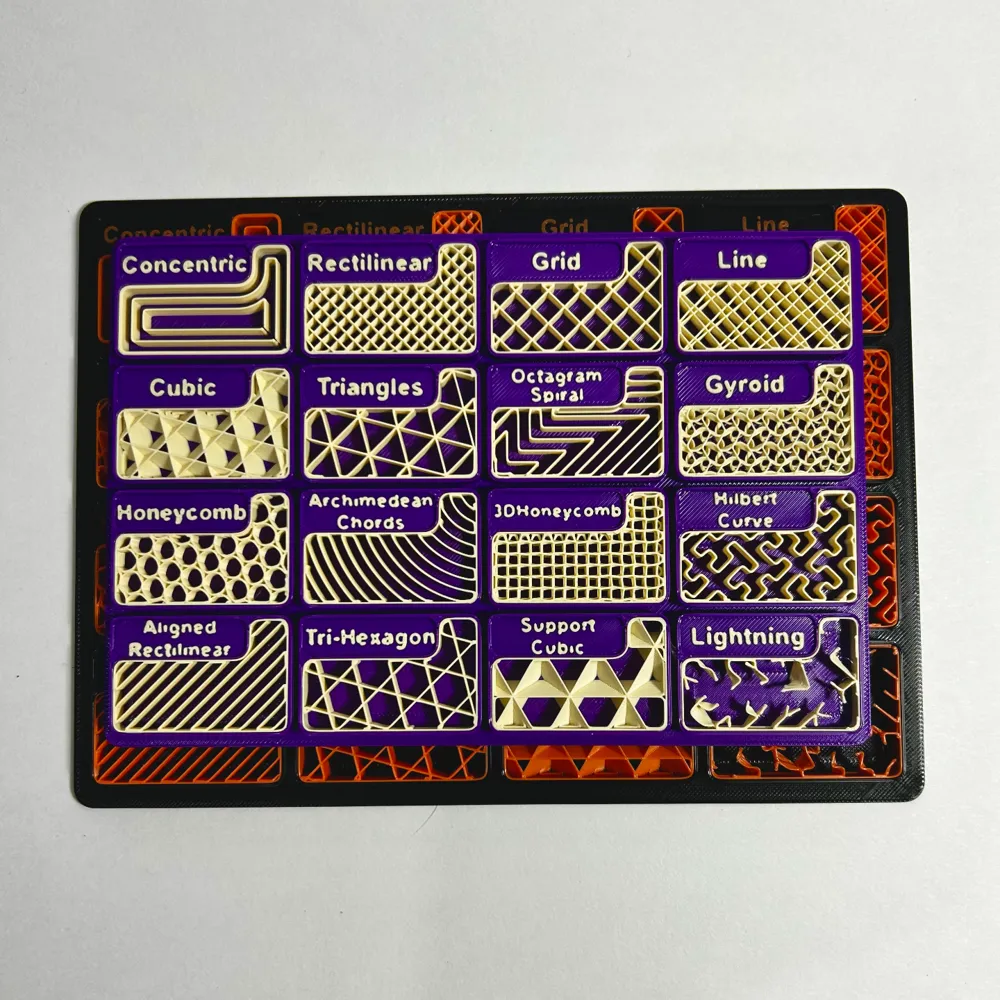

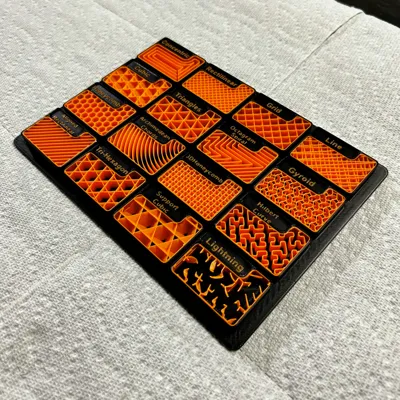

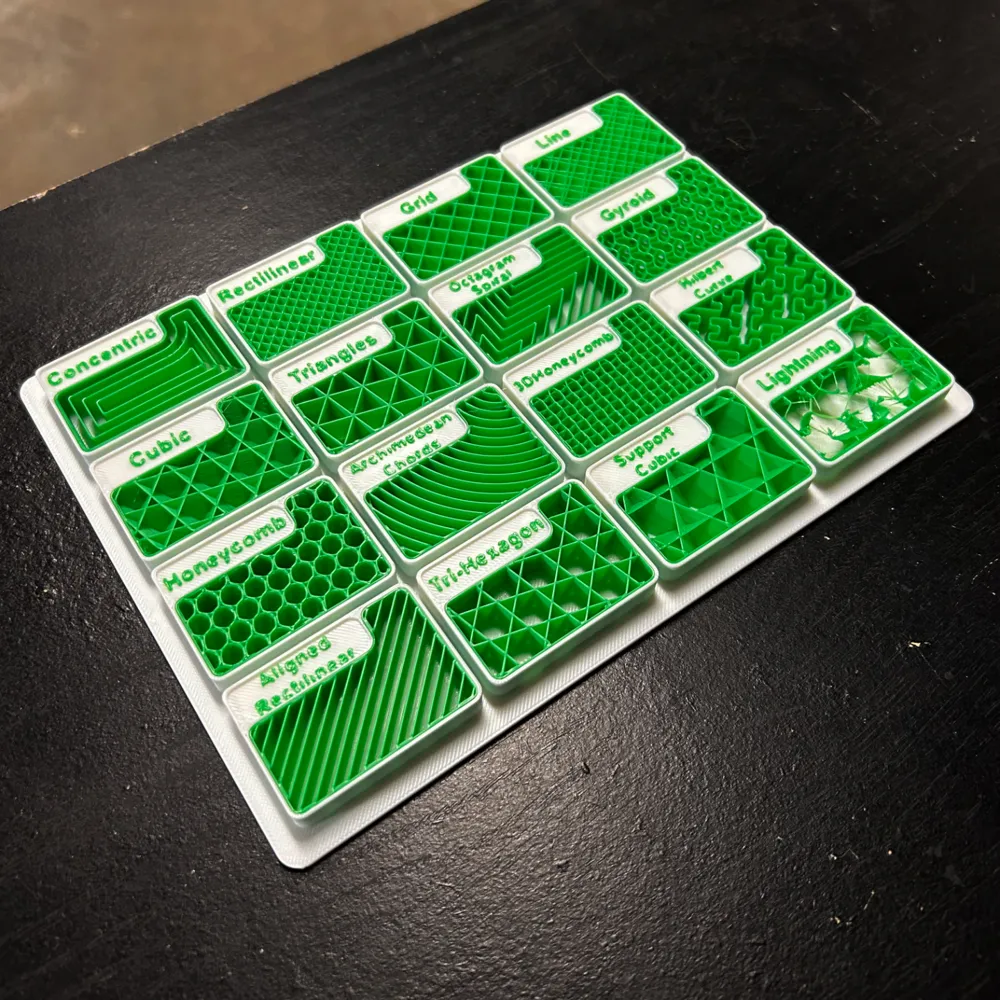

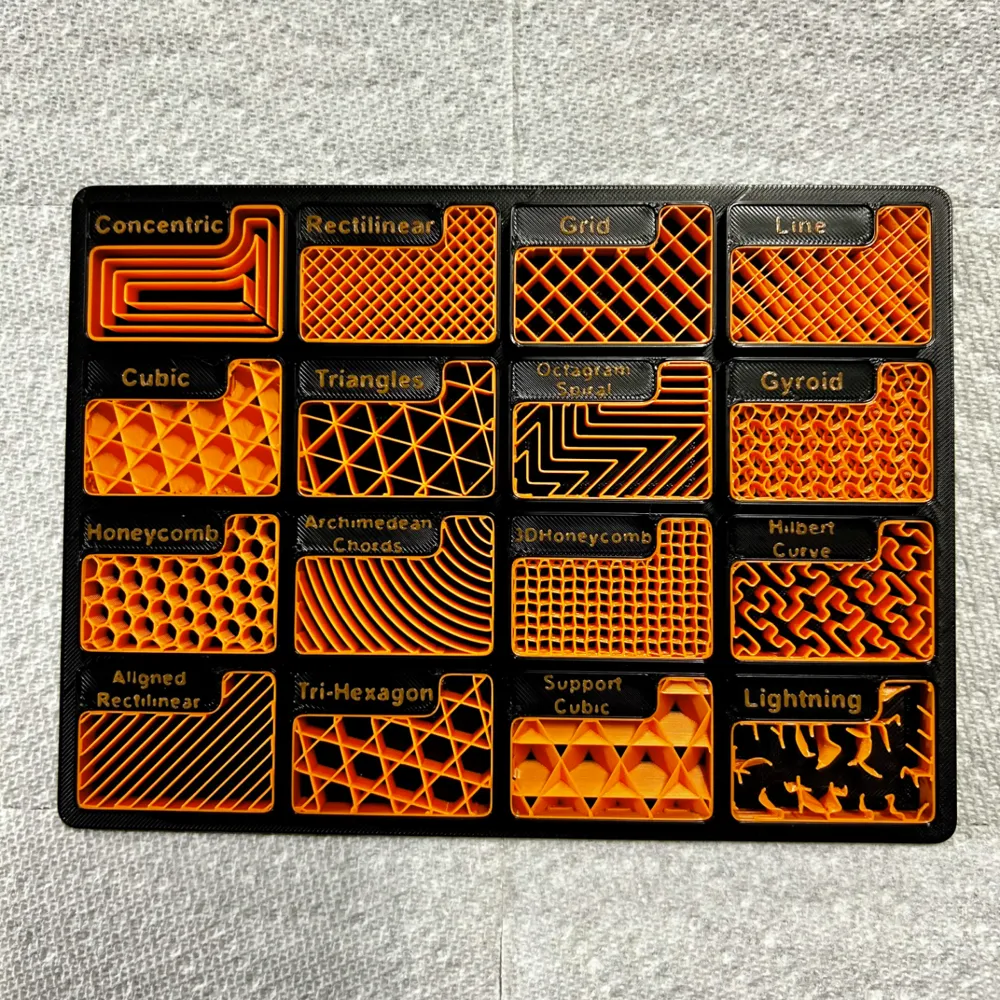

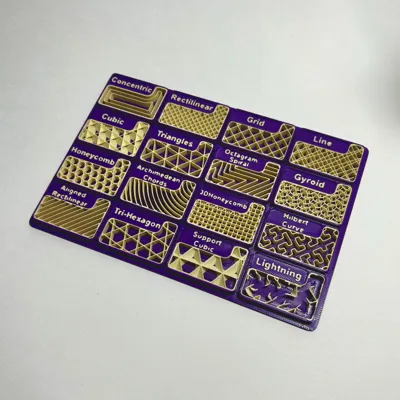

Display infill patterns!
This is based on my original model. The first one was pretty basic and I wanted the text to look better so I decided to remake it. I'm including profiles for multicolor and single color.
This version is a bit bigger than the first one in order to have larger text. 198 x 146 x 9.8. Lightning is included this time around which printed stringy in one out of the three I printed, I don't know why. Adaptive Cubic is still not included since it won't show its adaptivity properly. I put Archimedean Chords and Octagram Spiral closer to the center to better show how they should look.
Compact versions now available!
Compatible with A1 mini. TheBear uploaded a great print profile for this, check it out if you’re an A1 Mini user.
The main differences:
| Multicolor Model | Dimensions(rounded) | Filament total/flushed* | Filament changes | Print time |
| Original | 198x146x10 | 144.58 / 9.05 | 28 | 3h36m |
| Compact | 174x118x6 | 78.57 / 7.83 | 17 | 2h12 |
| Difference | 24x28x4mm smaller | 66.01 / 1.22 | 11 | 1h24m |
*Flushed amount will vary depending on filament type and colors used.
| Single Color Model | Dimensions(rounded) | Filament total | Print time |
| Original | 198x146x10 | 132.49 | 2h46m |
| Compact | 174x118x6 | 68.66 | 1h39m |
| Difference | 24x28x4mm smaller | 63.83 | 1h7m |
Colors are changed by objects and modifiers. When using the traditional way to paint it sliced funky.
If you download the STL or change settings otherwise make sure you choose Arachne as the wall generator.
The overall shape of each infill block is based off of this model.
