Stealth Press 1 — Heat Set Insert Press (legacy)
Print Profile(4)
![[NO KEYBAK VERSION] 0.2mm layer, 4 walls, 41% infill](https://makerworld.bblmw.com/makerworld/model/USac78fb653b664d/45514080/instance/2024-01-28_c4d304f1fd405.png?x-oss-process=image%2Fresize%2Cw_100%2Fformat%2Cwebp)
Description

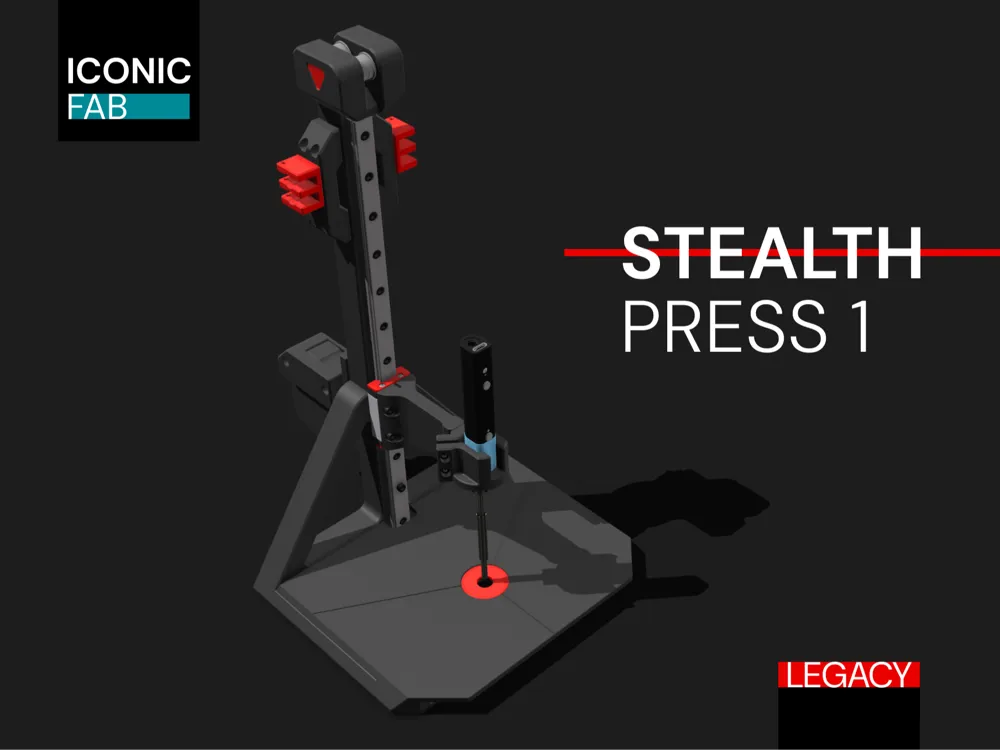

Sunset Notice: Stealth Press 1 (and Sunrise Notice: Stealth Press 1S)
As of November 26, 2024, this revision of Stealth Press 1 is considered a legacy version.

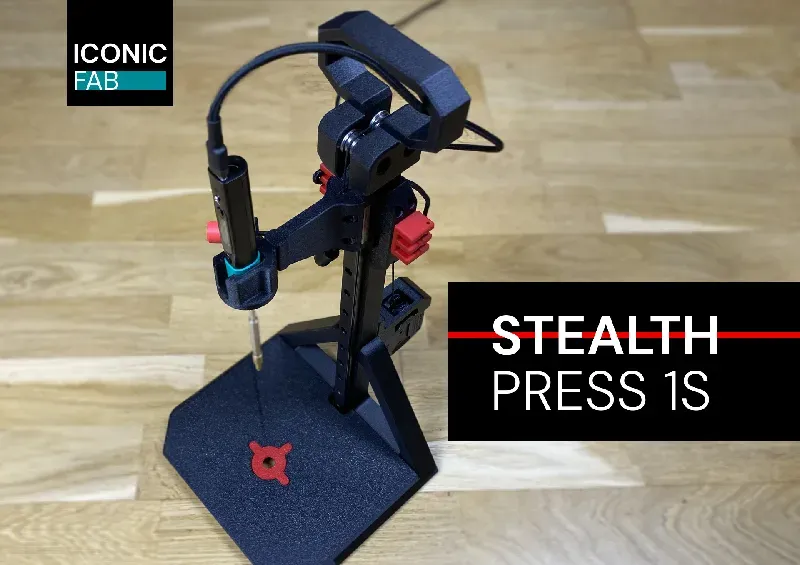

We recommend downloading and building the Stealth Press 1S version instead.
Stealth Press 1 revision will remain accessible for reference purposes, as it is linked in numerous locations and has multiple community mods. This ensures continued access to Stealth Press 1 files for those who need them.
-----------------------------------------------------------------------------------------------------------------------------------------------------------
WHERE TO GET MECHANICAL PARTS OF THE BUILD?
Option 1 — Order ready-to-build kits (supported vendors)
- Stealth Press KIT — DFH.fm
- Stealth Press KIT (US) — KBD3D.com
- Stealth Press KIT (EU) — Lecktor.com
Stealth Press is now available as a comprehensive mechanical parts KIT, streamlining the process of sourcing the necessary components. In many cases, purchasing the KIT proves to be a quicker and more convenient option than sourcing the parts individually. Availability and selection may vary depending on your location and existing inventory.
Each listed KIT source offers a unique selection of parts, all adhering strictly to the BOM and carefully chosen to guarantee the highest quality build.
Option 2 — Self-source using BOM (bill of materials)
| Mechanical parts | QTY |
|---|---|
| M3x8 SHCS — Bolts (Source: INT) | 40 |
| M5x25 SCHS — Bolts (Sources: INT) | 2 |
| F695-2RS — Bearings (F = Flanged) (Source: INT) | 4 |
| M3 — Threaded Inserts — M3x5x4 (M3 x (OD)5 x (L)4 —VORON) (Source: INT) | 30 |
| MGN12H — Linear Rail — 300mm — Black (Source: INT) or SS (Source: INT) | 1 |
| KEY-BAK — Super48 36" 13oz (Source: INT) | 1 |
| Printed Parts | |
|---|---|
| The most current revision is R1.1 - check the change log below! | |
| Printed parts | 16 |
| Soldering iron-related parts | |
|---|---|
| Heat-set insert tips vary for the type of soldering iron used! | |
| Soldering iron (Generic, TS100/101 or Pinecil) | 1 |
| Soldering Adapter for heat-set inserts (Source: INT) | 1 |
ASSEMBLY MANUAL
Download the full assembly manual with visuals and a step-by-step guide.
VIDEO BUILD GUIDES
Iconic FAB video build guide
Live build by Nero3D the Canuck Creator
Live build by ModBotArmy
SUPPORTED SOLDERING IRONS
Generic, TS100/101 or Pinecil.
PRINT GUIDELINES
Here are print guidelines for you to follow and have decent success with printing parts:
| 3D PRINTING PROCESS | FDM (fused deposition modeling) |
| INFILL TYPE | Grid, Gyroid, Honeycomb, Triangle or Cubic |
| MATERIAL | ASA, ASA-CF, ABS, ABS+, ABS-CF |
| INFILL PERCENTAGE | 40% - 60% |
| LAYER HEIGHT | Recommended: 0.2mm |
| WALL COUNT | Recommended: 4 |
| SOLID TOP/BOTTOM LAYERS | Recommended: 5 |
| EXTRUSION WIDTH | Forced 0.4mm |
Side notes to the print guidelines:
You can succeed with Support cubic infill type (slicer support may vary) and as little as 25% infill for all parts if are aiming for faster print speeds and less filament usage. PLA, PLA+, and PETG are also considerable filament choices. However, take into account that soldering iron radiates some indirect heat. The usage of less temperature-stable filaments may result in part deformations over time.
It is recommended to use ASA or ABS at least for “arm” and “iron mount” parts. A wall count of 4 is an absolute must to ensure the structural integrity of the parts. There is no need to go over the top with this. 4 are for this particular build.
File naming for printed parts:
The parts use this naming convention:
- PRIMARY COLOR — These files will have nothing at the start of the filename. Example: buildplate_x1.stl
- ACCENT COLOR — Files have “[a]” to the front of any STL file that is intended to be printed with accent color. Example: [a]_bushing_x1.stl
- COUNT OF PARTS — Files have “x1” to “x4” at the end of any STL file. The number represents the count of identical parts to be printed. Example: [a]_m5_1mm_spacer_x4 (In this case you will need to print 4 identical spacers).
CREDITS AND ACKNOWLEDGEMENTS |
Special thanks to Stefan and Alexander from CNCKitchen for backing this project by providing a generous set of soldering-iron tips and heat-set inserts for building and testing purposes.
Here is the list of other open-source projects used for sourcing multiple CAD parts. Models are used as-is or modified to fit the project purpose and design:
- VORON TAP: https://github.com/VoronDesign/Voron-Tap [CAD models for heat-set inserts and bolts]
- VORON Switchwire: https://github.com/VoronDesign/Voron-Switchwire [Base for remix of KEY-BAK mounting parts]
- Ender SW: https://github.com/boubounokefalos/Ender_SW [Base for remix of Support arms]
CHANGELOG |
| Date | Change |
| 14.11.2023 | STLs for variations of generic soldering iron mounts were added supporting 18mm and 19mm (OD) irons. |
| 12.11.2023 | Minor update preparing for Dremel Add-On release. leg_x1_r1.1.stl is updated to leg_x1_r1.1_1.stl removing safety buffers. This was necessary to ensure cross-compatibility in between base parts and multiple add-ons in development. |
| 04.11.2023 | Printed files updated to R1.1. with cosmetic changes to ALL parts. (Note that mechanical parts - BOM is not affected, zero changes there.) — Wire strain reliefs now have an extra opening for the M3 bolts solving an issue that the bolts were too hard to fit in. — The LEG plate now has specific safety buffers preventing linear rail bearing carriage accidental slide-offs (Sometimes referred to as dropping balls :) Do not do that.) — Ton of other incremental improvements optimizing general printability of parts even better than it was in Rev.1.0 |
| 10.10.2023 | .STEP files added for soldering iron mounts only (for all 3 currently supported types - Pinecil, TS100 / 101, and “Generic”. |
| 26.10.2023 | Minor changes in BOM - Key-bak Super48 36" 13oz variant as recommended. |
| 11.10.2023 | Initial version (Rev1) |
