Description

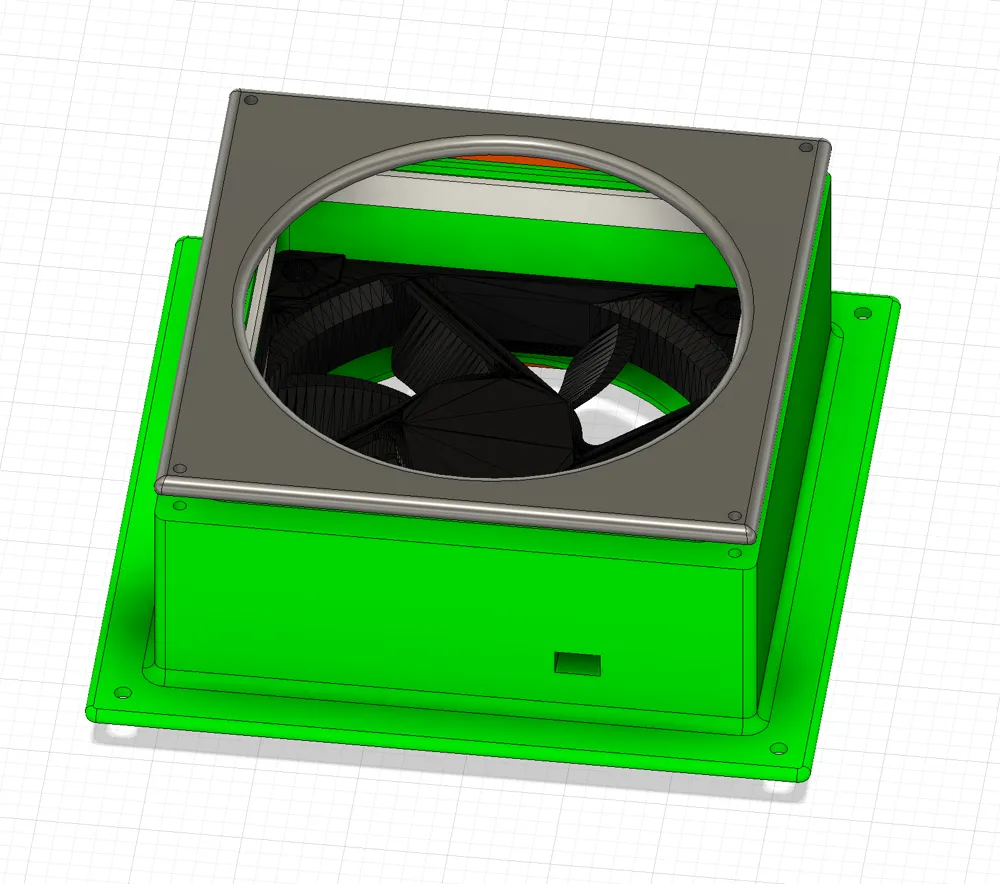

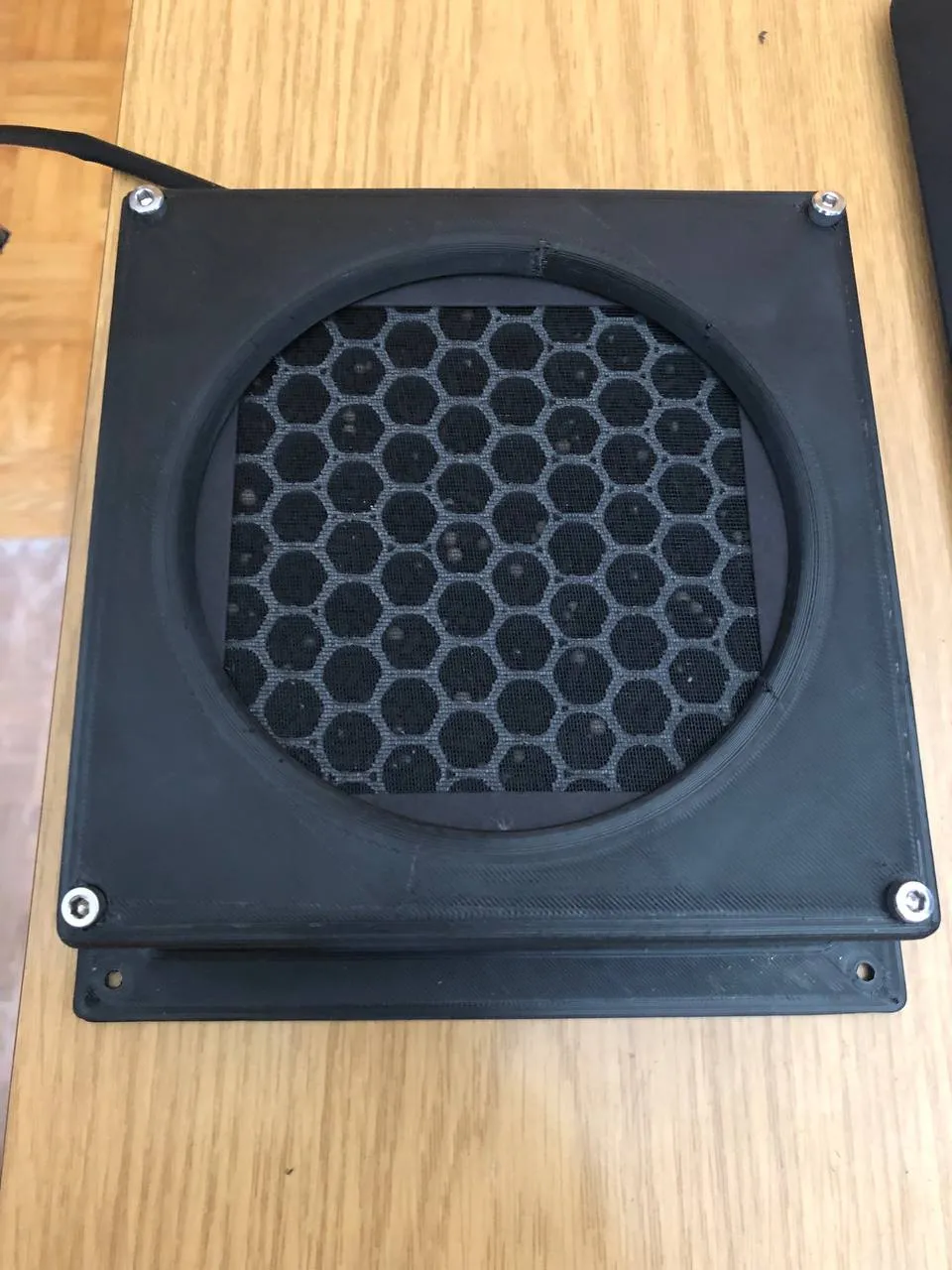

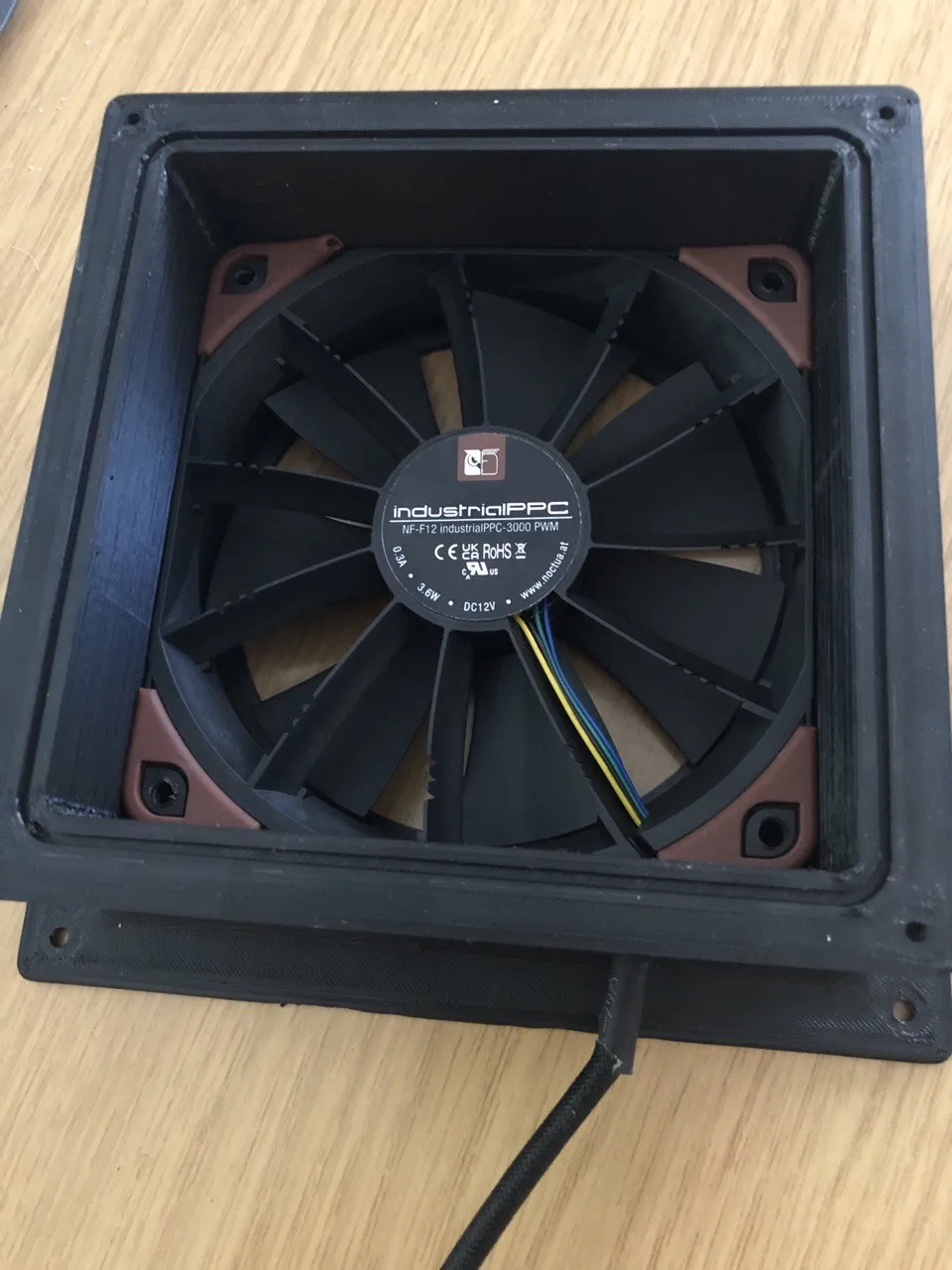

Case Fan 120mm for the Prusa Enclosure with Seals and HEPA & Carbon Filters
Filament: PETG, ASA or ABS. For the Seal use TPU

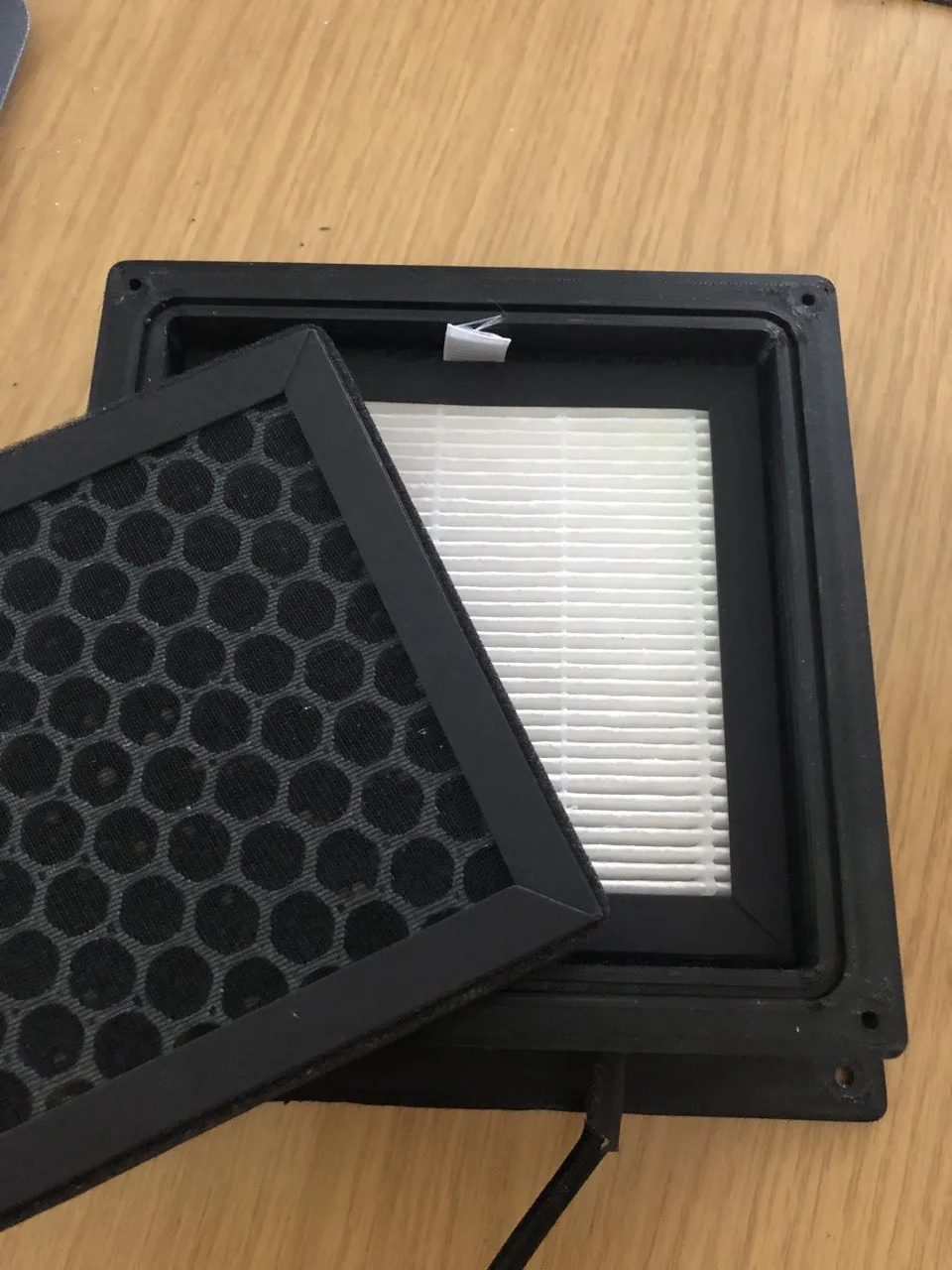

For Use with Filters:

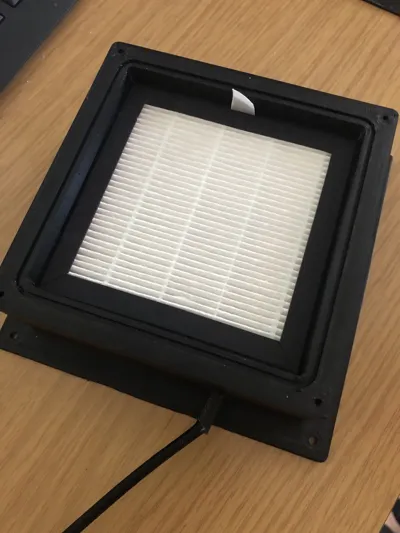

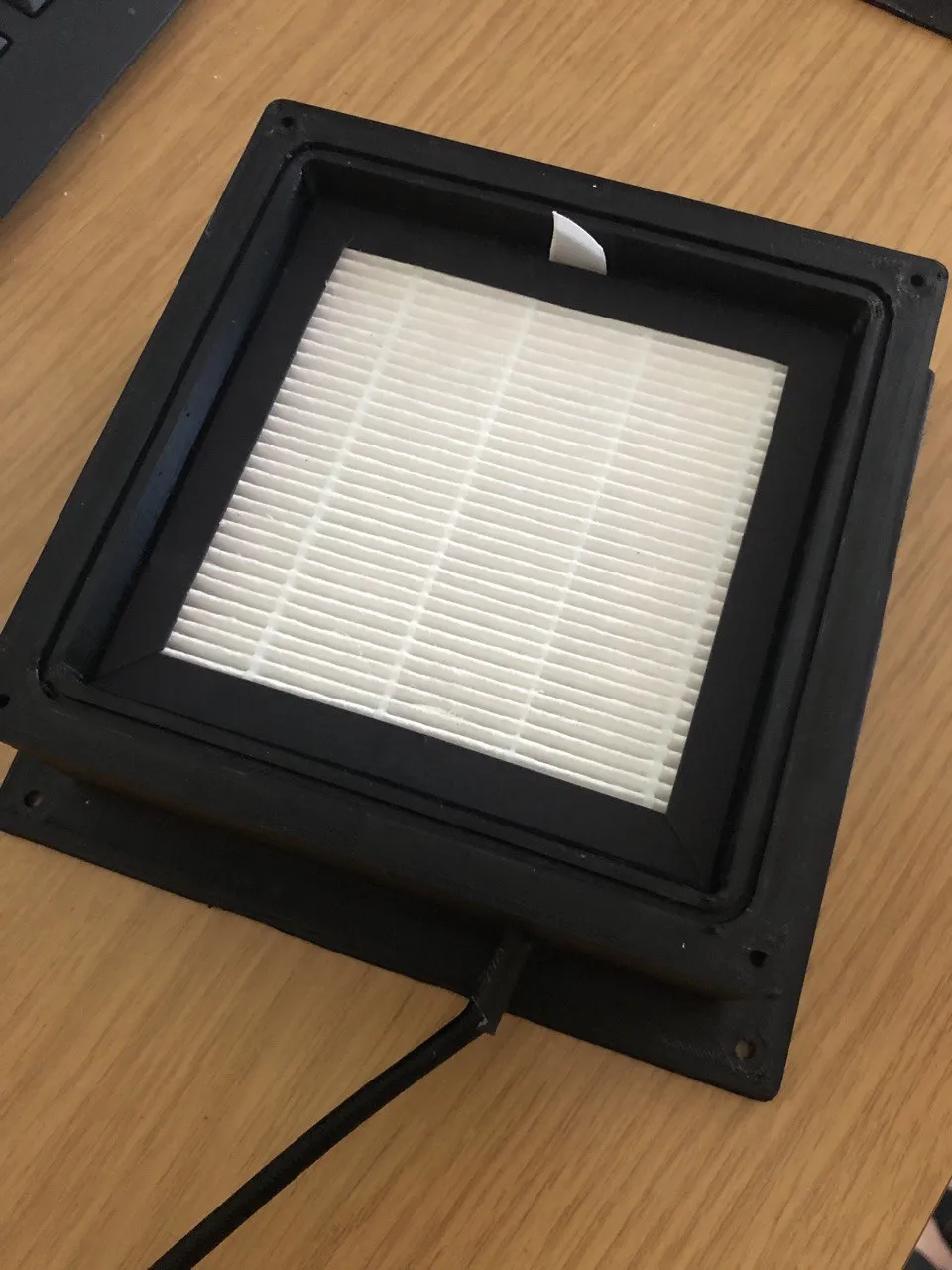

120x120x15 Hepa

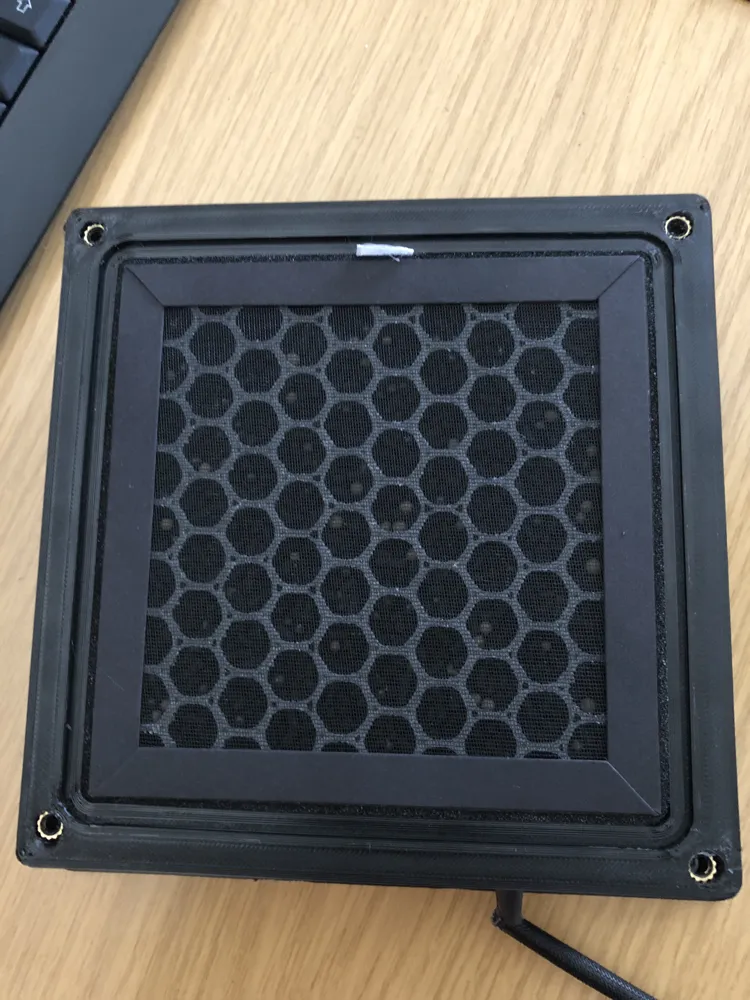

120x120x10 Carbon
4 x Screws M3x8mm for the Flaps

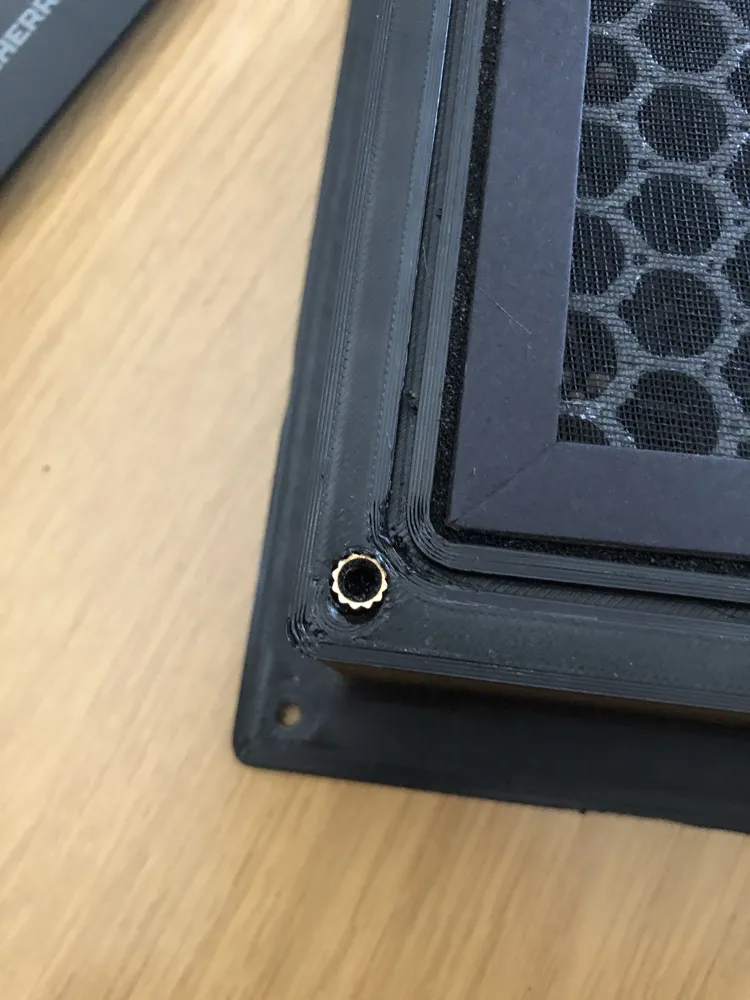

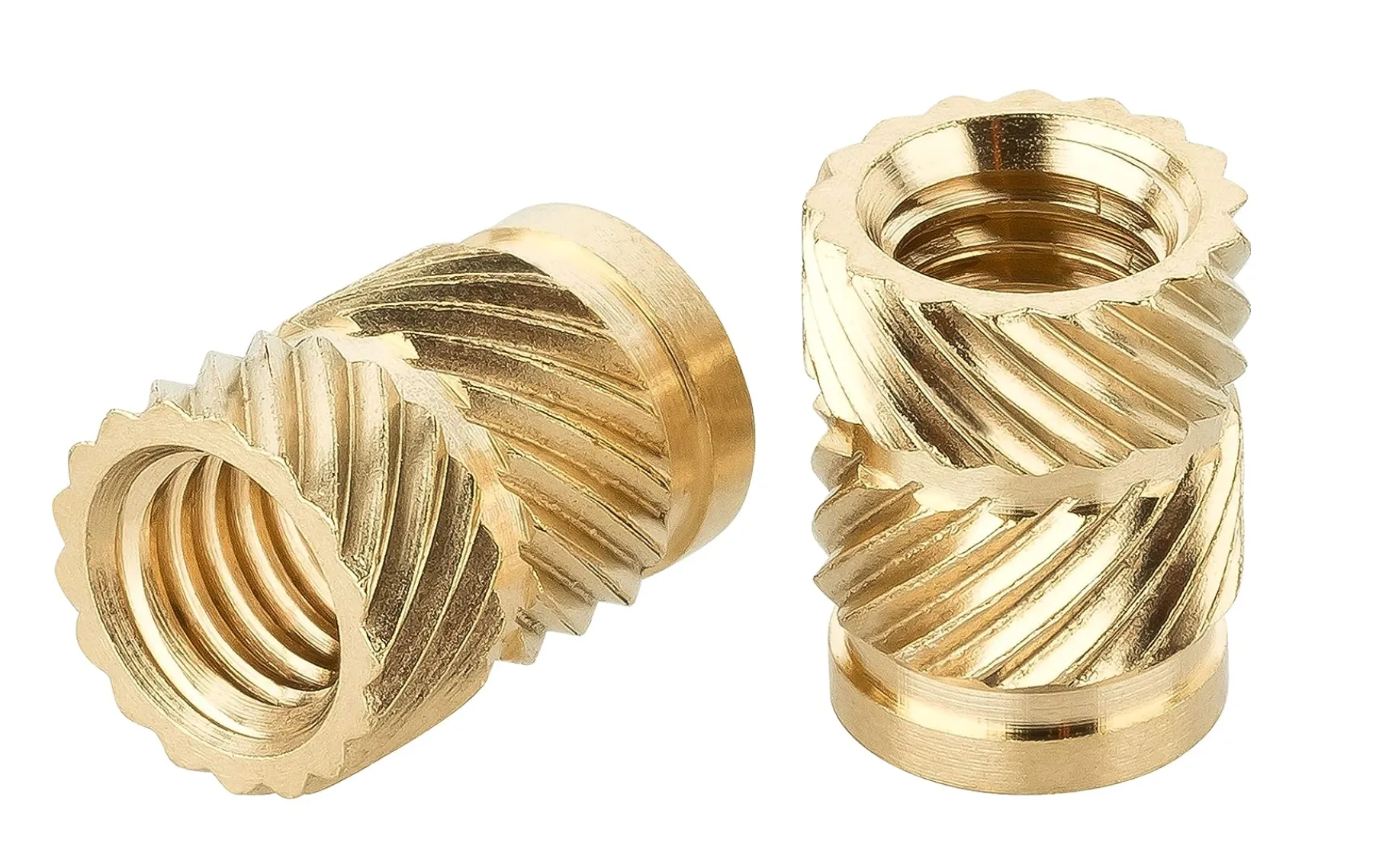

4x M4 Threaded Insert for the Top Cover
4 x Fanscrew
A FAN WITH A HIGH AIR FLOW RATE IS REQUIRED, OTHERWISETHE VENTILATION FLAPS WILL NOT OPEN.
Fan: https://noctua.at/de/nf-f12-industrialppc-3000-pwm with 186,7 m³/h Airflow
Filter: https://store.zortrax.com/parts-and-accessories/hepa-cover-filter-set-m200-m300-m200plus-m300plus
Wenn dir mein Modell gefällt, würde ich mich über ein Like freuen
If you like my model, I would be happy about a Like
