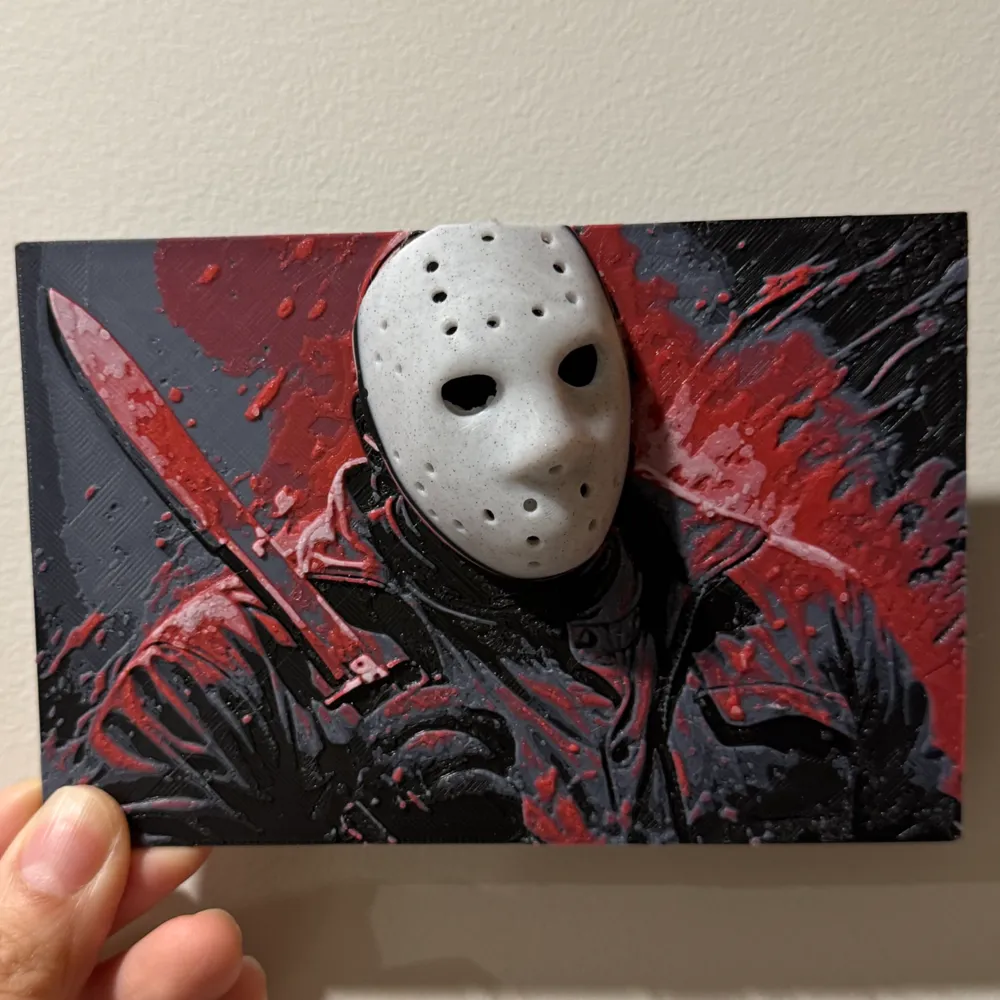

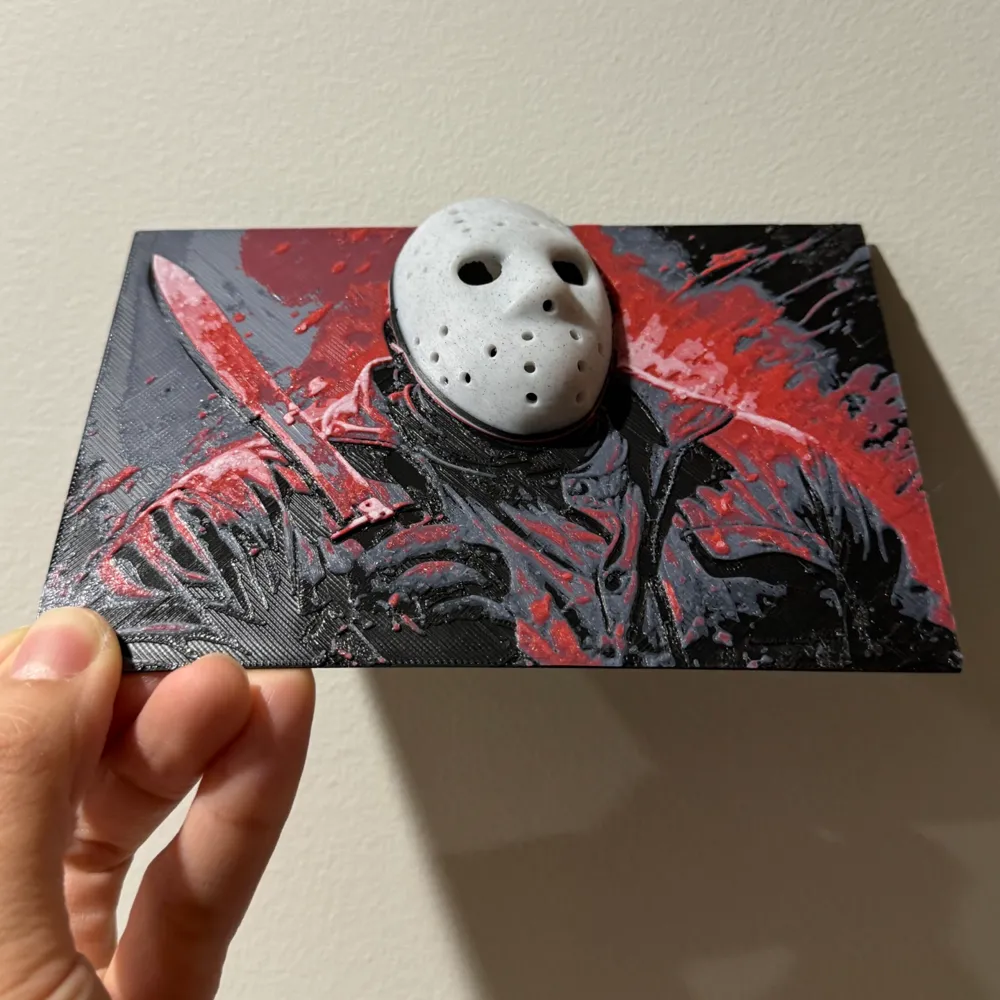

Friday the 13th Jason with Pop-Up Mask - Hueforge Print

Sleep, if you dare!

This is a combined print that utilises filament painting as well as classic 3D printing methods. The included 3MF has all the settings already applied if you are using the profile attached, but if you are downloading the raw files, please follow the instructions below.

Print Instructions

1. The print swaps filaments 4 times, with the final time being the colour of the mask that ‘pops out’ from the print. In my print, I used a 5th colour (marble), but you can use what ever colour you want, or even reuse the white.
2. I printed with supports for the mask, but depending on your printer, you may get away with not having supports. I also altered the mask to be printed with 5% infill.
3. The mask will have a small gap at the top to remove the supports. Print layer swaps below:

Filament Swaps

Print at 100% infill with a layer height of 0.08mm with a base layer of 0.2mm.
Note: The mask portion (layer height 2.04mm and above) can be printed with 5% infill.

Filaments Used:

• PLA Kingroon Black Transmission Distance: 0.4
• PLA+ eSun Grey Transmission Distance: 1.4
• PLA META Sunlu Red Transmission Distance: 4
• PLA Kingroon White Transmission Distance: 8
• PLA CC3D Marble Distance: 5.4 (this is the mask!)

Swap Instructions:

• Start with Black
• At layer #12 (1.08mm) swap to Grey
• At layer #15 (1.32mm) swap to Red
• At layer #19 (1.64mm) swap to White for the rest.
• At layer #25 (2.04mm) swap to Marble (this is the mask!)
