Description

Summary

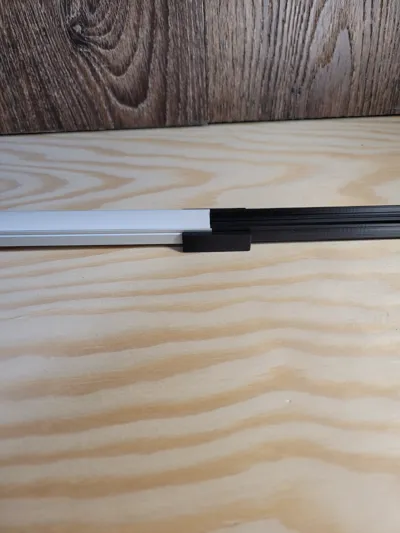

I needed a little Extra track for my under cabinet LED strip lighting for a reno I was doing. So I made a printable copy of the aluminium track I had. It adapts perfectly, I also printed some extra clips to hold it in place.

Details:

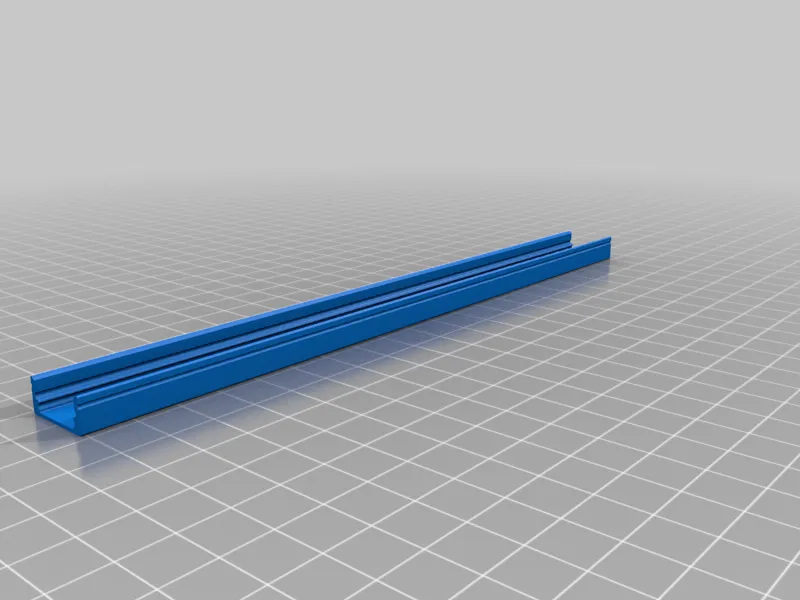

Track is 22.5mm W x 7.8mm H x 200mm L (or however long you want to make it)

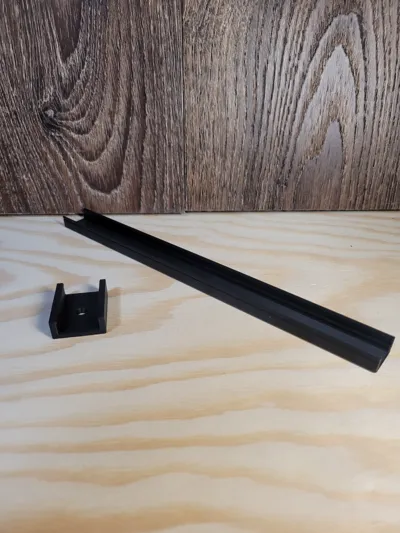

Clips: Designed for #4 x ½" (3mm x 12mm) flat socket screw

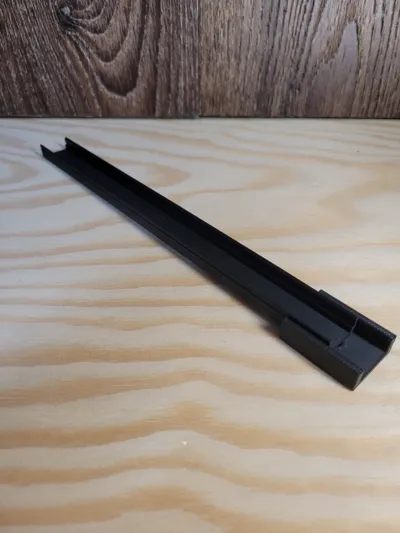

The Clip is designed to attach track to different objects or surfaces. It also can join track together to make an extension.

Update Nov 23, 2025:

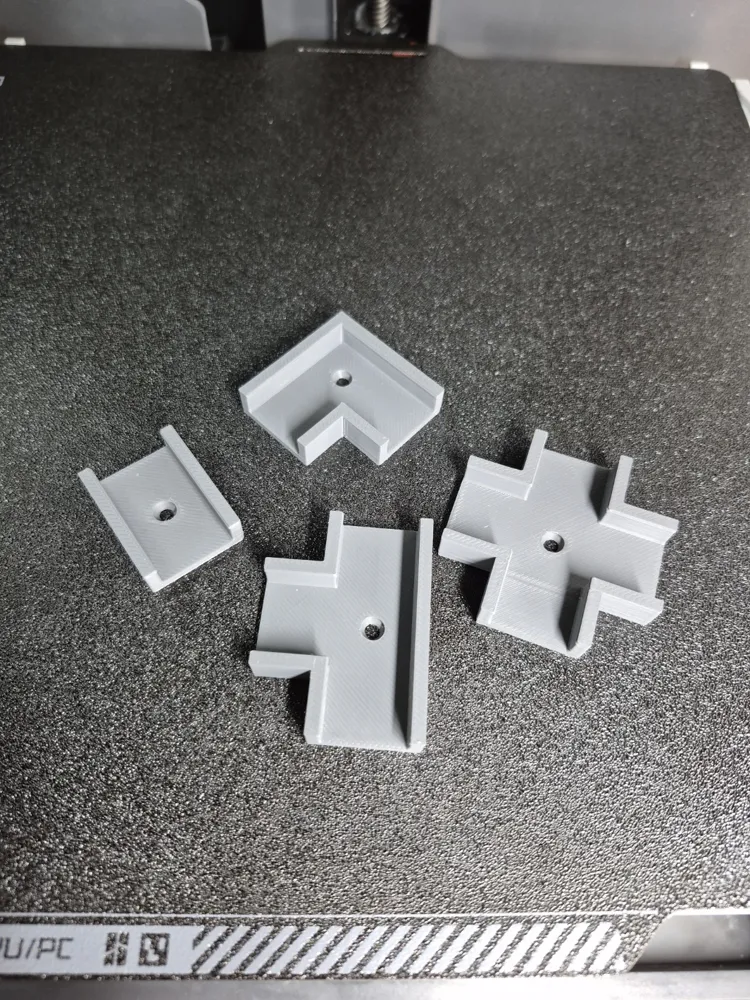

Added extra clips:

T-Clip

X-Clip

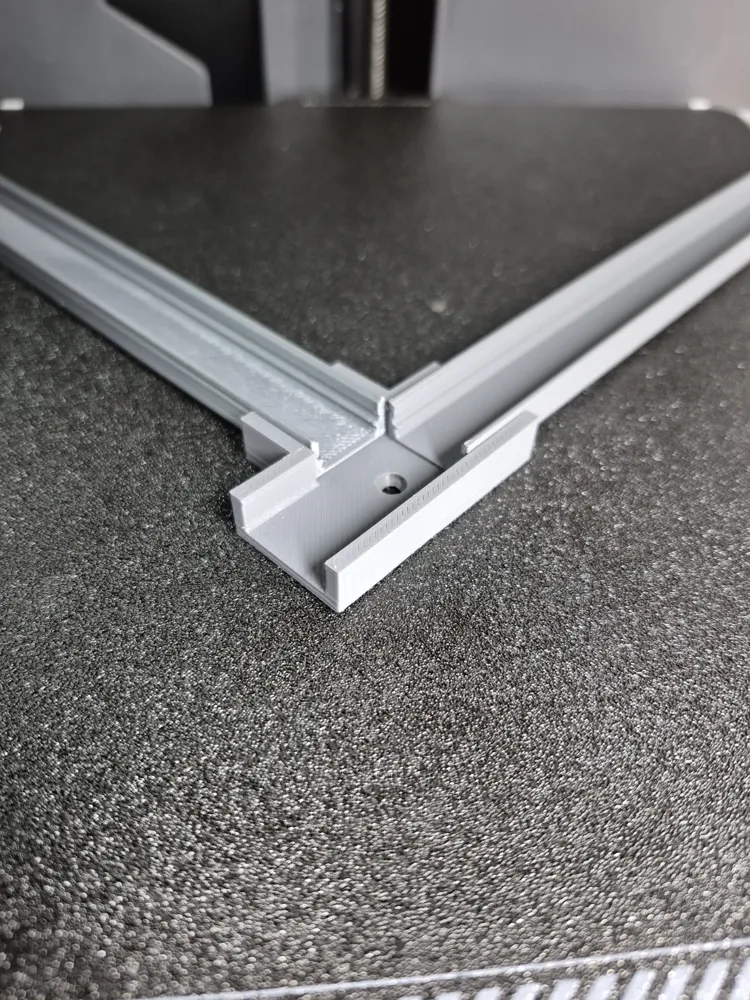

L-Clip (Corner)

I made the track customizable in length. Not everyone needs 200mm increments so now you can make them however long or short you would like them. Dimensions are done in millimetres.

Thank you for all the support, suggestions, and reviews.
