Xiaomi Mi Band 5 Pager Case

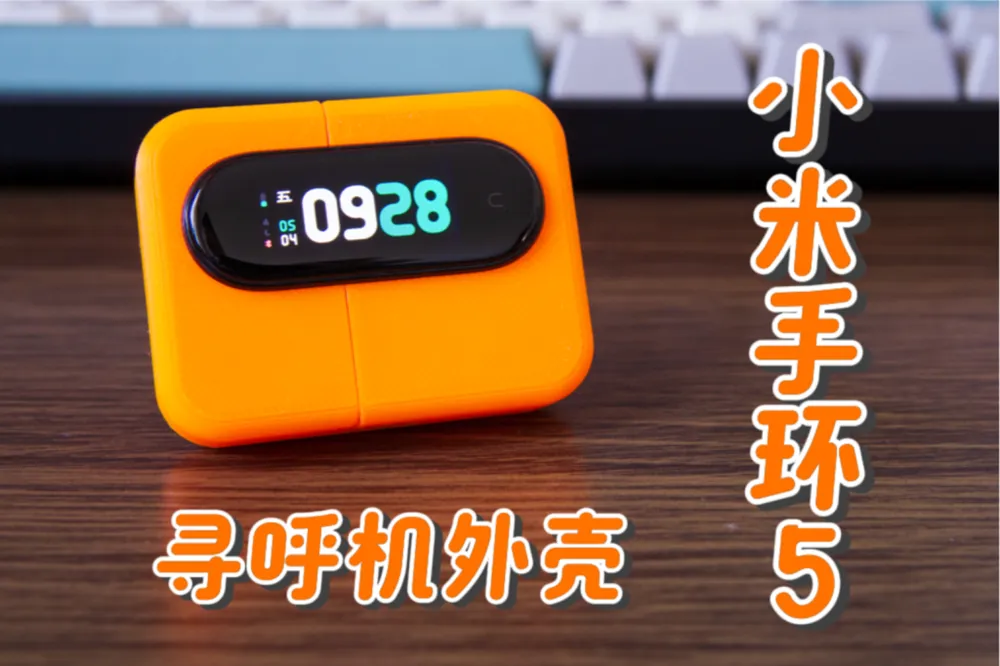

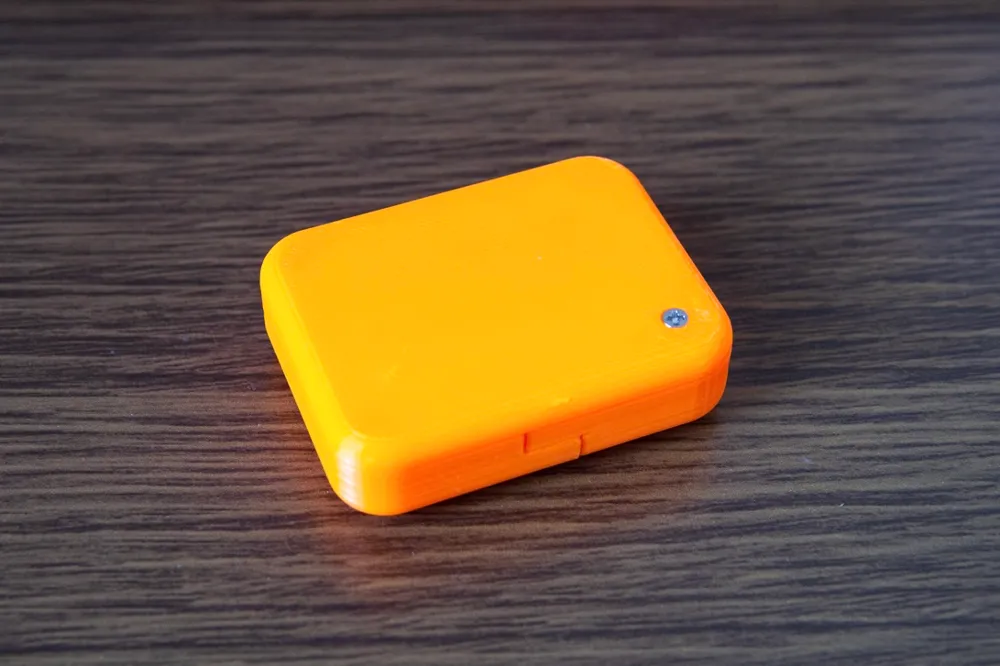

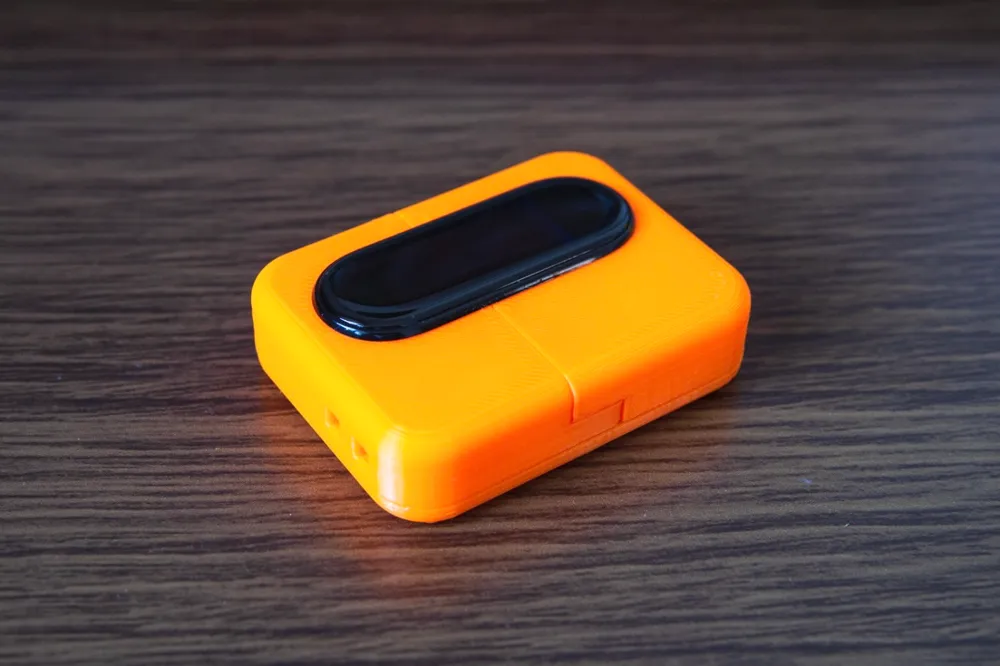

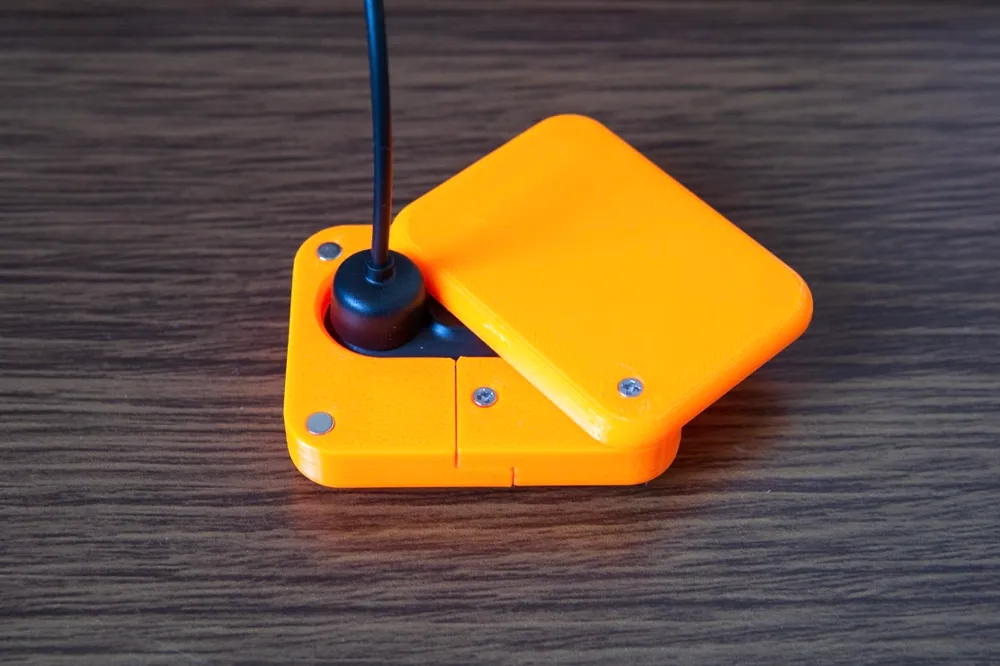

I've had this Xiaomi Mi Band 5 for many years now, and it's been mostly idle. I only use it as an alarm clock when I sleep, but I found it a bit troublesome to wear it on my wrist every night. So, I made this case. The case's design is reminiscent of a pager, and with a landscape-oriented watch face, it definitely has that pager vibe. The case is secured using screws and magnets, allowing it to rotate open without hindering charging. The case also features a lanyard hole, enabling you to use it as a pendant or a pocket watch. However, I still use it solely as an alarm clock and simply place it by my pillow every night.

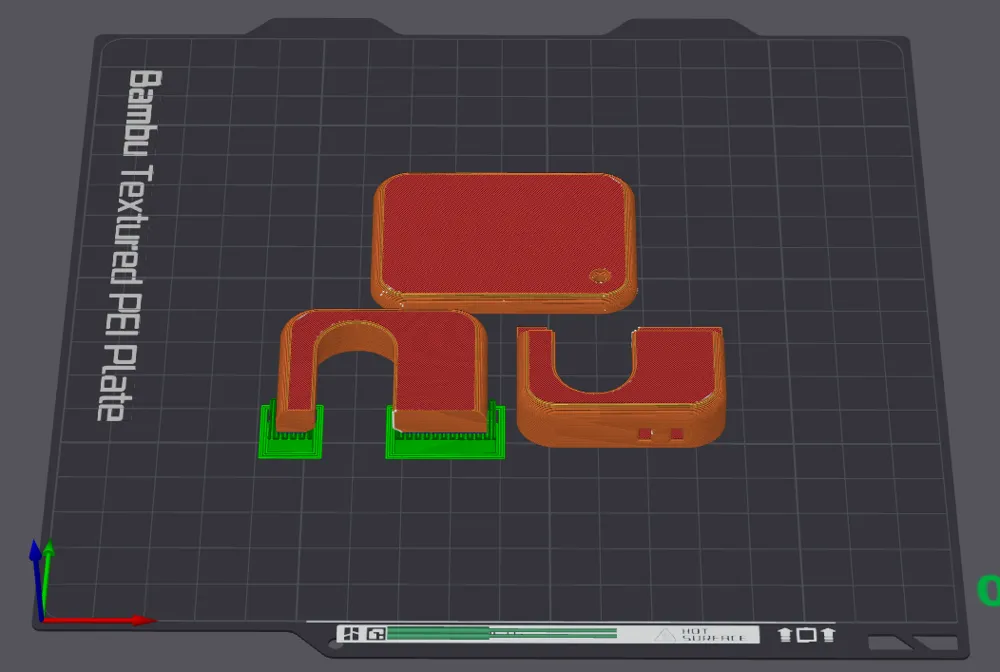

When printing, the "Top Case Right" part requires support on both overhanging surfaces. You can refer to my 3MF file or image.

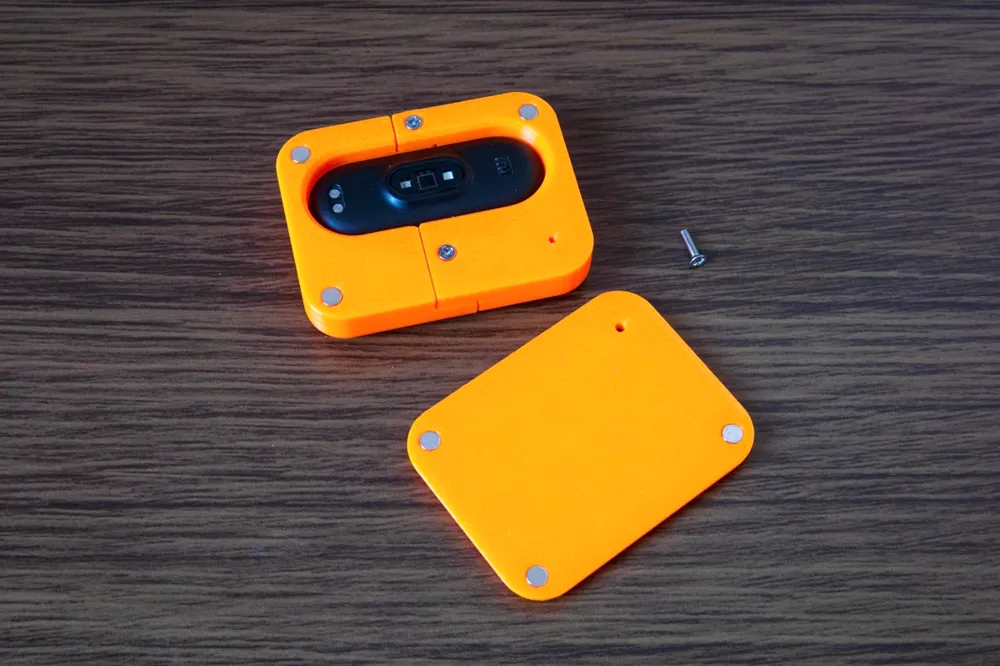

Assembling this case requires these accessories:

① M2×8mm countersunk screws - 3 pieces

② Diameter 4mm, thickness 2mm strong magnets - 6 pieces

I use a third-party landscape-oriented watch face, available in three styles, three languages, and two orientations. Link: https://amazfitwatchfaces.com/mi-band-5/view/1207
