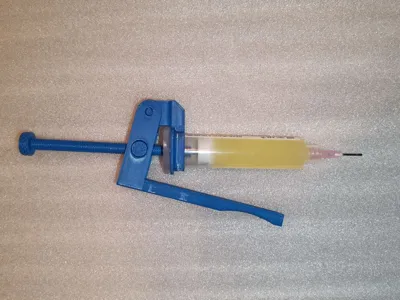

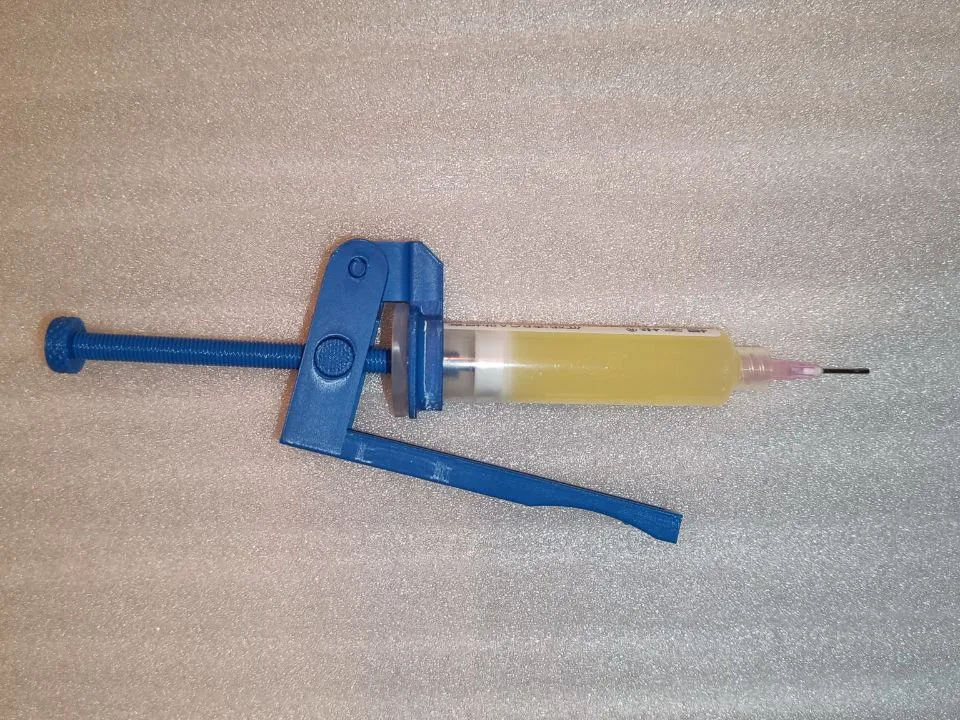

Flux Dispenser (Print in Place)
Print Profile(2)
Description
Boost Me (for free)
If you liked my model, please support it with a boost if possible. Thank you.
Boost Me (for free)
If you liked this model, please boost it if possible. Thank you.
Update 26.11.24
The handle has been reinforced.
==========
Update 09.10.24
Improved some dimensions.
==========
Update 09.08.24
The screw model has been redesigned for printing in horizontal view, the screw thread pitch has been increased by 2 times and, accordingly, the size of the swivel nut and the corresponding hole in the body.
The ball has been separated from the screw, now gluing is required, if desired, you can not use the screw tip at all.
==========
Update 05.06.24
Increased the gap between the threads. Now the screw is screwed in with little resistance. Just twist the screw back and forth a few times and it will rub in on its own.
==========
Personally, I had problems with the plastic coming off the textured plate and so I printed each part separately with raft.
Perhaps this is a problem with my plastic or insufficient adhesion area for the models, but keep in mind that there is a risk of printing failure without raft.
Also, after my printing, I slightly increased the thread gap, because I had to go through it with a tap. If the gap is not enough, let me know.
License
You shall not share, sub-license, sell, rent, host, transfer, or distribute in any way the digital or 3D printed versions of this object, nor any other derivative work of this object in its digital or physical format (including - but not limited to - remixes of this object, and hosting on other digital platforms). The objects may not be used without permission in any way whatsoever in which you charge money, or collect fees.
