IKEA Skadis with Standoff (10mm)

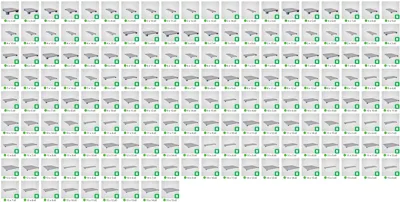

Set of 169 sizes of IKEA Skadis pegboards. To enhance user convenience, I've organized the files and print profiles based on the number of columns. The board are prepared for M4 countersunk screws (M3.5 will work as well, M3 adapter available here). Each board comes equipped with an integrated 10mm standoff. For installation on wood, I recommend using screws that are 30mm+ in length, and for wall mounting, opt for screws that are 40mm or more are recommended, depending on your particular needs.

Caution: The 10mm variants have a reduced length compared to the original mounting mechanism. To ensure the boards align seamlessly with an original Skadis Board, opt for the 20mm variant or utilize Boards without integrated Spacers and print the spacers separately.

Updates

05.04.2025: I've added new sizes tailored specifically for the larger print bed of the H2D, making the most of its extended build volume. The maximum size is now 15x15 (320x320mm).

Size Overview and Board Selection Guide

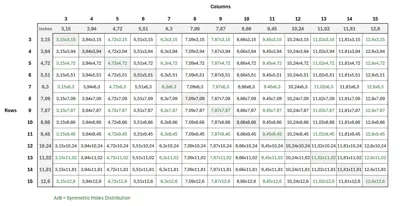

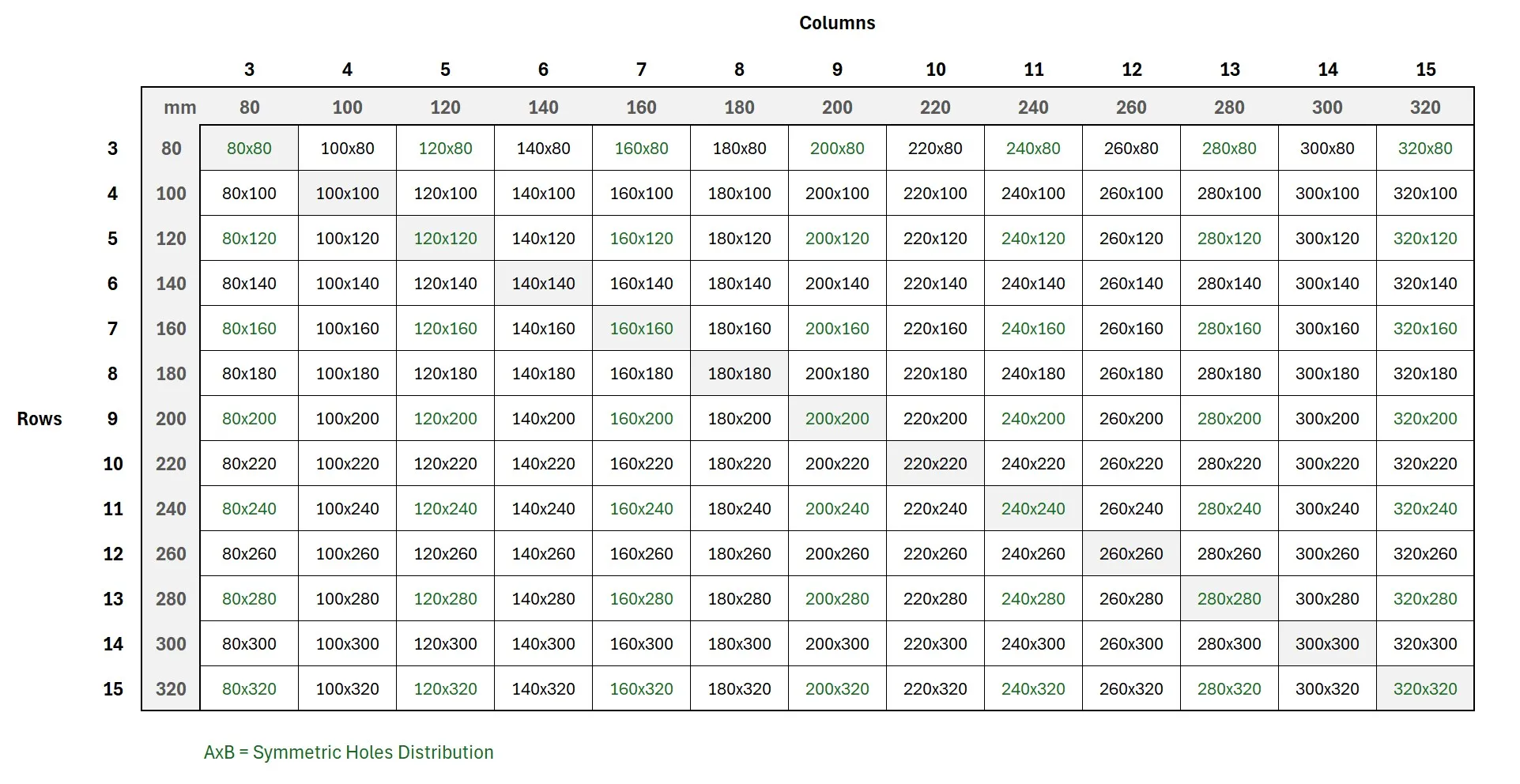

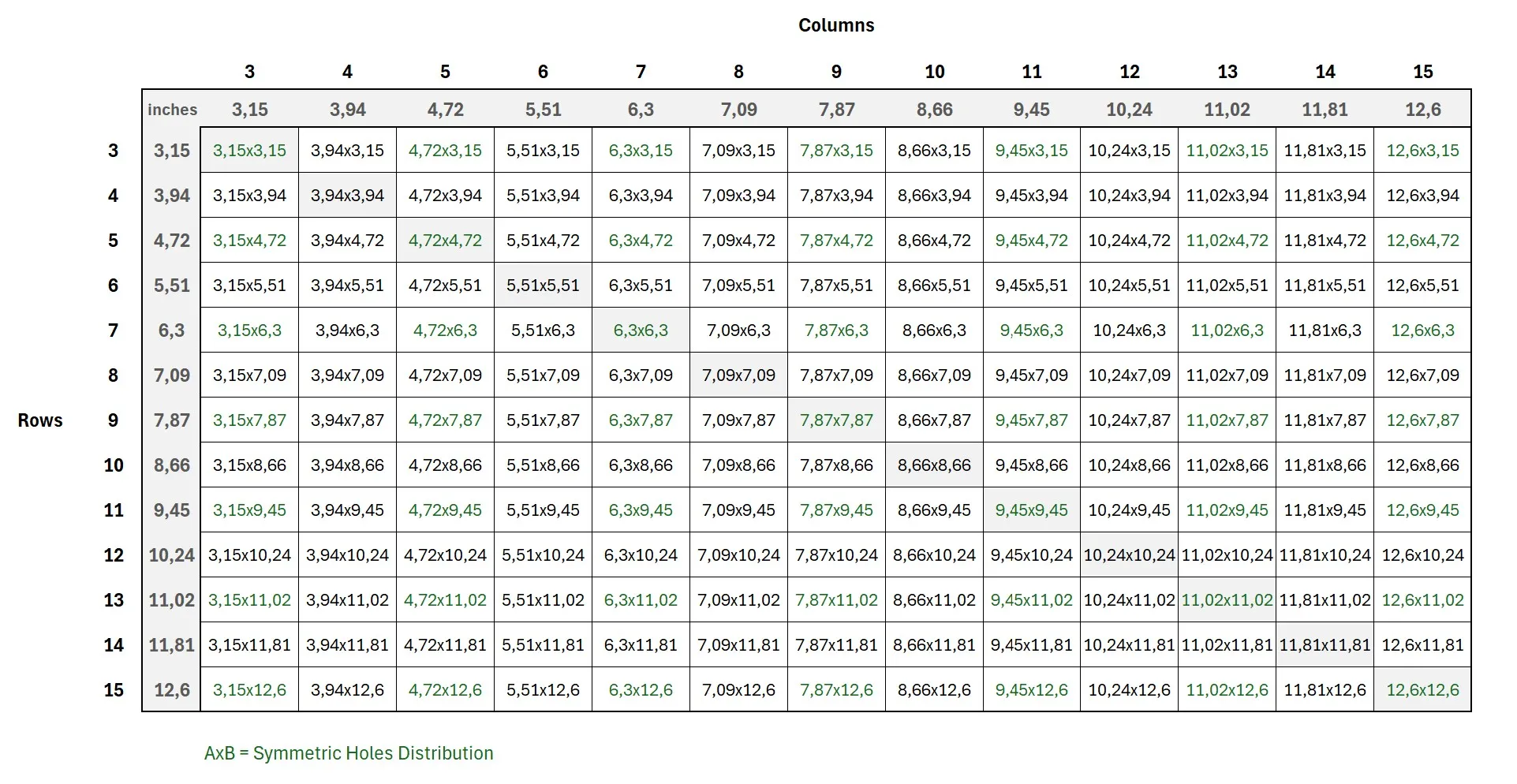

The table below gives an overview of all available sizes, including their conversions to centimeters and inches. Boards with a symmetric hole distribution are highlighted in green, as they are the easiest to work with. If your setup requires non-symmetric boards, please refer to the section 'Planning and Printing an Array of Boards' for further guidance:

Planning and Printing an Array of Boards

When printing an array of boards, be mindful of configurations that may require simple adjustments to ensure full compatibility for mounting accessories across multiple boards.

• Odd-numbered boards (e.g., 9×9, 11×11, 11×9) are inherently symmetric and require no adjustments.
• Boards with an even number of columns (e.g., 10×11, 10×10, 8×11) should have every other board mirrored along the X-axis when arranged horizontally.
• Boards with an even number of rows (e.g., 11×10, 10×10, 11×8) should have every other board mirrored along the Y-axis when arranged vertically.
• Boards with an even number of rows and columns (e.g. 10x10, 10x8) are symmetric along their diagonal axis, so diagonal alignment does not require mirroring. However, the previous mirroring rules for rows and columns still apply.

Mirroring a model in Bambu Studio is easy: simply right-click on the model, select Mirror, and choose the desired axis (X or Y). Sadly, this cannot be done in the Handy app. Following these guidelines ensures seamless alignment and accessory compatibility across your board array. If you have any further questions, feel free to send me a DM.

Board Variants Overview

I've created multiple board styles and variants to suit different needs. Before printing, be sure to choose the one that best fits your requirements:

• Original Style
• Integrated Countersunk Screwholes
• Integrated Countersunk Screwholes + Integrated 10mm Spacer
• Integrated Countersunk Screwholes + Integrated 20mm Spacer
• Integrated Countersunk Screwholes + Integrated 20mm Spacer + Reinforced Frame
• Integrated Countersunk Screwholes + No Borders (Infinity-Style)
• Integrated Panhead Screwholes

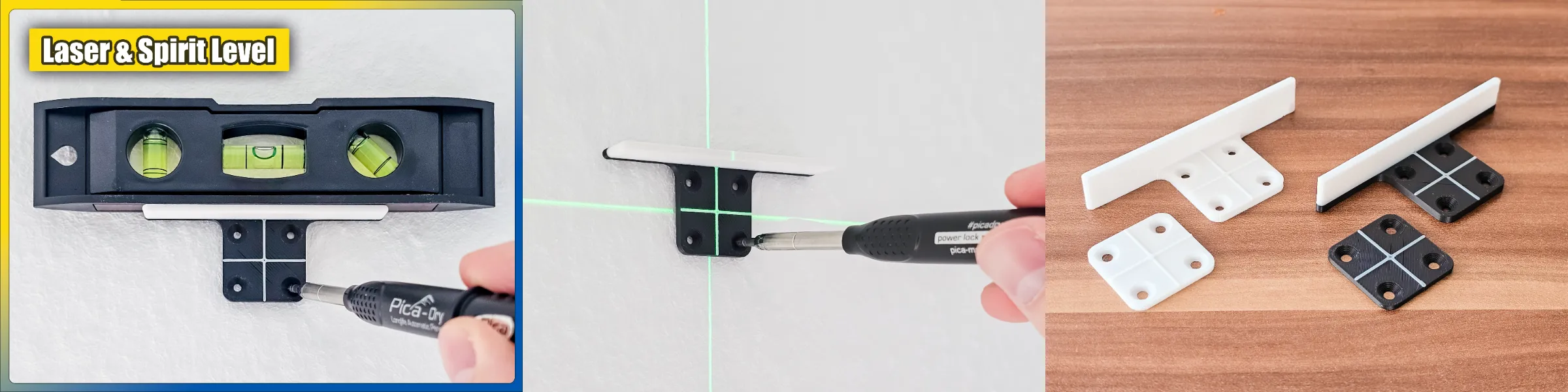

Drilling Jig

If you plan to install more than one of these boards in an array or a tiled setup, I recommend my drilling jig for this board that helps you align multiple boards:
