HSW - Tape Roll Holder

HSW Tape Roll Holder

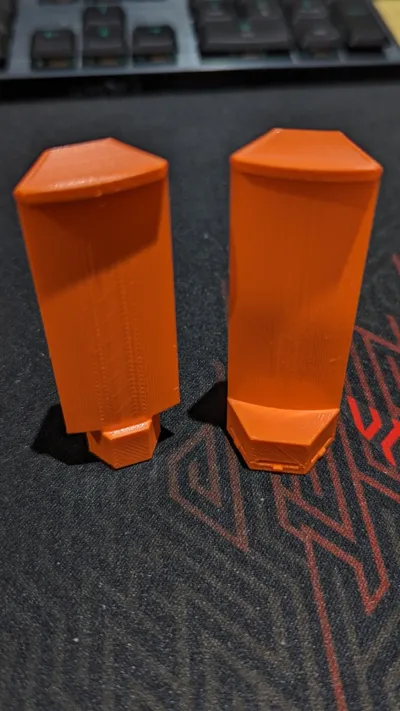

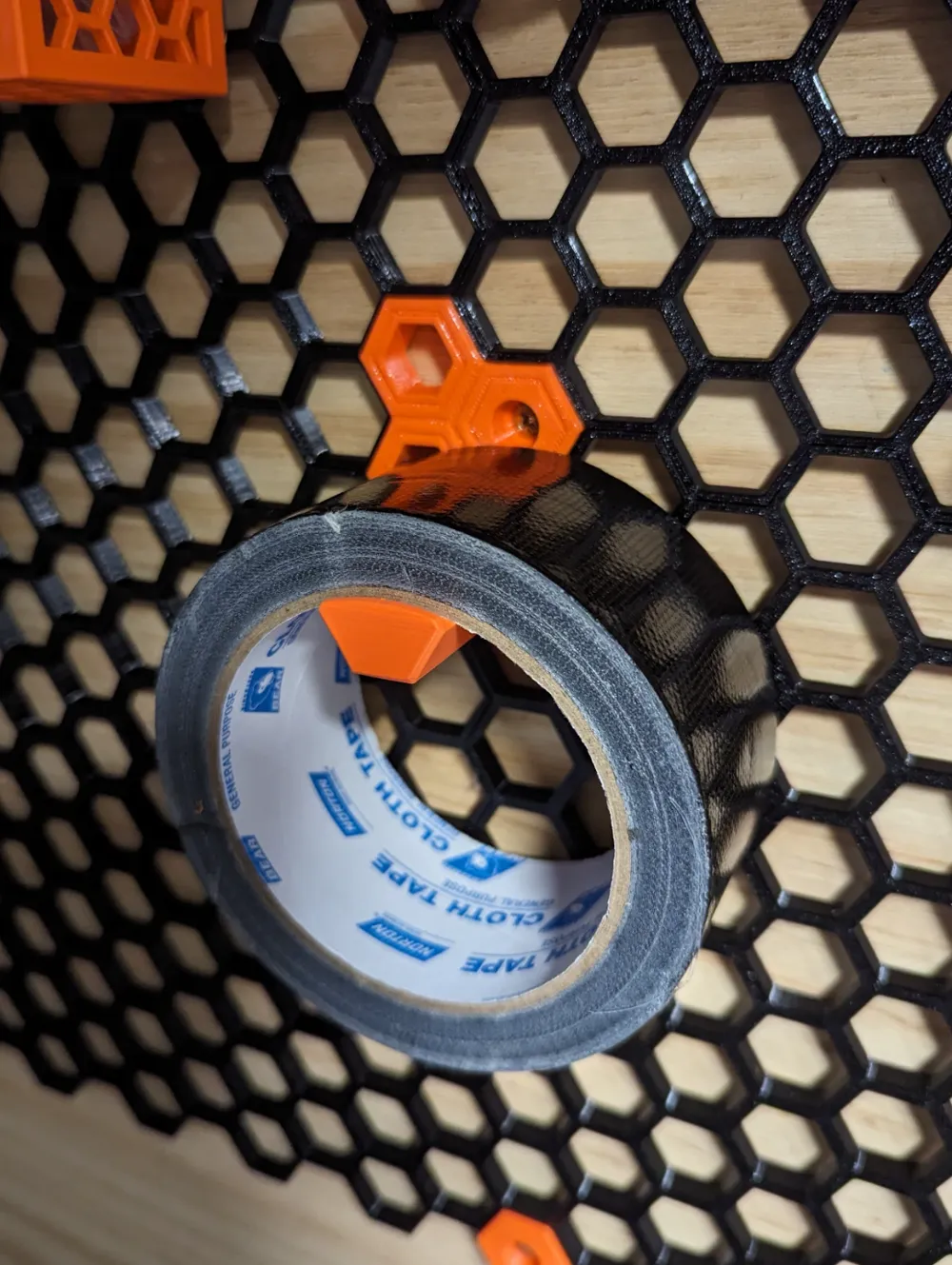

This design includes two different tape role holders that are designed to hold a standard sized tape roll.

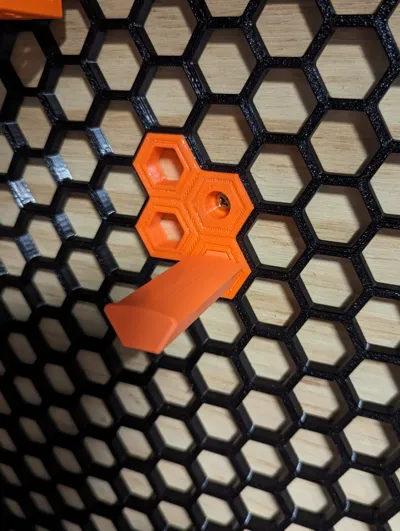

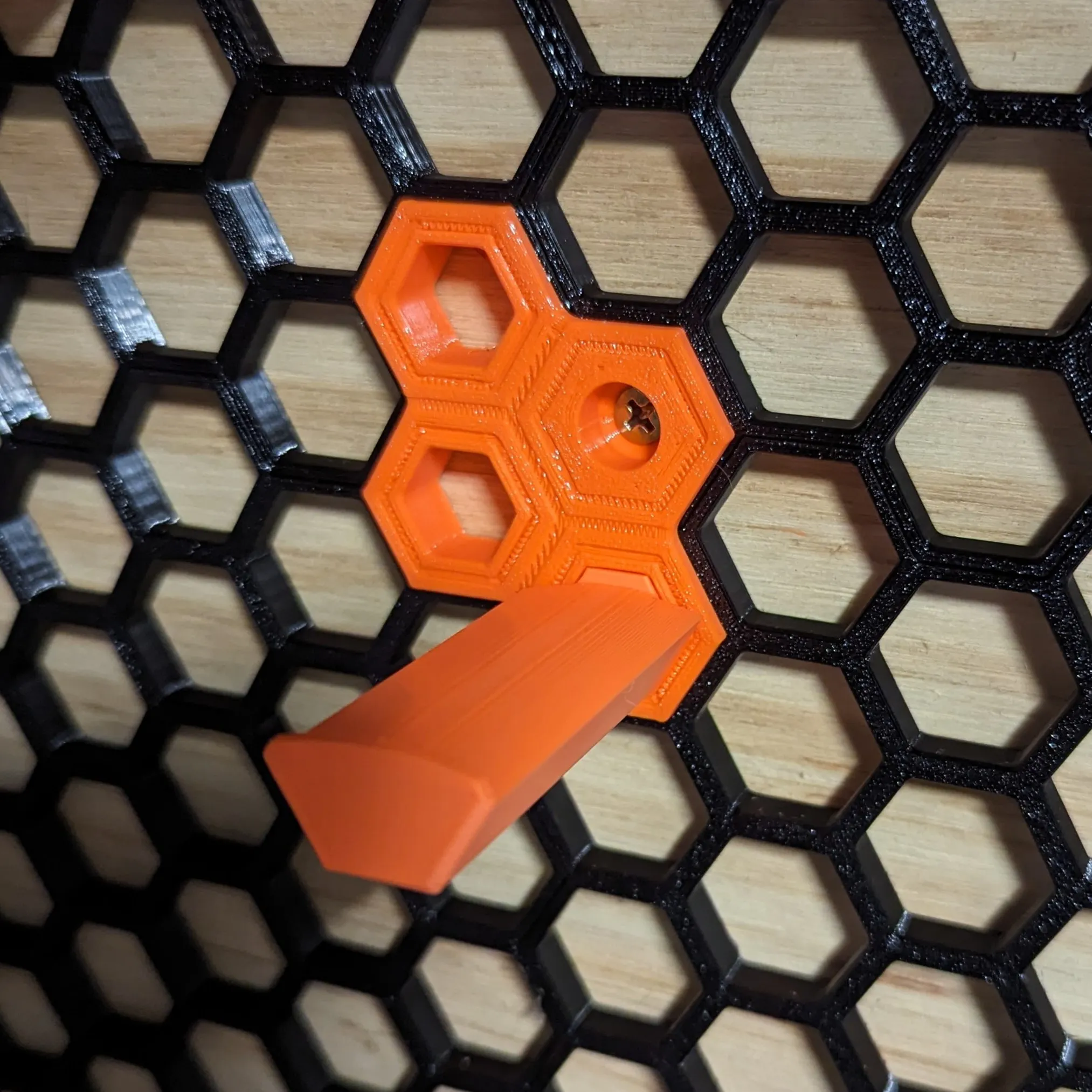

The first holder is designed to use standard HSW inserts as shown in the picture below

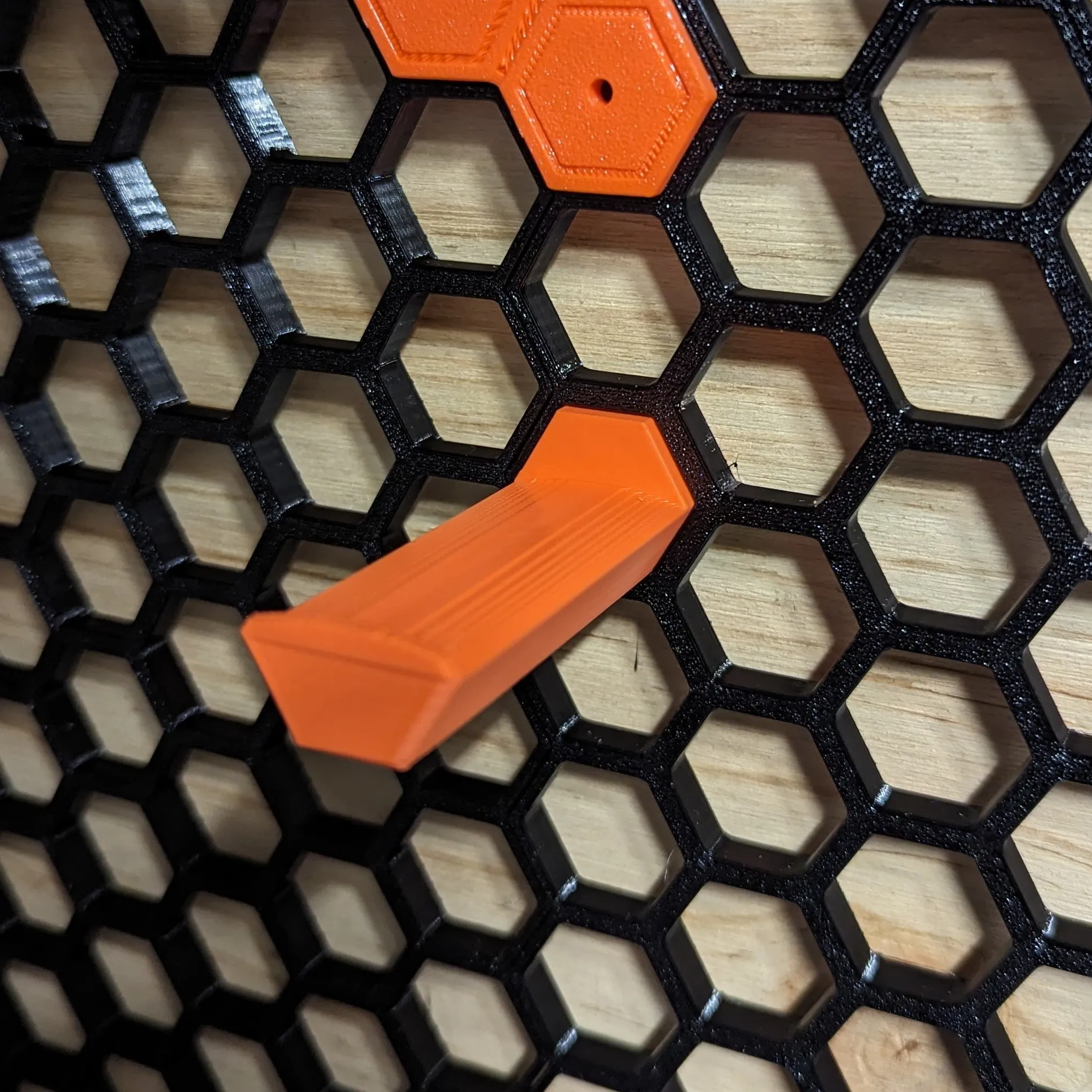

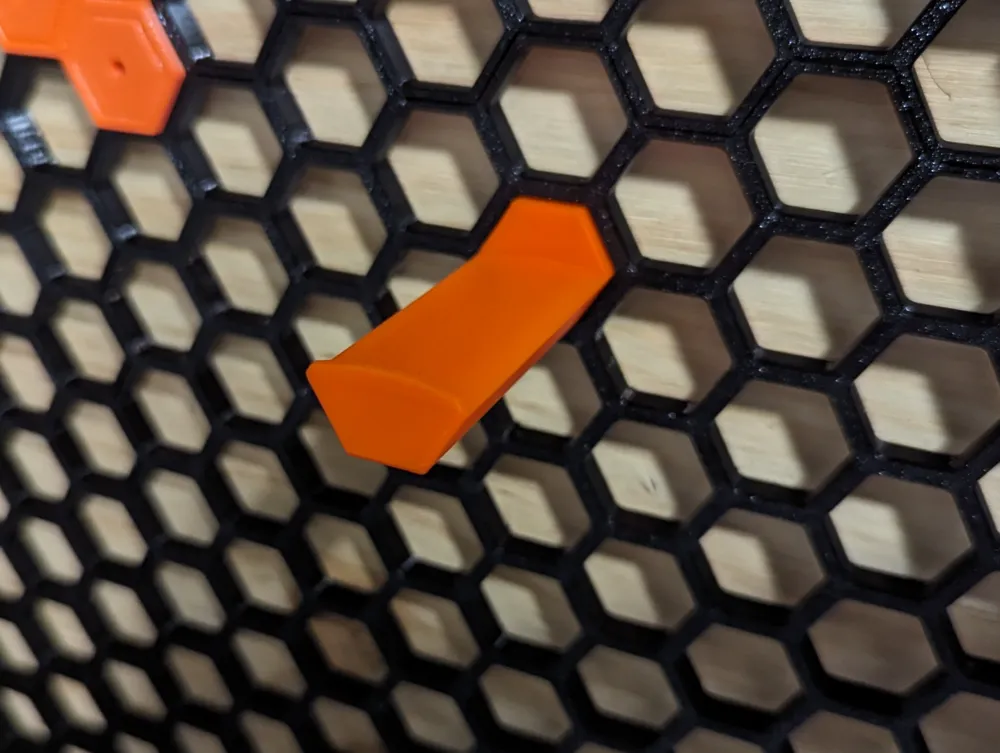

The second design fits directly into the HSW and does not require any adapters

Print Settings:

These holders can be printed in either PLA or PETG. If the full insert is slightly loose, then scaling the print to 101% should fix the issue. If you want a smoother radius on the top of the holder then variable layer heights can be used.

• Material: PLA/PETG
• Layer height: 0.2mm
• Perimeters/Wall Loops: 4
• Sparse Infill Density: 25%
• Scale: 101% (only if full insert is slightly loose)

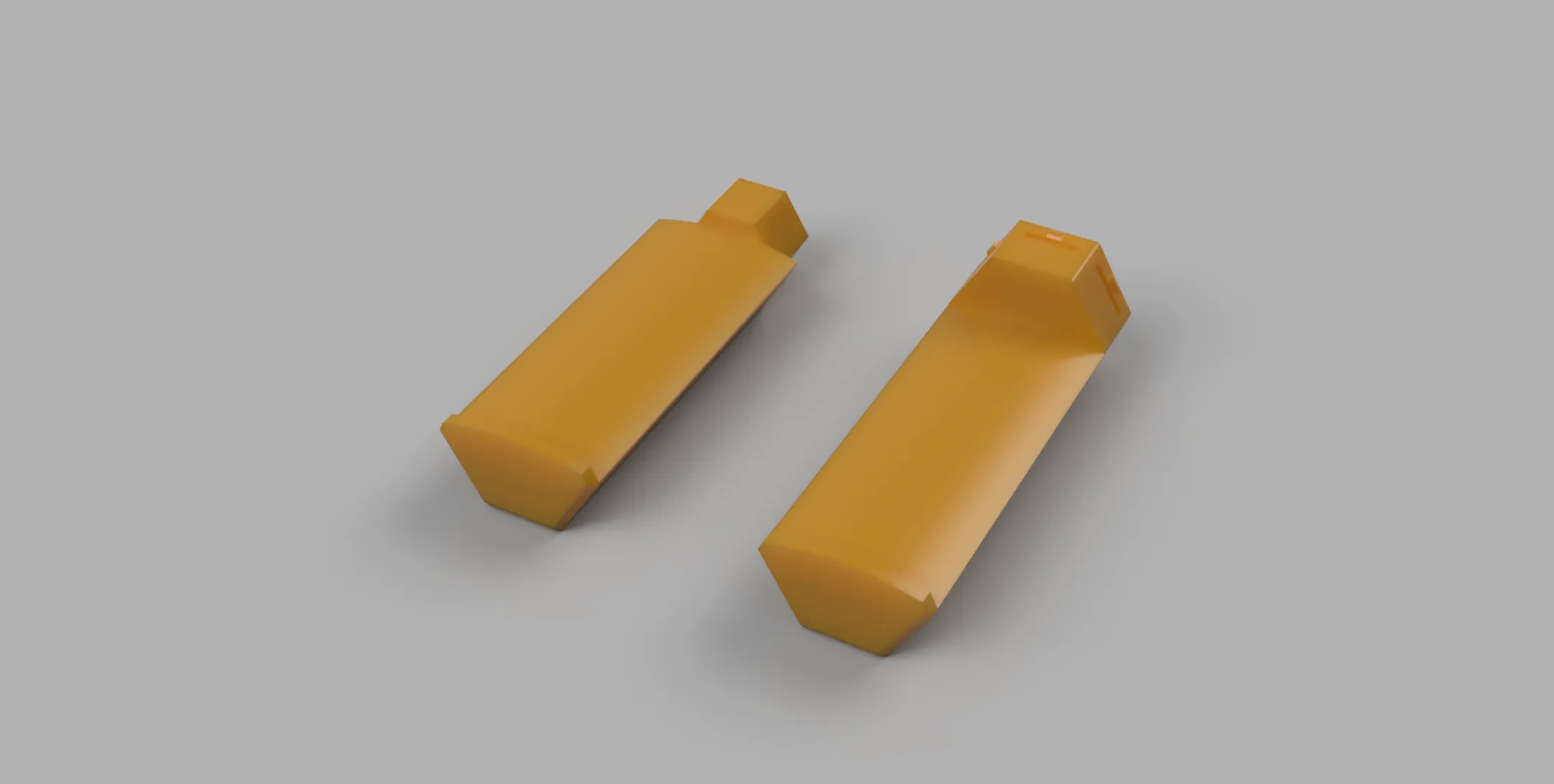

Insert Renders
