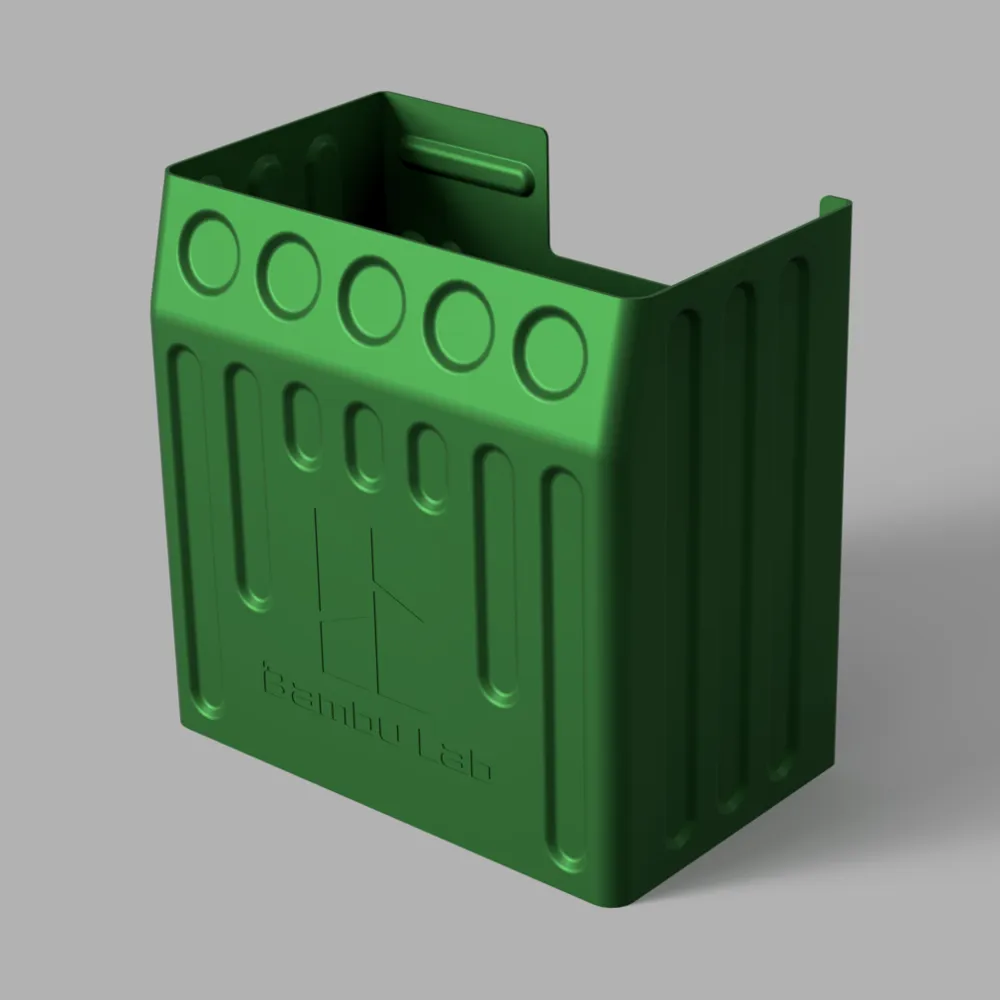

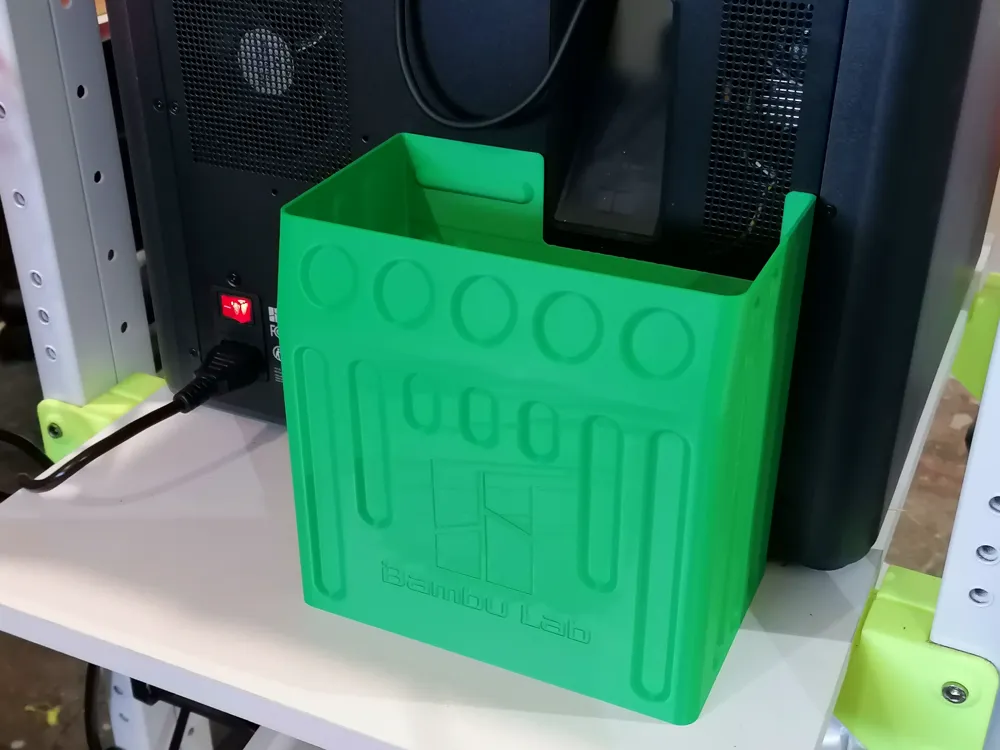

This is a poop bucket for the Bambulab X1, P1 and P2 Series.

I designed it to be printed fast and use a small amount of filament.

It takes about 2 hours (at 0.20mm, standard speed) on a X1C/P1P/P1S/P2S printer, and uses only 136g of filament.

This model should be printed in Vase Mode with the following recommended settings:
- Special mode / Spiral vase
- Layer height: 0.20mm
- Wall Loops: 1
- Bottom shell layers: 5
- Line width / Outer wall: 0.8mm (this can be achieved with the standard 0.4mm nozzle)
- No need for supports or brim

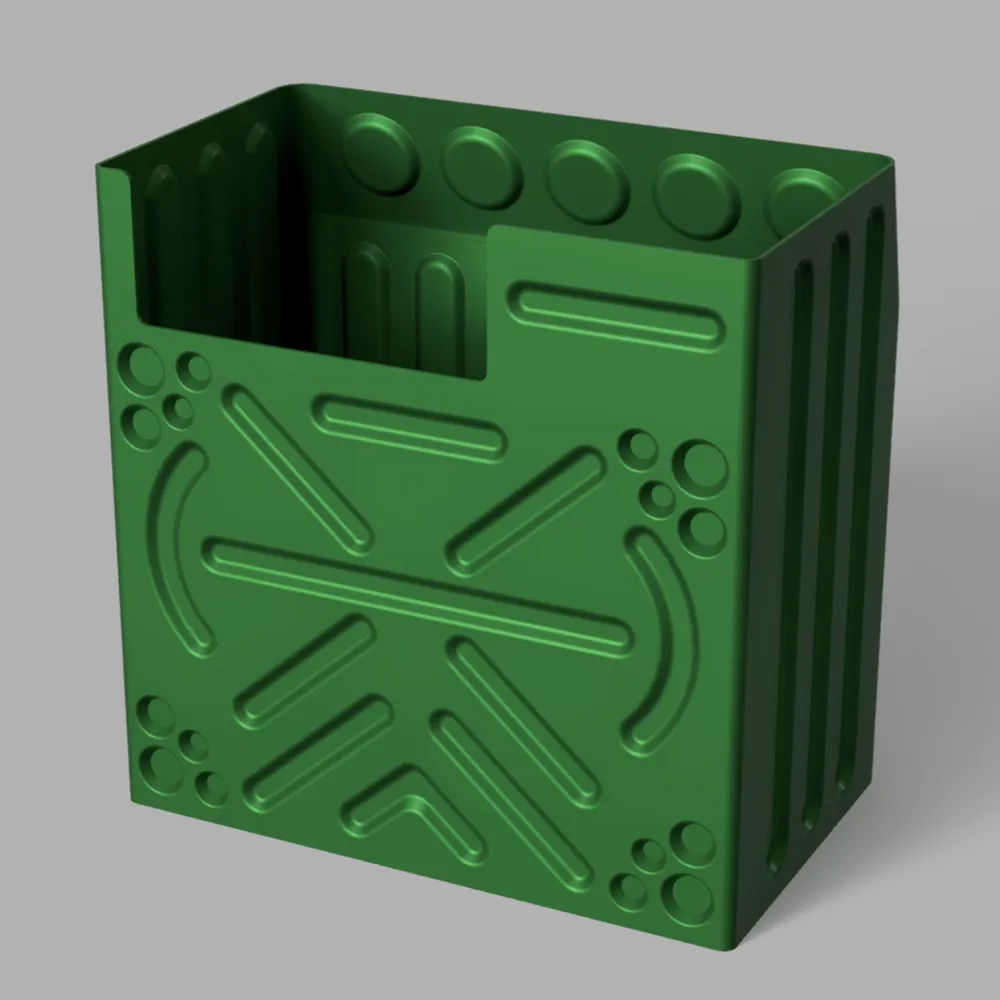

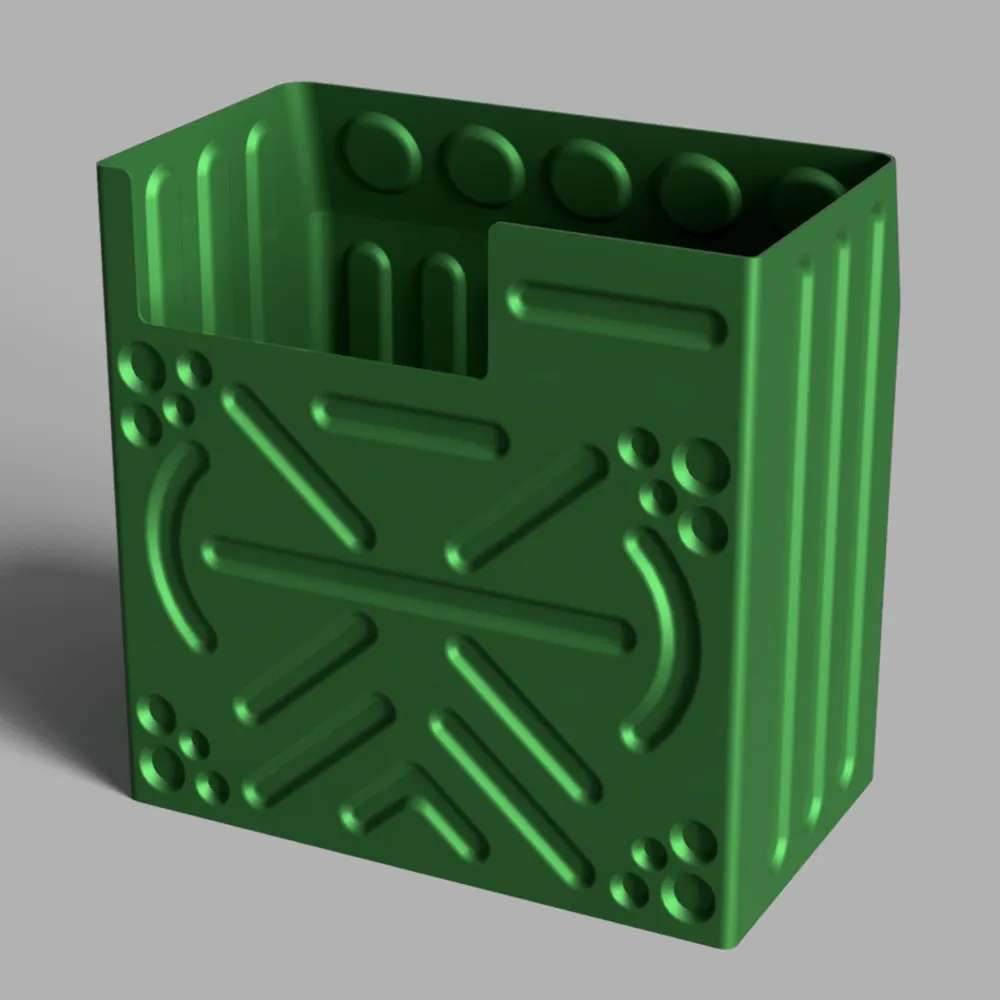

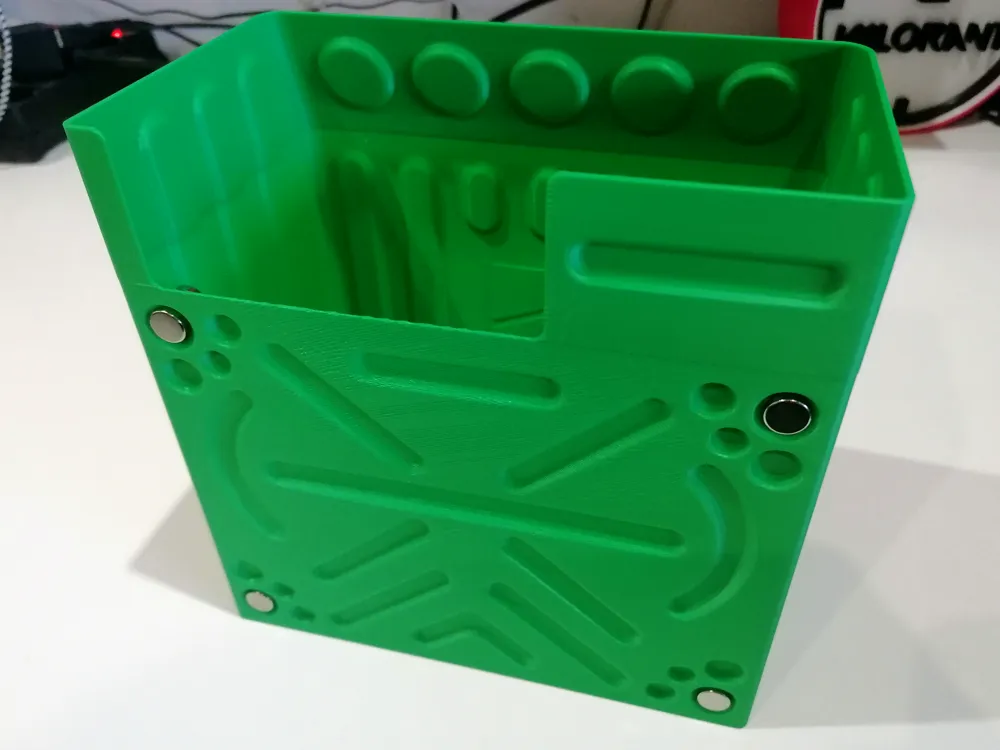

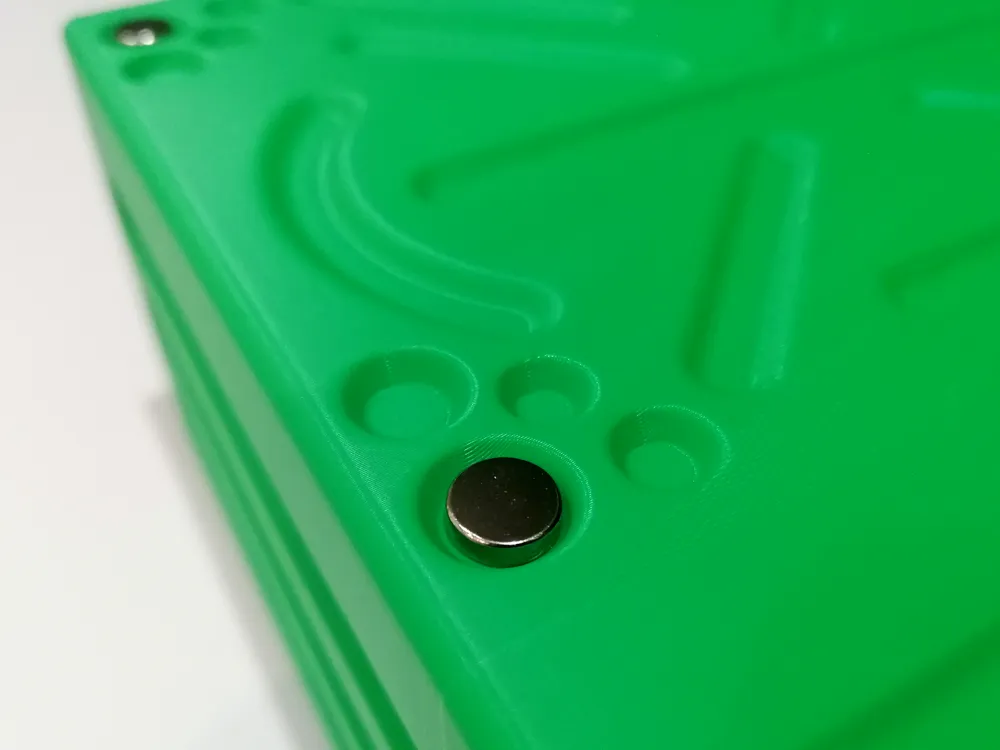

In the back you can glue 4 magnets to make it stick to the printer.
It has holes/spots with several diameters to fit any of the following magnet sizes (diameter x thickness):
- 5mm x 3mm
- 6mm x 3mm
- 8mm x 3mm
- 10mm x 3mm

Even the smallest magnets are able to keep it in place.

I also published this same model but for regular print instead of vase mode (spiral). Check it at my profile models.
