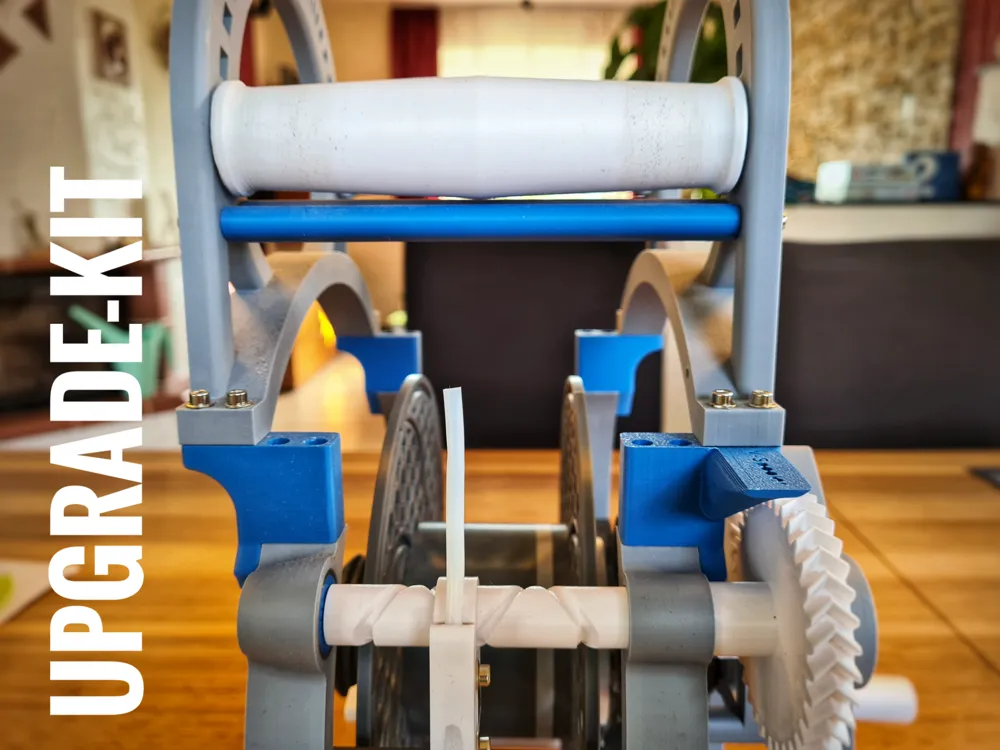

Upgrade Kit for the V-Spooler available from Version 1
Hello, fellow printers!

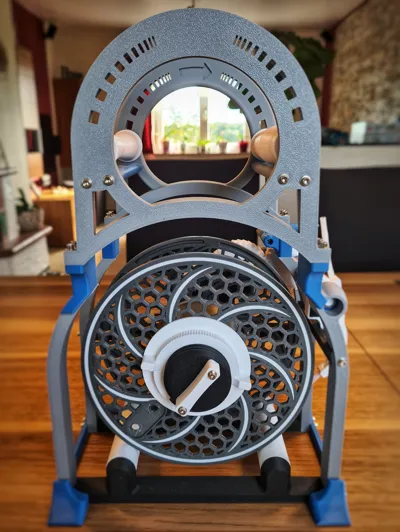

Here is a small upgrade to make the ingenious V-Spooler usable for larger spools
I use it easily with 3kg spools, whether plastic or cardboard. The 1kg spools still work without issues. It is important to ensure that the large roller is installed at the front (as shown in the picture)!
Almost all old screws can be used during assembly. However, one screw (Beta 7) must be shortened or replaced. Which one? You'll surely figure it out yourself :-)
Have fun printing!
Assembly note:

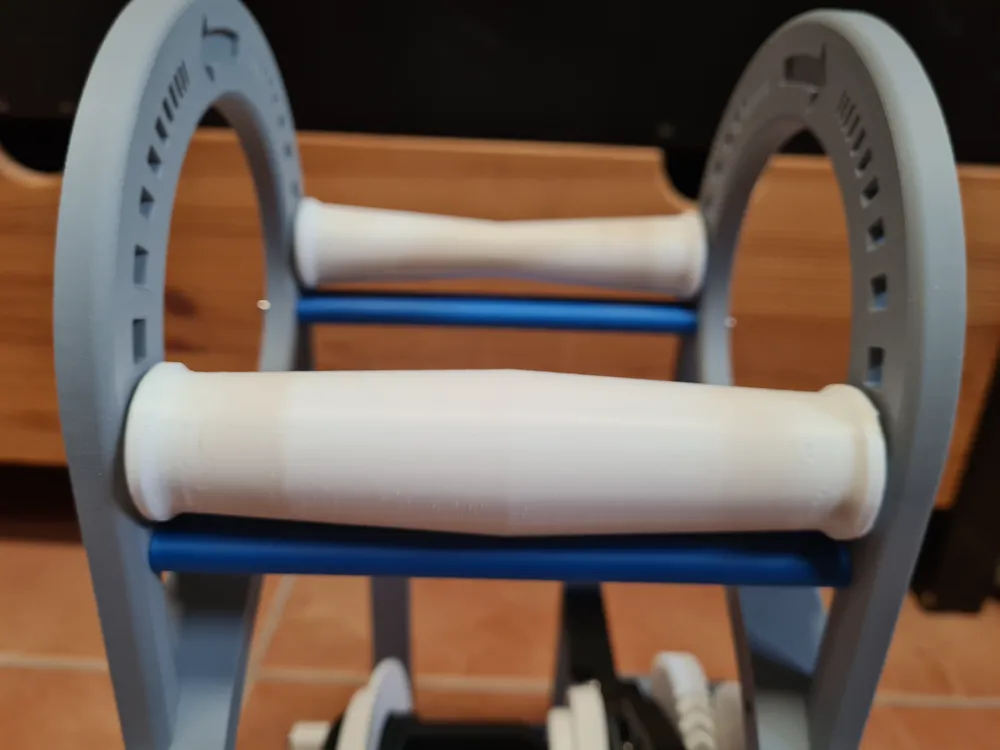

Attention!!!! It is important that the large roller (convex) is installed at the front. This ensures that the upper filament roller always centers itself during unwinding. This also makes it possible to respool smaller rolls (e.g. 500g)
