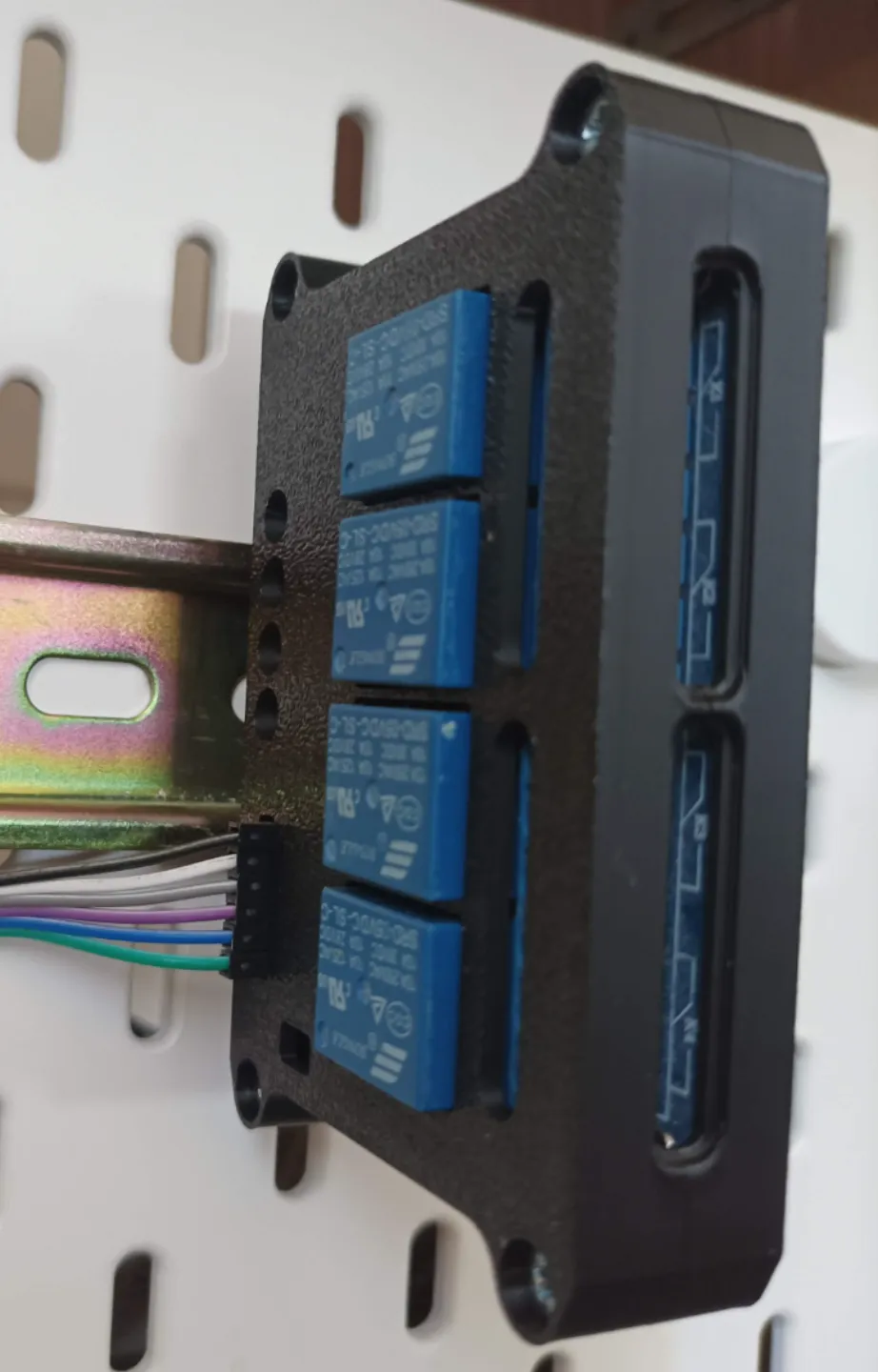

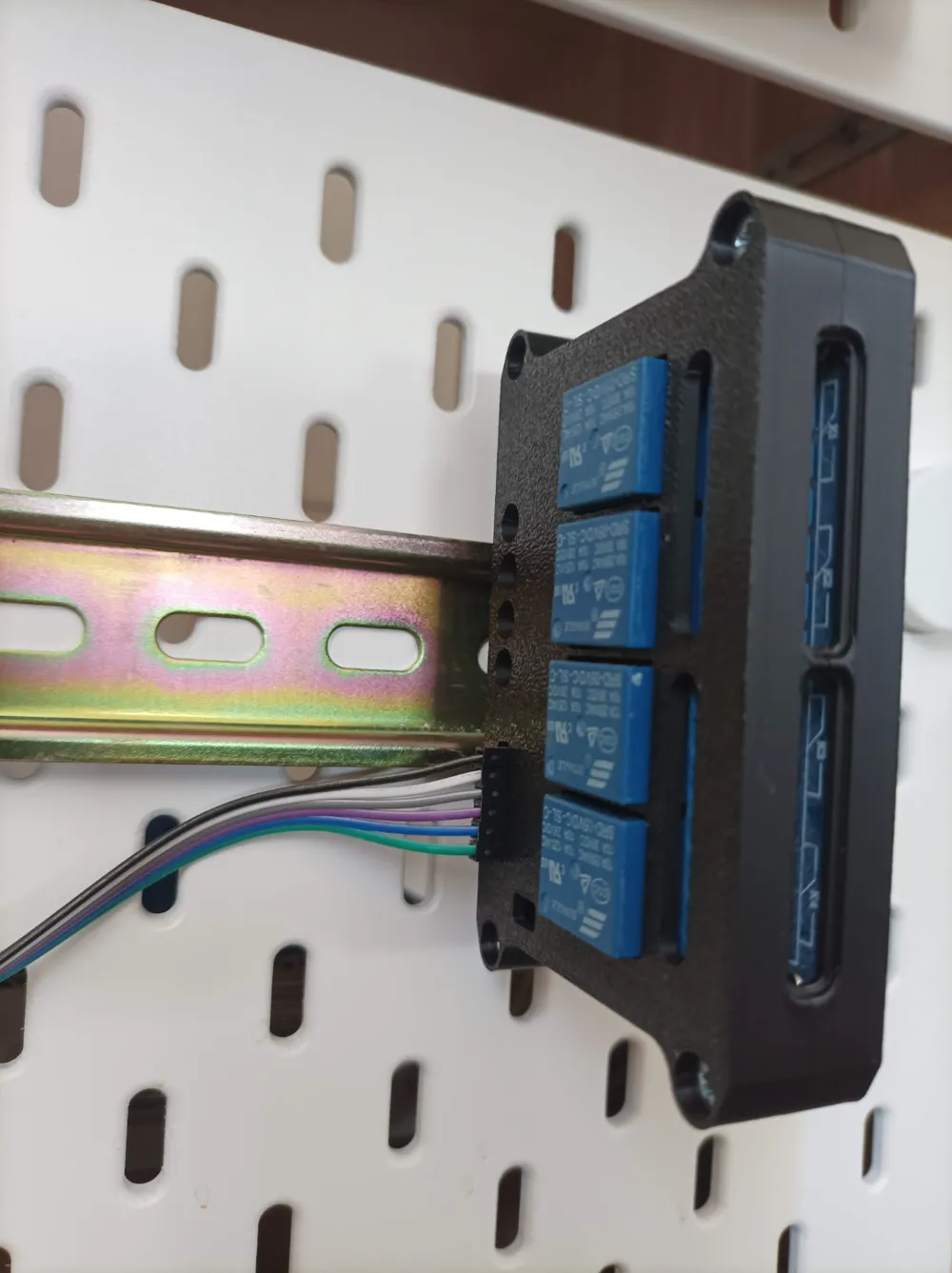

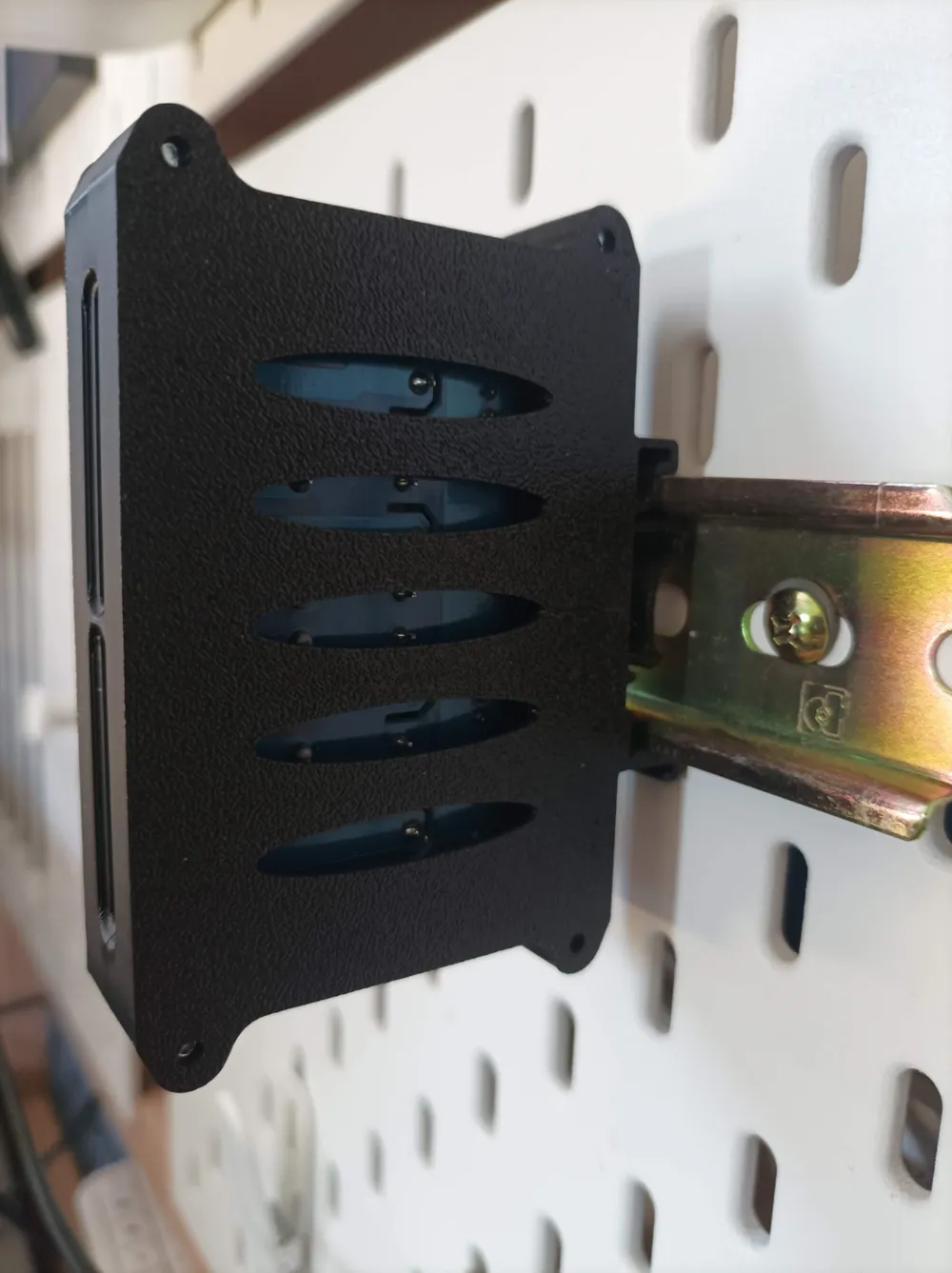

4-Channel Relay Module Case with DIN rail mount
Remixed by
IP Report
Print Profile(1)
0.2mm layer, 2 walls, 15% infill
Designer
1.2 h
1 plate
Open in Bambu Studio
Boost
160
450
13
15
527
284
Released
Description

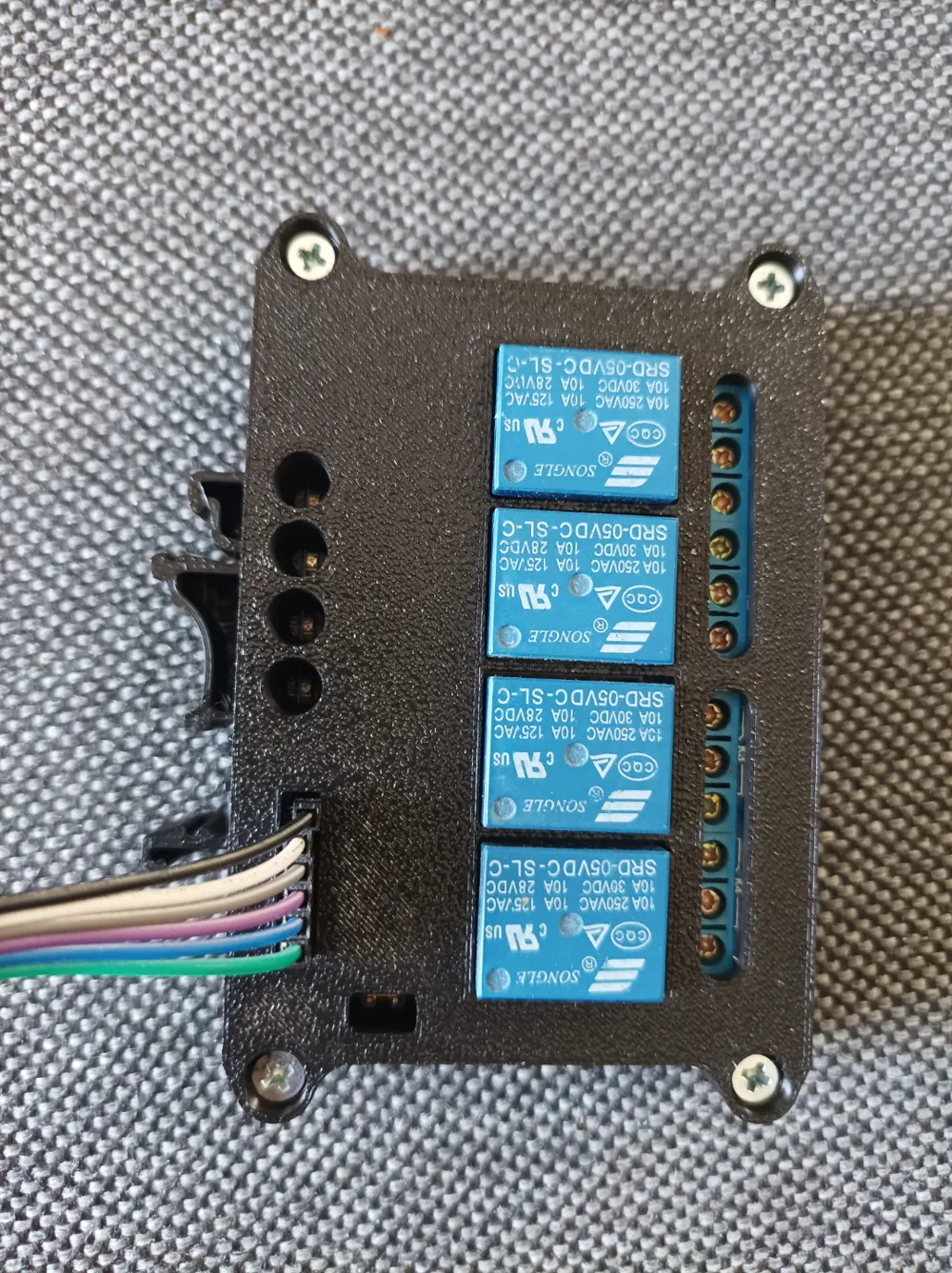

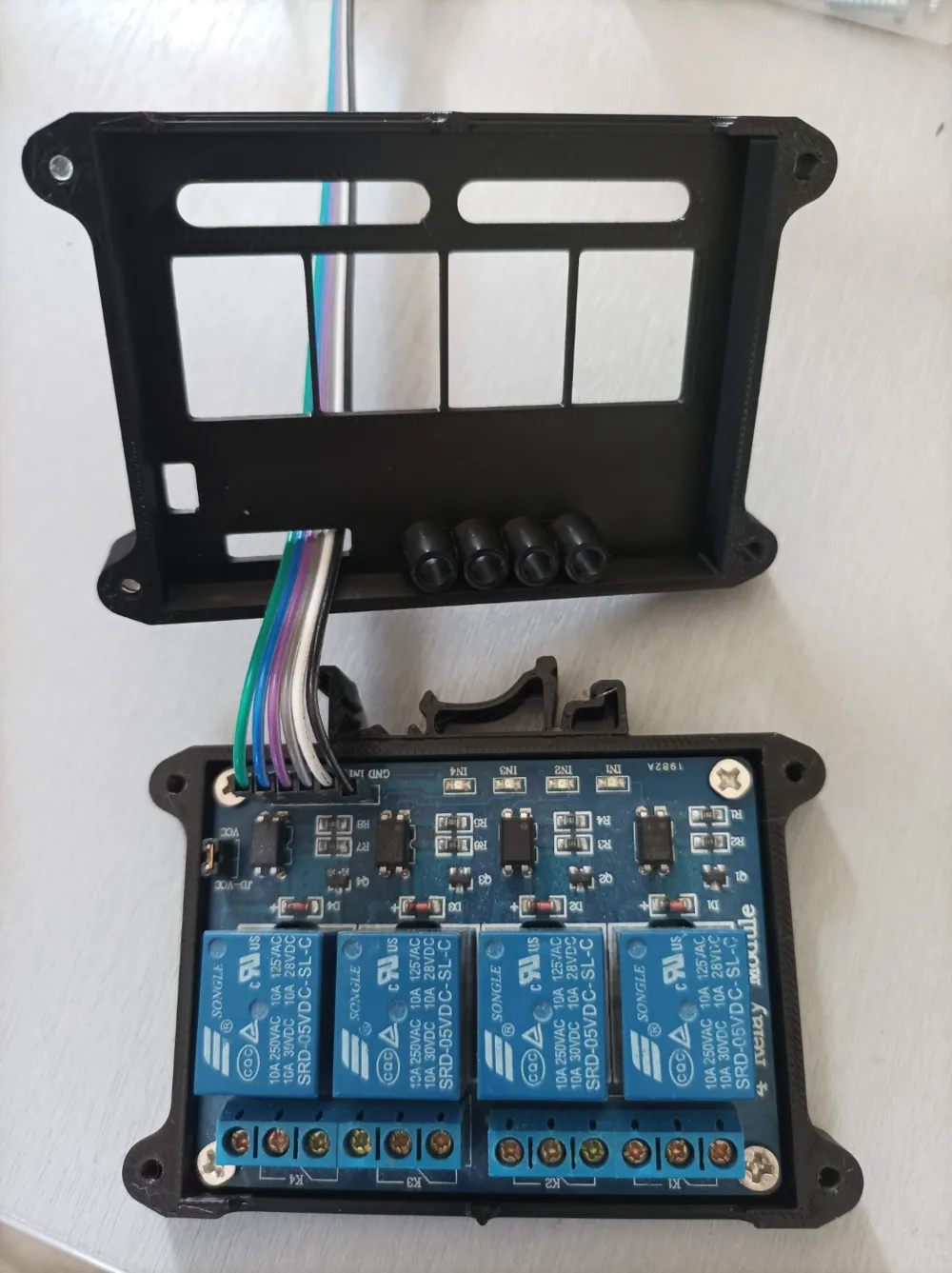

The stl model of the DIN rail bottom of the case by khschneider on Thingiverse was scaled down by a factor of 10 so I had to upscale it in Bambu Studio to 1000%. To make sure it has the correct size I used the original model of thehair on Thingiverse and placed the top of the case on the same build plate. My 4-channel relay board is 55x75mm and the screw holes of the board are approximately placed at a distance of 49x69mm. Please check the dimensions of your board before you print. The boards available on the market seem to vary in size.

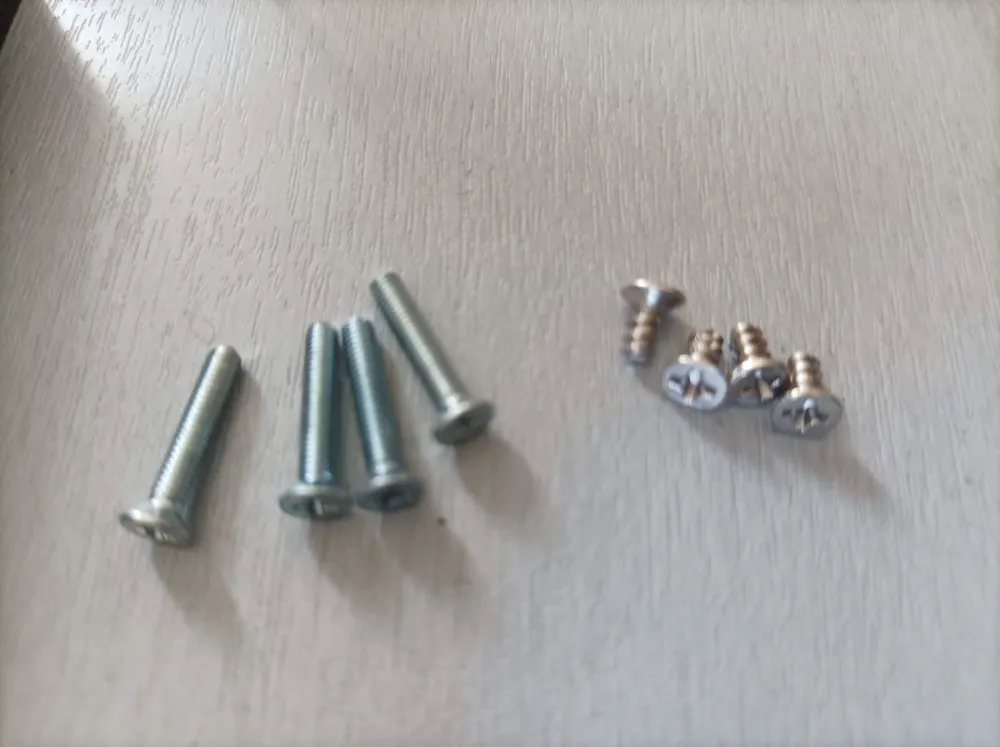

I used the following screws, I had laying around:
4 x M3X16 Countersunk Head Screw (to combine bottom and top of the case)
4 x 3x6 Countersunk Head Screw (to fix relay Board in the case)
This remix is based on
License
This user content is licensed under a
Creative Commons Attribution-Share Alike
