AMS lite Top Mount for A1-V2(STP)
Print Profile(7)
Description
2025/08/23
Update Notes
I have uploaded the V3 version of the bracket. Please visit my homepage to check; this might be the version you need more
2025-01-23
Update Notes
Because more than one friend asked me for an external bracket
I made it a long time ago, but haven't uploaded it
So I decided to upload the third profile
Includes external brackets on the left and right sides
The force direction is in the XY plane, so the strength is very high. If you want to enlarge the spool, you can increase the wall thickness
2024-11-06
Update Notes
Uploaded the second profile
Optimized some model details, as well as printing placement and support settings
And added tested circular buffer feet, printed using TPU
Tip: AMS cannot use TPU. The official seems to have released TPU that can be used with AMS, but I have not tested it
This is the V2 version, with some modifications made to the V1 version
1. Added grooves for placing hex wrenches, the wrench included with AMS lite

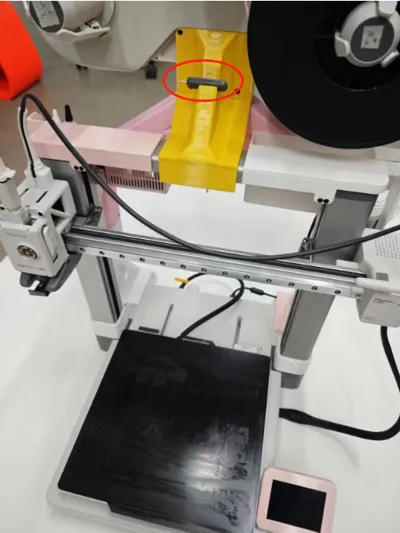

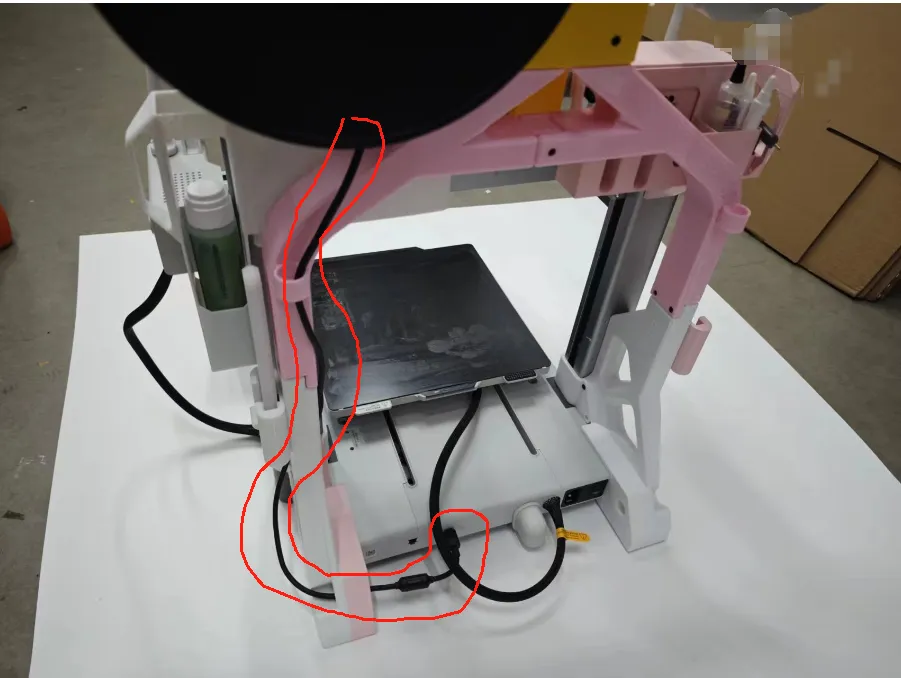

2. Designed grooves for securing the AMS lite power cable
3. Added positions for placing the scraper, both sides can accommodate it, requiring two M3 screws
4. A row of holes was added to secure the base. The base is still under design, and this row of holes does not affect printing
5. I have uploaded the STP file, welcome for secondary creation
Love this world
Note: The 3MF file is only for your reference on placement and support settings. Please change the material parameters according to the material you are using

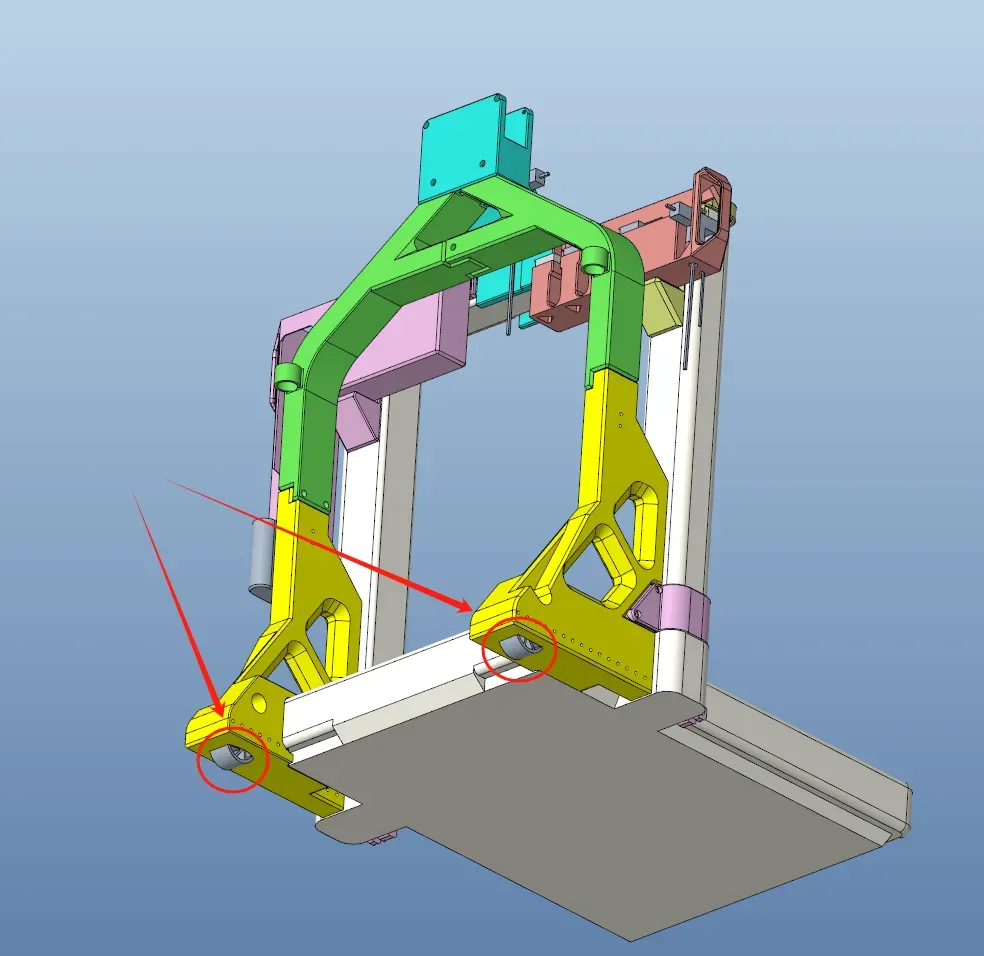

The weight of AMS lite is placed on the triangular stabilizers, and the crossbar is only used to limit movement in the Y-axis direction
A complete assembly requires 22 M3 screws. If your existing screw length is between 8mm and 14mm, they can be used. If you don't have screws and need to purchase them, purchasing 12mm is recommended
