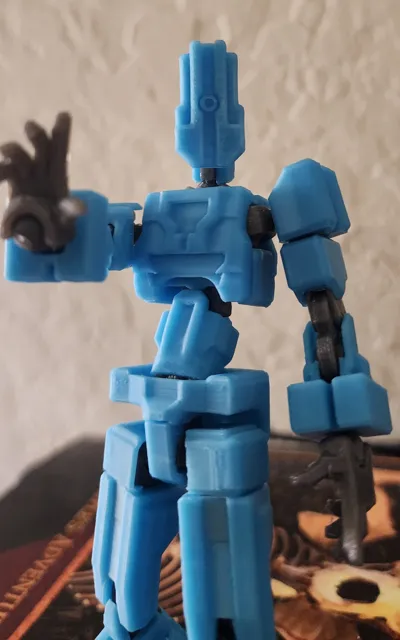

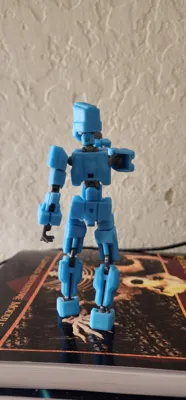

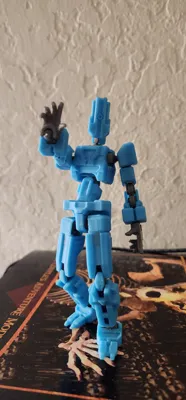

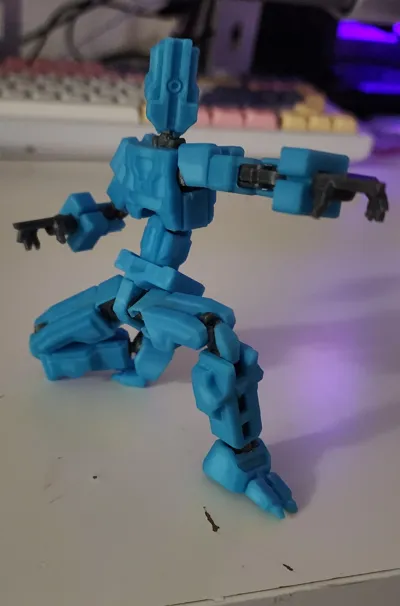

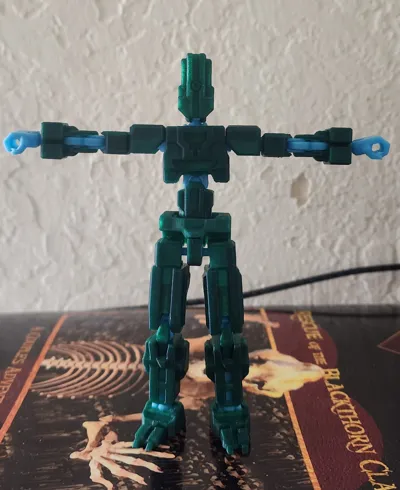

SENTINEL 13

A new armor set enters the fold. Here's Sentinel 13. There are a few frame parts which have been modified(included), otherwise it uses the stock frame. The print settings are the same as the other 13 series, except a few parts which need support, which are as follows.

Material

Frame parts ABS, ASA, or PETG

Armor parts Any

Layer height

First layer 0.2 mm

Other layers 0.15 mm

Infill

20% gyroid

First layer speed

25% of default

Elephant foot compensation

0.15 mm

Supports

Chest Frame, Head, Shin, Upper Thigh, Upper Arm

Brim

Shouldn't be needed, mouse eared variants included

Additional settings

Print external perimeters first

OR

Print with Inner/Outer/Inner order

Recommend one perimeter on the first layer.
