AMS Stacking System Back Brace (Upper)

Remixed by

Print Profile(1)

All
X1 Carbon
P1S
P1P
X1
X1E
A1
H2D
H2D Pro
H2S
P2S
H2C
X2D
A2L

0.2mm layer, 3 walls, 5% infill
0.2mm layer, 3 walls, 5% infill
Designer
3 h
1 plate
5.0(13)

Open in Bambu Studio
Boost
68
134
25
11
234
68
Released

Description

When creating a stack of 3+ AMS, in a configuration that allows you to open each one to swap filament rolls, there may be a section without any cross bracing. What I found is that this section induces a considerable amount of “sway” into the model. To counteract this, I took the original design of the braces and moved the cross brace part of it from the bottom of the model to the top. It is intended for use with the blank back brace connector piece, NOT the AMS connector piece. Hopefully someone finds this useful!

For context on the different images:

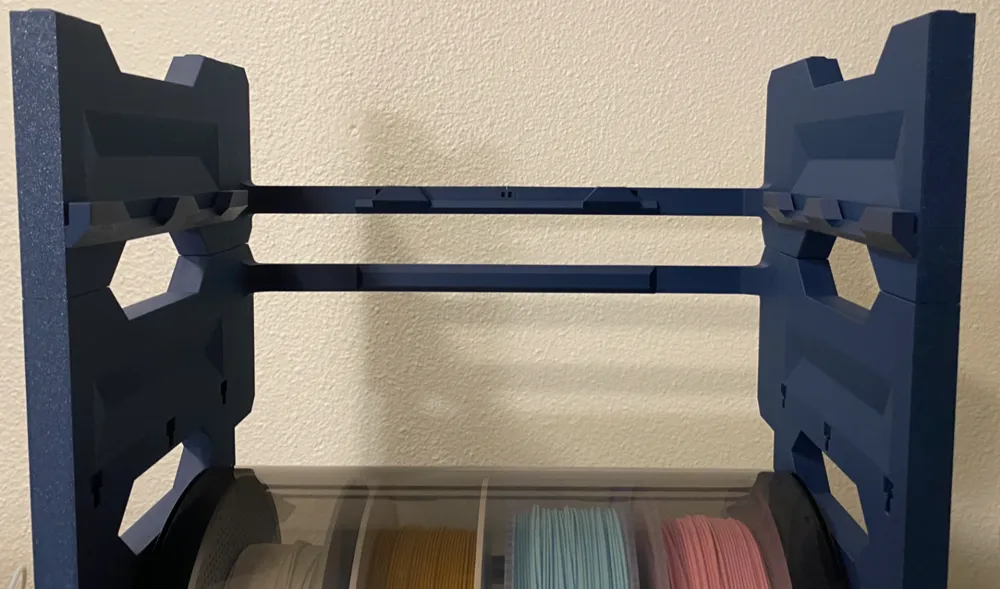

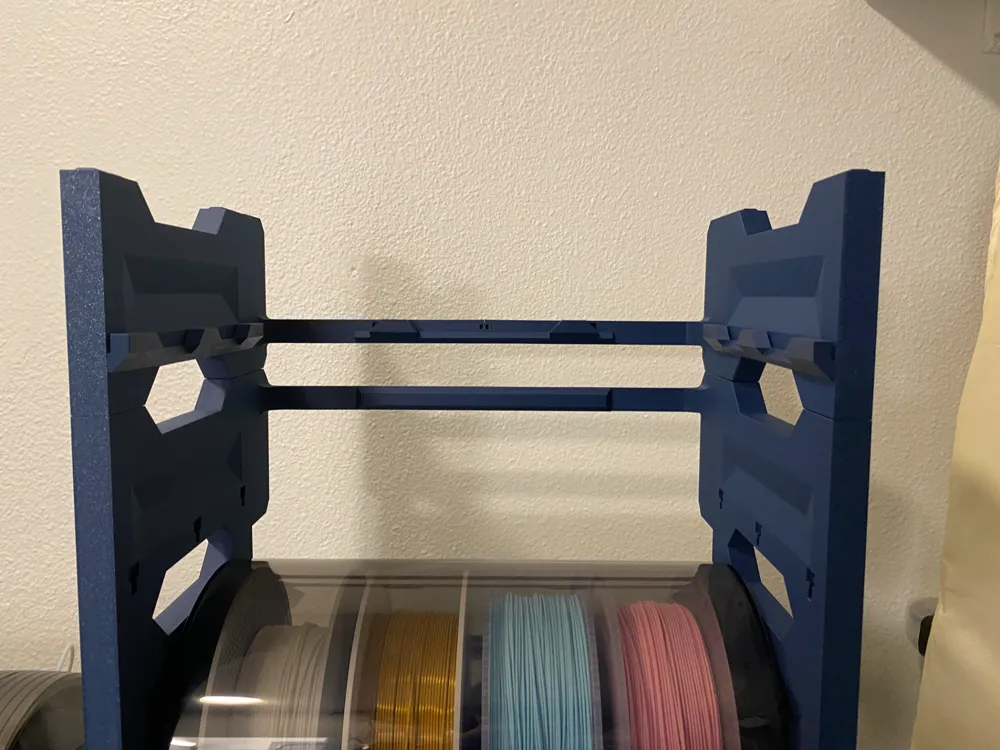

Image 1 shows the part mounted on my stack below a normal AMS back brace

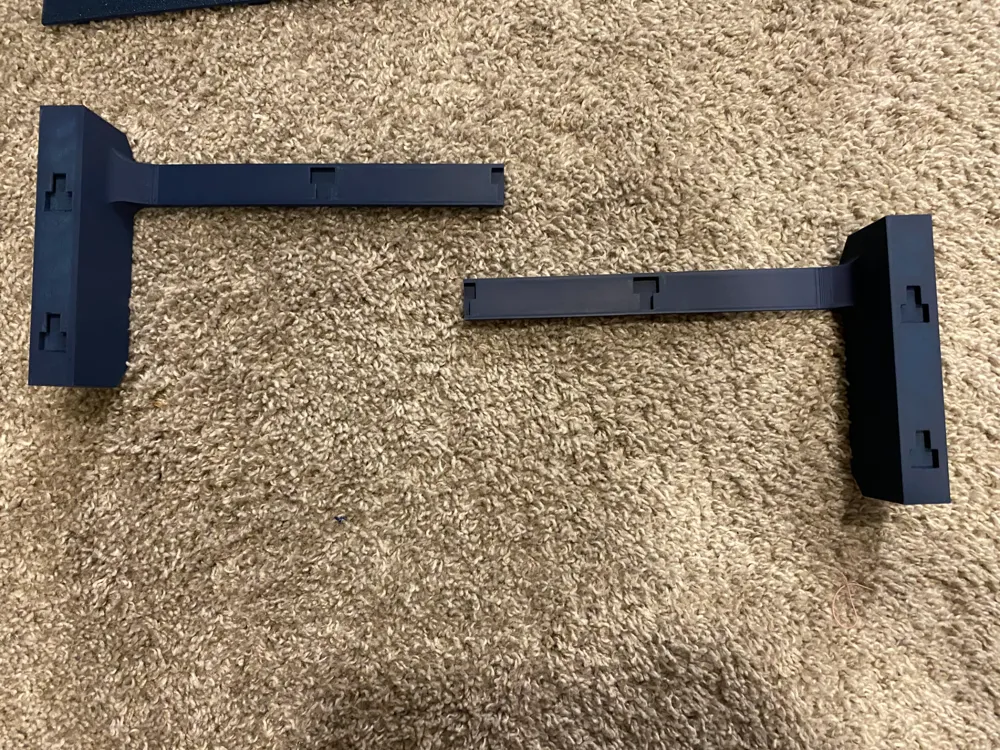

Image 2 shows the same part dismounted with the connector piece attached

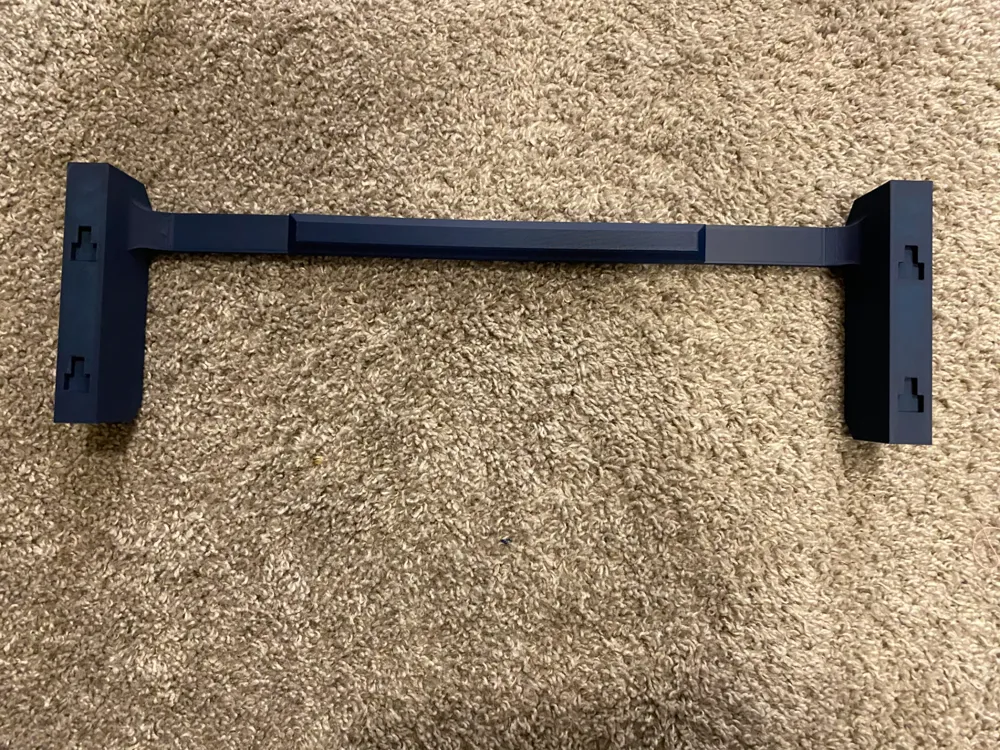

Image 3 shows the parts disconnected, as if they had just been printed

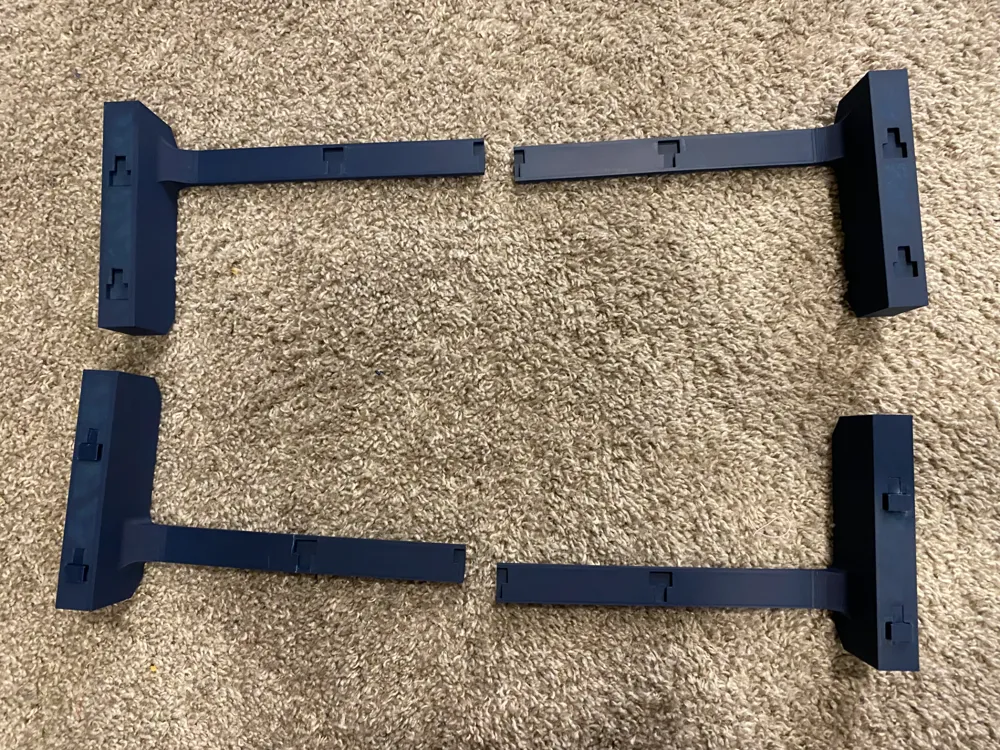

Image 4 shows a comparison between my model (top) and the original model (bottom), highlighting the difference.
