PS5 Controller Stand with LED

I had some LED filaments left after making xbox controller stand for a friend and decided to use them.

This is a remix of PS5 dualsense controller stand by La Guía del Mando mixed with a popular Xbox controller stand with LED by agepbiz.

All the hardware is the same as for Xbox controller stand.

Agepbiz did a great job on the instructional video, so here is a link if anyone should need it - https://www.youtube.com/watch?v=e6Gn6LNSfcg

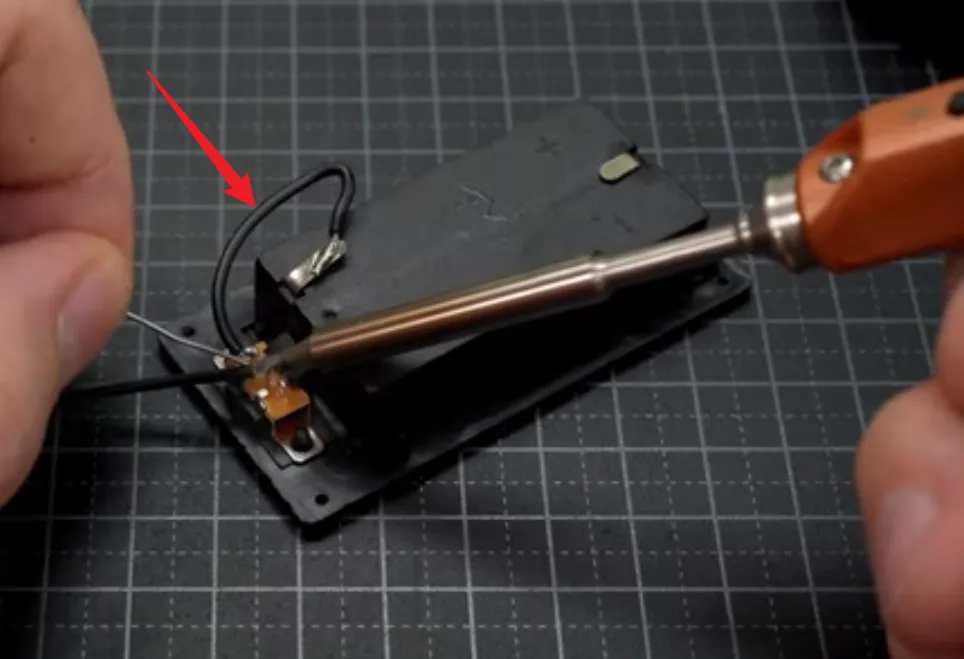

The only thing I did differently to speed up the soldering process was to skip the wire indicated on the photo below.

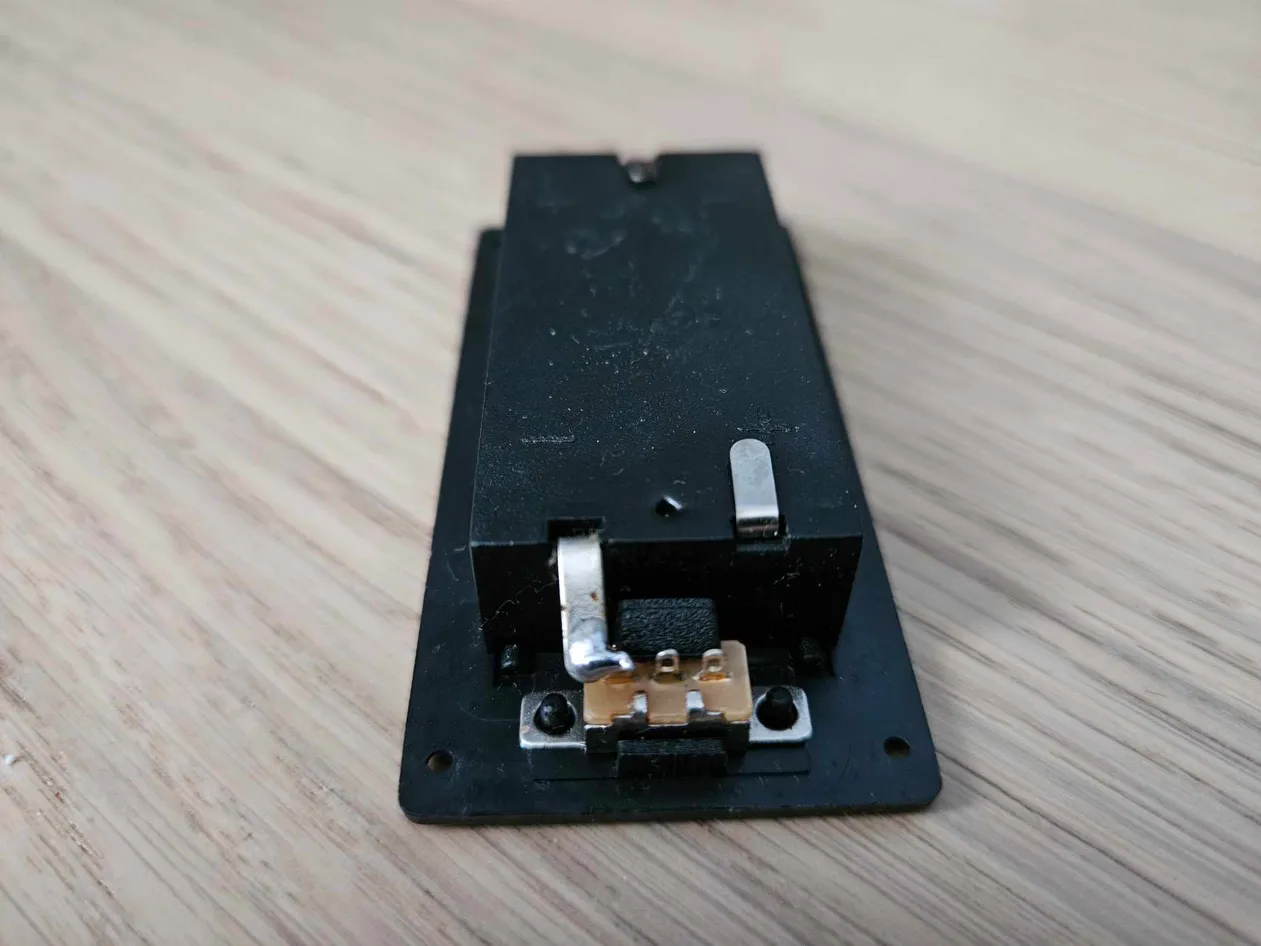

Instead, I just did this:

Hardware
Links to the LEDs and Batterybox I used in this project (not affiliated). Some items have several options, make sure to select the correct size.

300mm 3V LED Filament: https://www.aliexpress.com/item/1005003775632413.html

2x1.5V Batterybox with switch: https://www.aliexpress.com/item/1005003517942515.html

8x2 Rubber Pads: https://www.aliexpress.com/item/1005005297036433.html

For the wires you can use whatever small cross section you've got at hand.
I used something similar to this, 30AWG: https://www.aliexpress.com/item/1005001626937991.html

Print settings

• No raft
• 15 Bottom Shells to minimize light leak
• Support Structures where the batterybox will be attached. Avoid Supports where the LED groove is 0,1-0,2mm layer height
