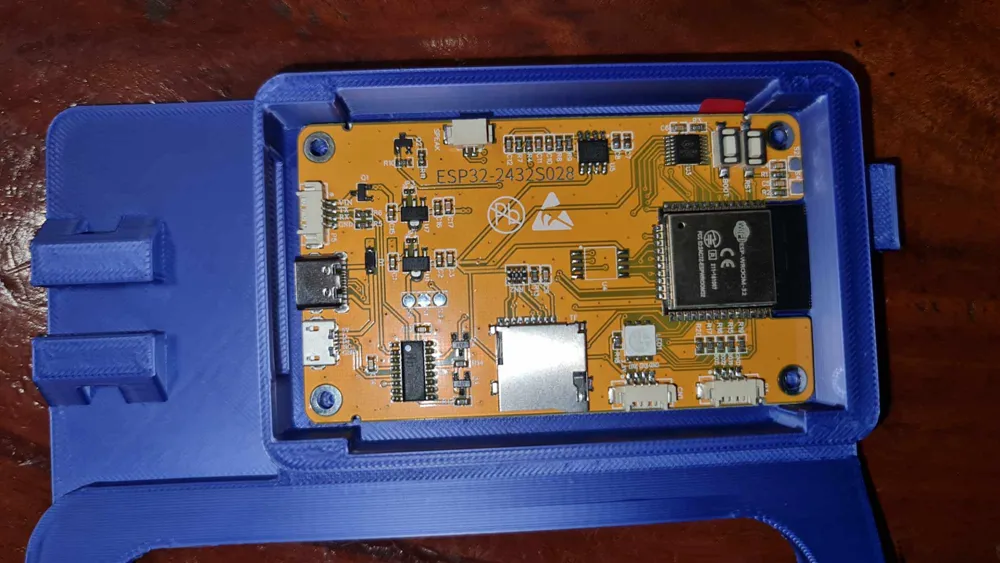

This is a Remix Model to fit a slightly Larger Type C ESP32 Board.
I also modify the Screw Holes to not need any M3 inserts. I will use a Normal M3 screw Spares from my PC Motherboard.
I dont need a back cover so I screw it Directly

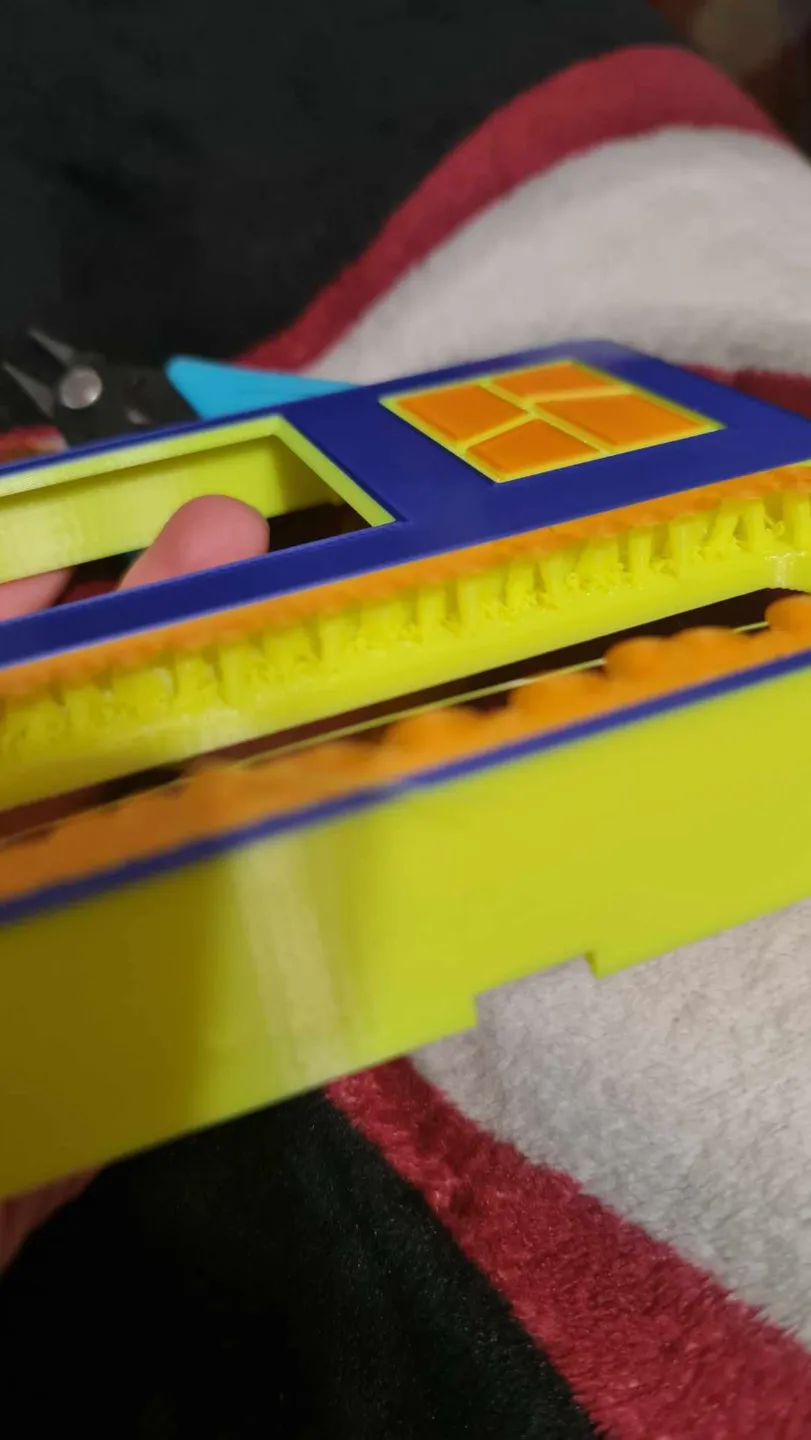

Print Flat with Support for the Original LCD Insert!
If your Hole Calibration is bad, it might not fit well, you can use a Heatgun to make it soft and fit the original LCD.
