Improved Filament Dryer and Storage Box

++UPDATE 6.2025++

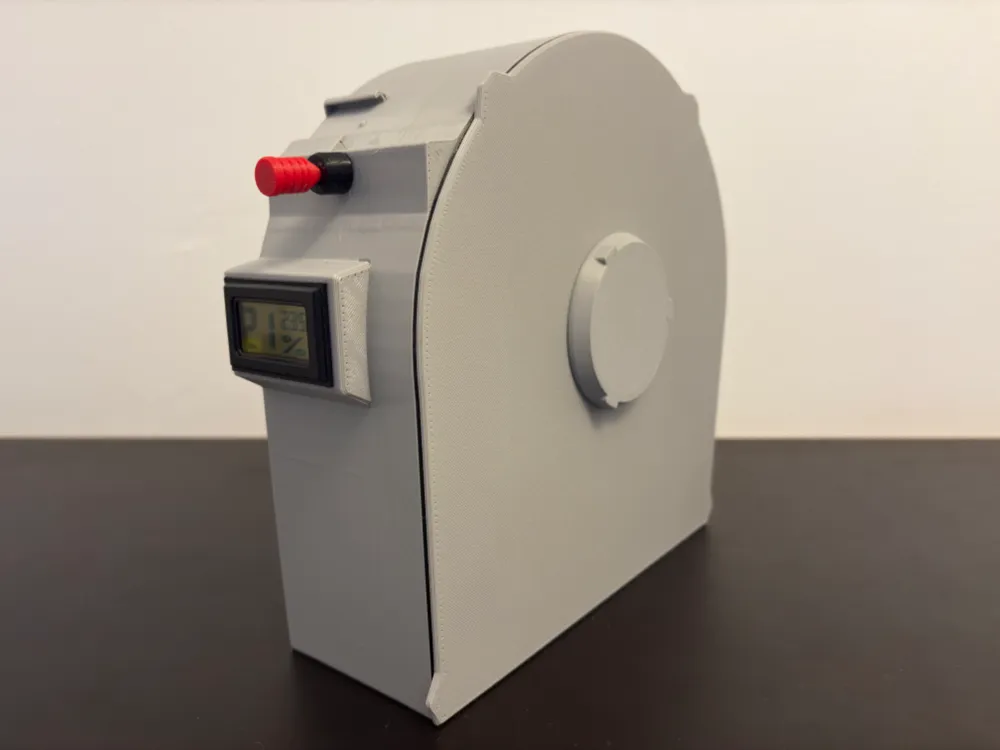

Slightly improved Hygrometer Version

For 0,8mm Nozzle.

I recommend PETG-HF. I had no warping with an A1 and the Textured PEI Plate.

Now with 10mm Connector Hole for the new PTFE Connector in the Gasket Printfile.

No other PTFE Connector needed!

Now with Gaskets. Compatible with all Improved Version.

And a Box for Silica Gel.

--------------

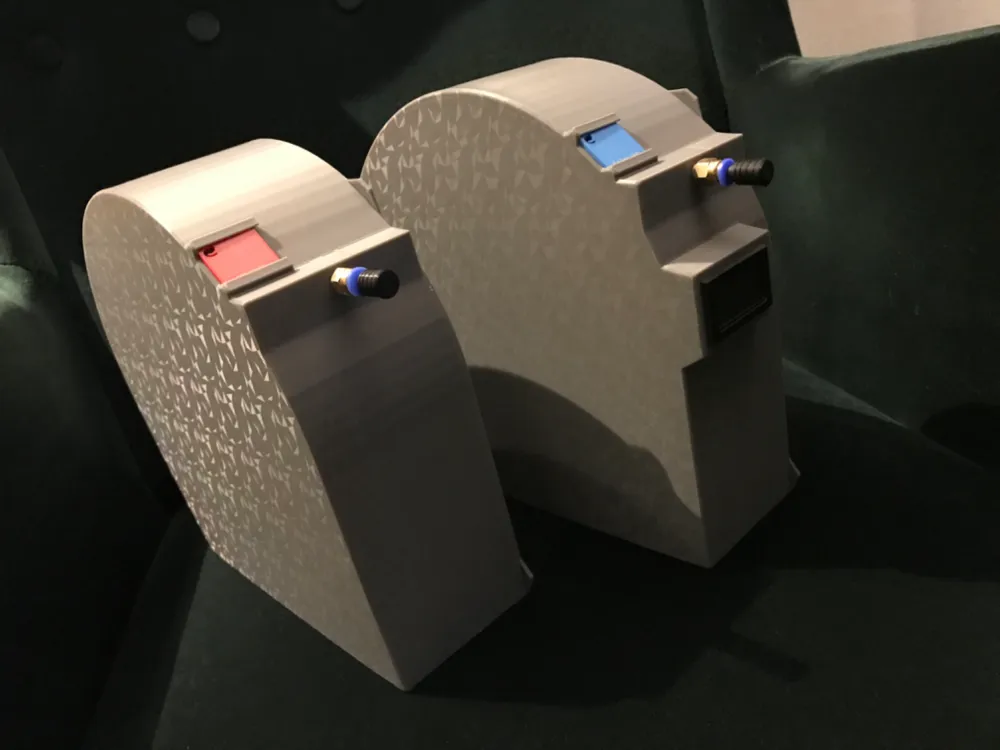

The completely improved Filament Dryer and Storage Box!

Very practical for materials you can not print with the AMS.

When you liked the old version you will love the new one.

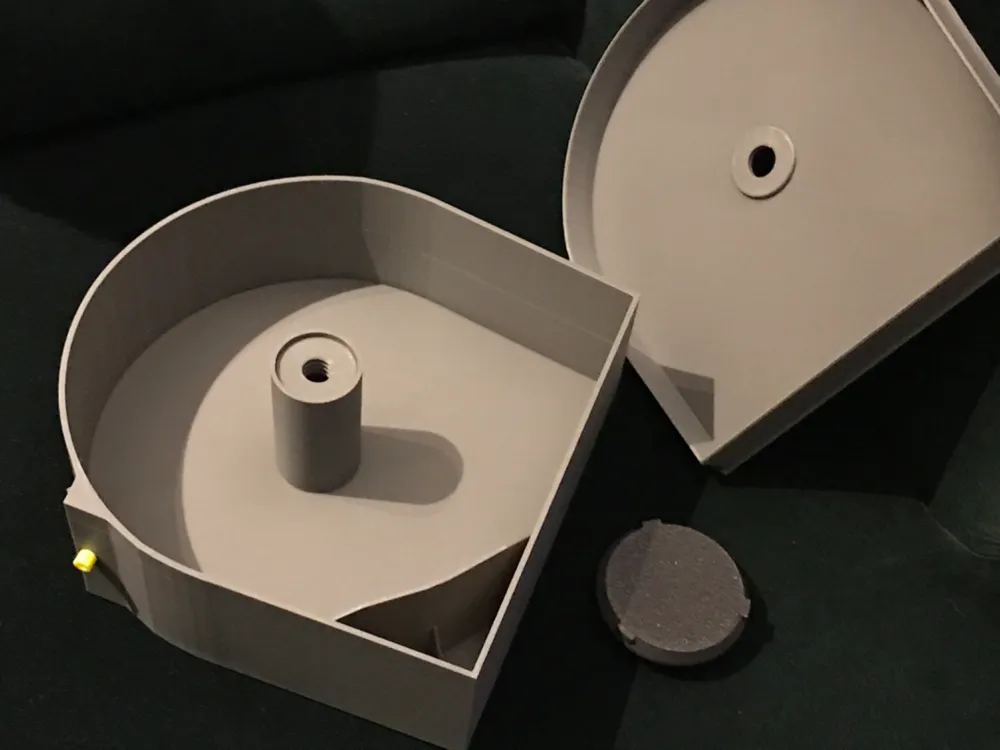

Very simple but effective. A box, a lid and a screw.

I recommend PETG-HF.

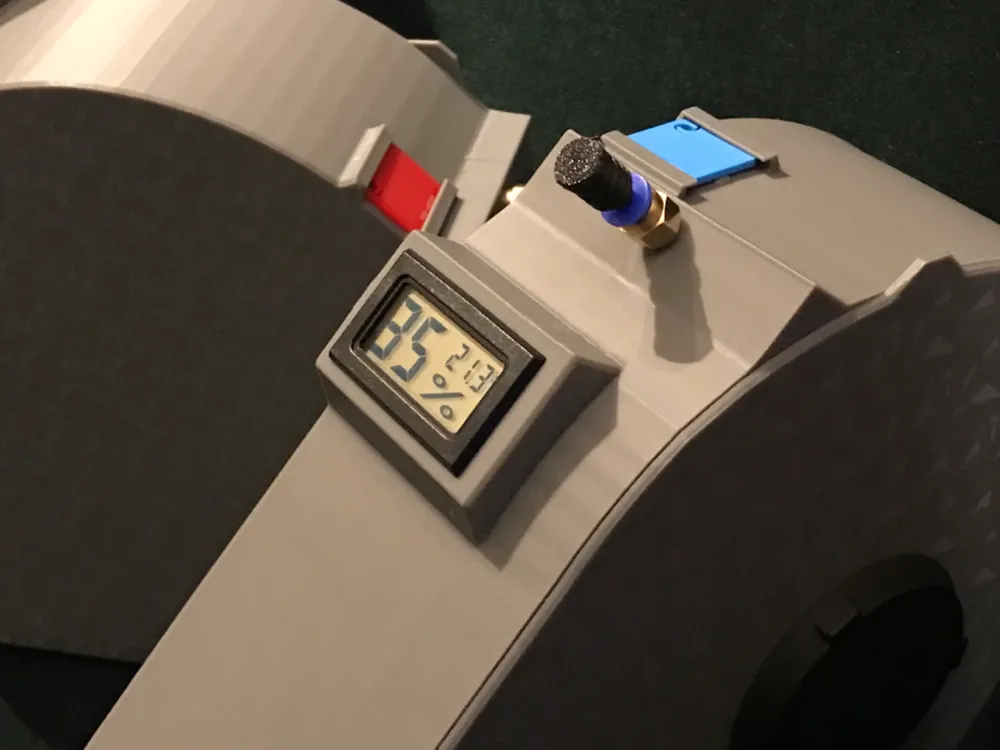

Two versions. A basic version and one to install a hygrometer.

The hygrometer version needs a small tree support.

Hygrometer: https://www.amazon.de/dp/B07XG2PTH8/ref=twister_B08DFFK2DX?_encoding=UTF8&th=1

I did a lot of prototyping and testing for the best results.

For easy connection I made a PTFE connector, which has to

be printed in TPU 95. Then nothing else is needed.

But it is also possible to screw in a standard 6mm PTFE connector from metal.

Edges are now beveled, for smooth handling and operation.

The lid has now latches for comfortable handling.

Also a new screw for better handling.

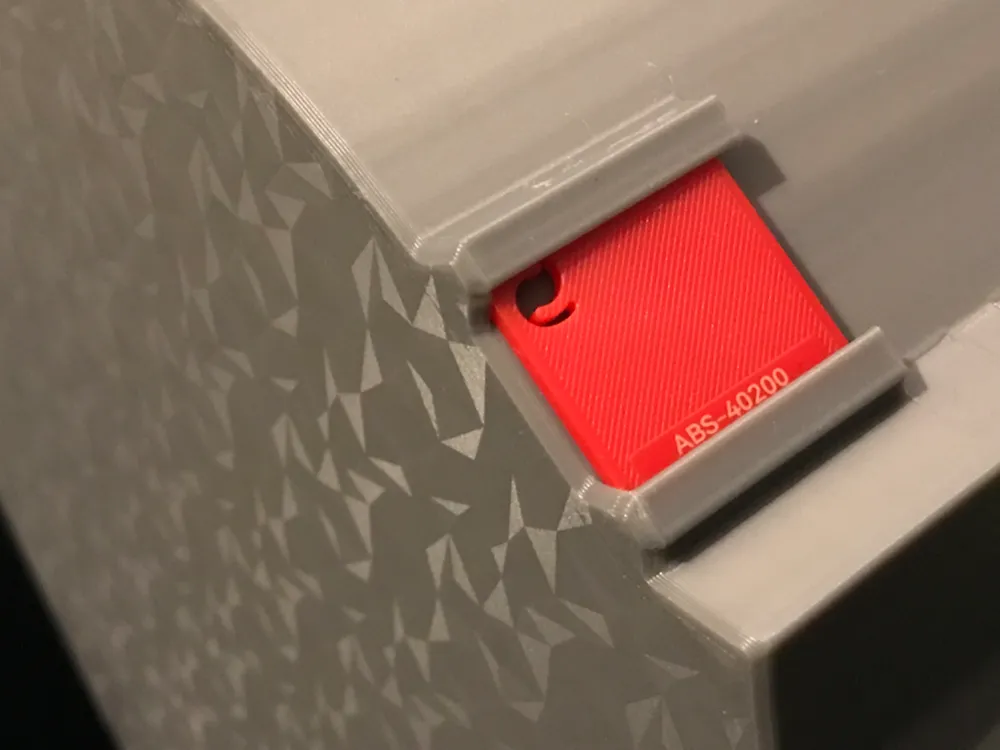

There is now a bracket for standard swatches, 24x24x2mm.

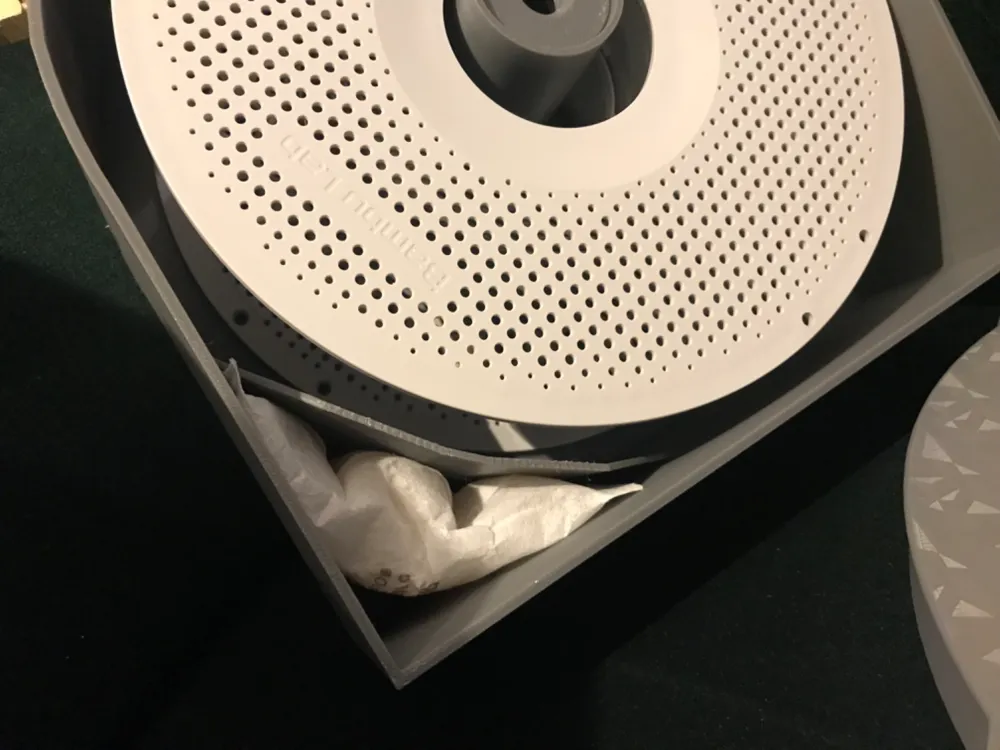

A better pocket to take at least 50 grams of silica gel.

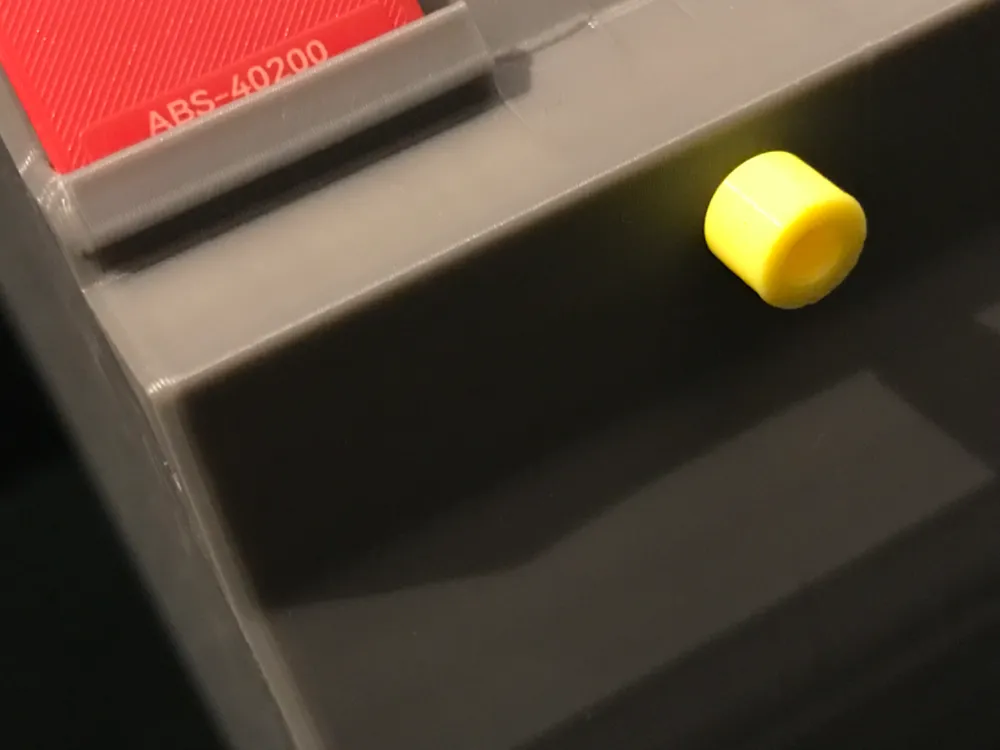

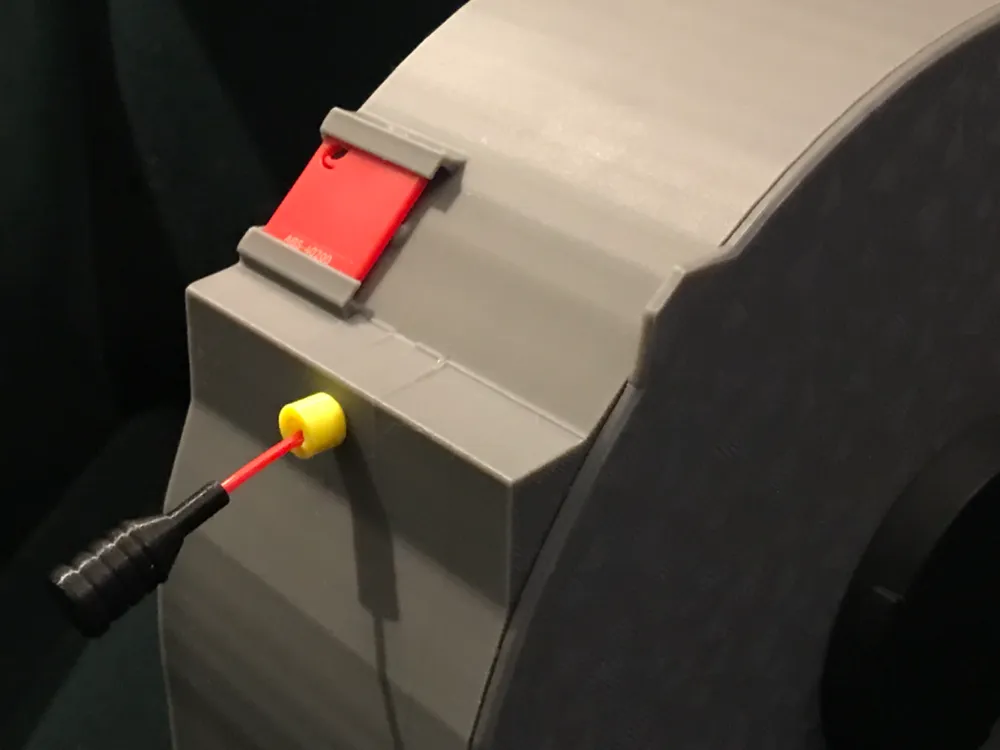

There is also a new plug to close the PTFE tube which holds the

filament in place. Try it! It works with all 4mm PTFE connectors.

It looks pretty good and works perfekt.

Have fun printing it!

Good luck

Felix

PS: If you own a A1, try my PTFE tube holder.
