DJI Action4 Tripod Adapter Connector. The screw can be pressed in with a soldering iron. I don't know the specifications, the outer diameter is 8.8mm.
The nut doesn't need to be pressed too tightly. I pressed mine too tightly. The nut thickness is 3.8mm, I left a 4mm slot thickness. It's enough if it just doesn't go in.

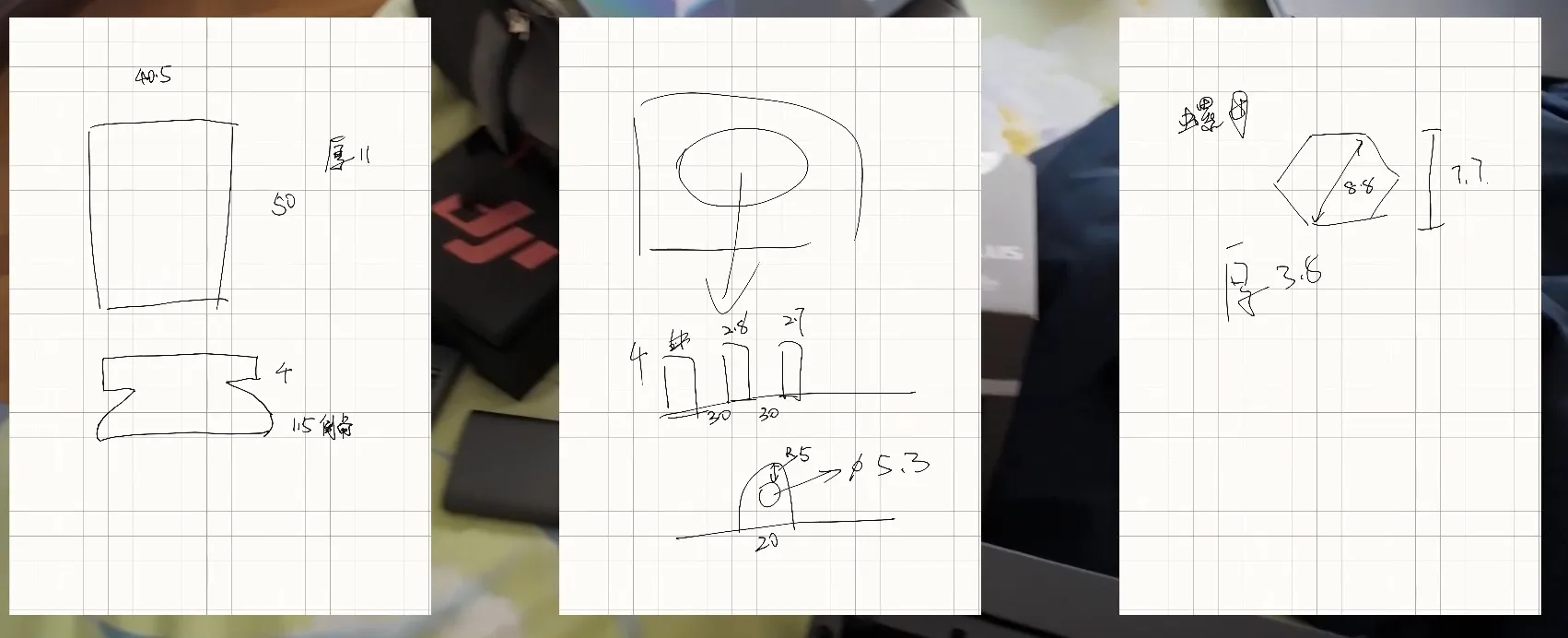

Attached is the drawing I used for measurement.
