Universal Socket Tray-70mm(2 grid) - Standard Base

Thank you everyone for the boosts, Downloads, and prints. This is a great standard grid tray that will fit all specified sizes, however i have come up with a brand new “half-grid” base for my newer trays that incorporate a lot better customization that utilizes a standard GF 42x42mm base plate but allows you to go in increments of 21x21mm. Check out the unique feature on the new set and more in my universal toolbox collection below.

V2 12-40mm diameter X 70mm deep set

-----------------------------------------------------------------

The Gridfinity Universal Toolbox Collection

Use the link above to browse the growing collection of my trays If you have a tray you would like made, please let me know in a DM and I will add it to the list.

Let me know if you have any issues with any of your tools not fitting a tray, let me know so I can resolve it and keep my trays fully universal.

_____________________________________________________________________________________

Intro to my universal trays

I was tired of trays for specific socket sets or tools (or just had no labels and was way too condensed). So I made a simple model and expanded it to fit any possible size while still being 100% click and print. This setup sacrifices some space saving but maximizes visibility and simplicity. Enjoy, rate, and let me know if there are any issues not noted. If you find you need a specific size or item I don't have here, let me know. Lastly let me know if there are any improvements you would like to see made.

___________________________________________

Features

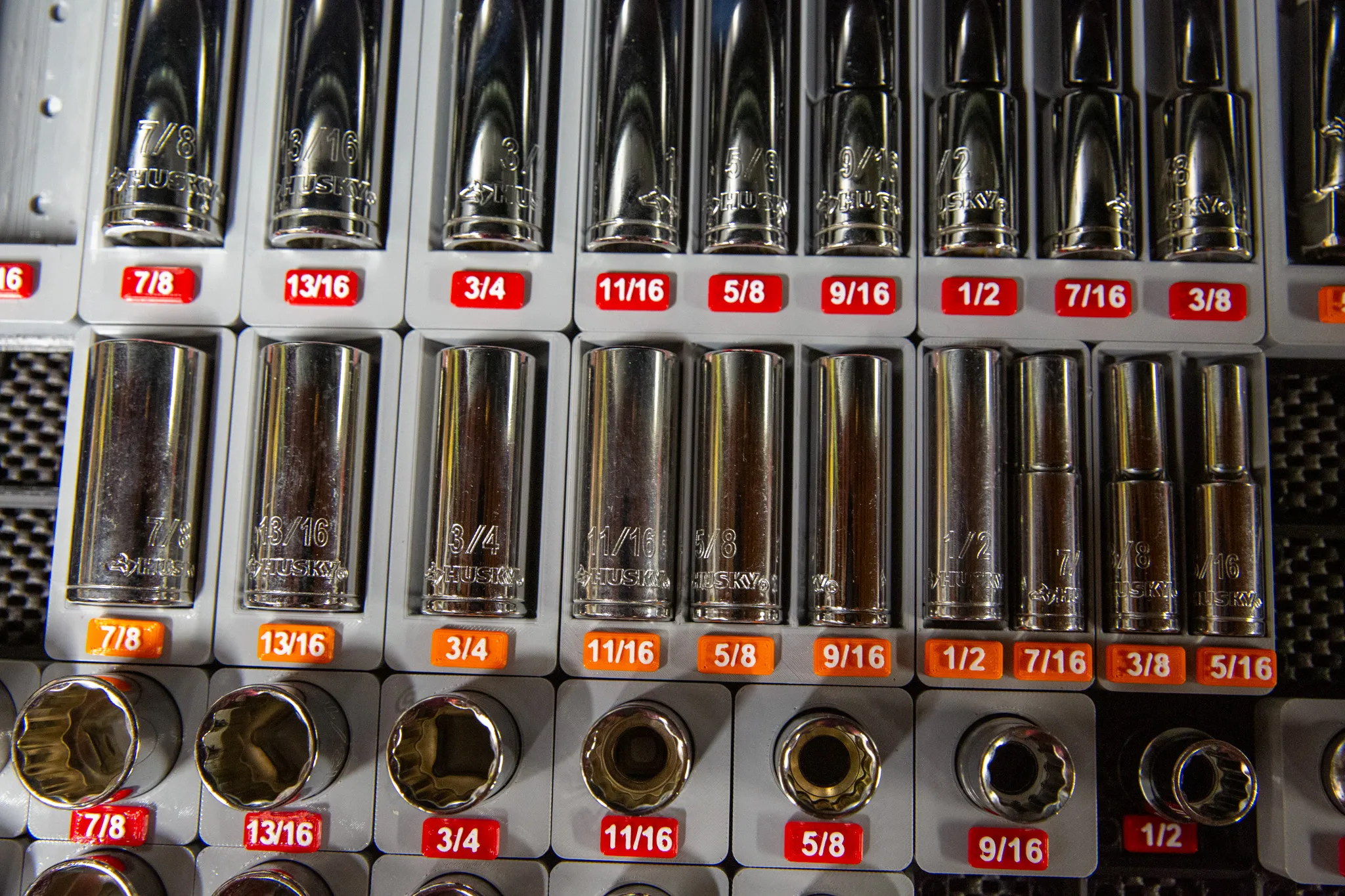

• fit virtually any set -you measure your own and print the appropriate tray pieces
• based on Gridfinity standard - will fit all standard sized Gridfinity bases
• 6x2mm magnet inserts. help keep the tray from coming out of their spot in the grid
• Fake-A-Magnet - A functional replacement for magnets - pin insert to hold the tray down

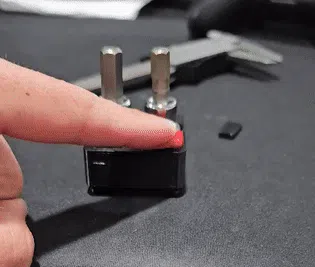

• optional V2 - Snap Fit Labels - Doesn't require magnets or glue, Stays secure (and still removable) with the new H-clip.

___________________________________________________________________

Donate some filament!

an optional way for those who wish to contribute beyond Maker World points.

________________________________________________________

1. This is the 70mm length Model of the 12-39mm diameter, see my Universal tool box collection for the larger sizes and many other options for socket trays.
2. download and open the profile using Bambu Studio (or your preferred slicers for 3mf print files like Orca Slicer).

3. Take note of the current socket height. If this height is taller than or equal to 70mm…..GREAT! I designed a universal set for deeper sockets up to 108mm in length using the same GF standard grid(Also designed the V2 half-grid base which is superior in its own way IMO). If you have a set that is more than 112mm in length. leave me a comment or a message of what size your socket is and I'll start working on an addition to the sets as i am available or you are stuck using a deep drawer with vertical standing trays.

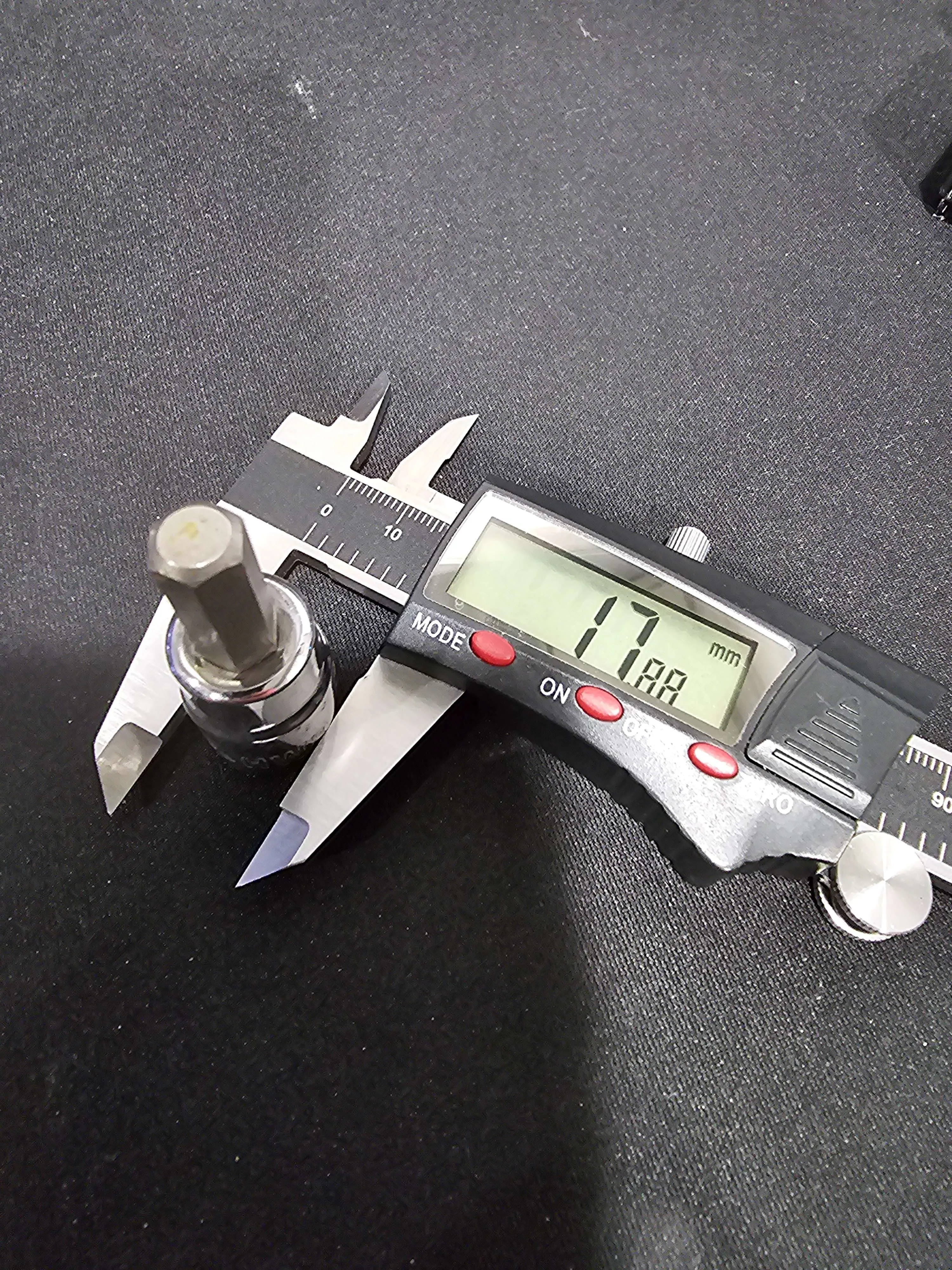

4. measure your Socket diameter (do not use the socket size printed on the socket as the size you use to select a tray)


5. round the diameter up to the nearest whole number (ex. like the above, anything between 17.01-18.00mm goes to 18mm)

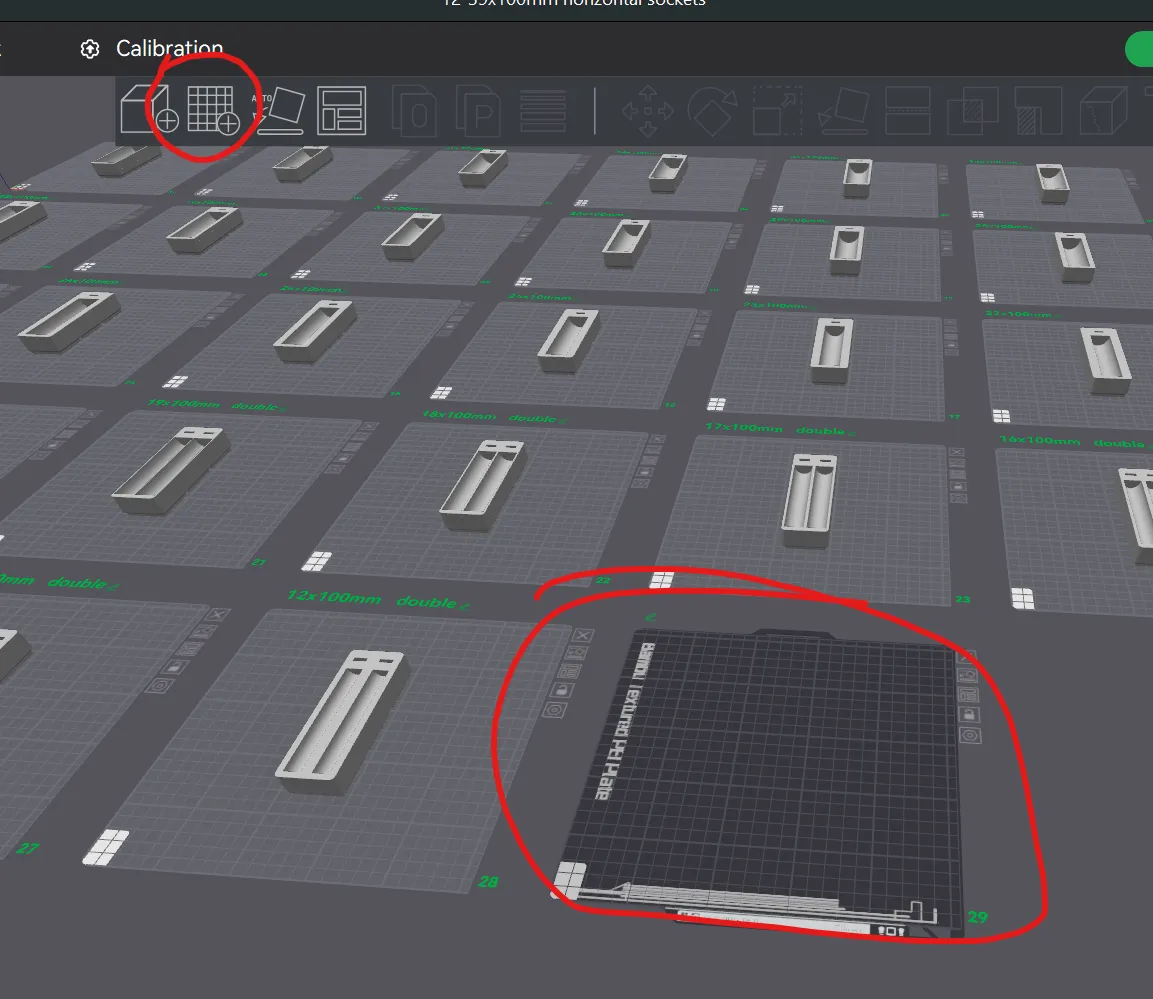

6. Add a new empty plate and select it

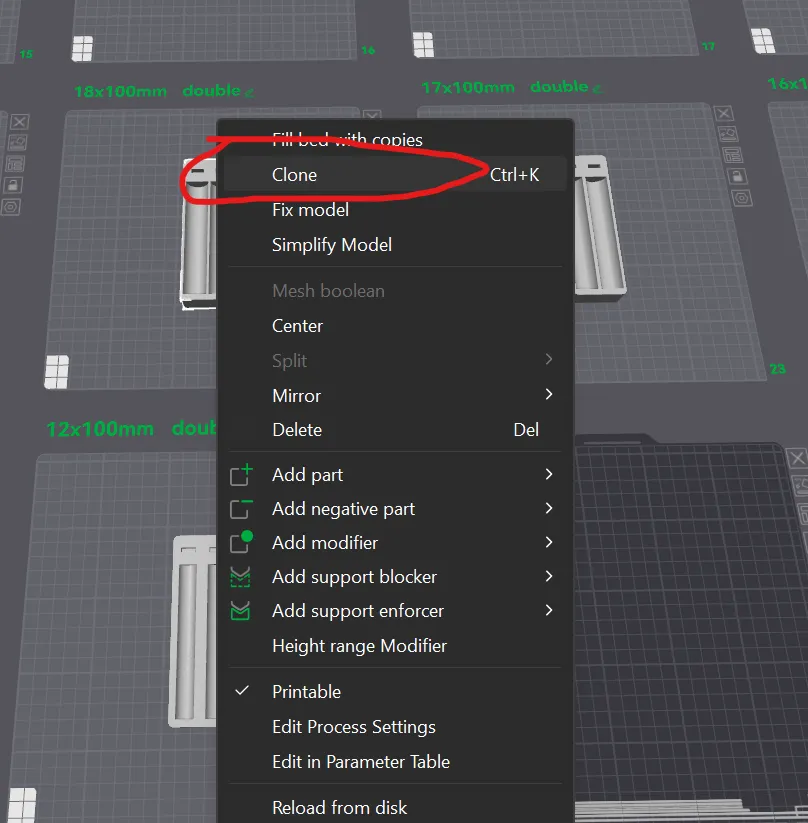

7. Right click on the model for the needed size (in this ex. its 18mm) and hit clone, it should clone to the selected empty plate

8. Repeat for all socket sizes needed, click the organize plate button, and then print.



_______________________________________________________________________

Labeling

go to my profile or click the link here to find the V2 - Snap Fit Labels, premade with an exhausting amount of common sizes (took a while making them all). They are very easy to print, use only one color change, and snap fit together. Let me know if you don't see your size available or if you have a whole set of a specific size type that I am missing. (send me DMs if you find some sizes that you needed made so I can fill the gaps)

____________________________________________________________

MAGNETS

Try out my Print-A-Magnet magnet replacement. Maybe you'll prefer them instead of real magnets.

____________________________________________________________

If you made it down here and feel inclined to browse my (newly growing) collection, you might find something you want. That's what we are all here for anyways!

Thanks for printing!
