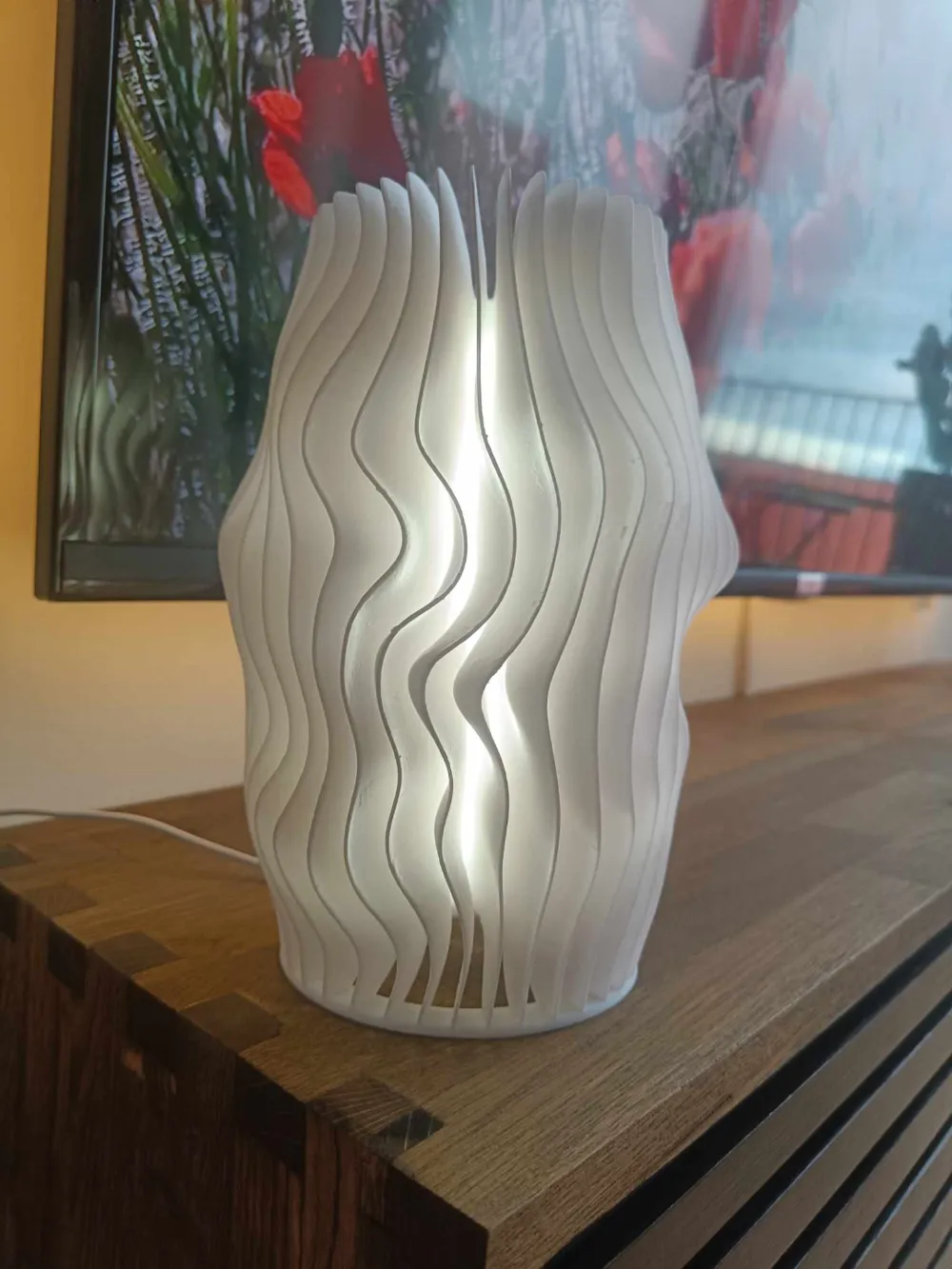

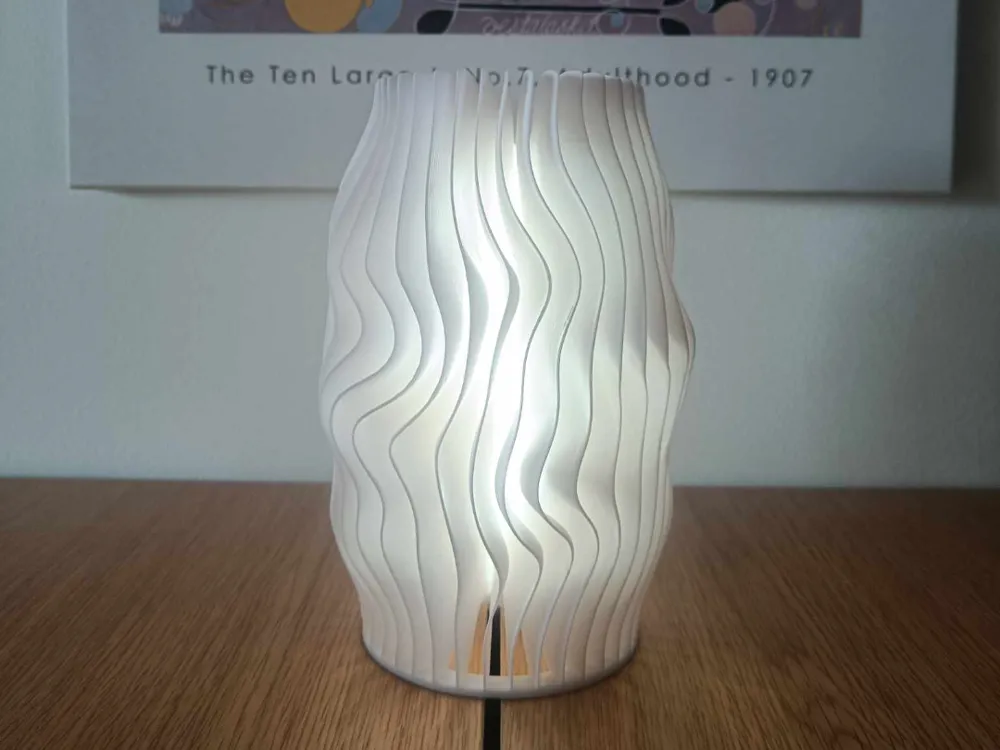

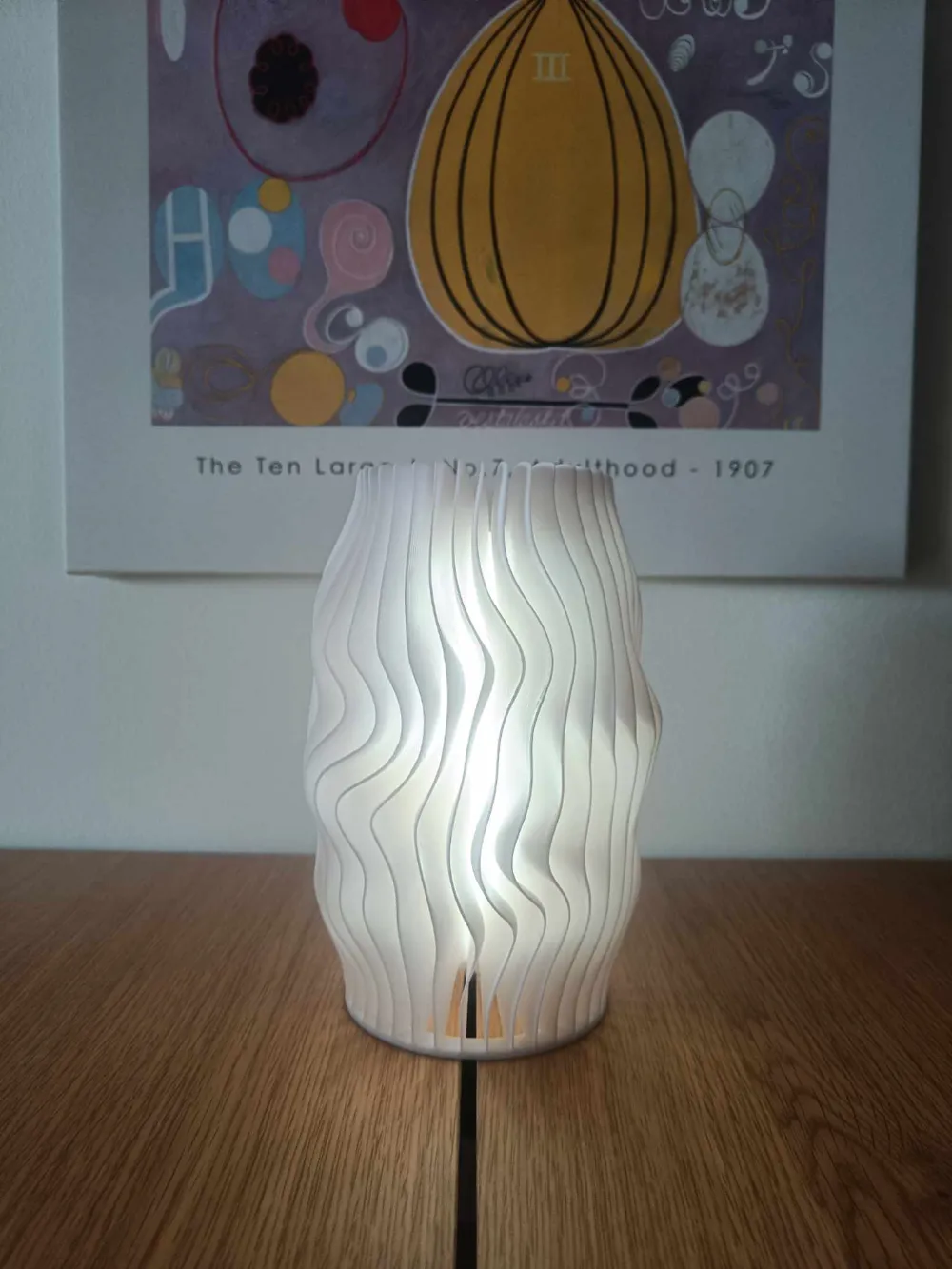

Table/bedside lamp with modern wavy pattern

Remixed by
IP Report

Print Profile(1)

All
A1
X1E
P2S
P1S
X1
P1P
H2D
H2C
H2D Pro
X1 Carbon
H2S
X2D
A2L

0.16mm layer, 1 walls, 0% infill
0.16mm layer, 1 walls, 0% infill
Designer
25.9 h
1 plate
5.0(5)

Open in Bambu Studio
Boost
231
653
6
5
297
29
Released

Description

⭐❤️✨ A BOOST AND A FOLLOW WOULD MEAN VERY MUCH! - Please help me show this project to the world! Thank you! 🤩❤️✨



I have made modifications to Markellov's original generative wave lamp. He has licenced it under the “Creative Commons - Attribution” license so you can use it as you like - even commercially as long as you give credit.



I have made the following changes to make for the perfect easy-to-print table or bedside lamp:

  • A ring around the bottom making it possible to print perfect every time with very little support and no brim.
  • Top cover to make it a complete piece

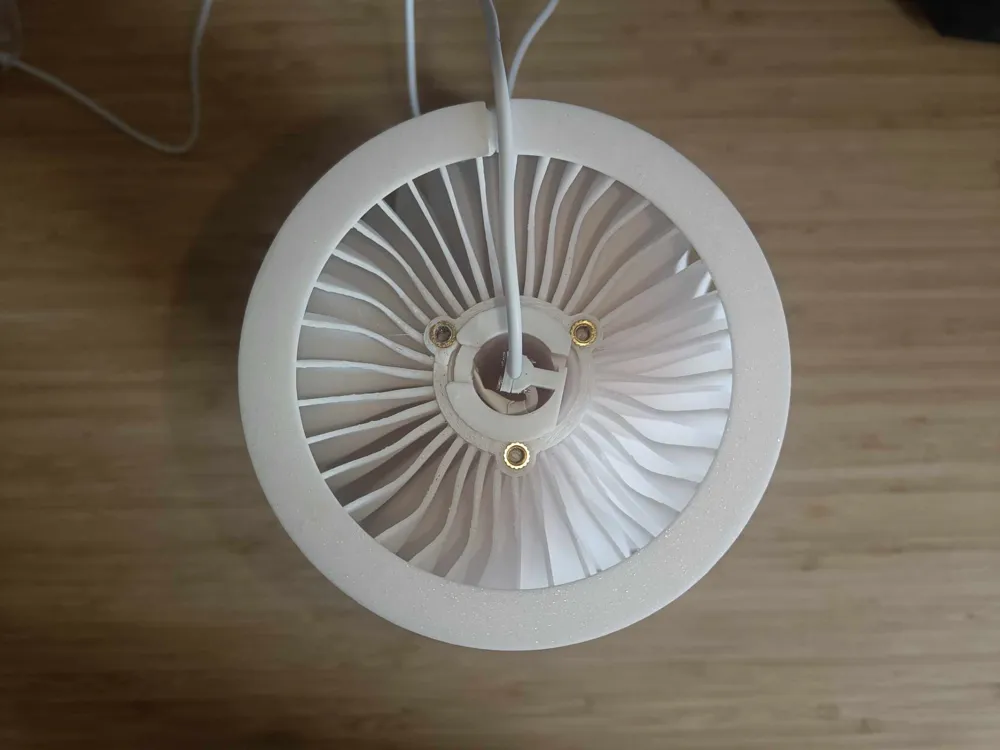

  • A cover/holder for the light source. Visit my profile to find a light bulb designed specifically for this model to give a nice and even light throughout the whole lamp using a cheap 1m LED strip. The cover can be mounted using 3 brass heat threaded inserts and 3 pcs. M4x10mm screws. Use 72% scale for the light bulb on my profile to fit perfectly (Or use my print profile where it already is 72% scale)

I recommend using my print profile as I've gone through multiple 10+ hours print fails to achieve the perfect result. The 3 holes for the heated inserts are enforced. I use the “Tree strong” support only in the middle which makes it super easy to peel off all of the support at once using a plier. The first 3 mm uses 0.08mm layer heights to make the fillet on the ring perfect. The rest of the print is 0.16mm high quality preset for the best compromise between time and quality. Furthermore I use only 1 wall and 0% infill for the perfect light in the final product (Plus it saves on filament making it only weigh 360g)



If using my light bulb you can print the “LED cover” and “Top cover” seperately.
