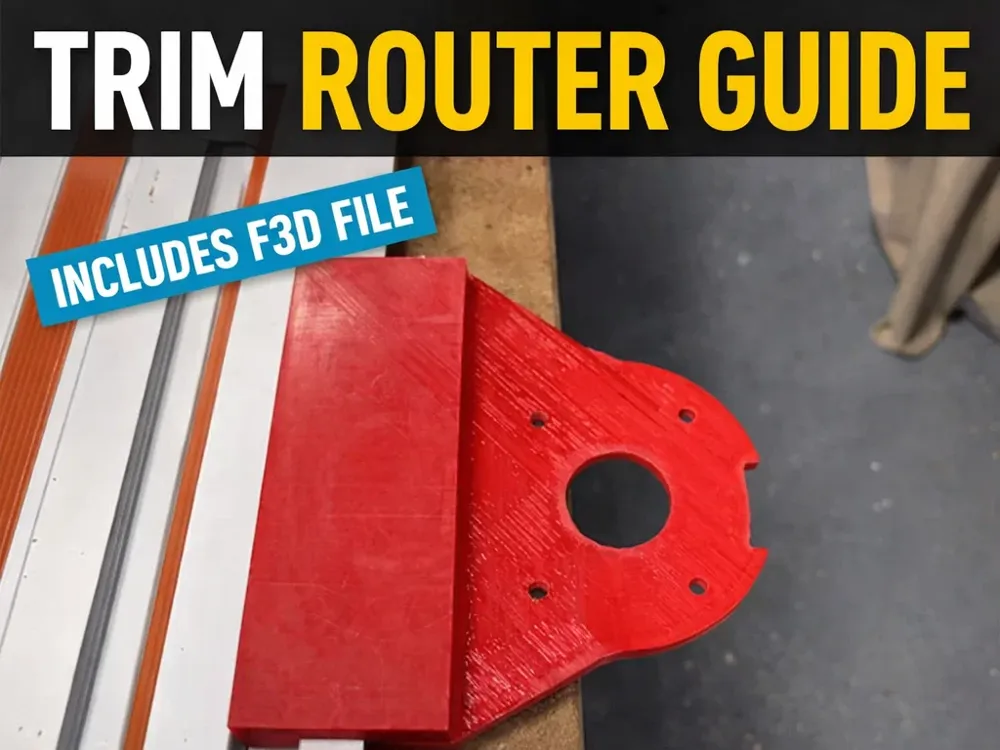

Trim router guide to makita rail

Adapter plate to use your trim router with Makita-style guide rails

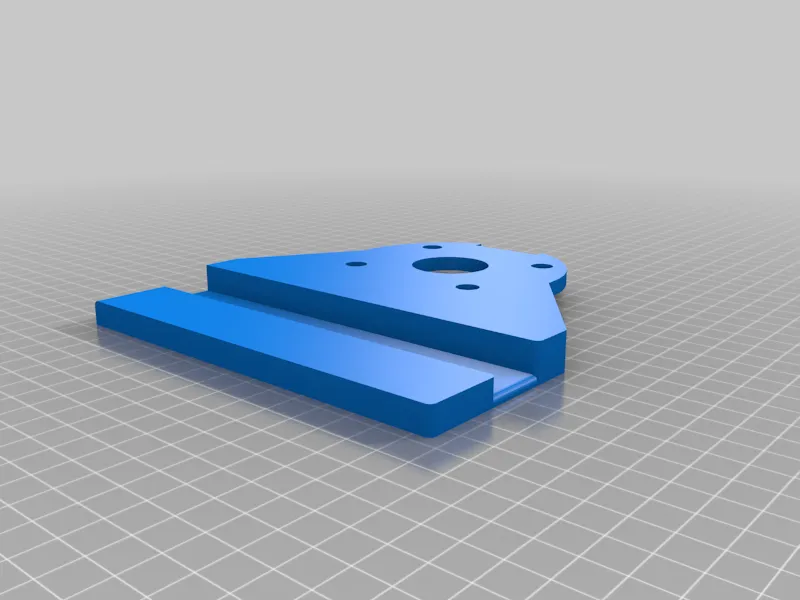

This model allows you to mount a compact trim router onto a Makita (or compatible) guide rail system, making it possible to cut perfectly straight grooves, dados, and edge cuts with improved control and repeatability.

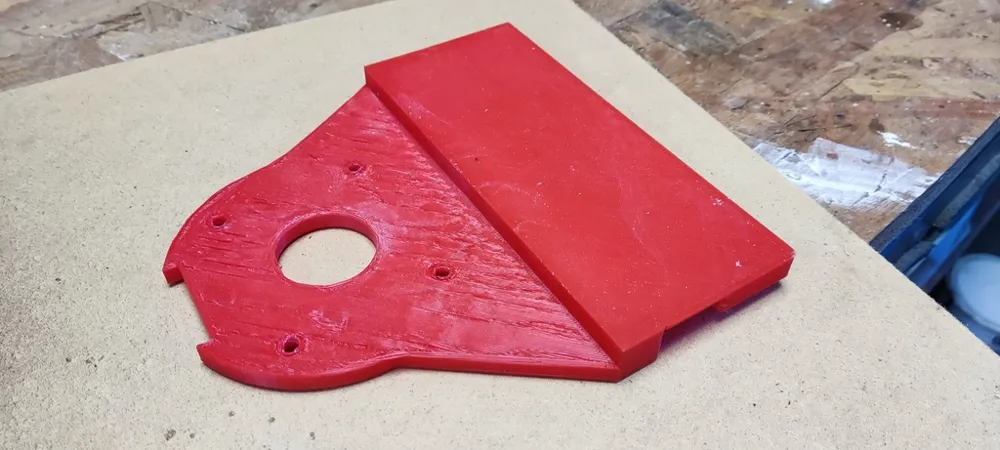

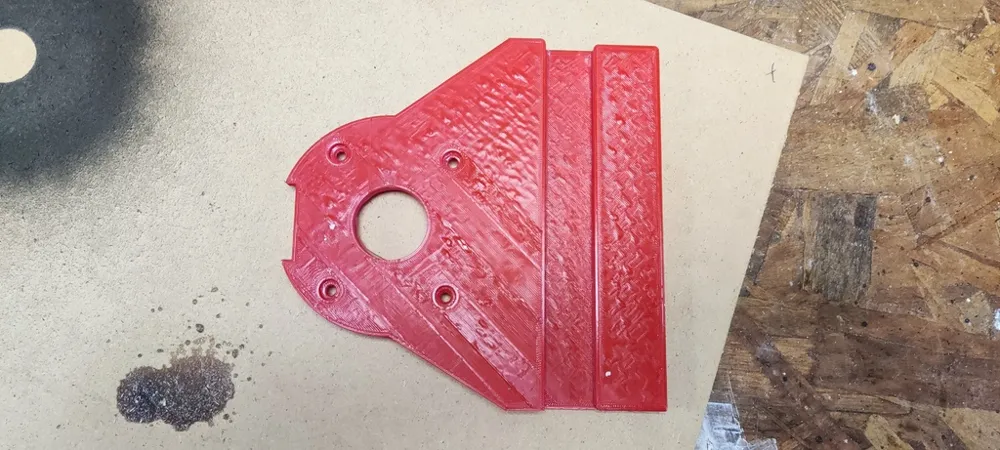

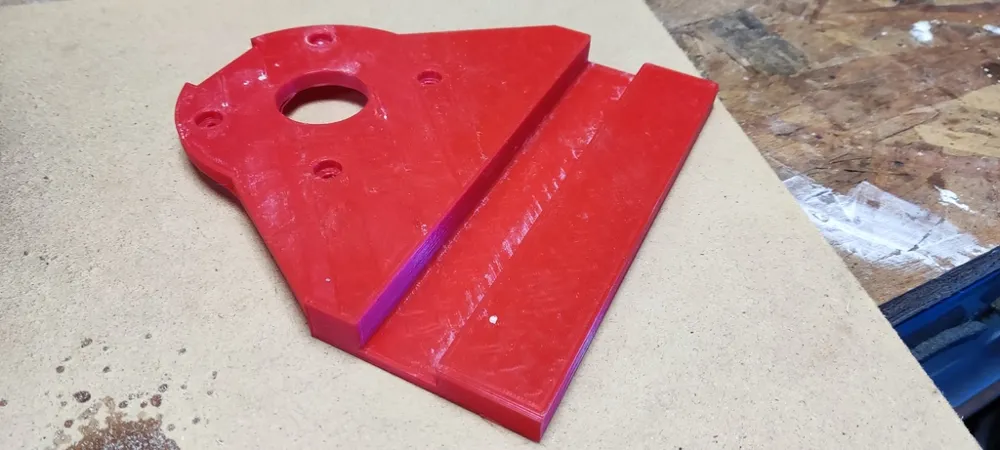

It works as a base plate adapter that attaches to the bottom of your router and interfaces with the rail for smooth guided movement.

🎯 What It Does

• Converts a standard trim router into a rail-guided tool
• Enables precise straight channels and grooves
• Improves stability during long cuts
• Ideal for cabinetry, panels, and woodworking projects

🔧 Compatibility

• Designed around a generic Chinese trim router
• Compatible with Makita-style guide rails (and similar systems)

⚠️ Since trim routers vary significantly in hole spacing and base dimensions, this model may not fit your router directly.

To make adaptation easier, the Fusion 360 (.f3d) file is included, so you can modify mounting holes and dimensions to match your router.

🧵 Printing Recommendations

• Material: PETG, ABS, or ASA (recommended for rigidity)
• Infill: 50–70% for strength
• Walls: 4–5 perimeters
• Layer height: 0.2 mm
• Print orientation: Flat on the bed

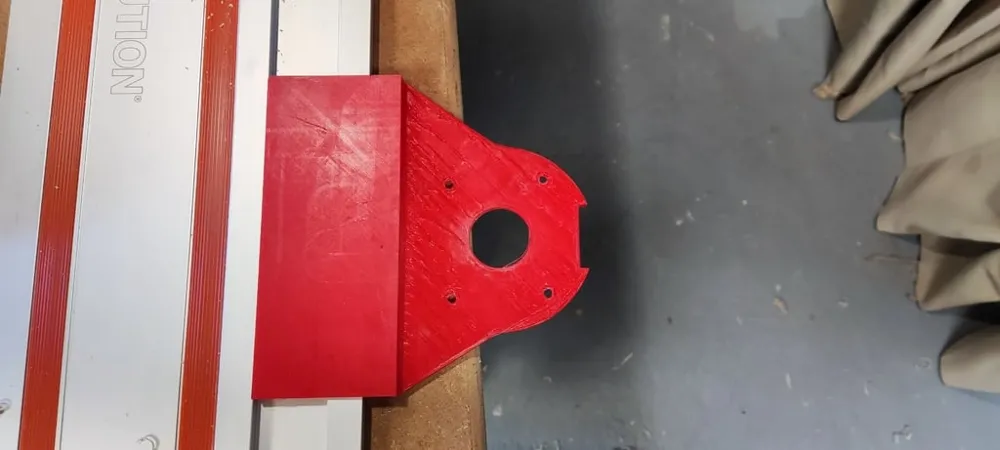

For best performance, ensure a snug fit to the rail and consider light sanding for smooth sliding.

⚠️ Disclaimer

This is a DIY workshop accessory. Always test fitment and ensure proper fastening before use. Improper mounting may affect cutting accuracy or safety.
