Scalable Stackable Funnel Tray - Vase Mode
Print Profile(1)
Description
Boost Me (for free)
Love this model? Give it a Boost to support more creations like this!

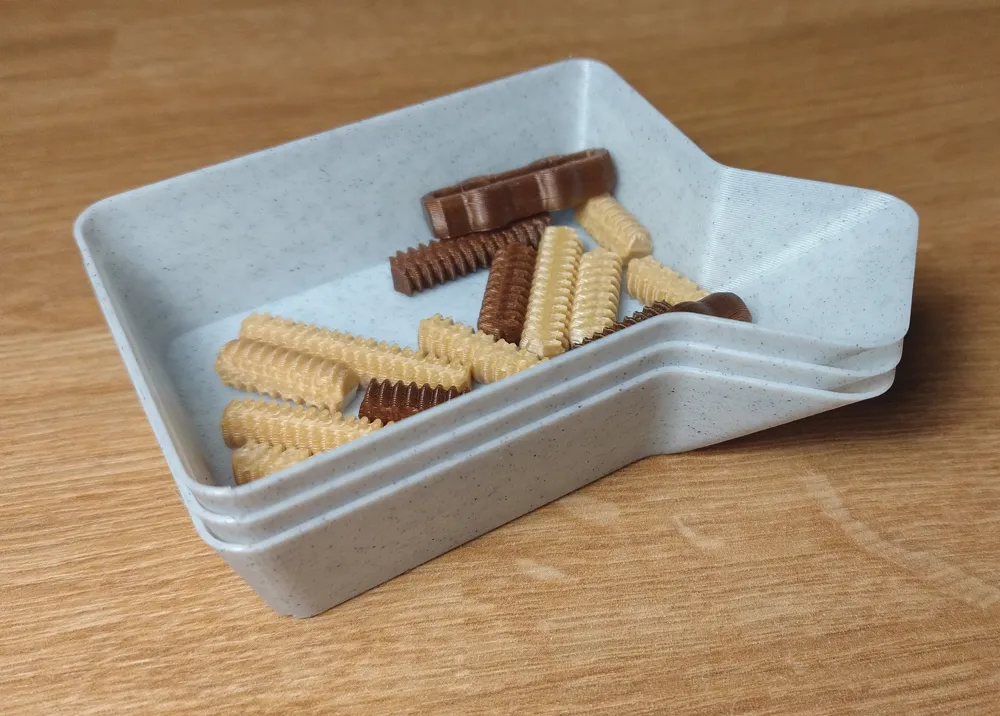

I was looking for scalable, stackable trays to be printed in Vase mode.
Unfortunately I couldn't find any, so I decided that I need to design my own.
I created two sizes (dimensions of main compartment):
- 60x40x20mm
- 60x60x20mm
If you just need bigger / smaller tray then you should be able to just scale them directly in slicer.
I printed mine with settings:
- Filament: Marble PLA (Layer time goal set to 9 seconds)
- Layer Height: 0.3mm
- Layer Width: 0.72mm
- Solid bottom layers: 3
Printing time on above:
- 60x40x20mm - 14 minutes, 5.61g of filament
- 60x60x20mm - 16 minutes, 7.36g of filament
If you need tray in different dimensions or shape - just let me know.
2023/02/16 EDIT: I Added versions of trays with funnel on the middle - it helps with placing trays next to each other.
2026/01/21 EDIT: 40x40x20mm and 50x50x20mm trays added.
