Bill of Materials

List other parts
  • m5 x 30 FHCS x 2: conical head screws
  • m5 x 30 SHCS x 1: button head screw
  • m5 nuts x 2: +1 optional

Description

Boost Me (for free)

Thanks for support

My most downloaded version from thingiverse of the rotating stand for google nest hub is also available here :D

this is a remix of two existing projects ( https://www.thingiverse.com/thing:3967319 )
https://www.thingiverse.com/thing:3307653  by @piercet

https://www.thingiverse.com/thing:3844416 by @Bitterbuffalo

since I needed the rotation of the Google nest hub , but I didn't want the support from under the speaker I created this remake, I hope you like it :)



Ringrazio KonigSeppy per aver creato il remix per google nest hub max :  ‼➡ Google Nest Hub Max ⬅‼

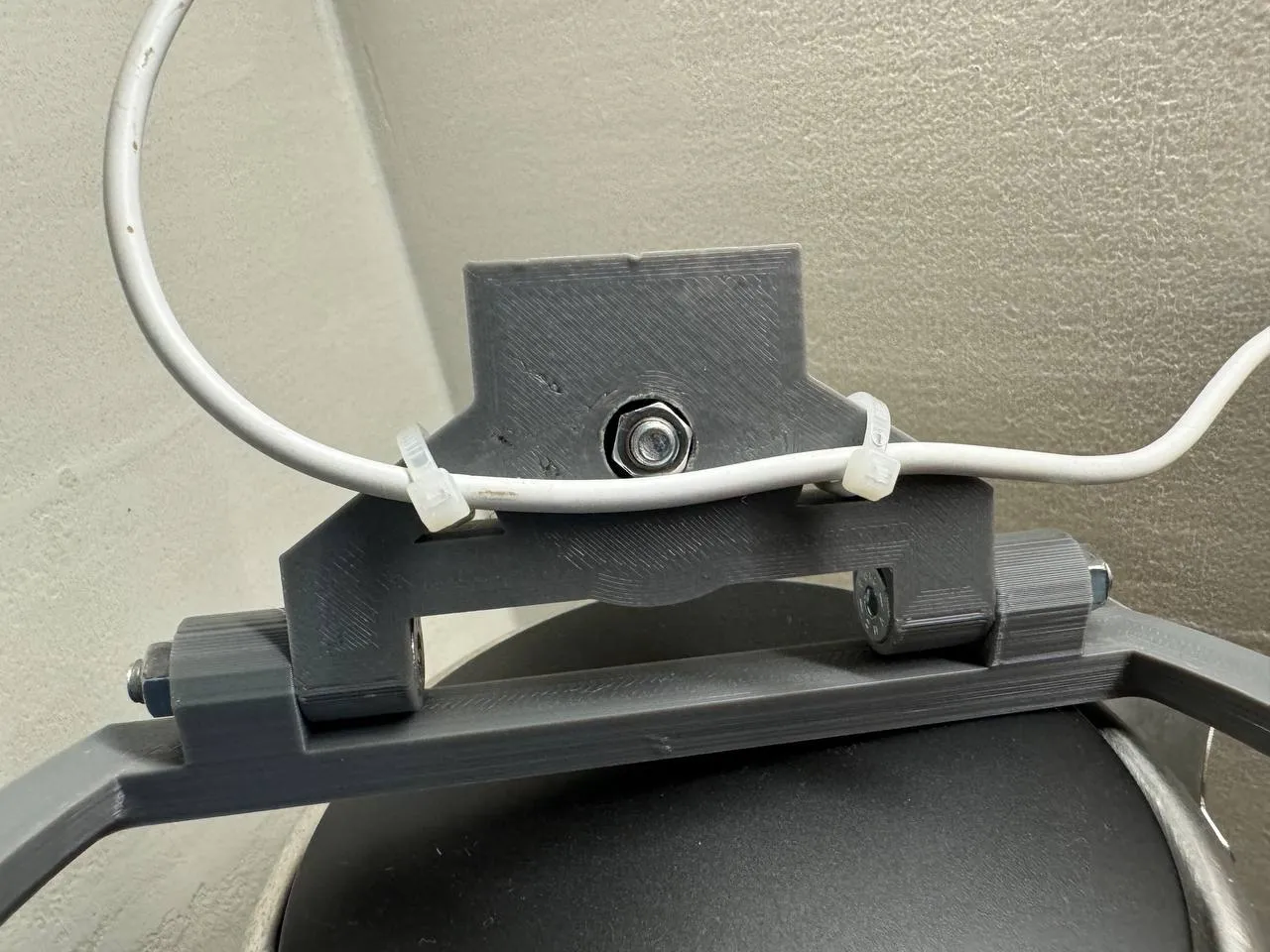

For assembly you will need:
2 m5x30 conical head screws (FHCS)

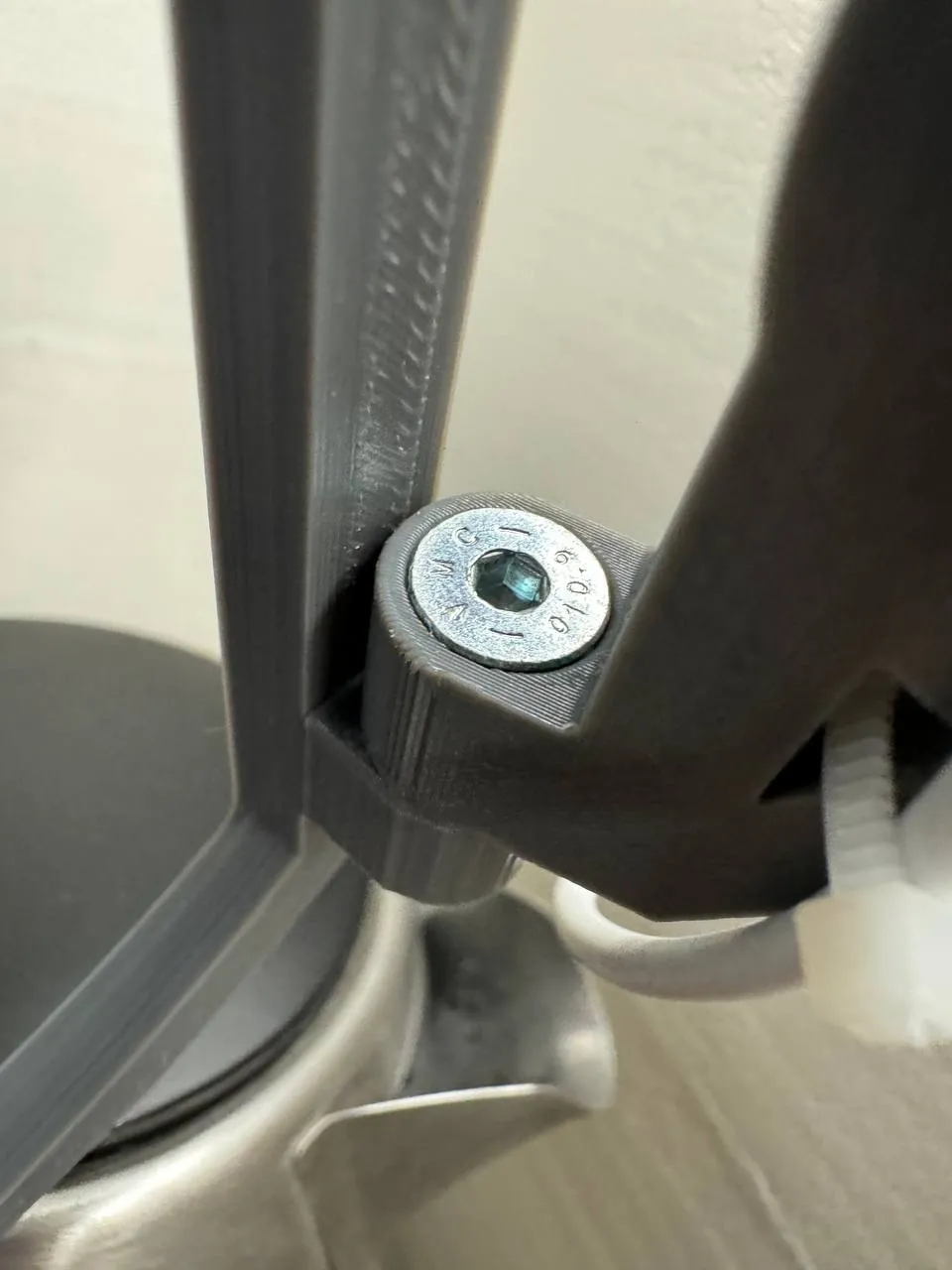

1 m5 x 30 button head screw (SHCS) - “(optional to strengthen the support pin)”
2 m5 nuts ( + 1 optional nut for central pin



m5 x 30 FHCS
m5 x 30 SHCS









Thanks to @Big_Totoro for the report, I fixed the problem at the first level of the "home_hub_clip" object with the fix version!
Happy printing everyone :D
