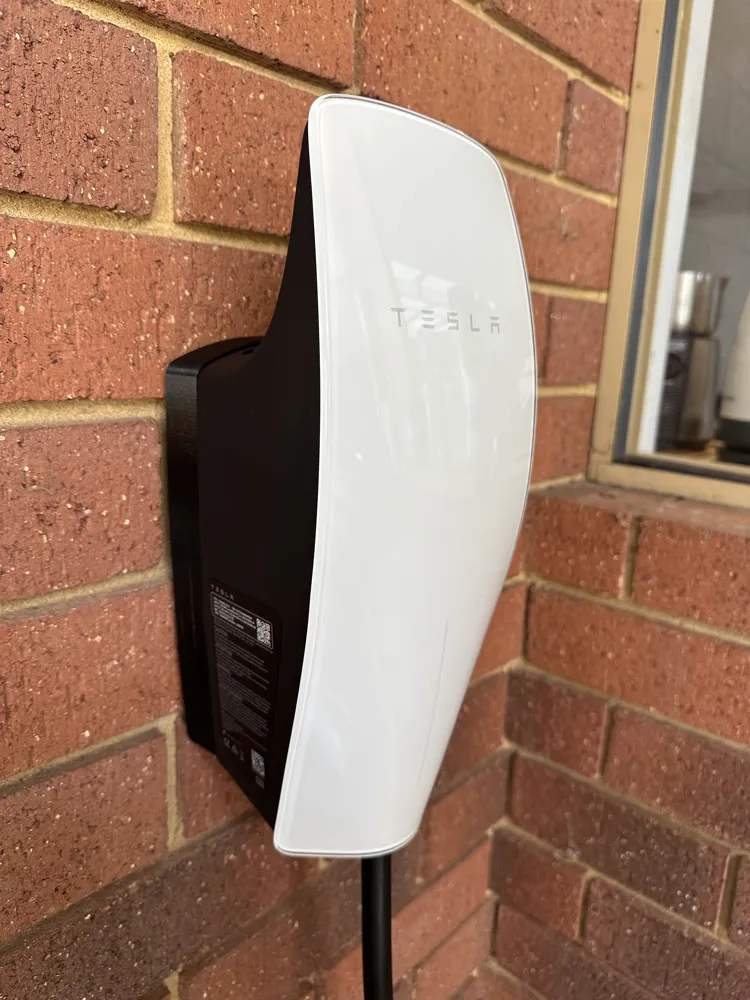

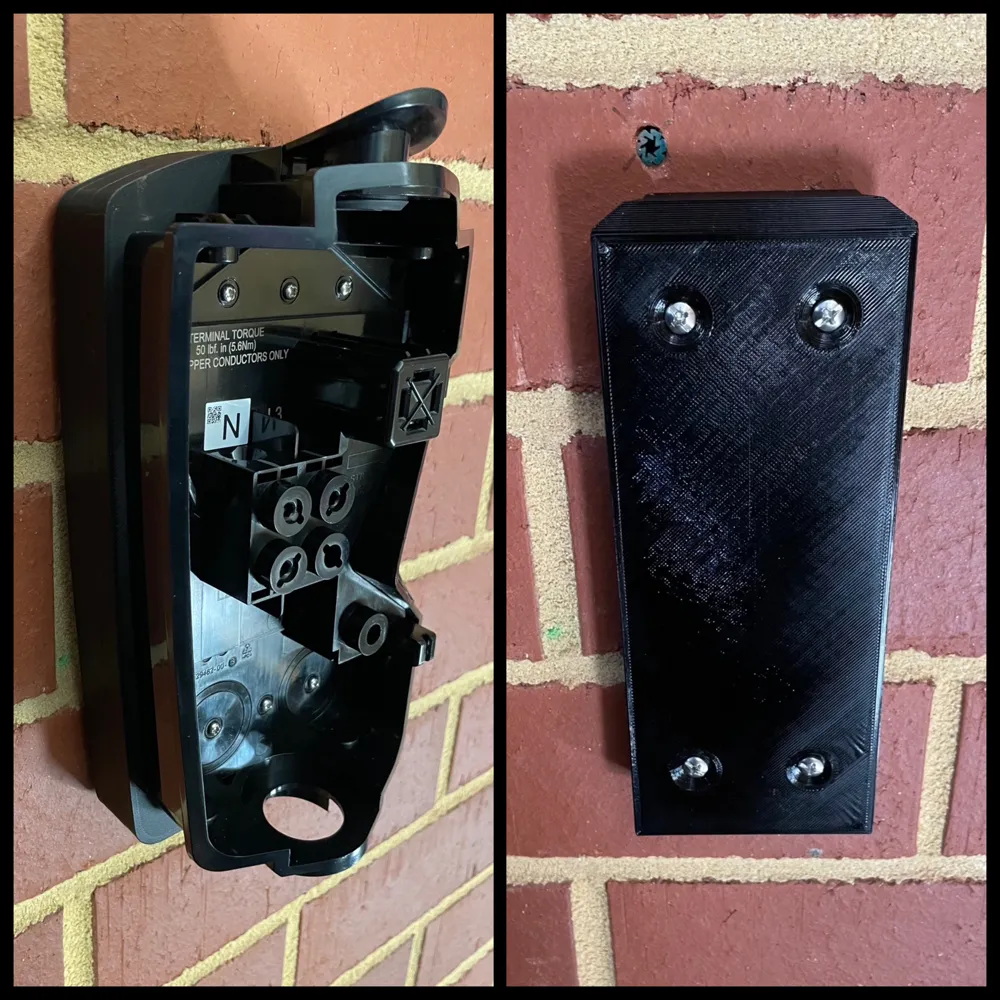

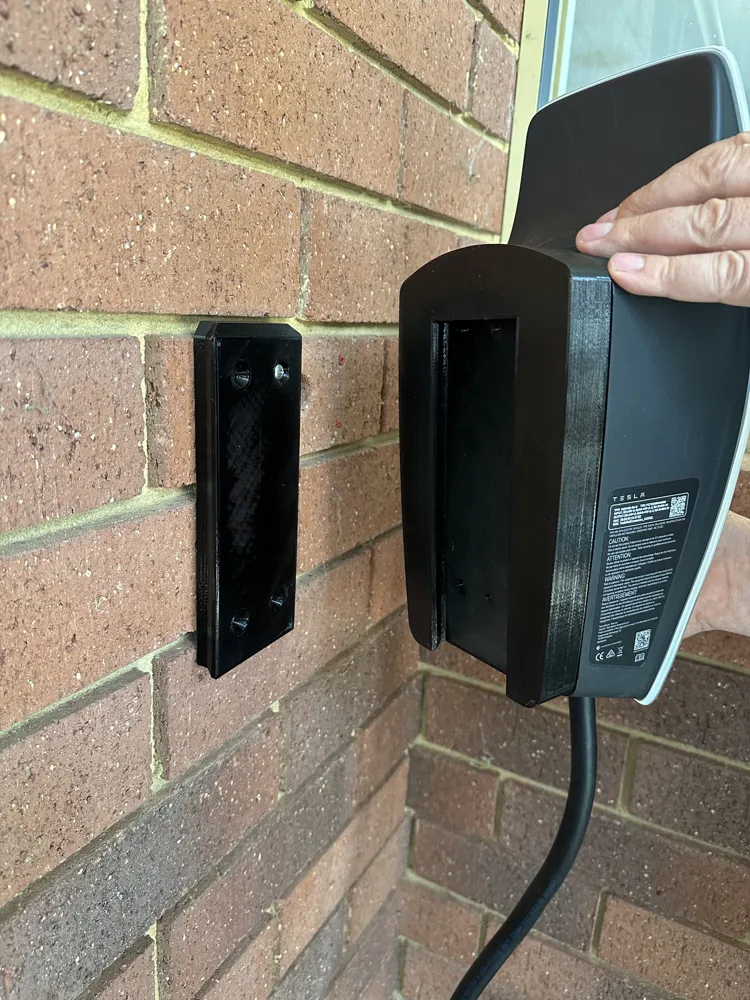

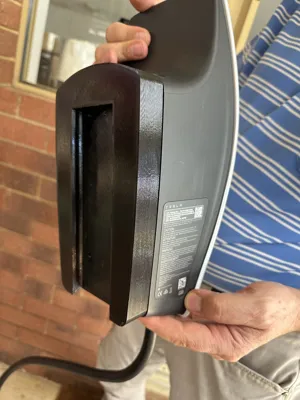

NO SUPPORTS NEEDED! - Tapered the interference fit so no supports are required.

Countersunk screws for wall half of bracket instead of recessed hole.

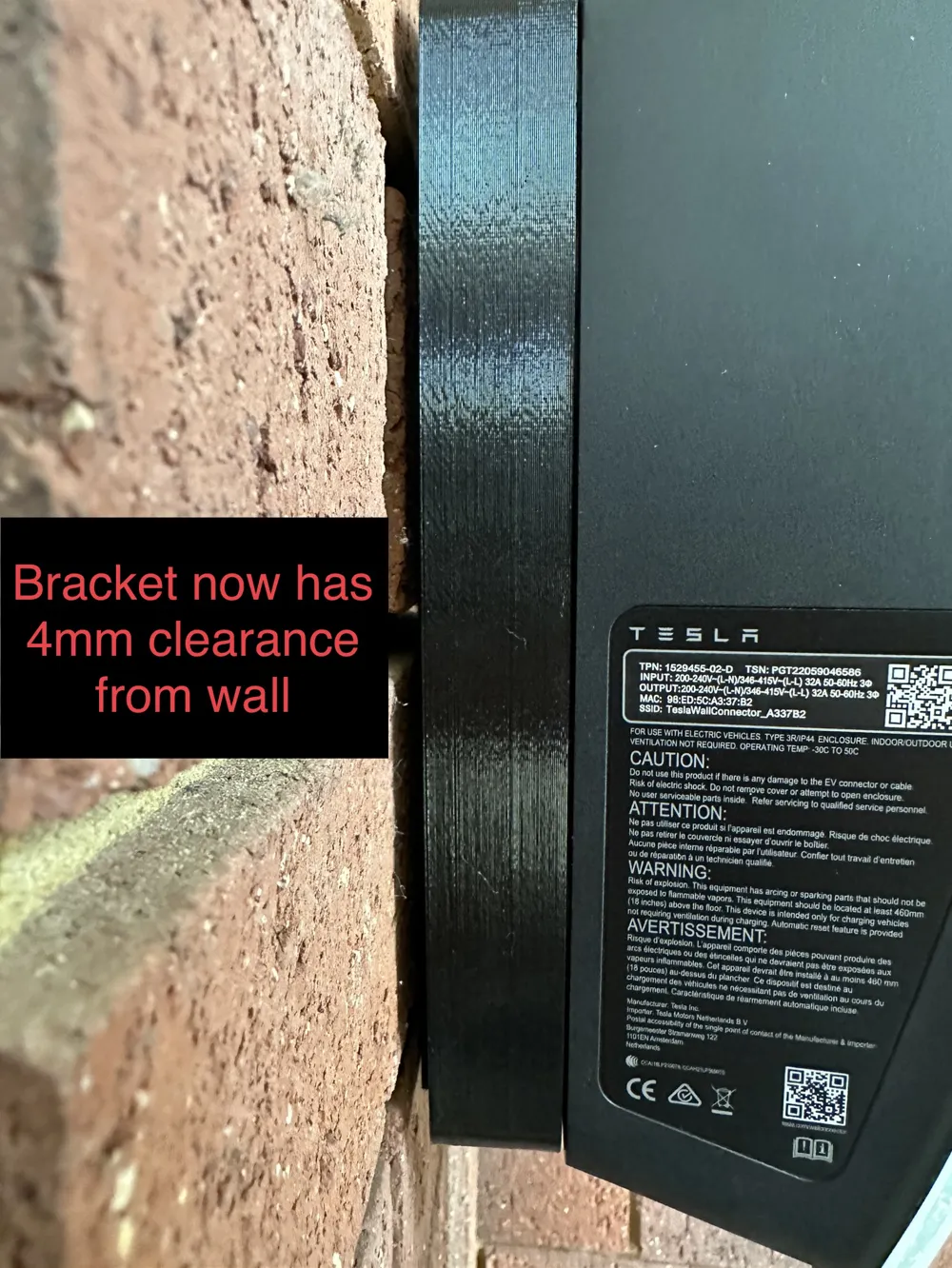

4mm clearance from wall, prevents scratching when removing charger
Only made screw holes solid with modifiers, not the interference edges as per Kole's original. I found that 4 perimeters with 20% infill is plenty strong.

Hardware required:

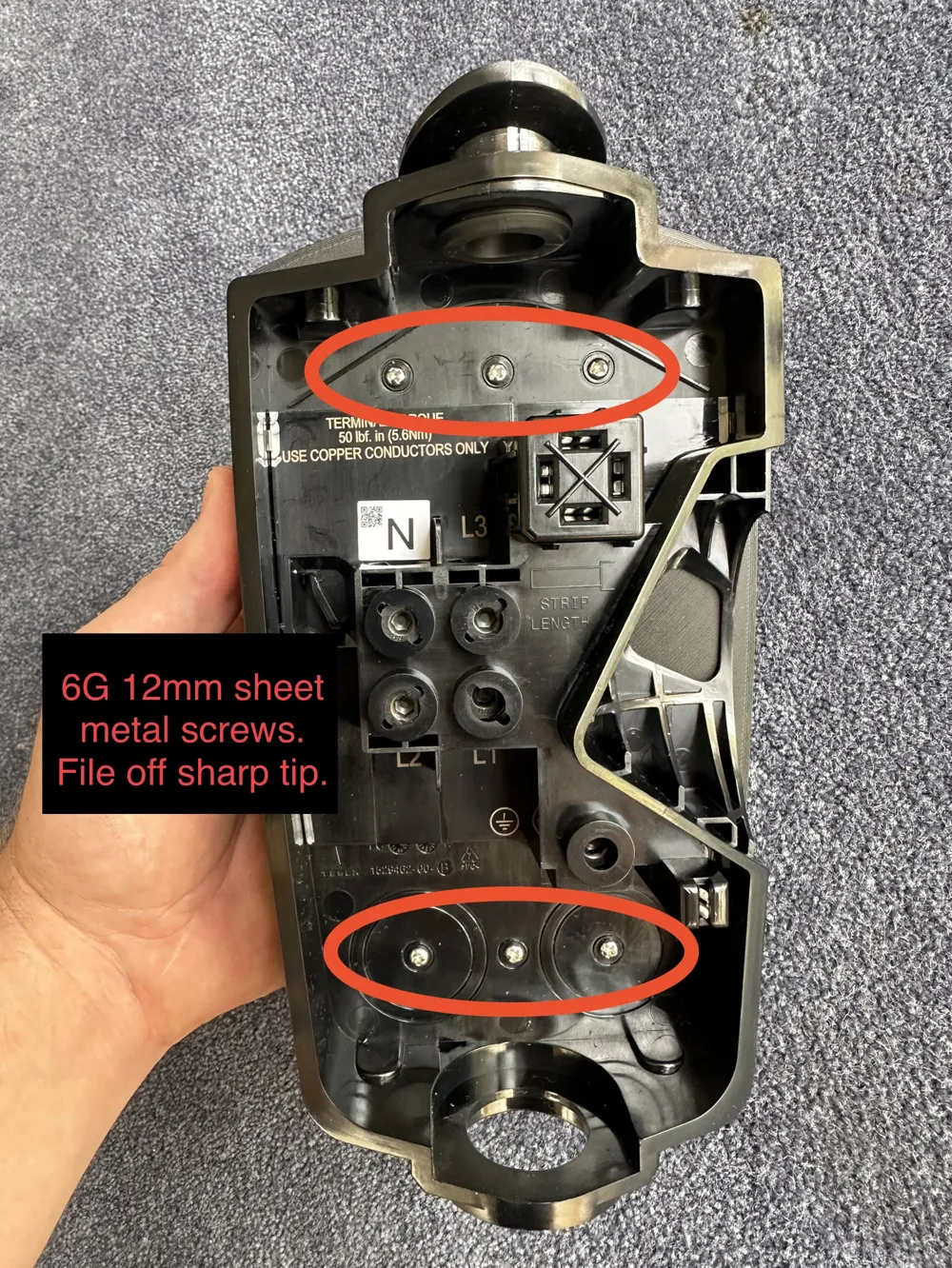

6G x 12mm Sheet metal tappers - file 1mm of sharp tip off, for mounting charger half of bracket. Link to Bunnings screws HERE
8g 38mm - countersunk screws for wall half of bracket. Many sizes will fit, hole is M5. Link to Bunnings screws HERE

Print Settings:

I printed on a Prusa MK3s+
0.4mm nozzle
0.3mm Layer height
20% infill
PETG for strength and heat resistance
4 perimeters, 4 layers top and bottom

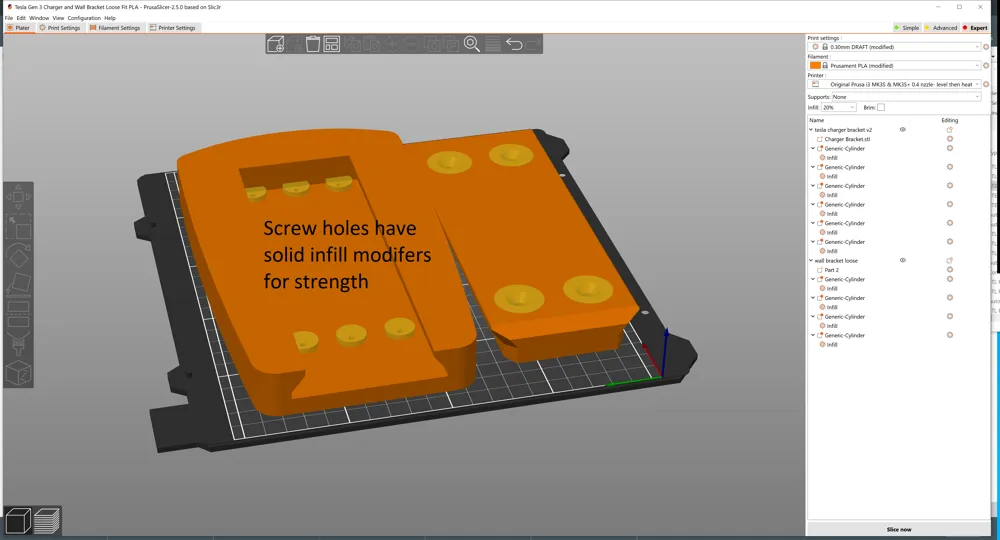

Added solid infill modifiers to screw holes for strength. See screenshot. You can load the 3mf file for a closer look.
I increased the bed temp to 90 degrees. Mainly because this print takes up the whole bed and I didn't want any temperature roll-off towards the edges.
372.52 grams of filament ~15hr print time at standard speed

Thanks to Kole for the inspiration with his original model.
