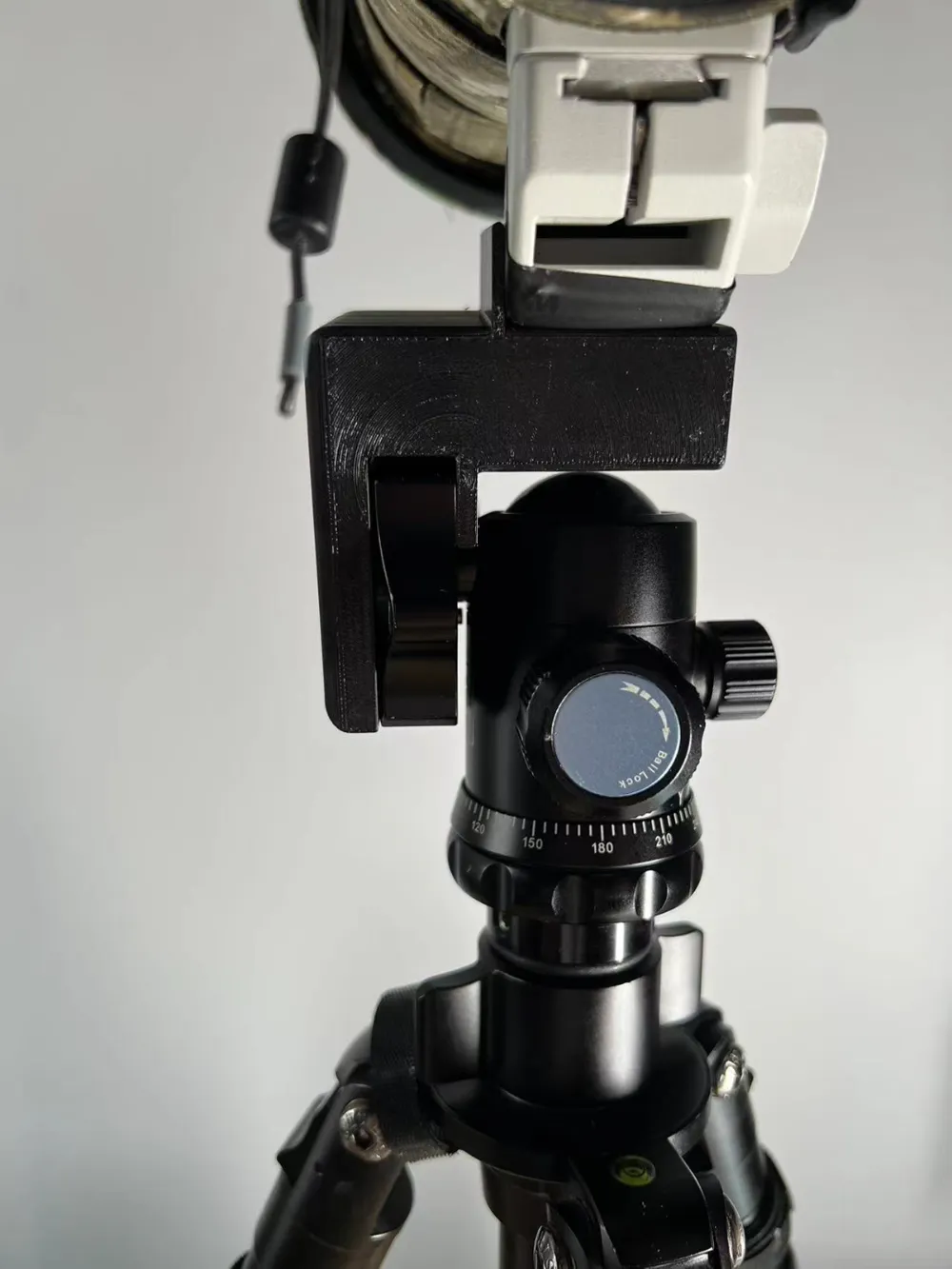

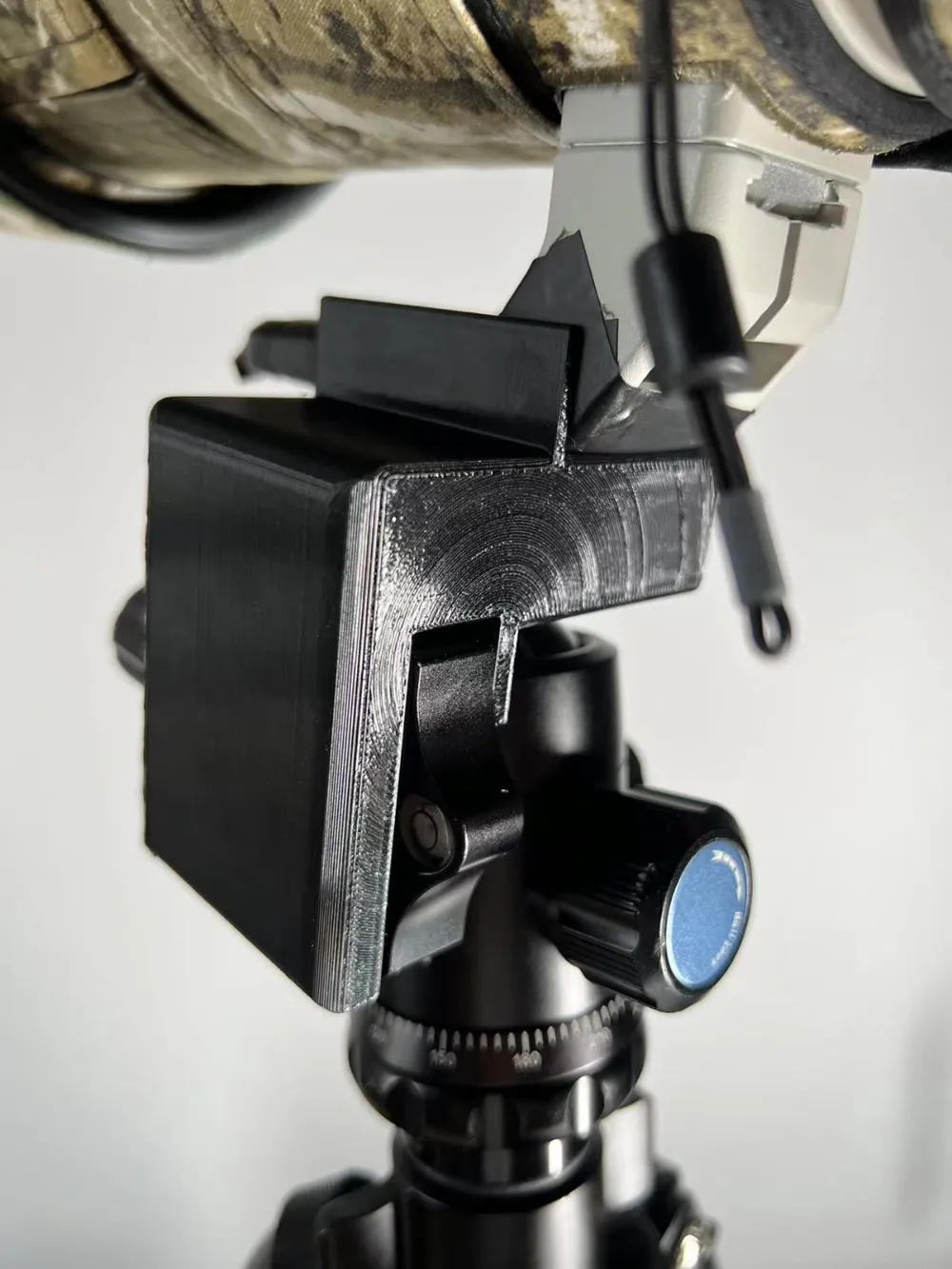

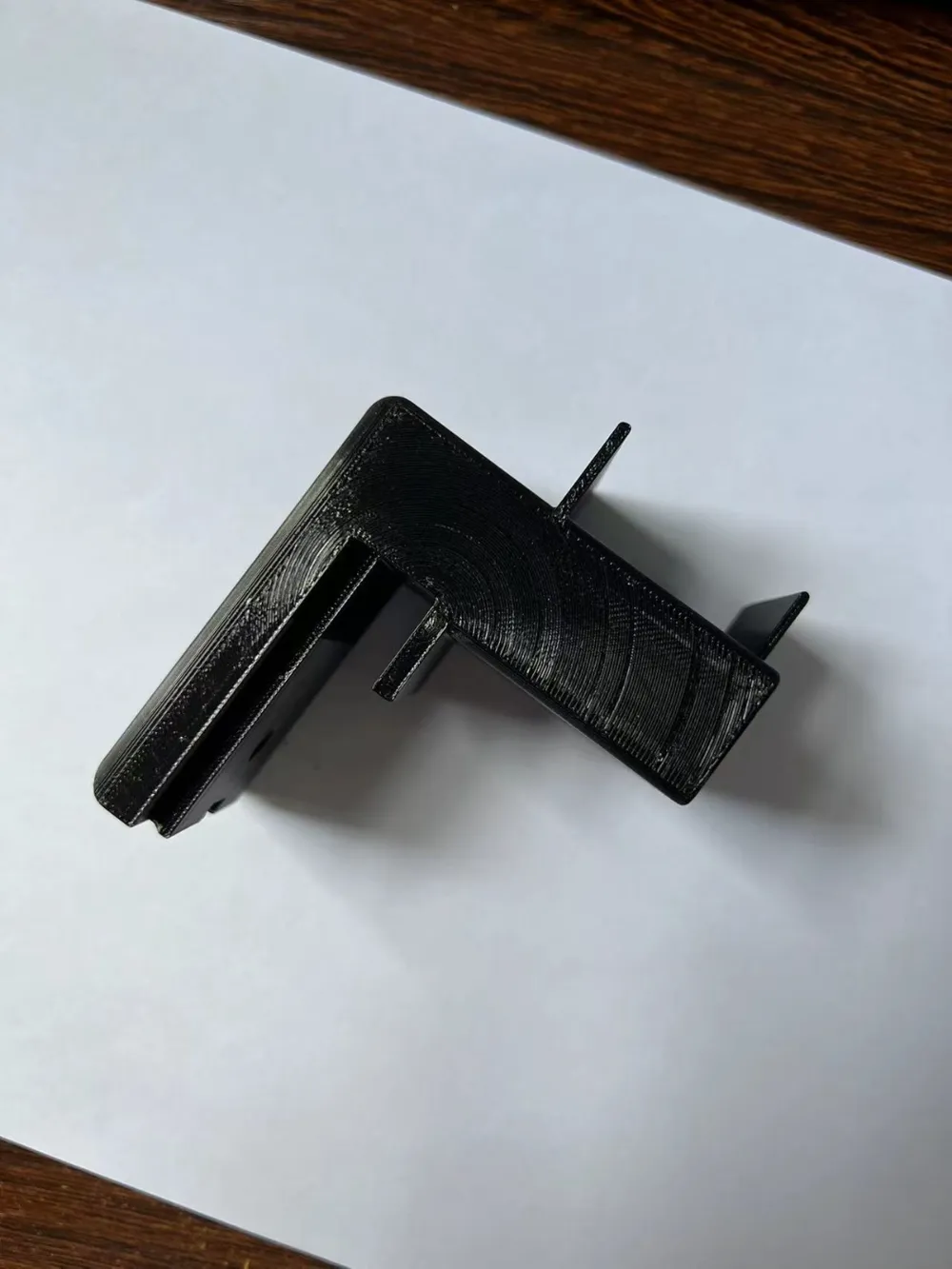

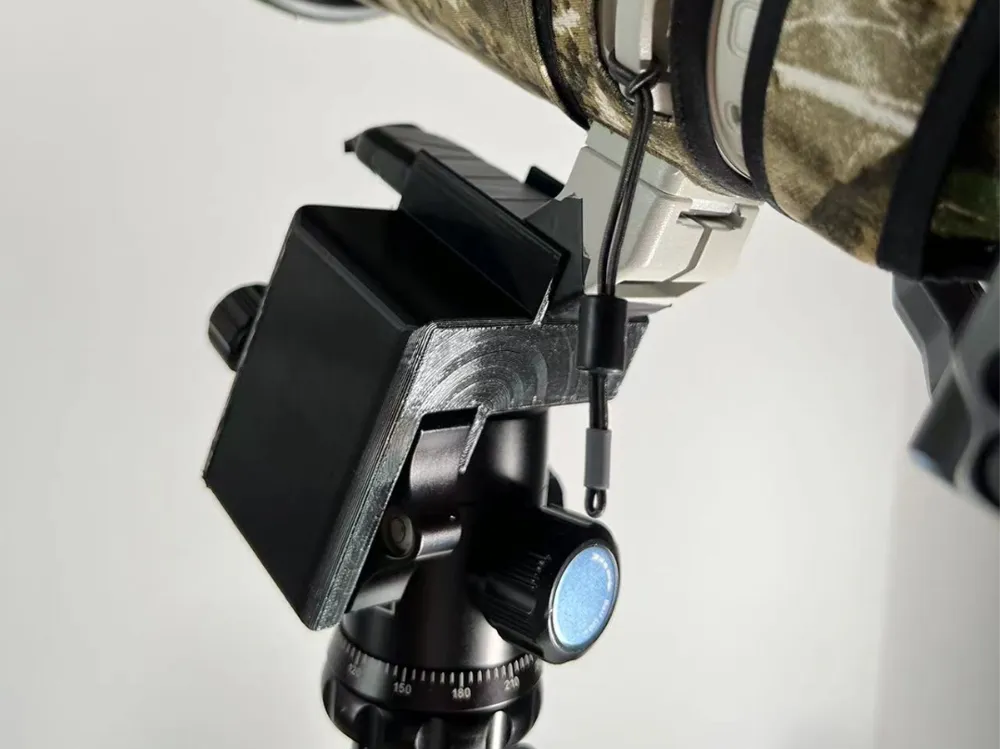

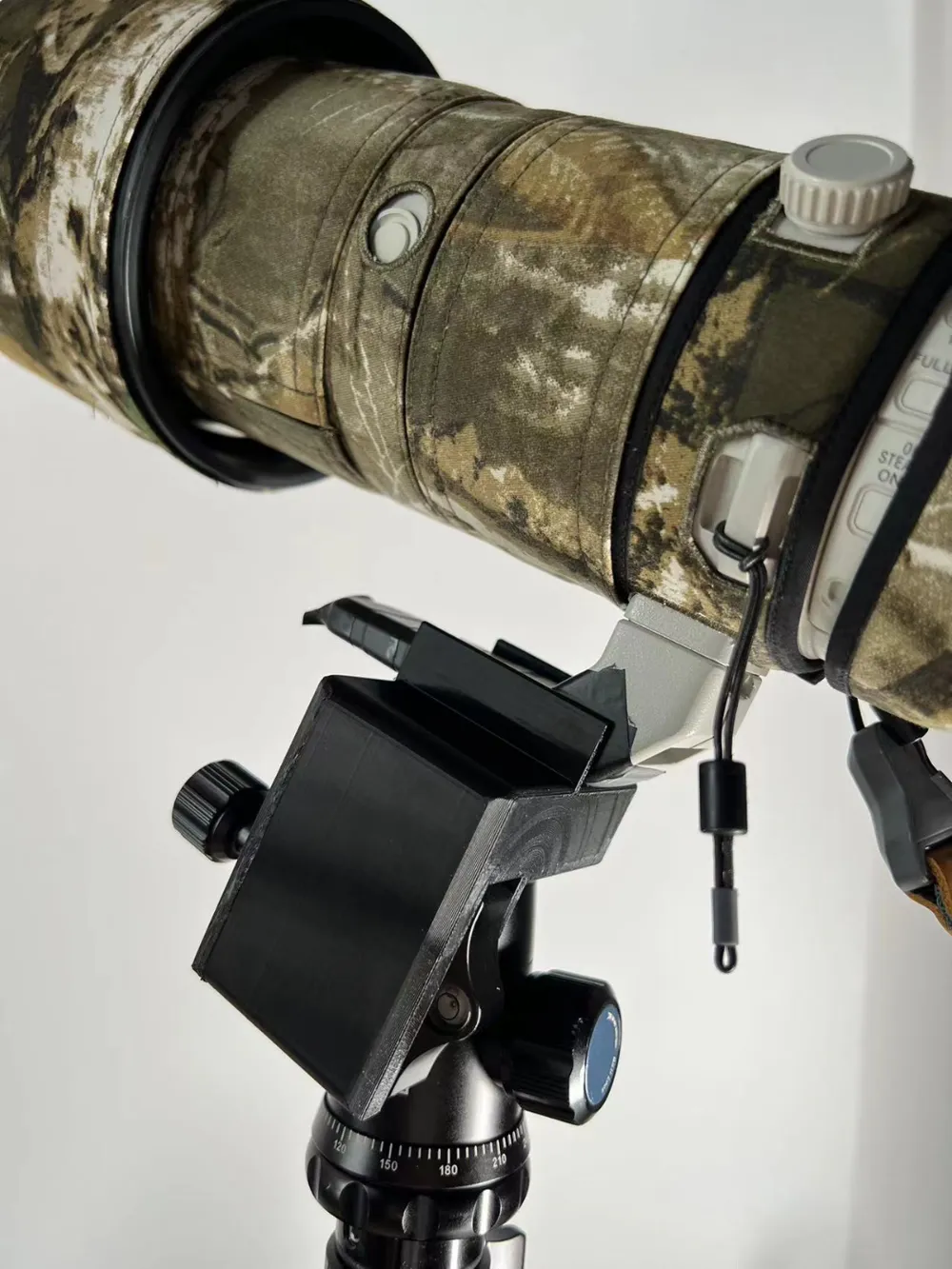

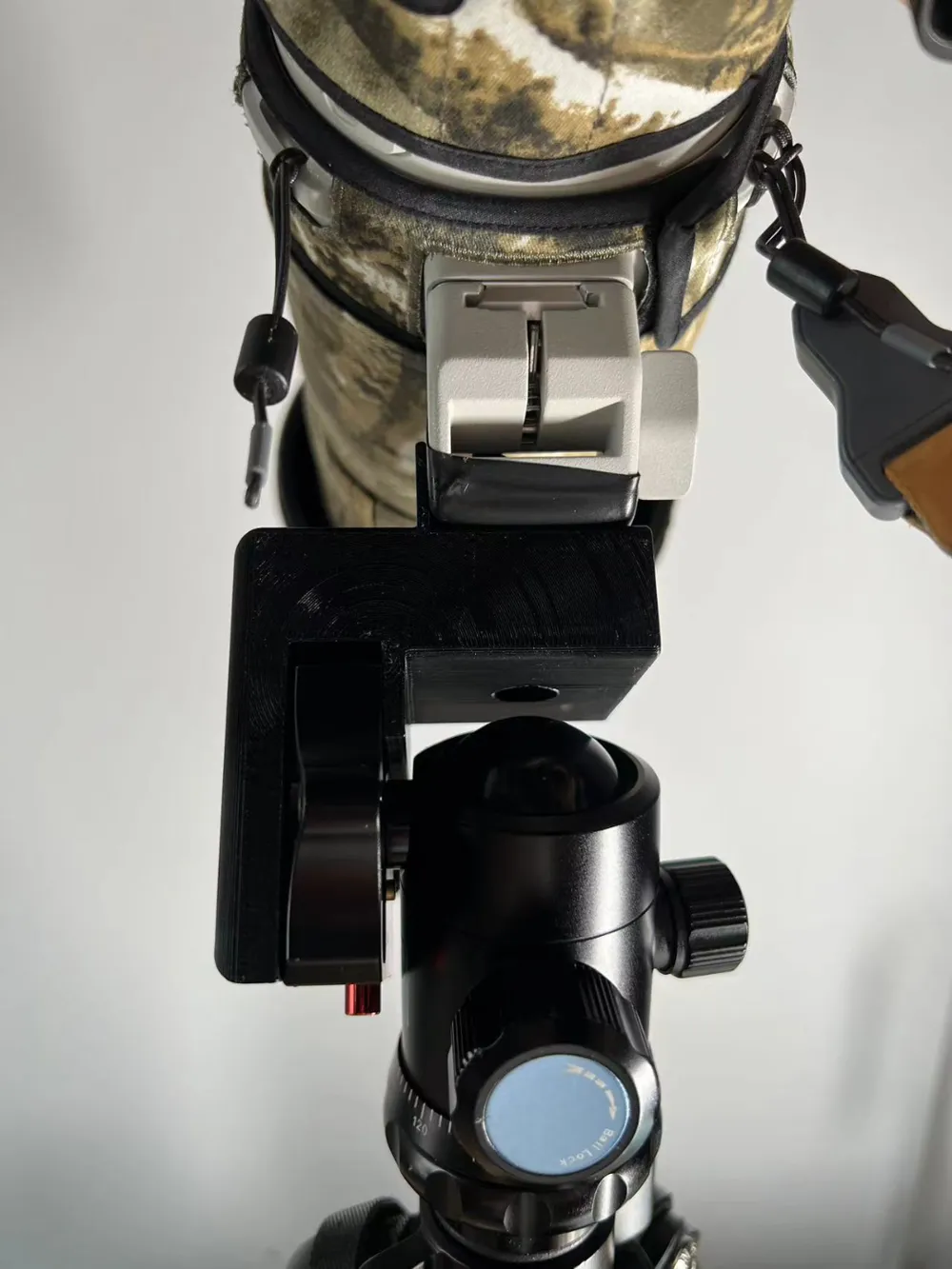

Ball Head to 2D Pan-Tilt Head - For Bird Photography

Ball head to 2D pan-tilt head quick release plate - for bird photography

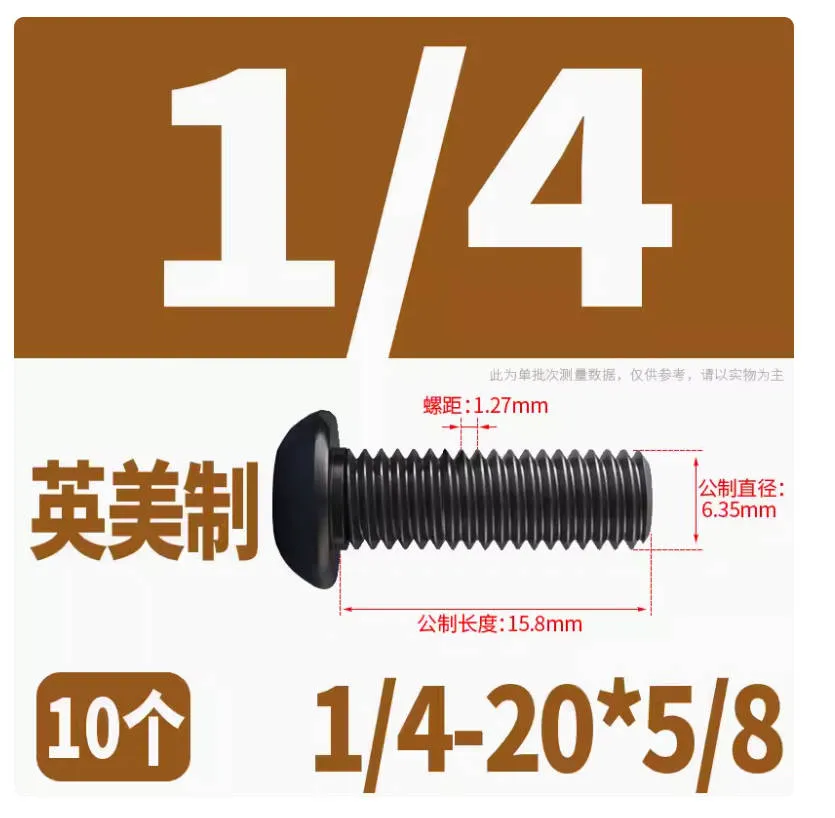

需要一颗螺丝 ： 1/4 -20*5/8 Screw x1
Required:  1/4-20*5/8 Screw x1

注意！ 如果要实战用这个东西， 相机千万不要离手， 不保证强度(虽然我用了10层墙， 感觉上还挺坚固， Solidworks也做了下simulation, 问题不大)。
Attention! If you plan to use this item in real situations, never let go of the camera. The strength is not guaranteed (although I used 10 layers of walls, and it feels quite sturdy. Solidworks simulation was also performed, and there seems to be no significant issue).

一直想买个液压云台， 但是看到液压云台动辄2kg， 实在是无法接受， 带个球台加三脚架我都累死了。 一背包有十几斤。。。。
后面受B站UP"瓦特同学"的一期球形云台改二维云台启发， 突发奇想打印了一个这个试试。

I’ve always wanted to buy a hydraulic head, but seeing that a hydraulic head weighs about 2kg, it’s simply unacceptable. I’m already exhausted carrying a ball head and tripod. My backpack weighs more than a dozen kilos… Later, inspired by Bilibili UP ‘瓦特同学’ episode on modifying a spherical head to a two-dimensional head, I had the sudden idea to print one of these to try out.


适用云台：思锐 - G20KX
适用镜头： 索尼 - 260G


Suitable head: Sirui - G20KX
Suitable lens: Sony - 260G
