// FAN STAND
The idea for this type of stand originates from here: https://www.printables.com/de/model/43131-fan-stand
I have took it onto myself to make a similar thing, but with more features, easier to customize, and also stronger.

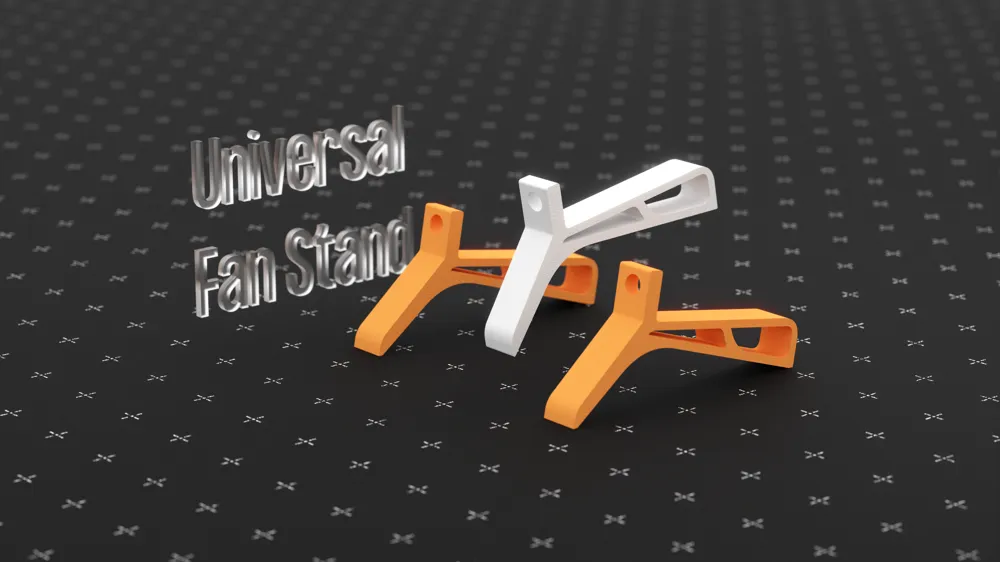

The fan is supposed to rest on the straight, long edge to take some stress off of the little screw tab. I added a little strut and removed the rest of the material to make printing more efficient and fast.

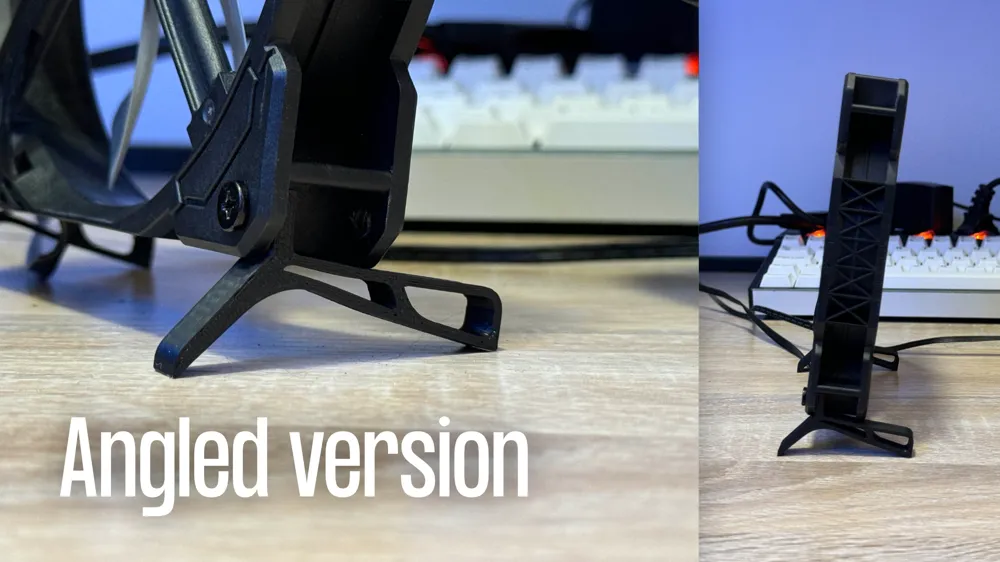

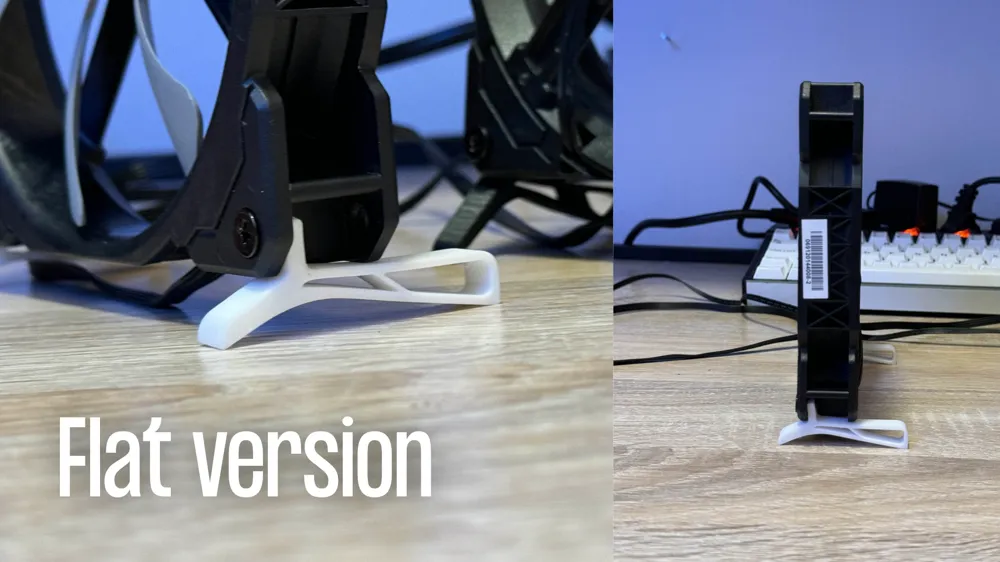

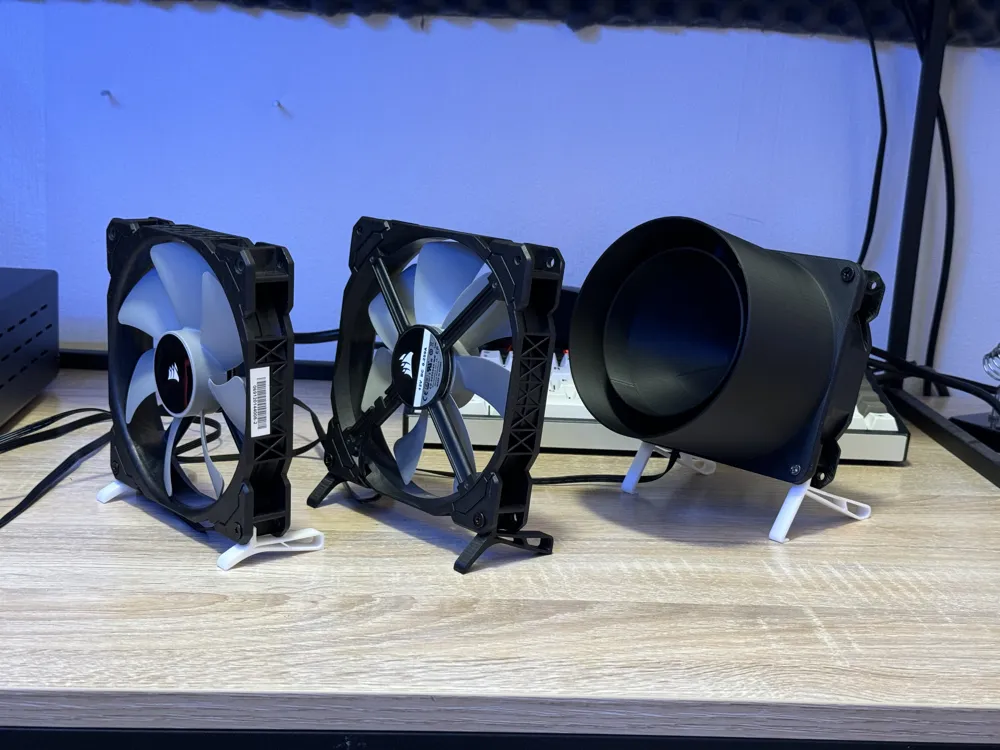

You have the choice between a completely straight, flat stand, and two variation of angles, see pictures.

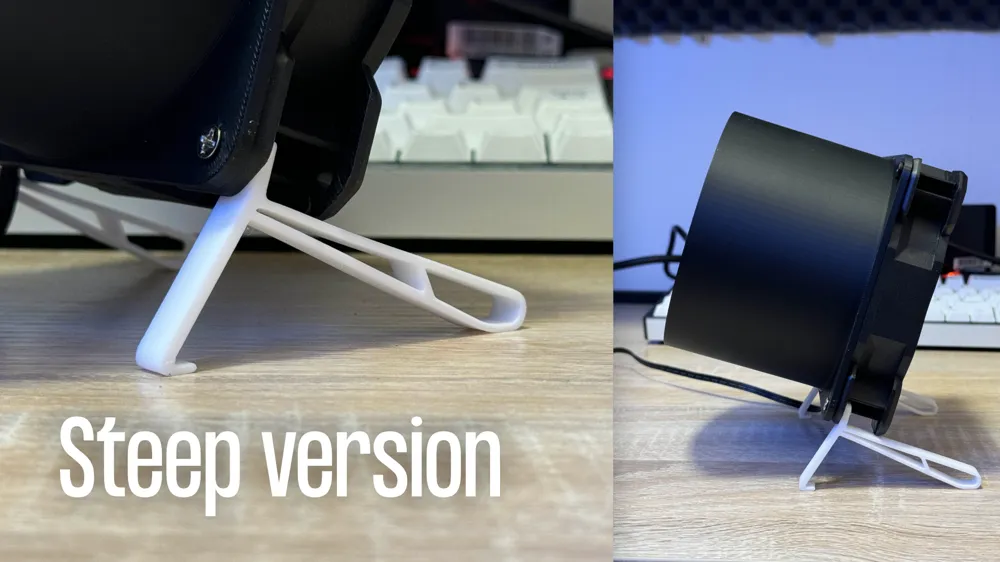

Rev.4 of the steep stand adds a little support strut between it's legs to prevent it snapping under heavier loads.
It's an easy print - you can almost definitely print it on it's side and leave your printing profile on it's default values.
// SUPPORT ME
|
Boost Me (for free) You can support my work by leaving one of your spare boosts on this model. It is always greatly appreciated and helps out a ton - And it's free! |  |
Contrary to what I'm trying to make myself look like, I'm a total beginner and this is my first original CAD model. :D Suggestions welcome!
