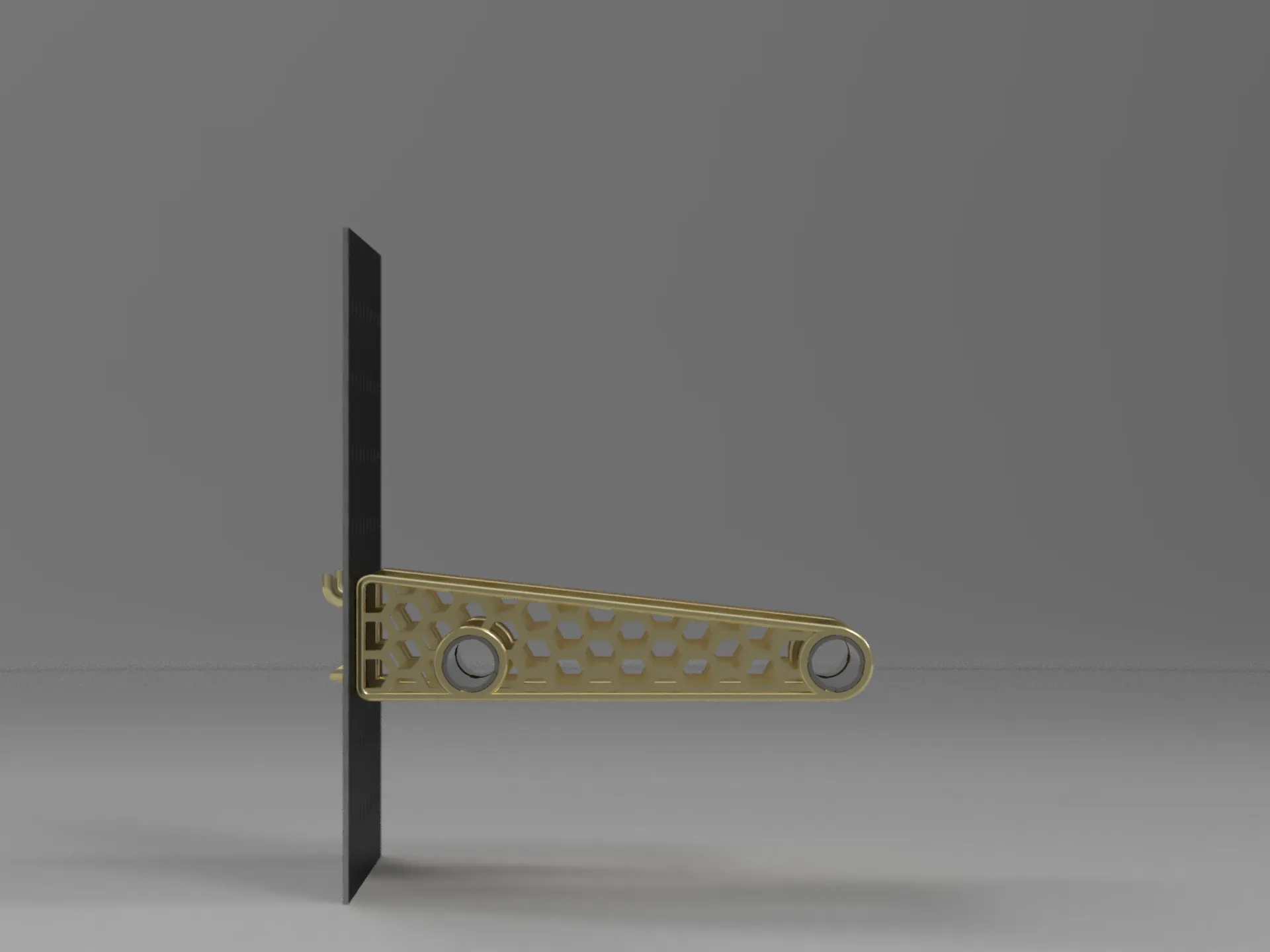

Modular Pegboard Filament Spool Holder

Introduction

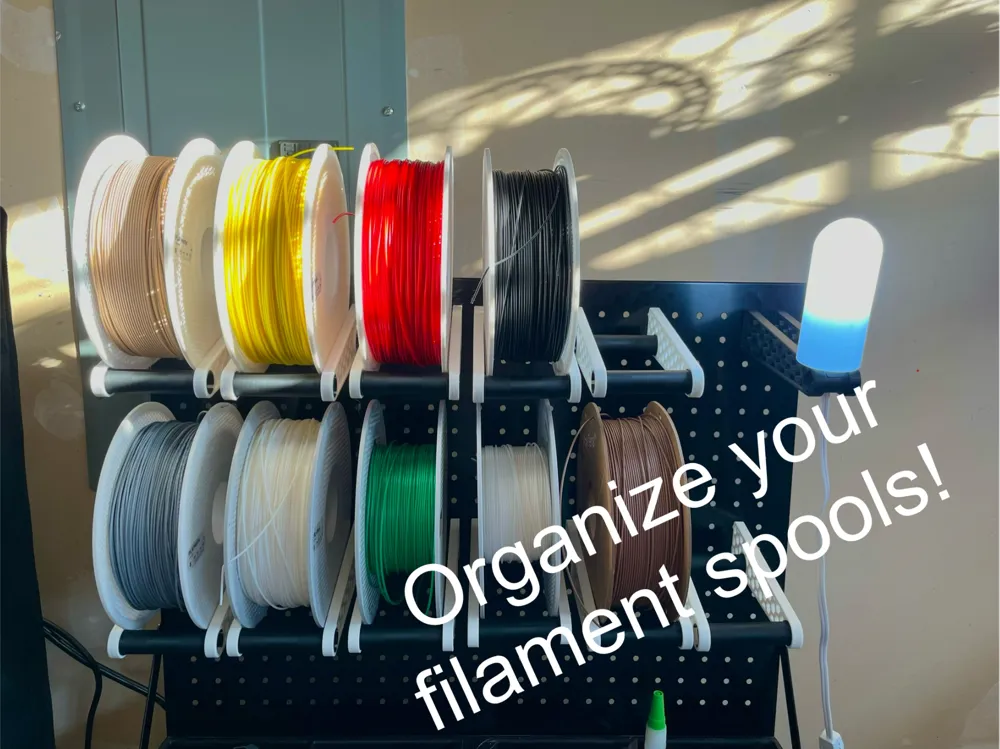

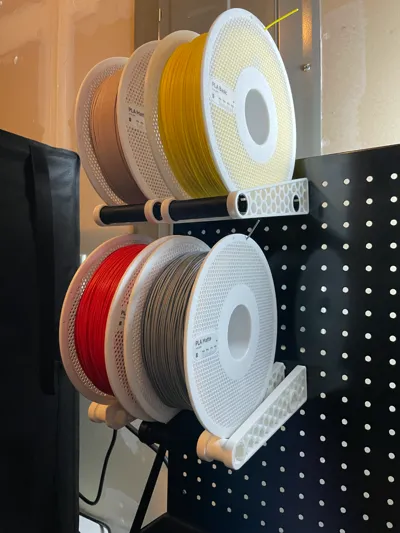

As titled, this is a sturdy filament spool holder that can be mounted to your pegboard, so that those spools are no longer piled up on your worktable (｡•̀ᴗ-)✧

As the title suggests, this is a sturdy filament spool holder that can be mounted to your pegboard, so that your spools are no longer piled up on your worktable (｡•̀ᴗ-)✧

Assembly Instructions

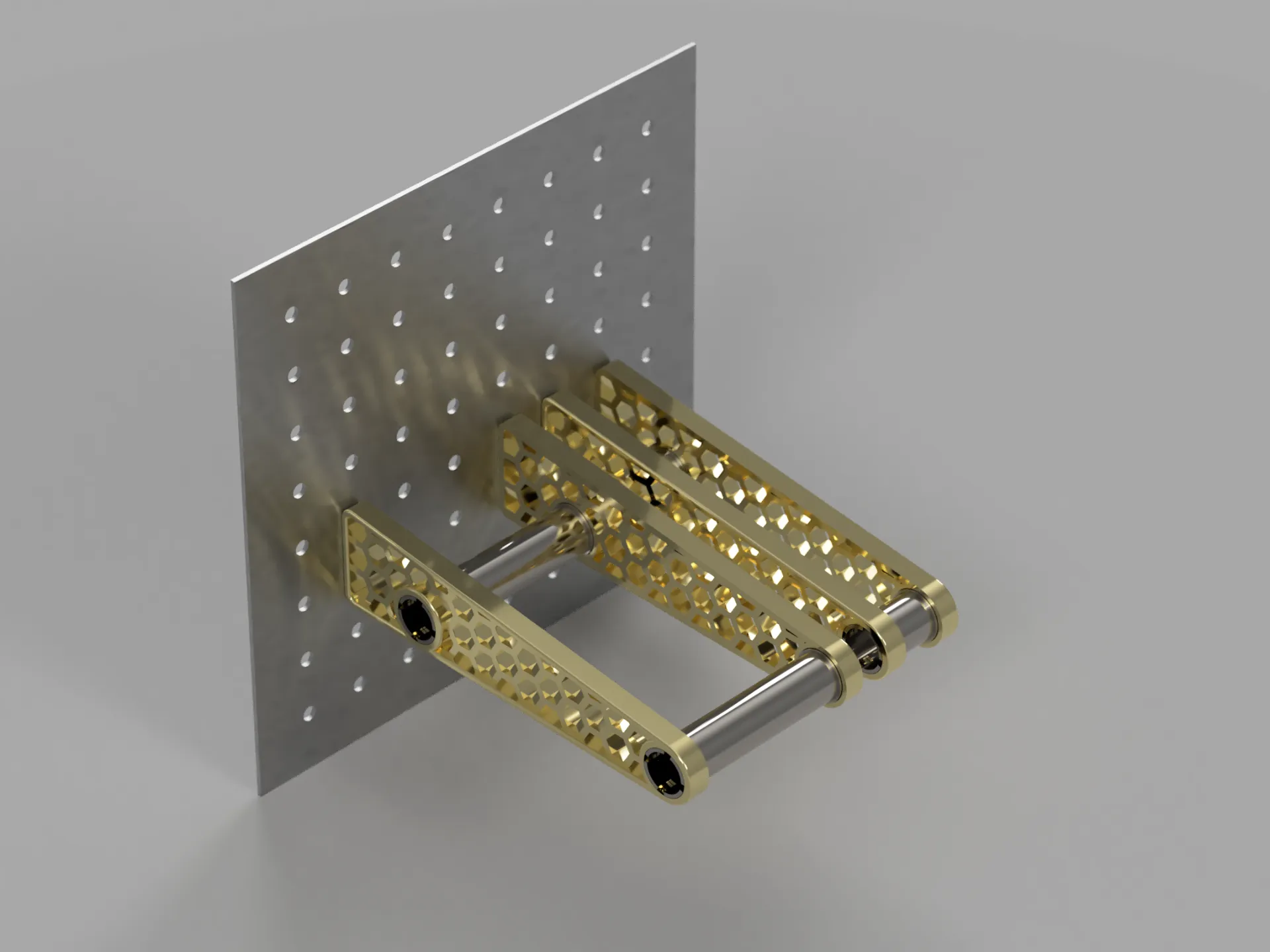

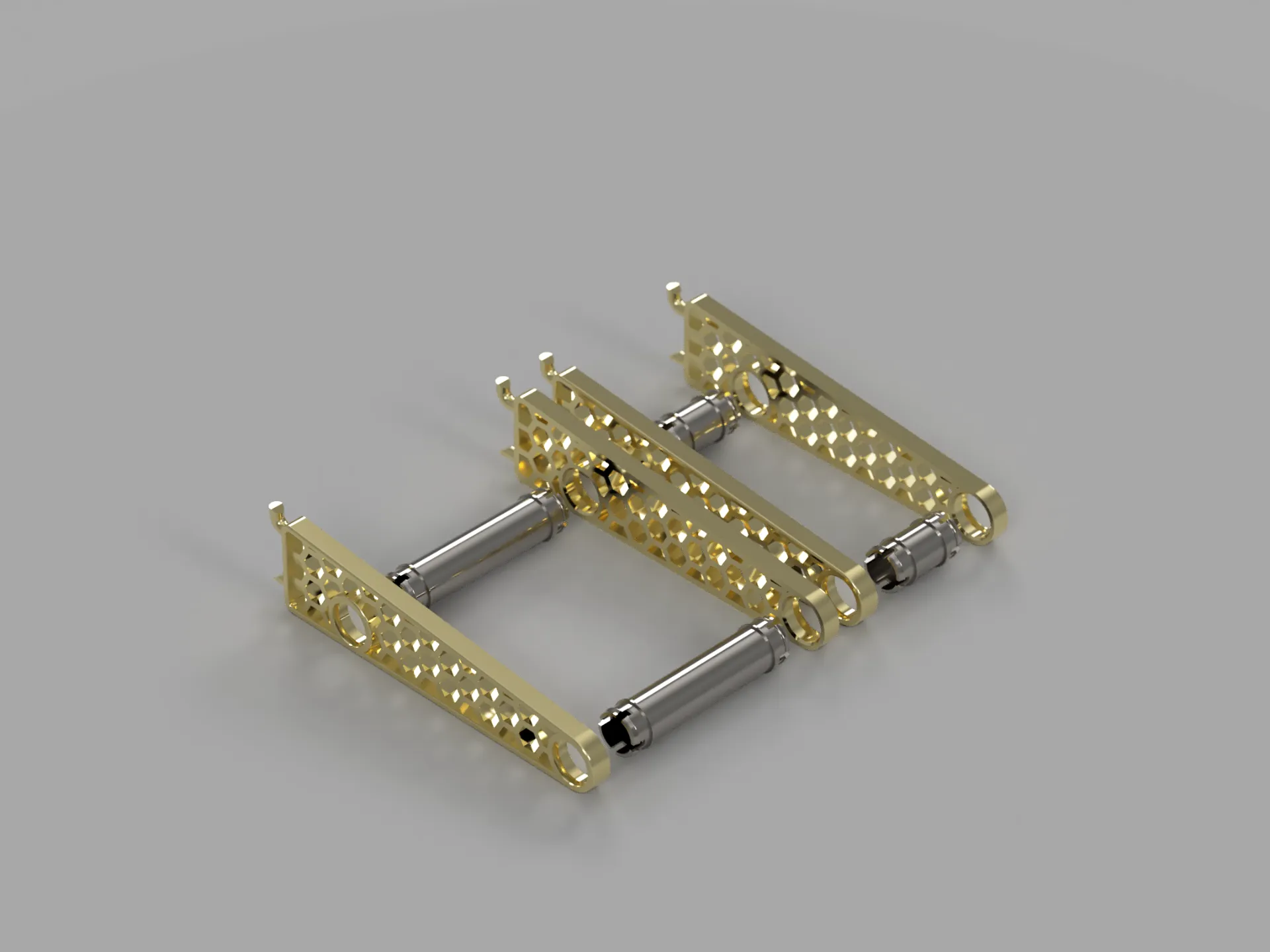

Choose from either the long beams or the short ones. Insert the pair of beams into the socket on the arms until you hear the click and it will be locked in place. Please remember to insert them from the flat side of the arm

The holder still works even if a clip of the beam's insert accidentally breaks during the installation

Check the next section to learn the differences between the 2 types of beams

Choose from either the long or short beams. Insert the pair of beams into the socket on the arms until you hear the click and it will be locked in place. Please remember to insert them from the flat side of the arm

The holder still works even if a clip of the beam's insert accidentally breaks during the installation

See the next section to learn the differences between the 2 types of beams

Mounting Modes

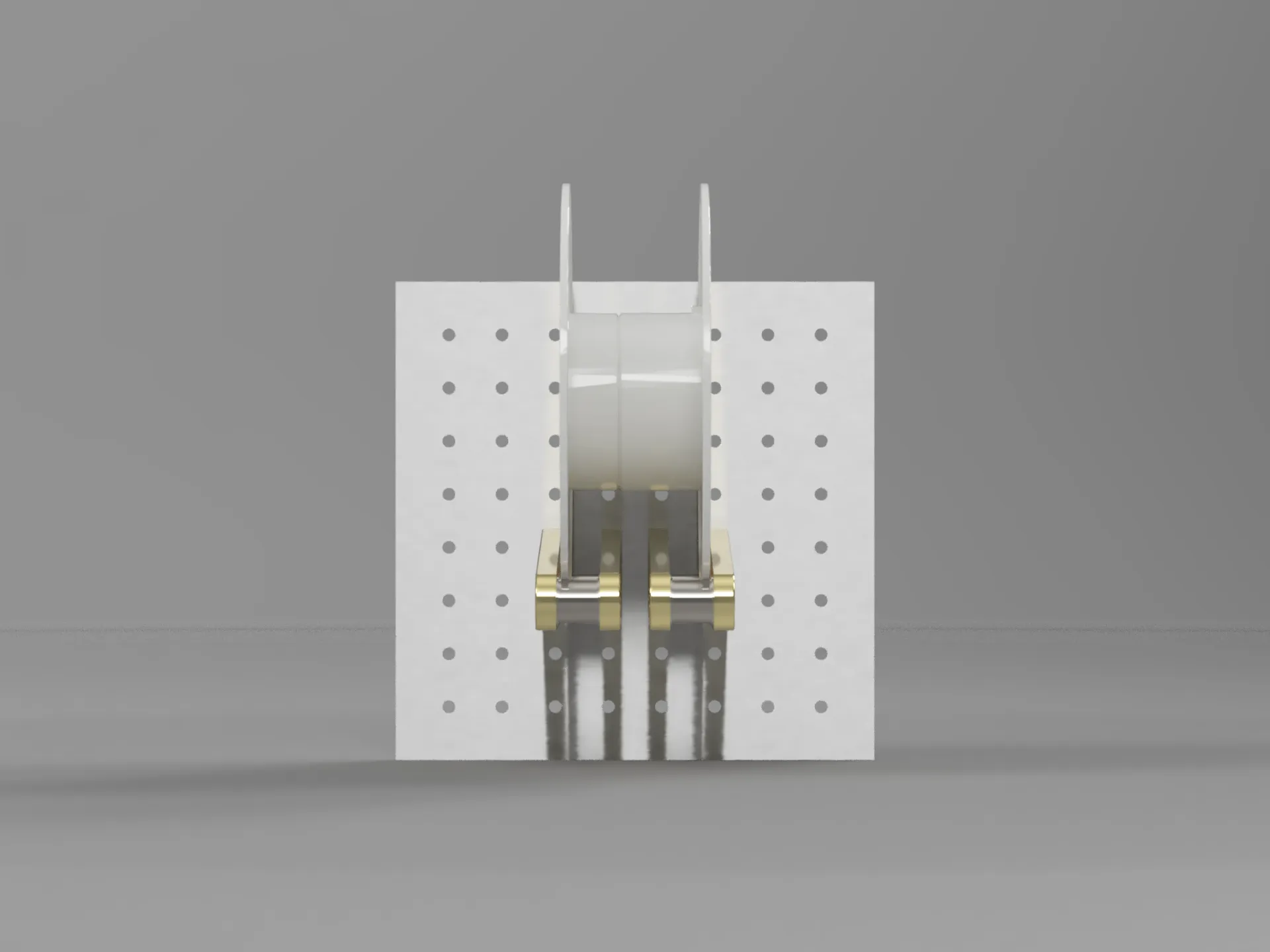

Mode 1

1 spool on 1 holder with long beams, this is compatible with the standard 1kg or smaller spool

Use long beams, one spool per holder, compatible with standard 1kg or smaller spools

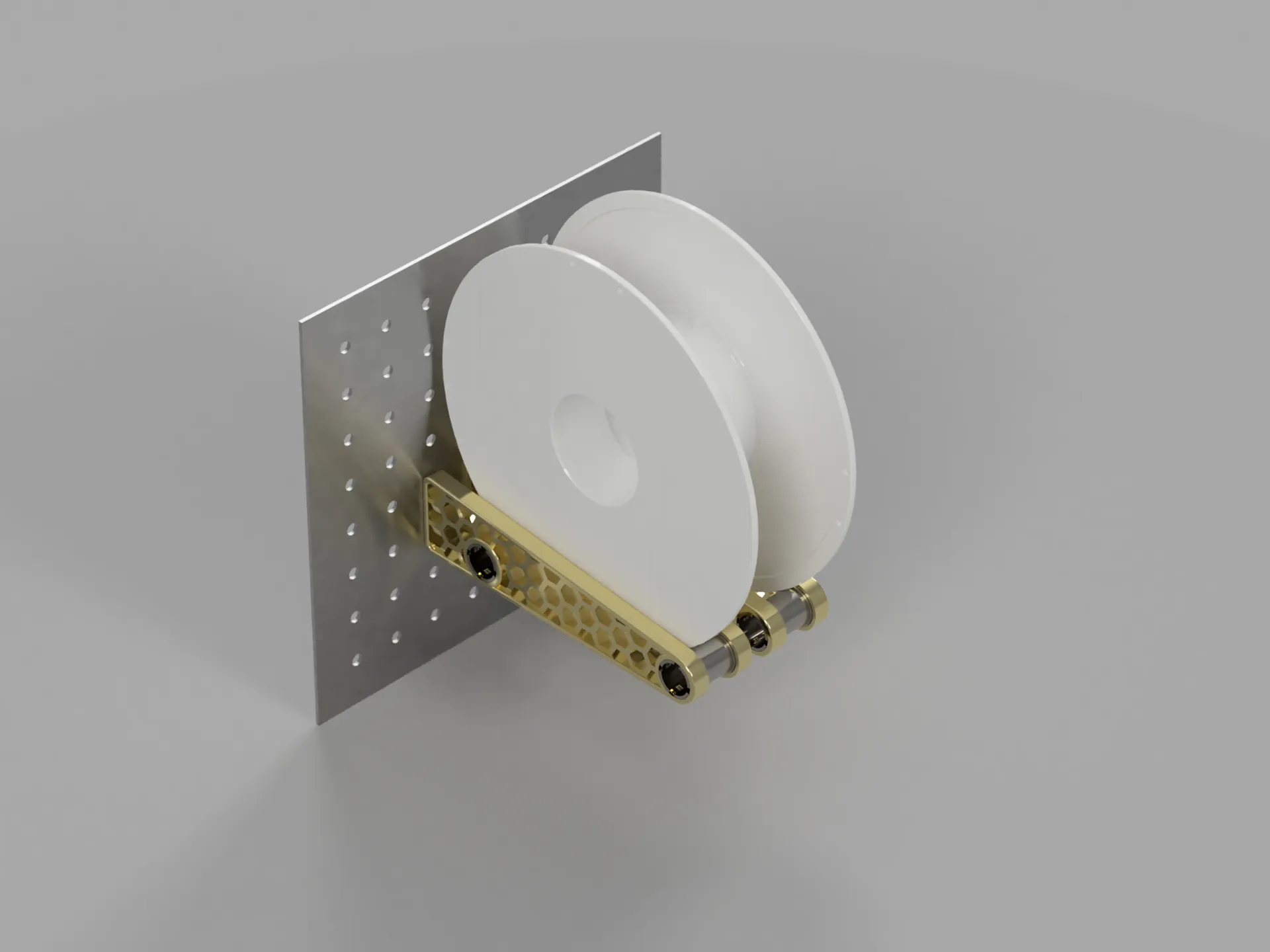

Mode 2

1 spool on 2 holders with short beams, this is compatible with the standard 1kg or smaller spool. It also provides stronger strength when using PLA to print the arms

Use short beams, one spool per two holders, compatible with standard 1kg or smaller spools. It also provides stronger strength when using PLA to print the arms

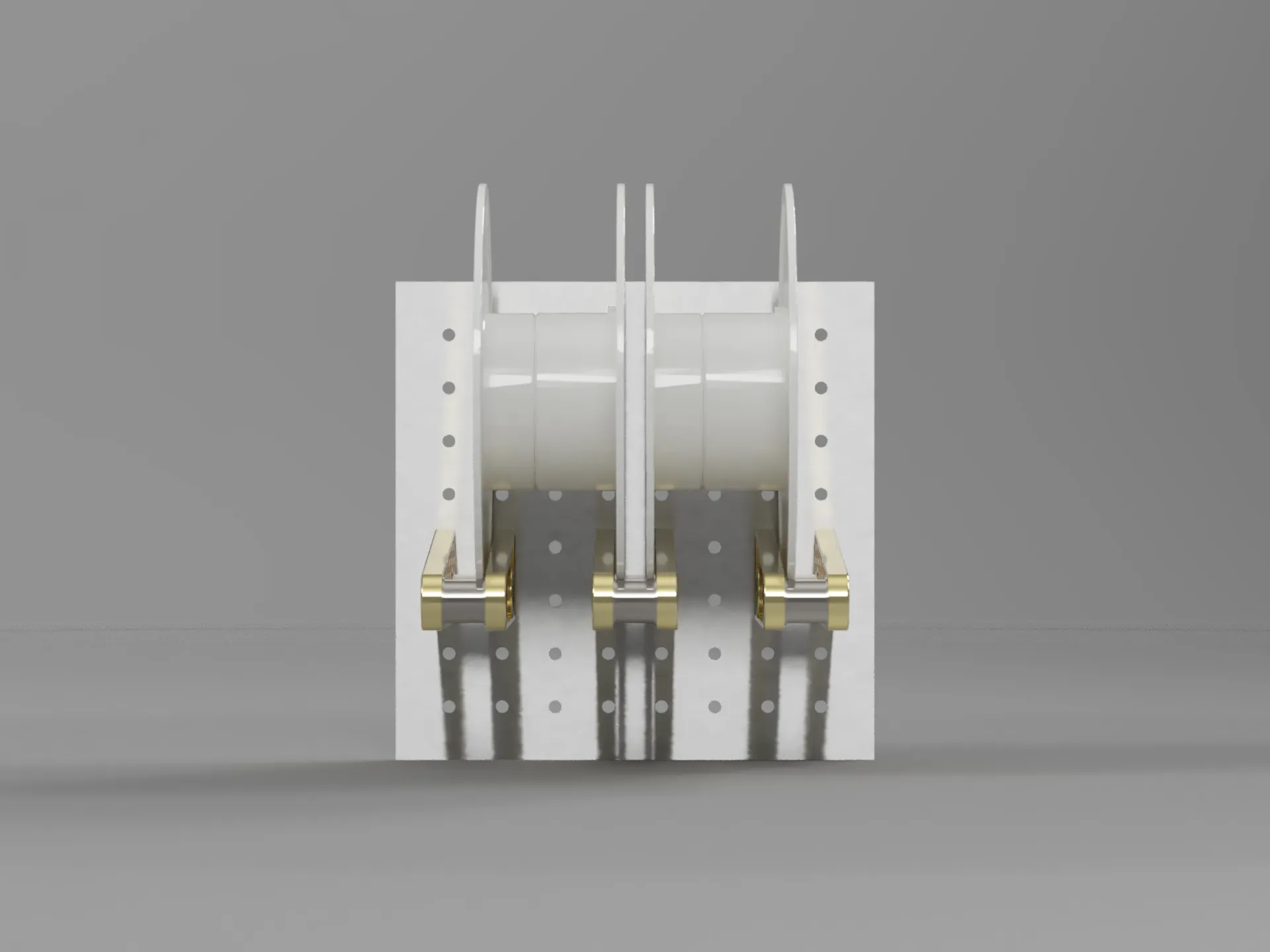

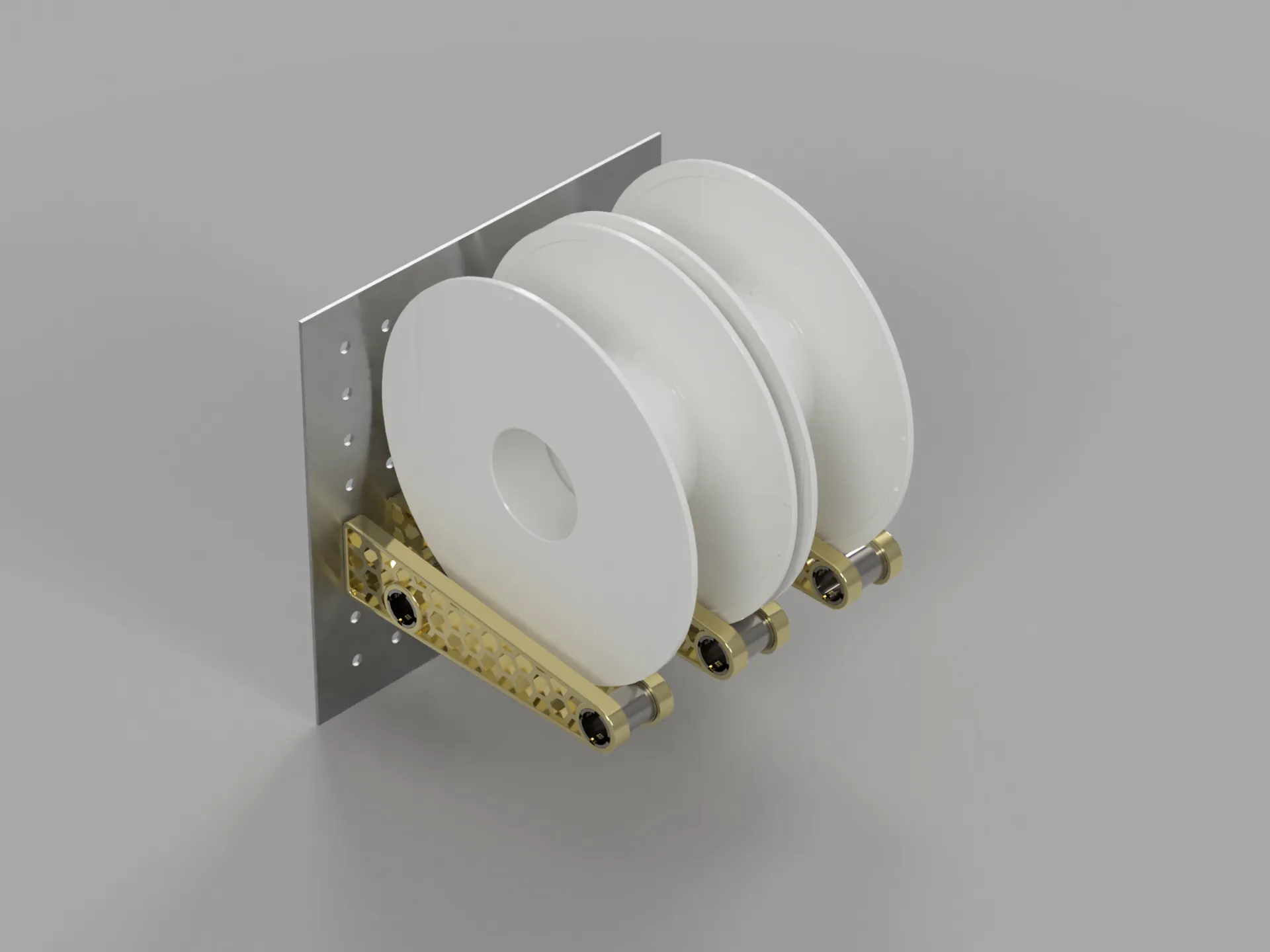

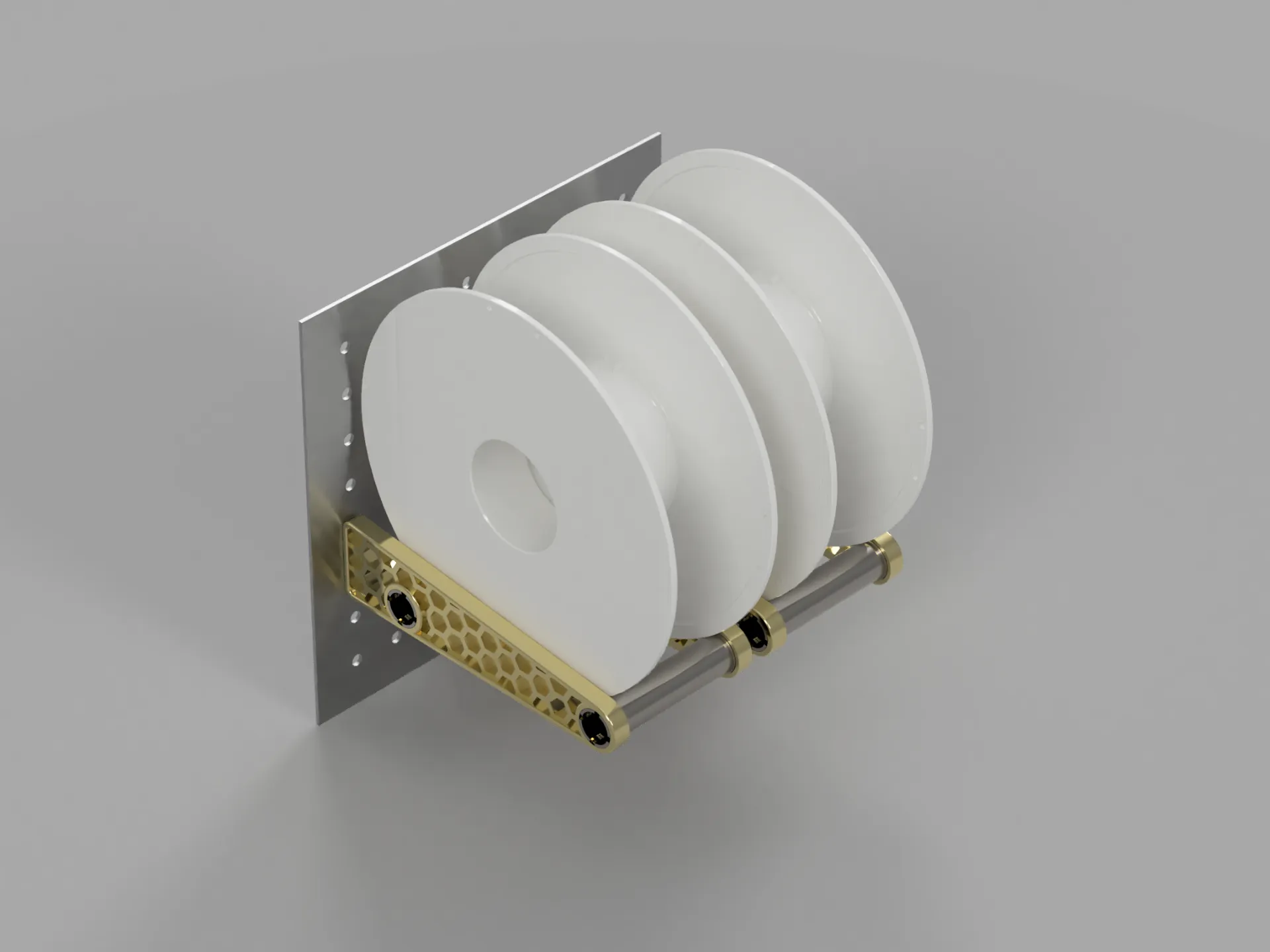

Mode 3

2 spools on 3 holders with short beams, this is compatible with the standard 1kg or larger spool. From now on, each extra spool needs only 1 extra holder. This arranges the spool at a closer distance

Use short beams, two spools per three holders, compatible with standard 1kg or larger spools. From now on, each extra spool needs only one extra holder. This mode arranges the spools at a closer distance

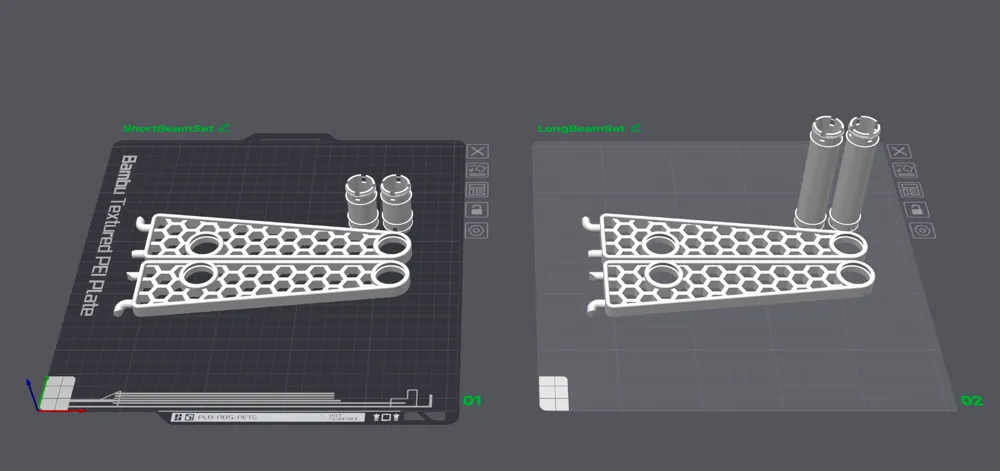

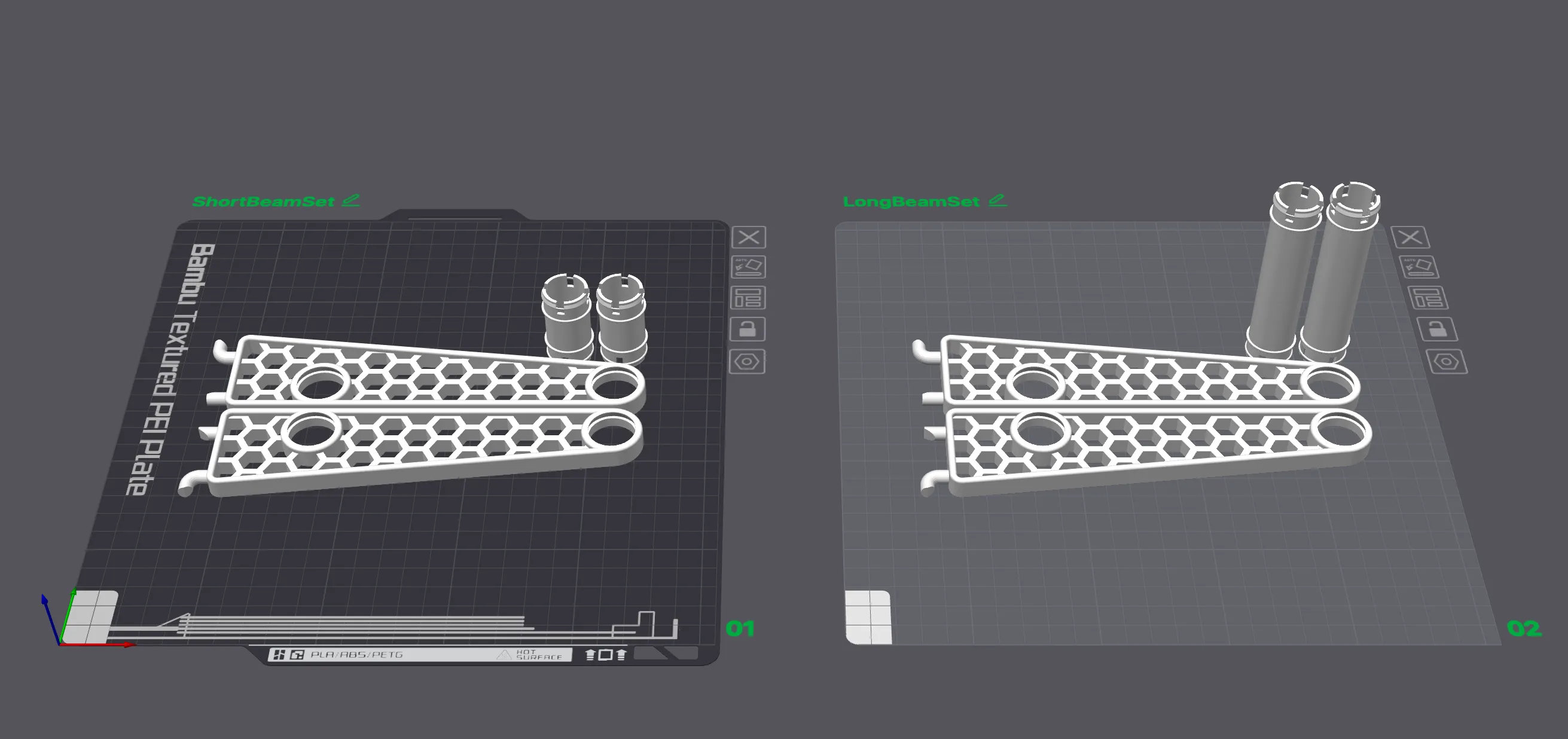

Printing Guide

Print without support! PLA works well (I use PLA + mounting mode 1), but ABS/PC is more worry-free

Please cool down the print before mounting it to the pegboard, lubricant is also recommended

Print without support! PLA works well (I use PLA + mounting mode 1), but ABS/PC is more worry-free

Please cool down the print before mounting it to the pegboard, lubricant is also recommended
