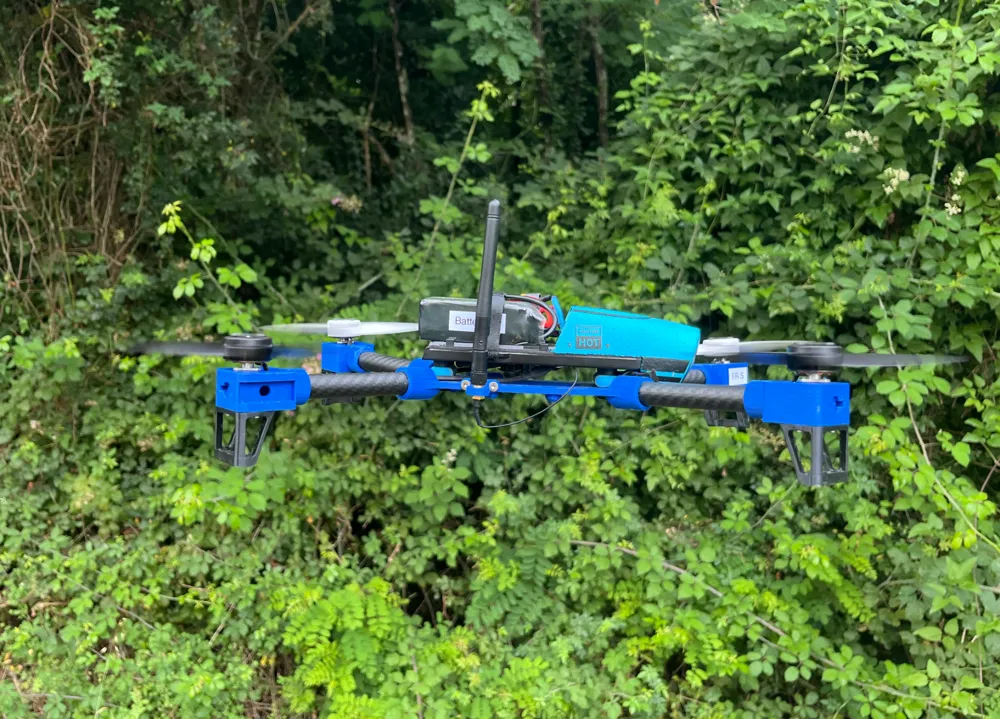

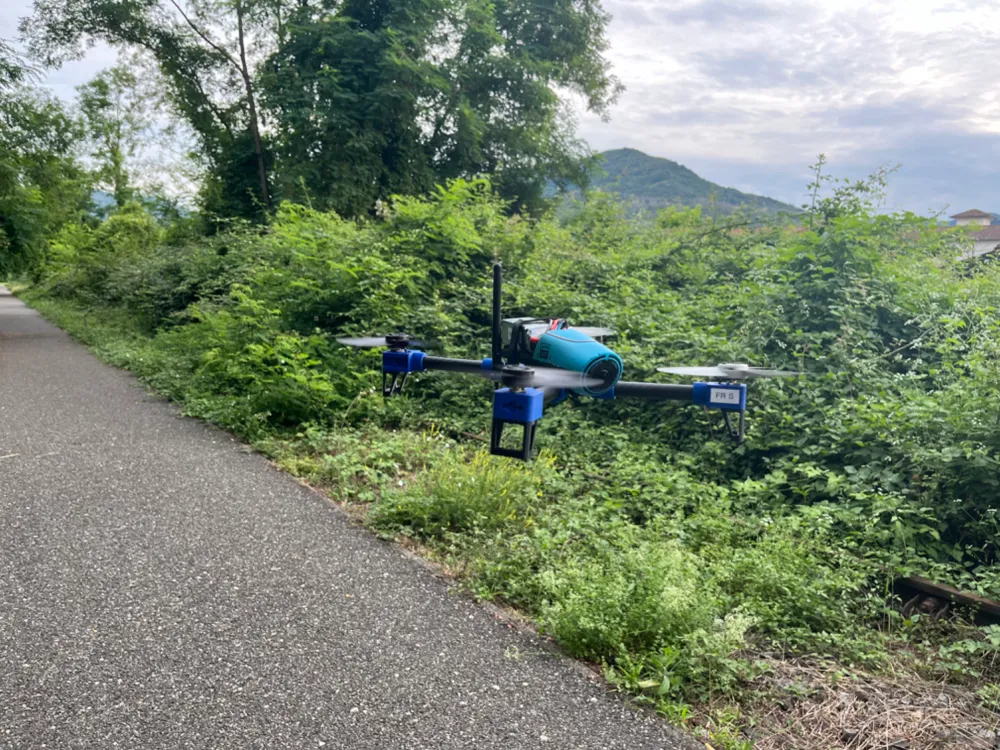

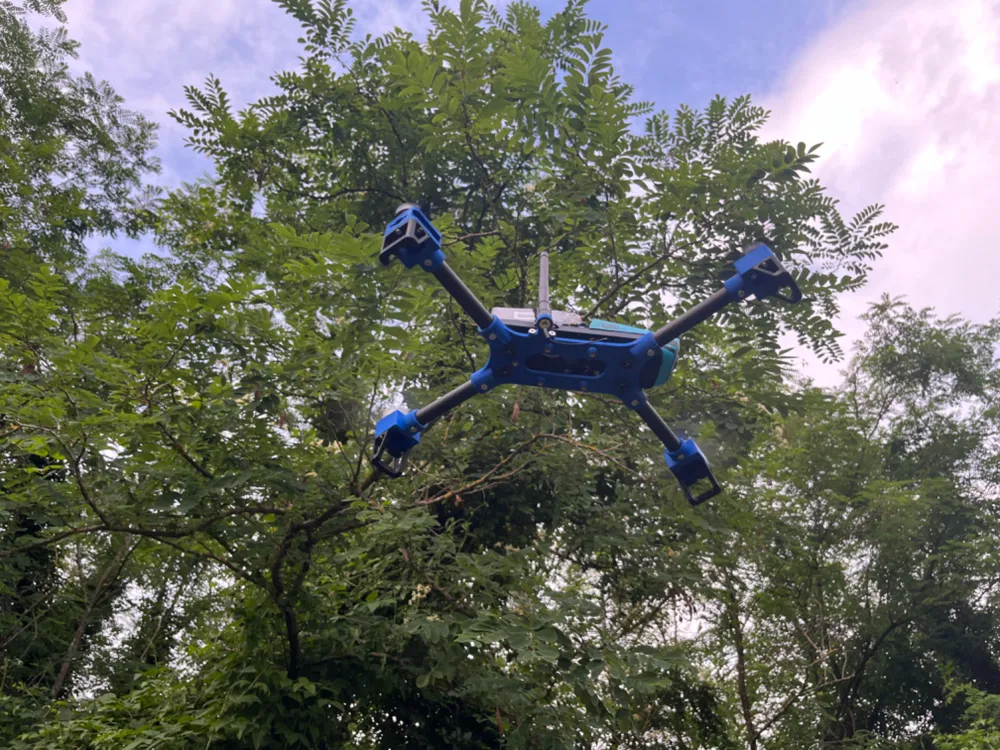

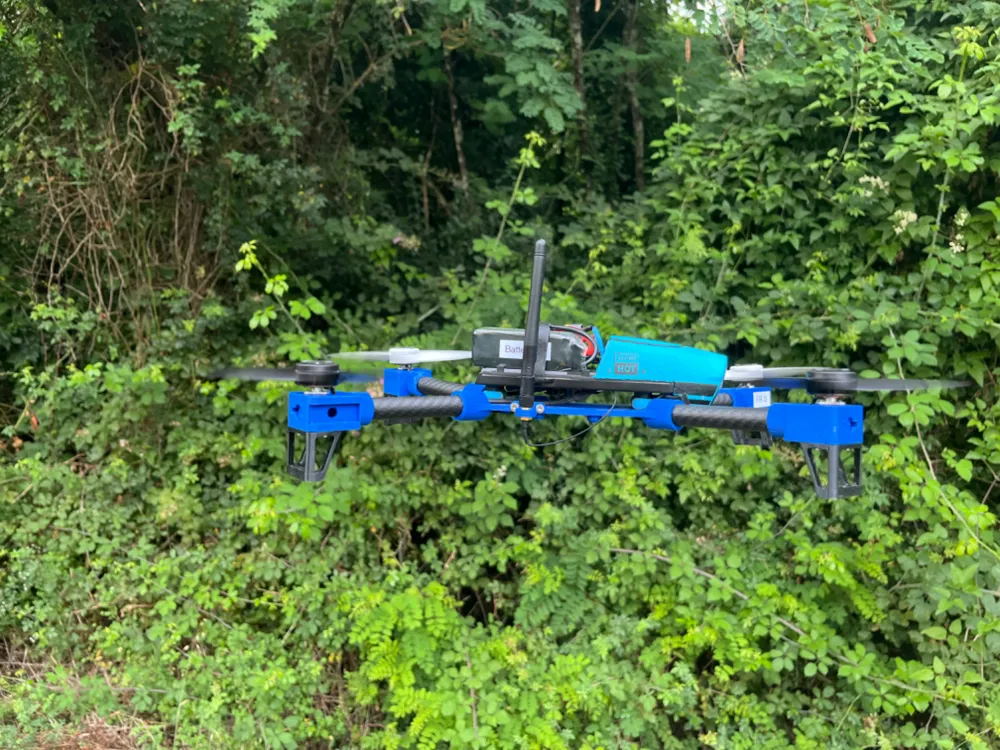

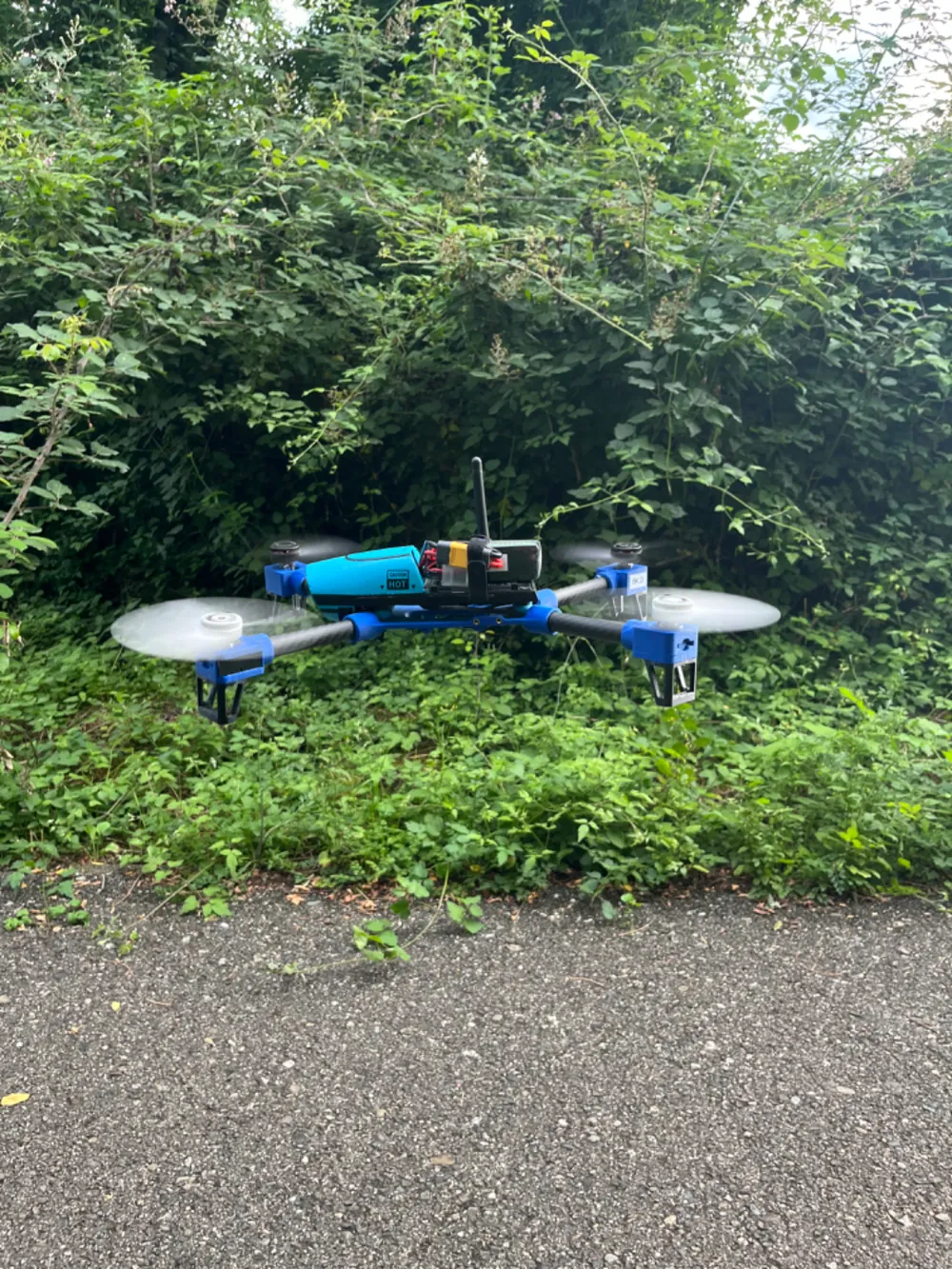

Parrot Bebop 1 modular body

INTRO:

I have completely redesigned the drone body, making two main changes :

The first is the addition of position lights on the sides to increase the drone's visibility.

The second is the inclusion of a modular system through threaded inserts, allowing the use of different antennas from the original ones or the attachment of future modules to the drone.

DESCRIPTION OF 3D PRINTED PARTS:

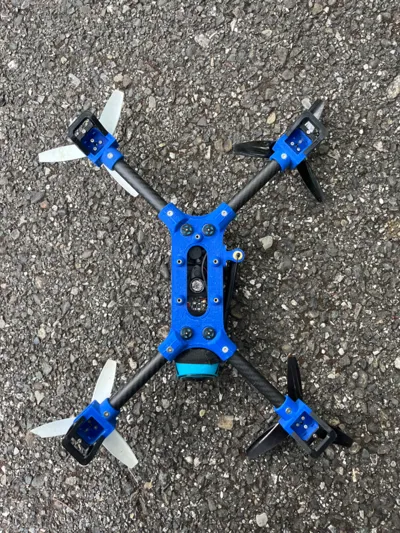

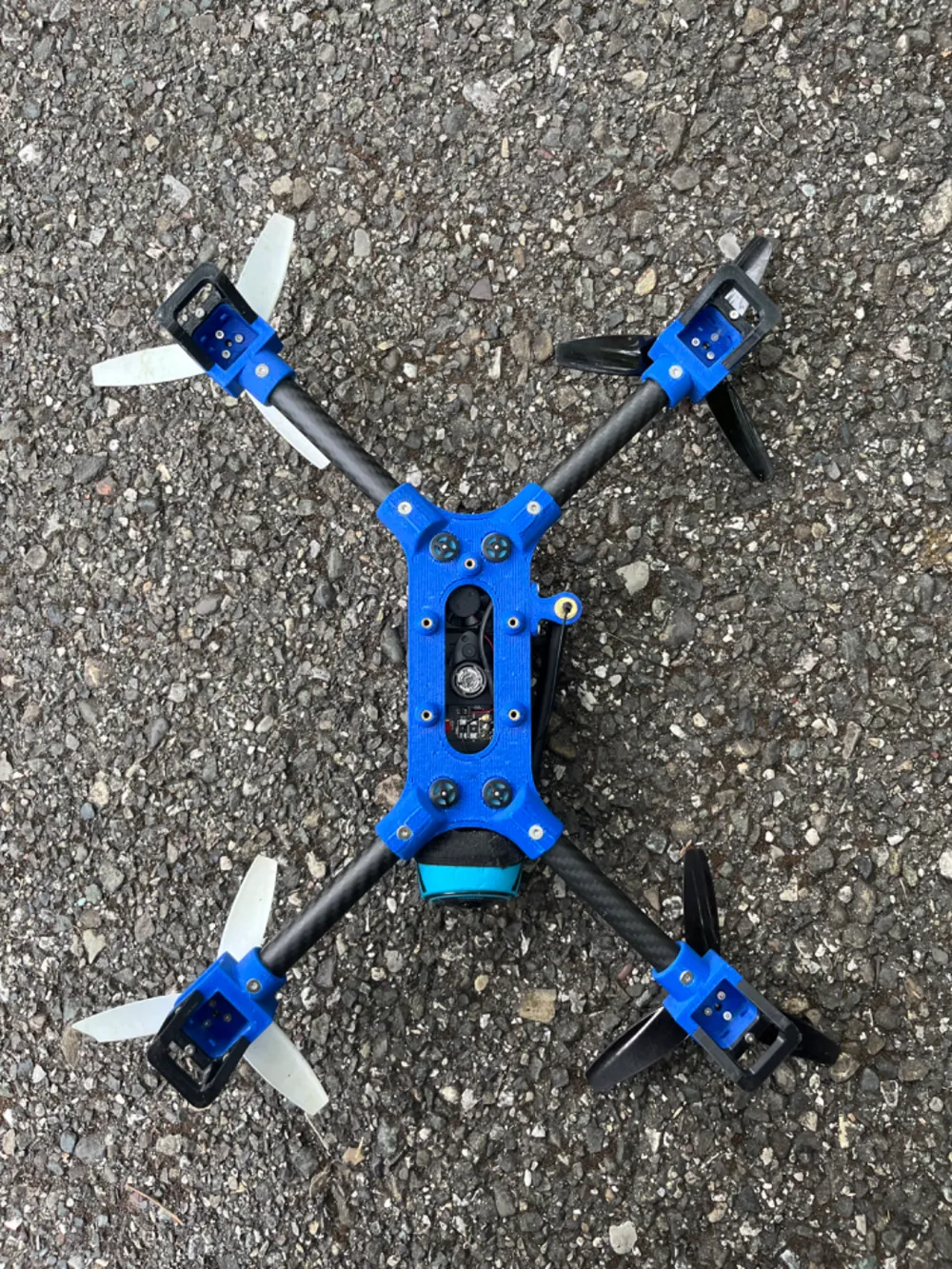

• Main body

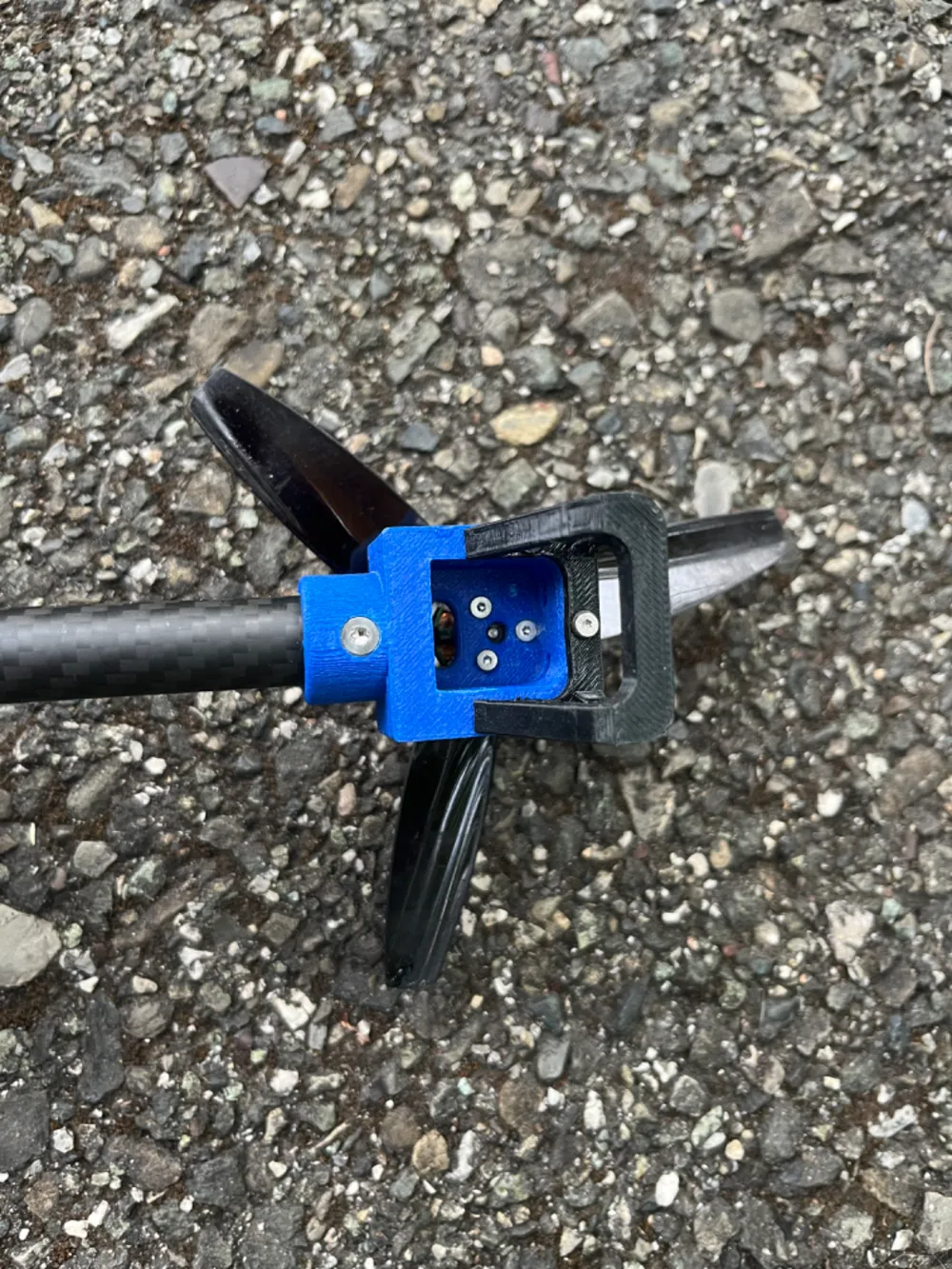

• Support for motors, and position lights (Red left side, Green right side)
  • There are two versions, one for stock Parrot antennas, and one to use with other antennas

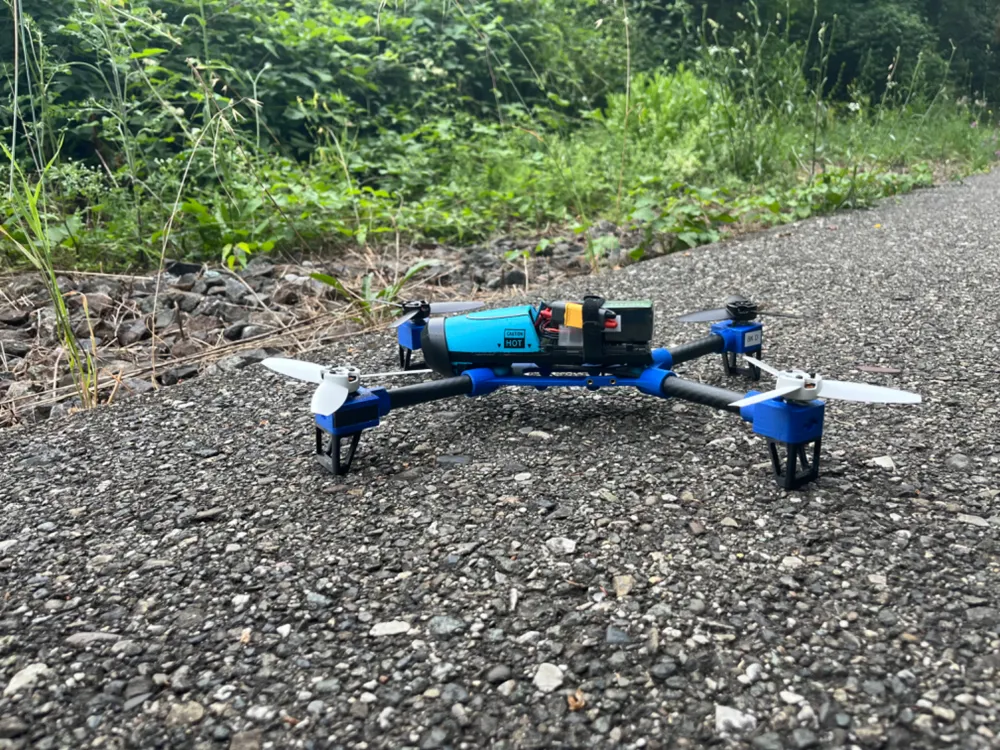

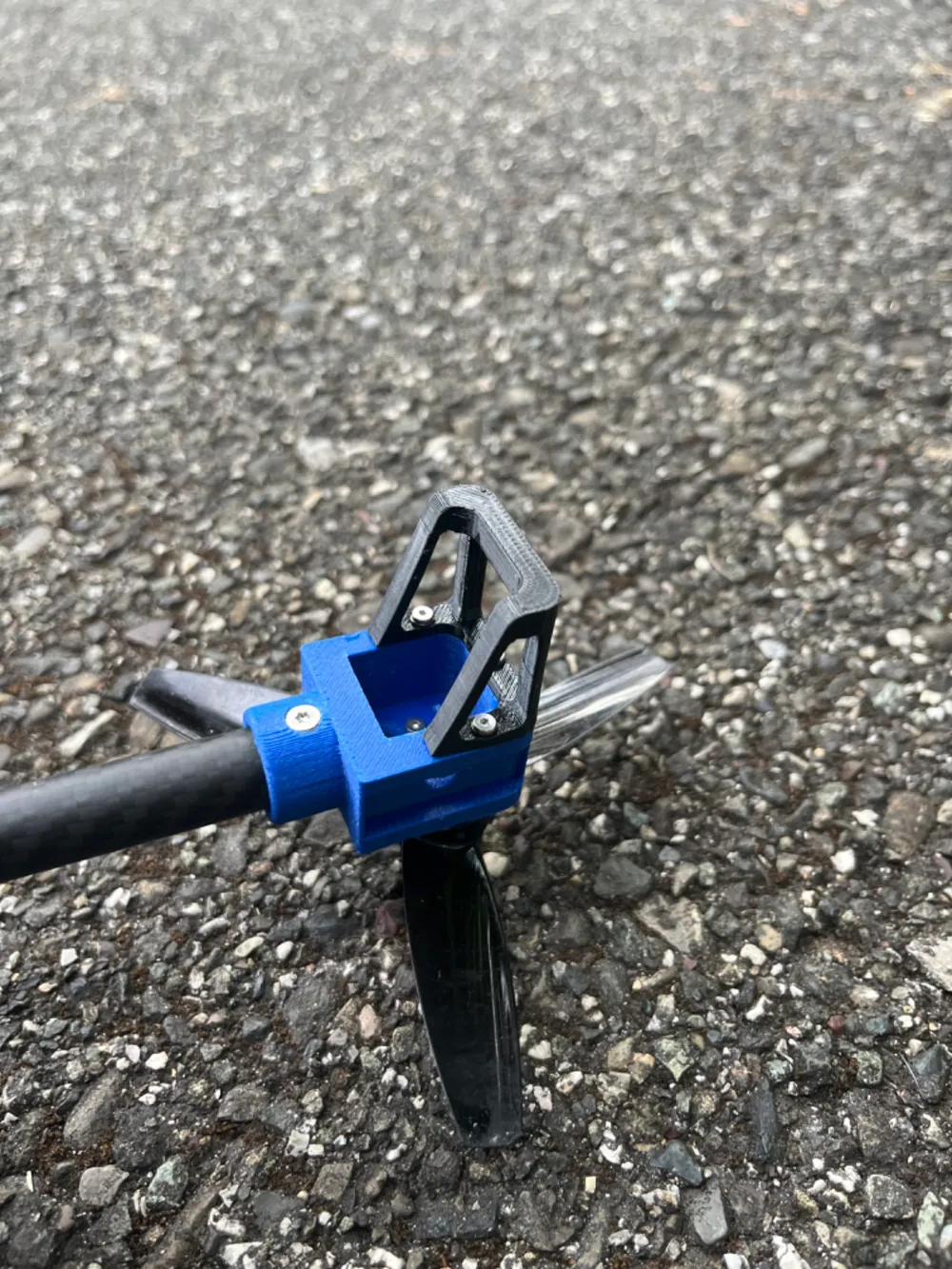

• Landing feet

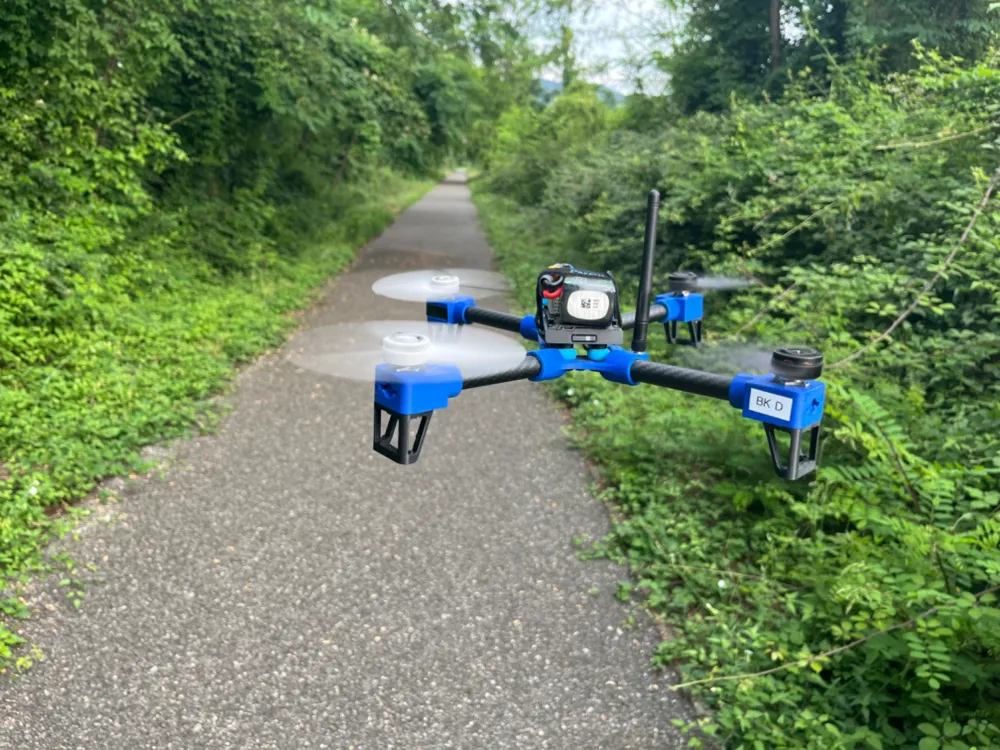

• Side SMA antenna support

MATERIAL:

• For main body, support of motors and antenna support I've used ABS-GF, but you can use other type of resistant material
• For landing feet: TPU (to better absorb impacts)

BOM:

All additional parts needed for the drone are mentioned in the PDF files below, there are two versions: one for stock antennas (BOM_stock.pdf) and one to use different antennas (BOM_NO_STOCK.pdf)
