Description

UPDATE: Fixed spelling of Rechargeable (note I did not update the cover photo, so the image still shows the incorrect spelling)

UPDATE: Added an A1 Mini compatible print profile with the prime tower disabled

UPDATE: The AA box had a minor error which has been fixed.

Remix of a parametric rugged box from https://www.printables.com/model/258431-rugged-box-parametric

Required: The hinges and latches for the box require a way of fixing them. I recommed M3x30mm Cap Head bolts as they fit just right, and are simply and cheap to buy.

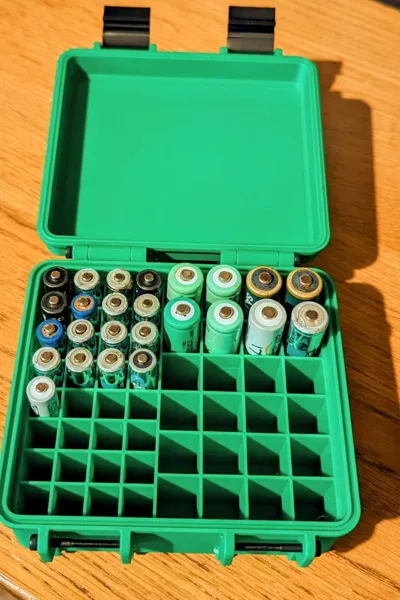

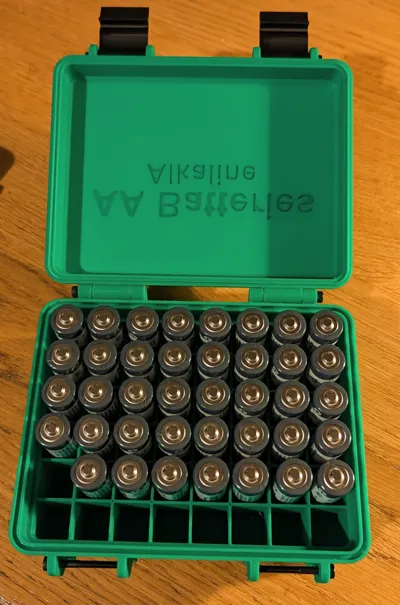

The supplied Fusion file was modified to simple add the battery compartments to the inside of the boxes. There are 3 variants, one for AA, one for AAA and one for mixed. Each version can hold 48 batteries. The labels on the models were added using Bambu Studio, so will be easy to adjust to whatever your requirements are.

Type C battery version can be found here https://makerworld.com/en/models/572406

PP3/9V version casn be found here https://makerworld.com/en/models/1806479-rugged-pp3-9v-battery-box-for-21-batteries#profileId-1926838
