FPV-Wing-Racer (rev.2) Walksnail

Remixed by

Print Profile(1)

All
P1S
X1
A1 mini
X1E
X1 Carbon
P2S
H2D
P1P
H2S
A1
H2C
H2D Pro
X2D
A2L

PETG 0.2mm layer
PETG 0.2mm layer
Designer
1 h
2 plates

Open in Bambu Studio
Boost
62
104
1
1
87
16
Released

Description

Remix Original Designer Whitespace💗

Features:

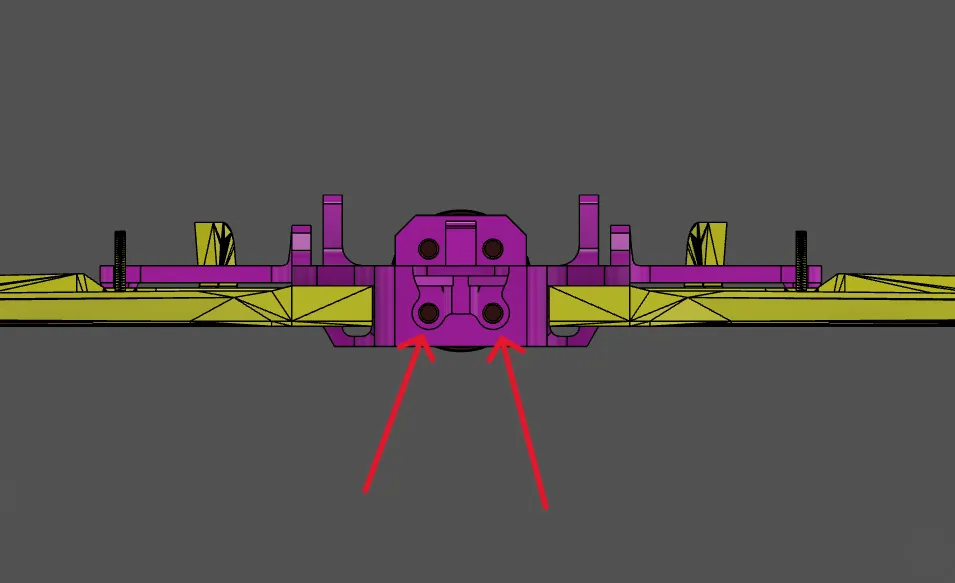

  • 25.5mm x 25.5mm Mounting

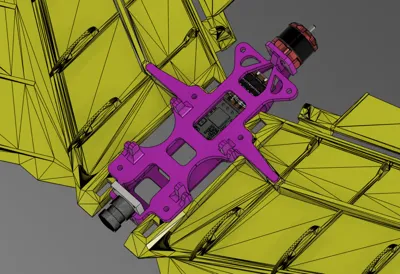

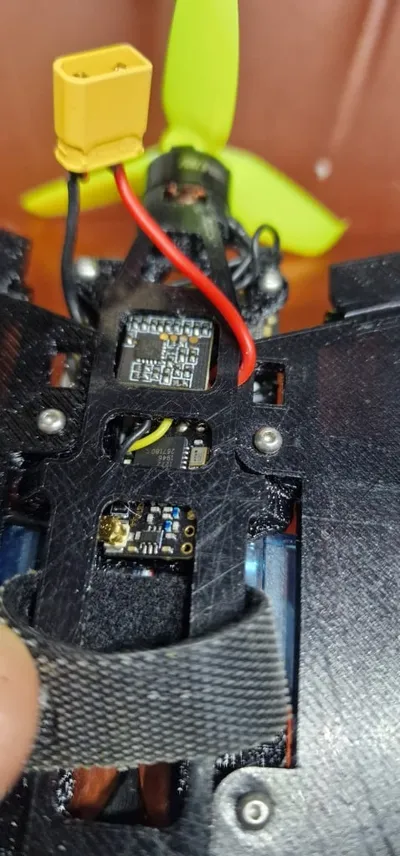

  • Space inside for RX and ESC
  • Canopy, Still need to test the Canopy

About ~87g

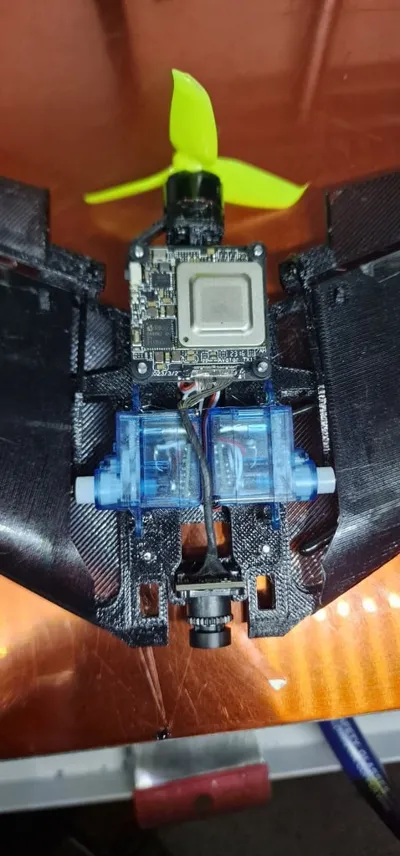

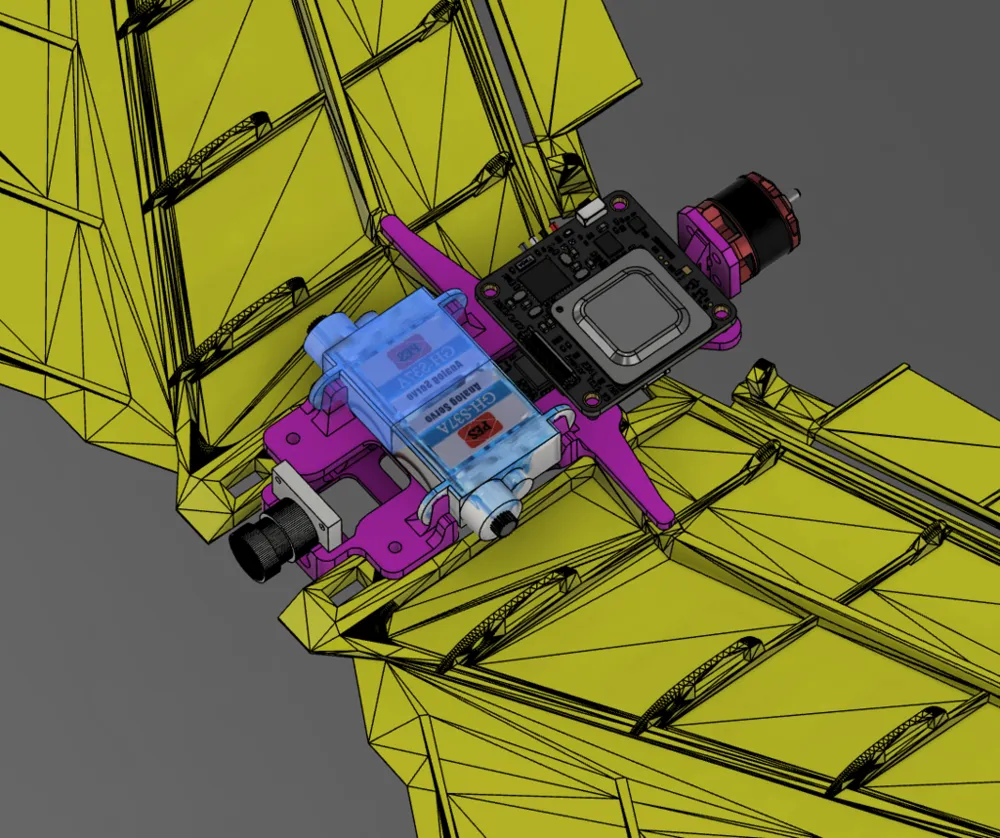

Parts I used:

  • Receiver

TBS CROSSFIRE NANO RX



















  • ESC

DYS XSD 7A BLheli_S













  • Servo

PES GH-S37A 3.7g Servo













  • VTX

Walksnail Avatar HD Mini 1s Lite Kit















  • Motor

SZ Speed 1104 7500kv

If I have time, will make a 1.7g Servo Version.
