Everything Presence Lite PIR and RGB Cover
Remixed by
IP Report
Print Profile(1)
0.2mm layer, 2 walls, 15% infill
Designer
39 min
1 plate
Open in Bambu Studio
Boost
6
6
2
0
15
6
Released
Description

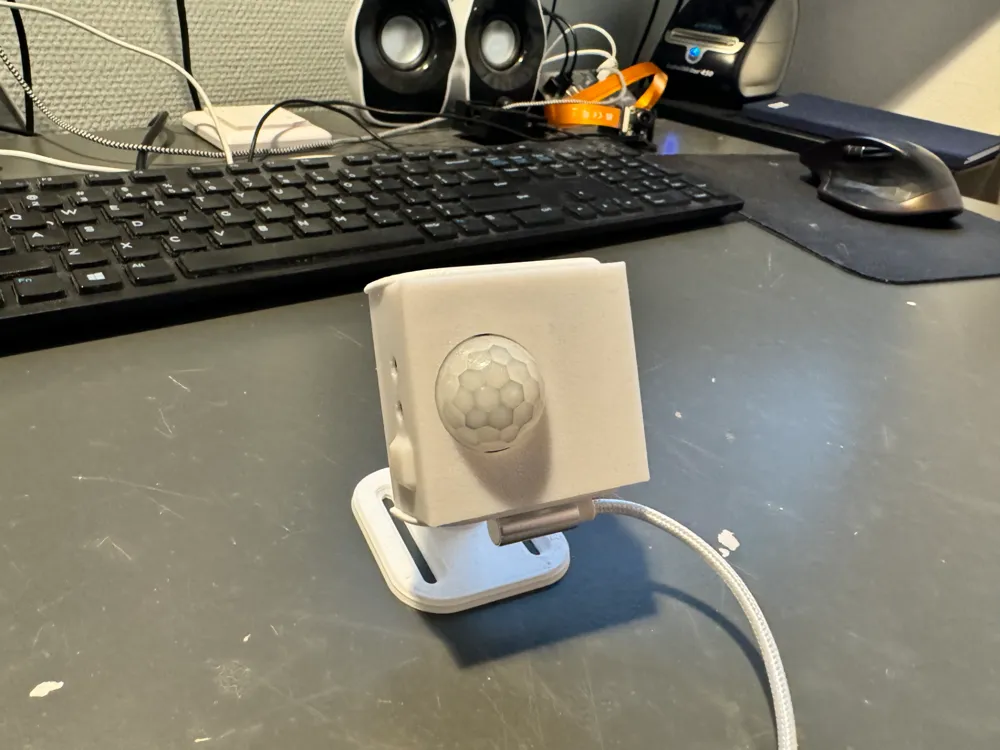

A replacement cover for the Everything Presence Lite by EverythingSmartHome:
https://shop.everythingsmart.io/en-nl/products/everything-presence-lite

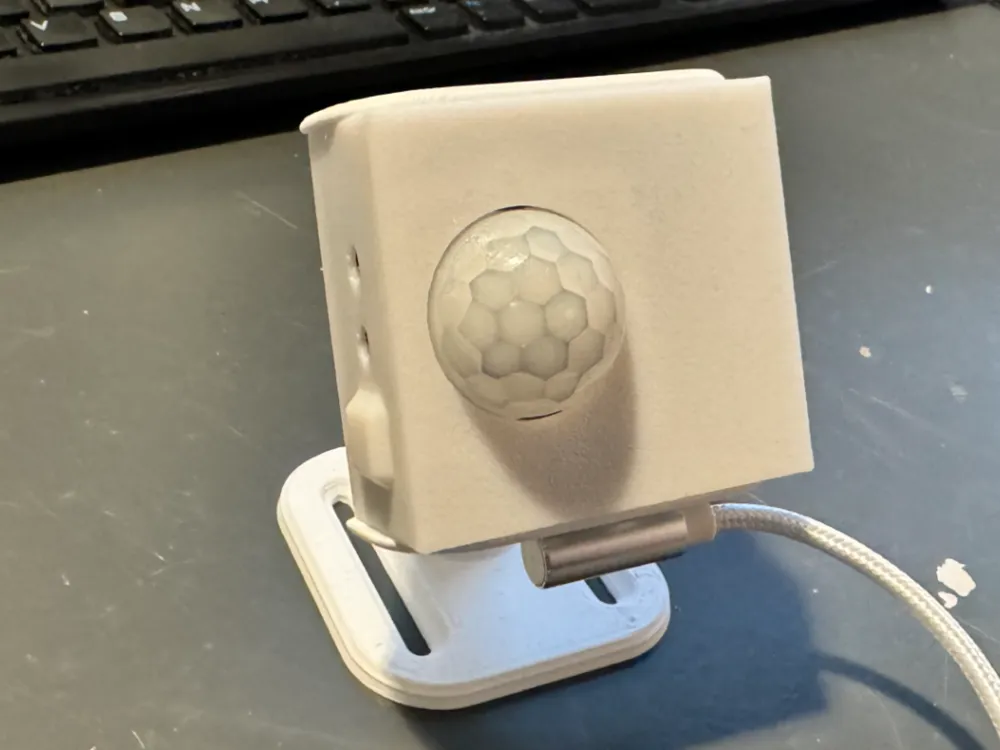

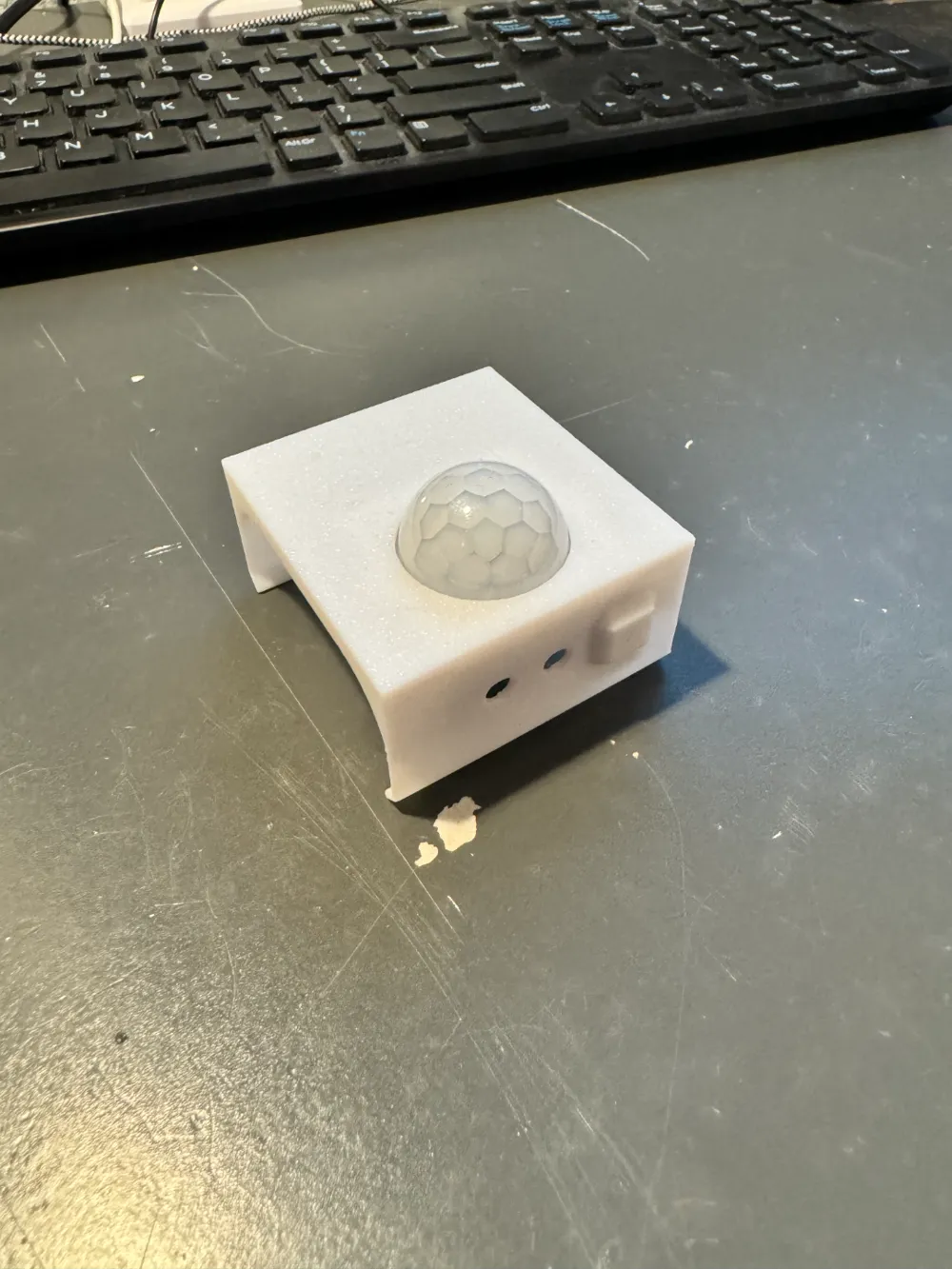

This cover makes it easy to add a PIR sensor and an RGB indicator light to the sensor.
The RGB hole is 5mm so a standard 4.7mm rgb led will fit inside (from a strip).

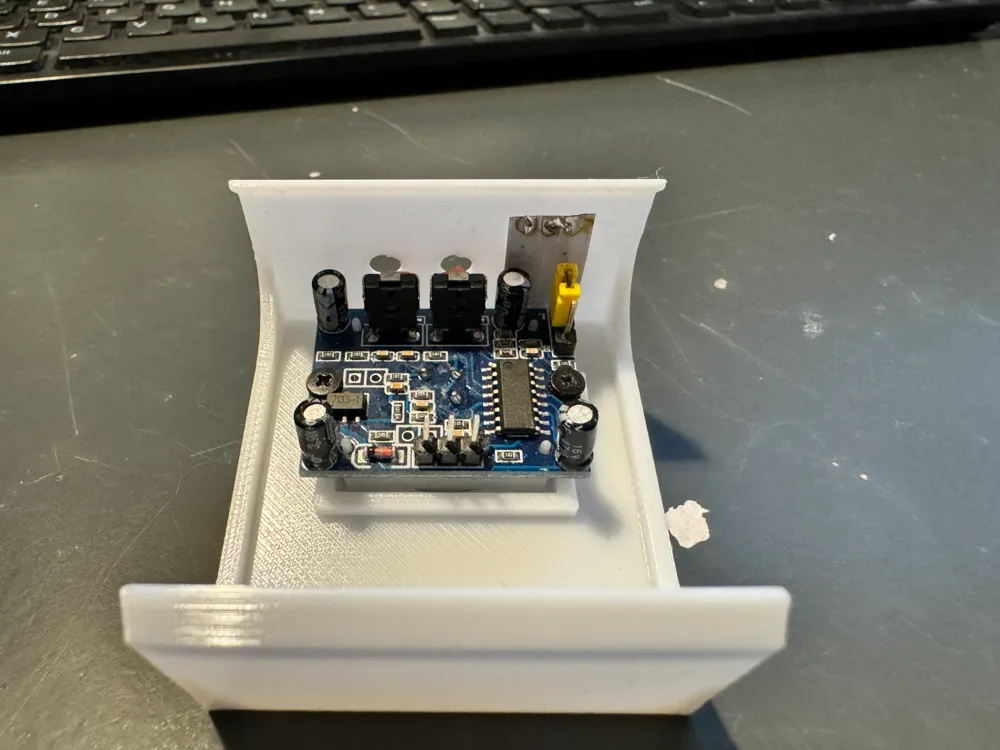

The PIR sensor is this type: HC SR-501

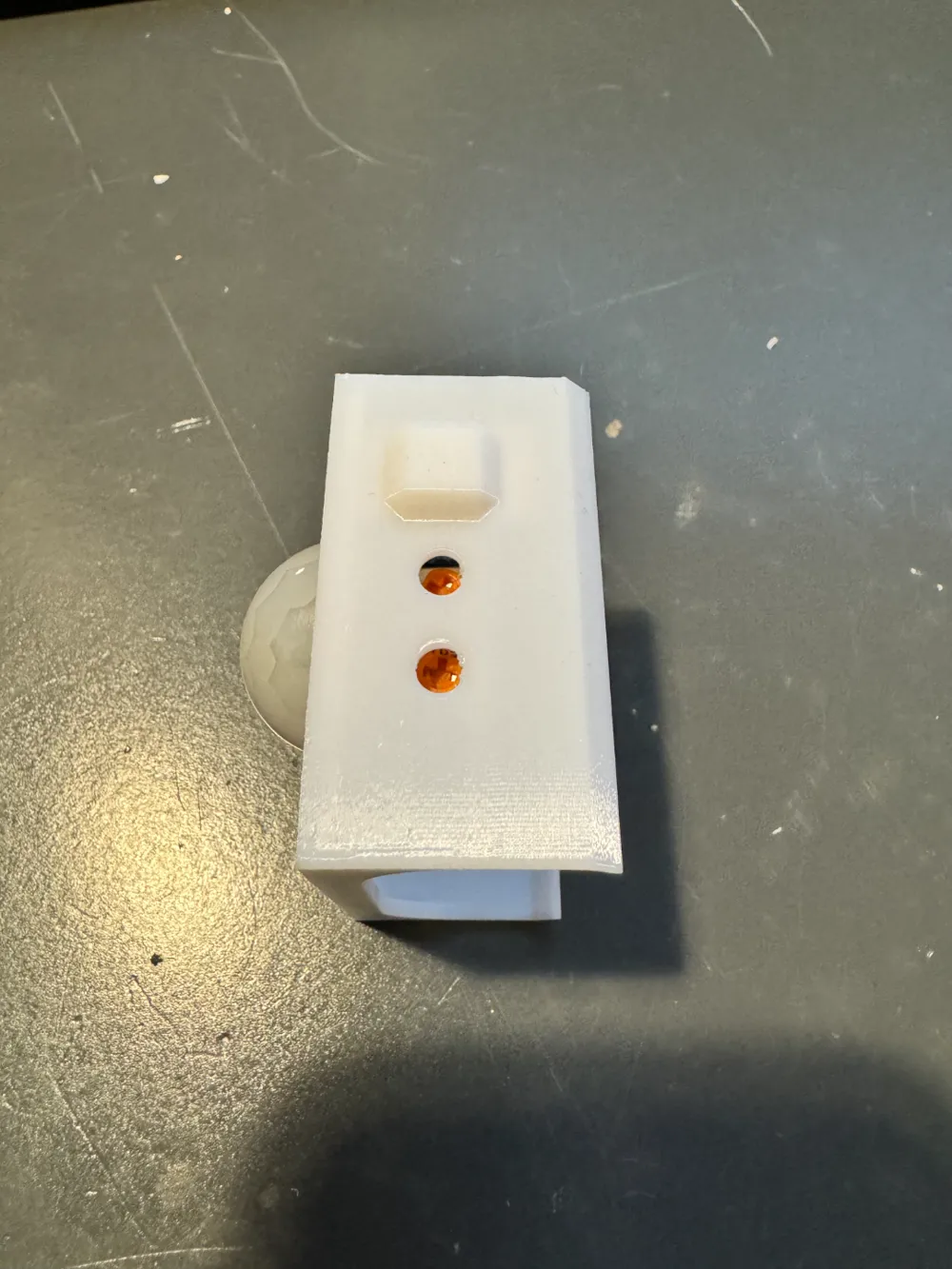

The cover also has 2 holes for the adjustment potentiometers of this sensor.
See this issue on github for usable pins and other info:
https://github.com/EverythingSmartHome/everything-presence-lite/issues/36
This remix is based on
License
This user content is licensed under a
Creative Commons Attribution-Noncommercial-Share Alike
